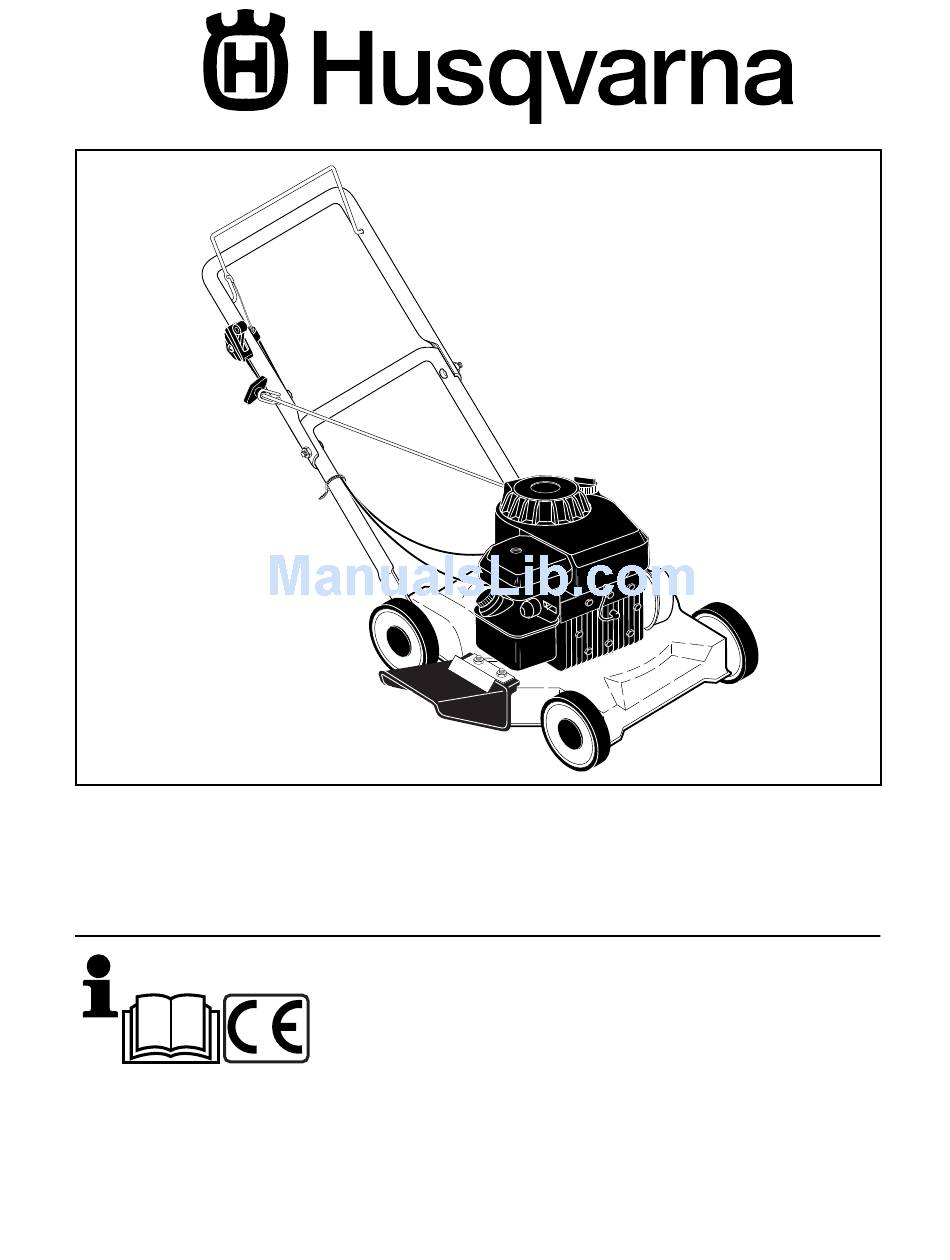

Page 1
Instruction manual Please read these instructions care ful ly and make sure you un der stand them before using this ma chine. Anleitungshandbuch Bitte lesen Sie diese Anleitungen sorg- fältig durch und vergewissern Sie sich, daß Sie diese verstehen, bevor Sie die Maschine in Betrieb nehmen.
SAFE OPERATION PRACTICES FOR PE DES TRI AN-CONTROLLED ROTARY LAWNMOWERS IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death. Training • Read the instructions carefully.
Page 4
SICHERHEITSVORKEHRUNGEN FÜR HANDGEFÜHRTE RASENMÄHER MIT ROTATIONSKLINGE WICHTIG: Diese mähmaschine kann hände und füsse abtrennen und gegenstände mit hoher geschwindigkeit schleudern. Nichtbeach- tung der folgenden sicherheitsvorschriften könnte schwere oder tödliche verletzungen zur folge haben. I. Schulung • Die Anleitungen sorgfältig durchlesen. Mit den Bedienungsele- menten und der vorschriftsmäßigen Bedienung der Maschine vertraut machen.
Page 5
MESURES DE SÉCURITÉ D'UTILISATION D'UNE TONDEUSE À GAZON À CON- DUCTEUR MARCHANT ATTENTION: Cette tondeuse est capable d’amputer mains ou pieds et de projeter des objets. l’inobservation des règles de sécurité ci-dessous peut être la cause de blessures sérieuses voire mortelles. I.
Page 6
NORMAS DE FUNCIONAMIENTO SEGURO PARA CORTACÉSPEDES GIRATORIOS DE PIE IMPORTANTE: Esta maquina cortadora es capaz de amputar las manos y los pies y de lanzar objetos. Si no se observan las instruc- ciones de seguridad siguientes se pueden producir lesiones graves o la muerte. I.
Page 7
VEILIG WERKEN MET HANDBEDIENDE GRASMAAIMACHINES BELANGRIJK: Deze maaimachine kan handen en voeten amputeren en voorwerpen wegslingeren. Het niet opvolgen van deze veiligheidsinstructies kan ernstig of dodelijk letsel tot gevolg hebben. I. Training • Lees de instructies aandachtig. Zorg dat u vertrouwd bent met de bedieningselementen en het juiste gebruik van de ma chine.
Page 8
MISURE OPERATIVE DI SICUREZZA PER TOSAERBA CONTROLLATE DA PEDONI ATTENZIONE: Questo trattorino tosaerba ha una potenza suffi ciente ad amputare mani e piedi e a scagliare oggetti. La mancata os- servanza delle seguenti istruzioni antinfortunistiche potrebbe causare lesioni gravi e persino il decesso della vittima. I.
Page 9
These symbols may appear on your machine or in the literature supplied with the product. Learn and understand their meaning. Diese Symbole fi nden Sie auf Ihrer Maschine oder in Unterlagen, die mit dem Produkt ausgehändigt wurden. Bitte machen Sie sich mit deren Bedeutung vertraut.
Page 12
(1) ROPE GUIDE HOLE (2) HEX BOLTS (3) LOCK NUTS (4) UPSTOP BRACKET (5) HEX WASHER HEAD SCREW (1) FÜHRUNGSÖSELOCH (2) SCHRAUBE,SECHAKANTKOPF (3) GEGENMUTTERN (4) STOPPVORRICHTUNG FÜR DEN BEDIENUNGSHEBEL (5) FLANSCHSCHRAUBEN, SECHSKANTKOPF (1) TROU DU GUIDE-CORDON (2) VIS Å TÊTE À SIX PANS (3) CONTRE-ÉCROUS (4) TALON D’ARRÊT DE LA COMMANDE MOTEUR (5) VIS À...
(1) BRAKE YOKE (2) UP-STOP BRACKET (1) BEDIENUNGSHEBEL (2) STOPPVORRICHTUNG FÜR DEN BEDIENUNGSHEBEL (1) COMMANDE DE MANOEUVRE (2) TALON D’ARRÊT SUR LA COMMANDE (1) MANDO (2) TOPE PARA MANDO (1) BEDIENINGSHENDEL (2) AANSLAGNOK VOOR BEDENINGSHENDEL (1) BLOCCO COMANDI DEL MOTORE (2) FERMO DEL BLOCCO COMANDI Brake Yoke •...
Page 14
(1) BRAKE ARM (1) BRAZO DE FRENO (2) SLOT (2) ESCOTADURA (3) MOUNTING (3) FIJACION BRACKET (1) REMARM (1) BREMSARM (2) UITHOLLING (2) ÖSE (3) BEVESTIGING (3) BEFESTIGUNG (1) BRACCIO (1) BRAS DE FREIN DEL FRENO (2) SORTIE (2) PASSACAVO (3) FIXATION (3) FISSAGGIO Cable para mando...
A garanzia di un funzionamento sicuro della macchina, è basilare installare la protezione posteriore piedi. Discharge Guard Place discharge guard on top of discharge opening of lawn mower housing. • Place bracket on top of discharge guard, position bracket and guard on mower and secure with bolts and nuts supplied.
The cutting height is determined by the position of the wheels on the lawn mower housing. There are four (4) available heights of cut on your lawn mower. The 2" (50mm) cut ting height is the most recommended cutting height for most cutting.
"MAX" (1) UPPER HANDLE (2) BRAKE YOKE (3) STARTER HANDLE (1) OBERER FÜHRUNGSHOLM (2) BEDIENUNGSHEBEL (3) STARTHANDGRIFF (1) GUIDON SUPÉRIEUR (2) COMMANDE (3) POIGNÉE DE STARTER Starting and Stopping Place the mower on a fl at surface. Note: not on gravel or similar. Fill the tank with petrol, not oil-blended.
"MAX" (1) MANILLAR SUPERIOR (2) MANDO (3) MANGO DE ARRANQUE (1) OVERSTE STUUR (2) BEDIENINGSHENDEL (3) STARTHENDEL (1) MANUBRIO SUPERIORE (2) COMANDO (3) MANIGLIA DI AVVIAMENTO Arranque y Parada Colocar el cortacésped en una superfi cie llana (sin gravilla, guijarros, etc.). Rellenar el tanque de gasolina pura, sin aceite.
Page 20
The mower should not be used on ground that slopes more than 15°. This could cause engine lubrication problems. Gebrauch Der Rasenmäner solite nicht in einem Gelände benützt werden, das eine Neigung von mehr als 15° Grad hat. In solchen Fällen können Schmierungsprobleme im Motor auftreten.
Maintenance Always remove the spark plug lead before repair, cleaning or main te nance work. After 5 hours running time, tighten screws and nuts. Check the oil. The spark plug must be at the highest point on the mower when it is tilted up. Wartung Ziehen Sie immer das Zündkerzenkabel ab, bevor Sie mit der Reparatur, Reinigung oder mit Wartungsarbeiten beginnen.
(1) OIL DRAIN PLUG (1) ÖLABLAßSCHRAUBE (1) BOUCHON DE VIDANGE D'HUILE (1) TAPON DE DRENAJE PARA ACEITE (1) AFTAPPLUG OLIE (1) TAPPO DI SCARICO DELL'OLIO Annually (After end of season) Grinding and balancing the cutter blade. Remove the spark plug lead. Fit- ting and removing the blade require the use of protective gloves.
(1) SCREW (2) FILTER (3) BODY (1) SCHRAUBE (2) FILTER (3) GEHÄUSE (1) VIS (2) FILTRE (3) CORPS (1) TORNILLO (2) FILTRO (3) CUERPO (1) SCHROEF (2) FILTER (3) HUISSTE AFBEELDING (1) VITE (2) FILTRO (3) SEDE Cleaning of air fi lter. Slacken the screw, remove the lid and remove the fi lter cartridge.
Page 24
532 19 66-59 Rev. 2 05.31.05 BY Printed in U.S.A.
