BIOSTEP
™
AND
™
BIOSTEP
CLINICAL PRO
SEMI-RECUMBENT ELLIPTICAL
INSTALLATION/OPERATION MANUAL
950-214
950-215
950-220
950-245
20 Ramsay Road, Shirley, New Y ork, 11967-4704, Tel: 800-224-6339 (Int'l 631-924-9000), Fax: 631-924-9338, Email: info@biodex.com, www.biodex.com
FN: 08-082 3/08
B
IODEX
Biodex Medical Systems, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 950-214 and is the answer not in the manual?

Questions and answers

Related Manuals for biodex 950-214

Summary of Contents for biodex 950-214

  • Page 1 BIOSTEP ™ ™ BIOSTEP CLINICAL PRO SEMI-RECUMBENT ELLIPTICAL INSTALLATION/OPERATION MANUAL 950-214 950-215 950-220 950-245 IODEX Biodex Medical Systems, Inc. 20 Ramsay Road, Shirley, New Y ork, 11967-4704, Tel: 800-224-6339 (Int’l 631-924-9000), Fax: 631-924-9338, Email: info@biodex.com, www.biodex.com FN: 08-082 3/08...
  • Page 2 ™ ™ BIOSTEP AND BIOSTEP CLINICAL PRO SEMI-RECUMBENT ELLIPTICAL This manual covers installation and operation procedures for the following BioStep ™ Semi-Recumbent Elliptical products: #950-214 BioStep ™ , Clinical Pro, Japanese #950-215 BioStep ™ , 115 VAC #950-220 BioStep ™...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. INTRODUCTION..........................4 2. IMPORTANT SAFETY INSTRUCTIONS ..................5 3. PARTS AND ADJUSTMENTS......................7 4. QUICK-START OPERATION ......................9 5. BASIC OPERATION ..........................10 • Quick-Start Operation • Standard Operation 6. DISPLAY PARAMETERS ........................12 7. SELECTING THE RESISTANCE MODE..................13 • Constant Resistance Control (Aerobic Exercise) •...

  • Page 4: Introduction

    1. INTRODUCTION Designed for versatility and durability, the Biodex BioStep and BioStep Clinical Pro meet the demands of orthopedic, cardiopulmonary, sports medicine, wellness and general conditioning programs. Featuring a work range of 10 to 600 WATTs, plus self-powered, self-charging capabili- ty, the BioStep accommodates a wide variety of people and can be used virtually anywhere.

  • Page 5: Important Safety Instructions

    2. IMPORTANT SAFETY INSTRUCTIONS The Biodex BioStep and BioStep Clinical Pro have been designed and tested to safely provide superior function, results and years of use. Still, it is vital that you follow these important safety instructions at all times when using this device. Read all instructions in this manual before using this device.
  • Page 6 2. DIRECTIVES IMPORTANTES SUR LA SÉCURITÉ DIRECTIVES IMPORTANTES SUR LA SÉCURITÉ Les appareils BioStep et BioStep Clinical Pro de Biodex ont été conçus et testés pour assurer en toute sécurité un fonctionnement et des résultats supérieurs ainsi que des années d’utilisation. Toutefois, il est crucial de porter en tout temps une attention particulière aux directives impor- tantes qui suivent sur la sécurité, lorsqu’on utilise cet appareil.

  • Page 7: Parts And Adjustments

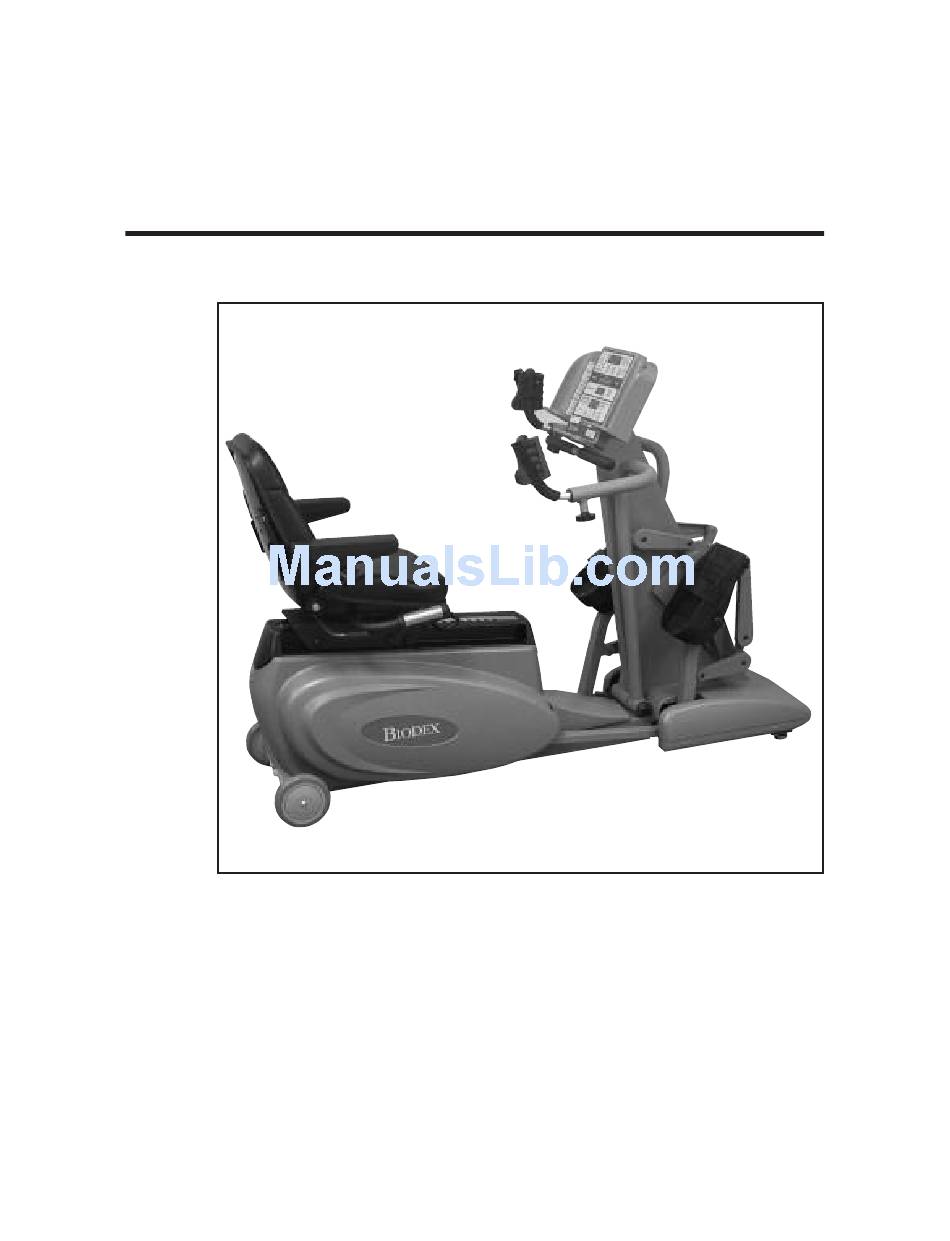

    3. PARTS AND ADJUSTMENTS (Refer to Figure 1.) Figure 1: Parts and adjustment mechanisms. The BioStep and BioStep Clinical Pro includes the following parts and adjustment mechanisms: 1. Display panel 2. Adjustable arms 3. Seat front-to-back release handle 4. Seat front-to-back scale 5.

  • Page 8: Quick-Start Operation

    4. QUICK-START OPERATION The Biodex BioStep is easy to adjust for user comfort. The seat can be moved forward or back and the arms adjust, too. The following section explains how to adjust your BioStep for opti- mum user comfort and positioning. Seat Front-to-Back Adjustment: The seat can be moved forward or back over a range of 15"...
  • Page 9 4. QUICK-START OPERATION Although the BioStep offers advanced programming capability, it also features a “Quick-Start” function that allows the user to immediately begin exercise with factory preset default values serving for the programmable system parameters. Quick-Start operation is simple. Seat the user, adjust the seat forward and back position and foot pedal straps as necessary, and proceed as described below: 1.

  • Page 10: Basic Operation

    5. BASIC OPERATION Figure 2. The BioStep Clinical Pro Display Panel. Figure 3. The BioStep Display Panel. (Refer to Figures 2 and 3.) Quick-Start mode is perfect for acquainting subjects with the BioStep. It gets the user up and exercising in about five seconds. More experienced users, however, will likely prefer the ability to personalize their exercise or rehabilitation routine as described below.

  • Page 11: Display Parameters

    6. DISPLAY PARAMETERS With the system turned ON, seat the user, adjust the seat forward and back position and foot pedal straps as necessary, and proceed as follows: NOTE: Steps one through five, below, correspond to the numbered keys on the display. 1.
  • Page 12 6. DISPLAY PARAMETERS The top window of the display panel offers readouts for common parameters of exercise and training interest. For the Biostep, these parameters include Time, WATTs, Calories, METs and Heart Rate with work rate shown in RPMs. For the BioStep Clinical Pro, display parameters include Time, RPM, WATTs, Calories, METs and Heart Rate with work rate shown in WATTs.

  • Page 13: Selecting The Resistance Mode

    7. SELECTING THE RESISTANCE MODE (Clinical Pro Only) The BioStep Clinical Pro provides two modes of operation: Constant Resistance Control and Isokinetic Speed Control. Either mode is selected using the <Select Exercise> key. The BioStep Clinical Pro defaults to Constant Resistance Control. Pressing the <Select Exercise> key will let you toggle between the two choices.

  • Page 14: Selecting And Customizing Exercise Profiles

    8. SELECTING AND CUSTOMIZING EXERCISE PROFILES Just what is “totally accommodating, variable resistance?” Simply put, this means that at any point in the range of motion (in this case, the stepping revolution) the resistance encountered by the user will exactly match the force exerted. In other words, the harder one pushes on the pedal, the greater the resistance.

  • Page 15: Constant Resistance Profile Examples

    8. SELECTING AND CUSTOMIZING EXERCISE PROFILES The BioStep and BioStep Clinical Pro features five pre-programmed exercise protocols. These can be used in conjunction with over 30 resistance levels for Constant Resistance Control or 20 speed settings for Isokinetic Speed Control applications (Clinical Pro only). Each pre-programmed exercise protocol can be used as is, or can be customized by changing the weight, time, speed or resistance level values.

  • Page 16: Selecting & Customizing Exercise Profiles

    CONTENTS With a Peak Effort Level of "20" (200 WATTS), a Constant Power Aerobic Interval Training Profile will appear like the following example. (Refer to next page for profile definition): Peak Effort Level: 20 (200 WATTS) Warm Up at level 9 (20 x 45%) Initial Low = 13 (20 x 65%) First High = 20 (peak resistance) Second Low = 13 (20 x 65%)
  • Page 17 CONTENTS Constant Resistance Level with Warm-Up and Cool Down The starting segment (1, warm-up) and ending segment (3, cool down) are set at 25% of selected peak resistance level or the minimum resistance for the first three segments produced in the resistance bar, whichever is greater.
  • Page 18 CONTENTS Anaerobic Interval Training The starting segment (1, warm-up) and ending segment (14, cool down) are set at 45% of select- ed peak resistance level or the minimum resistance for the first three segments produced in the resistance bar, whichever is greater. Low level segments, (3,5,7,9,11,13) are set at 65% of selected peak resistance.

  • Page 19: Isokinetic Profiles Defined

    CONTENTS ISOKINETIC PROFILES DEFINED (Clinical Pro Only) Minimum time is six minutes for all profiles, target resistance level LED will flash during time duration for that segment. All segments following warm up are based on the actual work rate performed in the immediate previous segment. Constant Resistance (Manual Mode) Speed is consistent for the duration of this profile.
  • Page 20 9. SRC OPTIONS Aerobic Interval Training The starting segment (1, warm-up) is however hard the patient chooses to work. Initial Low level equals 25% more than the average actual work rate performed in the warm-up segment. First High level equals 100% more than the average actual work rate performed in the initial low level.

  • Page 21: Heart Rate Monitoring

    9. HEART RATE MONITORING Third High Level equals 300% more than the average actually work rate performed in the Second Low level. Third Low Level equals 75% less than the average actual work rate performed at the Third High Level. Fourth High Level equals 300% more than the average actually work rate performed in the Third Low level.

  • Page 22: Heart Rate Chart

    9. HEART RATE MONITORING HEART RATE MONITORING The BioStep’s Heart Rate Monitoring feature allows clinicians to monitor user heart rate during exercise sessions. This can be done using the heart rate contact handgrips, or by attaching the wireless Polar heart rate monitor belt directly to the patient. Heart Rate Contact Handgrips To use the heart rate contact handgrips for heart rate monitoring, the patient needs only to grasp both BioStep heart rate contact handgrips while exercising.

  • Page 23: Additional Considerations

    10. ADDITIONAL CONSIDERATIONS NOTE: If the heart rate is not displayed, or appears to be incorrect, adjust the Heart Rate Chest Strap for improved conductivity, or have the patient reposition both hands on the heart rate handle bar. (You may want to take the user’s pulse rate manually and compare it against the displayed heart rate to confirm accuracy.

  • Page 24: What Is A Met

    10. ADDITIONAL CONSIDERATIONS CAUTION: As with any other piece of user-interactive exercise equipment, certain considerations must be ensured before anyone is allowed to exercise on the Biodex BioStep. Following is a brief summary of some points to consider. 1. All users should have medical clearance prior to undertaking any rigorous exercise program. This is especially necessary for any user with a past history of heart rate problems or known risk factors including: family history of cardiovascular disease, elevated blood pressure, hyperlipidemia, diabetes, obesity, sedentary lifestyle and smoking.

  • Page 25: Biodex Ergometers Support Mets And Aid Exercise Prescription For

    CONTENTS BIODEX ERGOMETERS SUPPORT METs AND AID EXERCISE PRESCRIPTION FOR BOTH CARDIOPULMONARY AND MEDICAL FITNESS A cardiac stress test typically reports the max MET level achieved by the patient and/or the MET level achieved at the point the test turned positive (often demonstrating schemic changes in the heart muscle and/or inappropriate arrhythmias).
  • Page 26 CONTENTS NOTA – Comme pour tout autre équipement d’exercice interactif avec l’usager, on doit s’assurer du respect de certaines considérations avant de permettre à quiconque de s’exercer sur l’appareil BioStep de Biodex. Voici un bref aperçu de certains points dont il faut tenir compte. 1.
  • Page 27 CONTENTS QU’EST-CE QU’UN MET? L’acronyme MET signifie « équivalent métabolique ». Le MET sert d’unité de mesure pour estimer l’ Resistance demandé au système cardiopul- monaire d’une personne. On utilise souvent les MET pour prescrire des exercices à des patients en cours de réadaptation cardiopulmonaire.
  • Page 28 11. MAINTENANCE RAPPORT ENTRE CALORIES BRÛLÉES, CONSOMMATION D’OXYGÈNE ET MET Pour chaque litre d’oxygène consommé par l’organisme durant l’exercice, ce dernier brûle envi- ron 5 calories. L’exemple ci-dessous illustre une personne de 68 kg (150 lb) s’exerçant à un niveau qui demande une consommation de 1 litre (1 000 ml) d’oxygène chaque minute. Pour ce faire, elle doit brûler 5 calories chaque minutes afin de fournir la quantité...

  • Page 29: Maintenance & Cleaning

    11. MAINTENANCE & CLEANING The BioStep has been designed to provide many years of dependable use. To help ensure this product performs to the maximum specifications, and to increase the life of the product, please note the following general cleaning instructions and maintenance procedures. 1.

  • Page 30: Specifications

    12. SPECIFICATIONS Dimensions: 65" l x 28" w x 47.25" h (165 x 71 x 121 cm) Resistance: BioStep: Constant resistance with 30 effort levels BioStep Clinical Pro: Constant resistance and Isokinetic Work Rate Range: 10 watts - 600 watts (25 -120 rpm) Heart Rate Monitoring: Polar Telemetry (chest strap) and contact handgrip ®...

  • Page 31: Electromagnetic Compatibility

    13. ELECTROMAGNETIC COMPATIBILITY Standard Test Method Range Limits Result IEC 61000-3-2 Harmonics 100 Hz to 2KHz Class A THD = 251.94% IEC 61000-3-3 Flicker observation time (TP) 10 min max voltage change (dmax) 0.00 % max Rel steady state voltage change (dc) 0.00 % duration of d(t)>3%(t) .2 sec...

  • Page 32: Optional

    14. OPTIONAL The optional Stabilization Kit (950-245) provides flip-up/flip-down arm rests, a seat belt and buckle, and a pair of foot straps to help stabilize patients on both the BioStep and BioStep Clinical Pro Semi-Recumbent Elliptical. All components of the kit are easy to install. Figure 4: Installing the optional Stabilization Kit.
  • Page 33 INSTALLING THE OPTIONAL SEAT BELT AND BUCKLE (Refer to Figure 4.) Tools Required: 5/8” Wrench To install the optional seat belt and buckle, coat one of the two 7/16-20 hex head bolts supplied with Loctite 242. Align the pre-drilled hole in the seat belt assembly with the hole on the patient left side of the seat base and then secure the belt assembly to the seat using the washer and bolt.

  • Page 34: Diagnostics

    Standard BioStep with constant torque only. Diagnostic Mode (For 950-214 and 950-220. See NOTE at end of this section for 950-215.) To enter the debug mode, power the unit ON holding the select exercise button down during power on LED test. Use the select exercise button to cycle through the selections.

  • Page 35: Replacement

    16. REPLACEMENT — 35 — REPLACEMENT...

  • Page 36: Replacement Parts

    14. REPLACEMENT PARTS REPLACEMENT — 36 —...
  • Page 37 14. REPLACEMENT PARTS — 37 — REPLACEMENT...
  • Page 38 CONTENTS REPLACEMENT — 38 —...
  • Page 39 CONTENTS — 39 — REPLACEMENT...
  • Page 40 CONTENTS REPLACEMENT — 40 —...
  • Page 41 CONTENTS — 41 — REPLACEMENT...
  • Page 42 CONTENTS REPLACEMENT — 42 —...
  • Page 43 — 43 — REPLACEMENT...
  • Page 44 NOTES REPLACEMENT — 44 —...
  • Page 45 NOTES — 45 — REPLACEMENT...
  • Page 46 CONTENTS REPLACEMENT — 46 —...
  • Page 47 NOTES — 47 — NOTES...
  • Page 48 Certified Quality Management System IODEX Biodex Medical Systems, Inc. 20 Ramsay Road, Shirley, New Y ork, 11967-4704, Tel: 800-224-6339 (Int’l 631-924-9000), Fax: 631-924-9338, Email: info@biodex.com, www.biodex.com...
