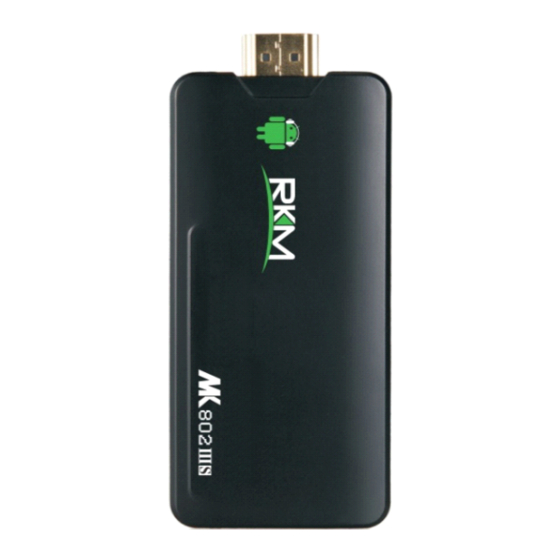

RKM MK802 IIIS User Manual

Android dual core mini pc
Hide thumbs Also See for MK802 IIIS:
Table of Contents

Advertisement

Quick Links

RKM MK802 IIIS User Manual
Page
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MK802 IIIS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RKM MK802 IIIS

Summary of Contents for RKM MK802 IIIS

  • Page 1 RKM MK802 IIIS User Manual Page...

  • Page 2: Table Of Contents

    5.1 WIFI Setting ............................10 5.2 Ethernet Settin ............................10 5.3 Portable host pot ............................ 10 5.4 Bluetooth (Optional, just available for MK802 IIIS-Blue tooth) .............. 11 5.5 PPPOE Setting ............................11 5.6 USB ................................ 11 5.7 Sound ..............................12 5.8 Display ..............................

  • Page 3: Declaration

    RKM MK802 IIIS User Manual Declaration  The user manual includes all the information of safe and correct operation instruction. To avoid accident and product damaged, please make sure go through all the content carefully before using the product.  Please keep the product away from high temperature, humid and dusty environment.

  • Page 4: Connector

    RKM MK802 IIIS User Manual 1. Connector Micro-USB Power: Connect with TV USB port for charge the unit. USB 2.0 HOST: Connect with other USB device. USB OTG: Data transfer with PC, or connect USB device. HDMI: High Definition Multimedia Interface Output Micro SD: Support expanded 2GB-32GB TF card 2.

  • Page 5: Boot State

    RKM MK802 IIIS User Manual TV via this cable; If the TV USB port can’t provide enough current, please take USB power supply.(Any USB power supply among 5V/1A to 5V/2A are available). Suggest using 2.4G wireless keyboard or mouse. Plug 2.4G receiver on USB Host connector, if only mouse plugged, the device will provide soft keyboard during operation;...

  • Page 6: Main Screen Introduction

    RKM MK802 IIIS User Manual After around 30 seconds, device would access to main screen; 4. Main Screen Introduction 4.1 Move/Delete desktop icon Long-press any icon in the main menu, you could put it in any position as you like, at the same time you could put the other apps shortcut to the desktop.
  • Page 7 RKM MK802 IIIS User Manual Long press the icon and move it to the right above “×”and loosen, then you could delete it Move your cursor to any space and drag towards left or right for page rolling. Also you can use the mouse wheel for rolling page.

  • Page 8: Function Column

    RKM MK802 IIIS User Manual 4.2 Function column Return button: click to return to previous directory; Homepage button: click it anytime to return to main menu; Program button: Click to check all the running program; Volume decrease button: Click to decrease volume;...

  • Page 9: Status Bar

    RKM MK802 IIIS User Manual Hide icon: click for hide this function bar. Search button: Located in the top left corner of the main menu, click this icon to pop up webpage screen, user can input any website here. Program tools button: Located in the right top corner of the desktop, click this icon to pop up all the apps which has been installed.

  • Page 10: Settings

    RKM MK802 IIIS User Manual  if the installed APP beyond the first page, drag the page or rolling the mouse roller will display the second page of APP;  You can directly use these APPs, or set up related tools, or long-press those commonly used APP to drag onto the desktop.

  • Page 11: Wifi Setting

    RKM MK802 IIIS User Manual 5.1 WIFI Setting When opened the WIFI, the MK802 IIIS will auto search available wireless router signals within 20 meters, user just choose a router and input correct password to connected network. 5.2 Ethernet Setting If there is no WIFI in the house, suggest to connect a USB LAN adapter (please select right matched USB LAN adapter) to setting Ethernet.

  • Page 12: Bluetooth (Optional, Just Available For Mk802 Iiis-Blue Tooth)

    Click “Setting  “More”  “PPPOE Settings”  input account and password. 5.6 USB For exchange data between the MK802 IIIS and PC. Specific operation steps： 1. Equipment connection: take out the Micro USB to USB cable, connect the machine with PC through this cable，at same time, connect the machine with TV through HDMI cable.

  • Page 13: Sound

    RKM MK802 IIIS User Manual 5.7 Sound This is for Sound settings; Volume: Control volume level; Operate prompt tone: Setting prompt tone during operating; Screen saver sound: Setting screen saver sound. 5.8 Display Font size: Setting font size according to their own request;...

  • Page 14: Apps

    RKM MK802 IIIS User Manual partition has been occupied by Android system which is invisible. The balance space is equal to the sum of two partitions. 5.11 Apps In this option, user could view installed and running apps, at same time could check DDR parameters.

  • Page 15: Browse /Copy Files

    RKM MK802 IIIS User Manual 6. Browse /Copy Files 1.Open file management on the desktop. Internal Flash: Check internal storage space SD Card: If TF card inside, icon will be highlight USB: If USB device (HDD, U-disk) connected, the icon will be highlight.

  • Page 16: Local Installation

    RKM MK802 IIIS User Manual 7.2 Local installation User also can copy app from computer to U disk or TF card, insert the U disk or TF card to your device, just click the APK icon to install according to the system prompt.
  • Page 17 RKM MK802 IIIS User Manual games by their smart phone freely. Software Interface Touch Pad Virtual keyboard Remote control Interface Page...

  • Page 18: Web Browsing

    RKM MK802 IIIS User Manual 10. Web Browsing After connected network, you can access the webpage screen through the system browser. New opened webpage will be shown on the screen as tag, click “+” to add new webpage, click “x“ to close the webpage.

  • Page 19: Use Virtual Keyboard

    RKM MK802 IIIS User Manual 12. Use virtual keyboard If just connect USB mouse only, then below virtual keyboard will pop up; If connect with physical keyboard, system will hidden the virtual keyboard. 13. Switch input methods Click the keyboard icon at the right-bottom status bar from desktop;...

  • Page 20: System Recovery/Update

    RKM MK802 IIIS User Manual 14. System recovery/update If your MK802 IIIS has following issues, please solve these issues by recovery/update methods. 1. If you need update to the latest firmware, 2. After boot, there is no signal; 3. There is only boot screen;...
  • Page 21 RKM MK802 IIIS User Manual Second, connect the mini pc with computer. 1. Prepare an USB cable (Micro USB to USB cable); insert the normal USB port to computer usb host. 2. Prepare a thin metal stick; press the recover button by the stick according below method.
  • Page 22 RKM MK802 IIIS User Manual Select “next” , then click “next” to Choose the options as picture display, then click browse,find out install. Page...
  • Page 23 RKM MK802 IIIS User Manual When finished installation, the computer will pop up below window, then click“finish” After installation, the “connect device” icon on the “batch tool” will changed to blue, as below: Page...
  • Page 24 RKM MK802 IIIS User Manual Then Click “upgrade” (the second button of below picture) for recovery, as below. This procedure will take 3 minutes also, please wait patiently, during recovery/upgrade, don’t remove the USB cable. Page...

  • Page 25: Recovery/Update On Windows Win7 System

    RKM MK802 IIIS User Manual When this above prompt window appears, then means recovery is successful, pull out USB cable, then total process is finished. 14.2 Recovery/update on WIN7 system First, download recovery tool, driver and recovery firmware(img file) from official website.
  • Page 26 RKM MK802 IIIS User Manual Second, connect the mini pc with computer. 1. Prepare an USB cable (Micro USB to USB cable),insert the normal USB port to computer usb host. 2. Prepare a thin metal stick; press the recover button by the stick according below method.
  • Page 27 RKM MK802 IIIS User Manual Double click “unknown device”. Press update driver,Click browse for driver software on your computer. And choose the correct driver. If your computer is WIN7 32bit, choose x86--win7; if it is WIN7 64bit, choose x64--win7. Page...
  • Page 28 RKM MK802 IIIS User Manual Press next, will pop up below window, Click on the image below red circle option.Click install. Then pls wait for installation. See below picture. Page...
  • Page 29 RKM MK802 IIIS User Manual Now the driver was installed successfully. Press close. After successful installation, the batch tool will connect the MK802IIIS automatically. If it cant connect automatically, pls reconnect the MK802IIIS to the computer by USB cable again. See step 1. No need to do step2.
  • Page 30 RKM MK802 IIIS User Manual Then Click “upgrade” for recovery, as below . This procedure will cost 3minutes also, pls wait patiently, during recovery/upgrade, don’t remove the USB cable. When this prompt window appears, then means recovery is successful, pull out USB cable, then total process is finished.

  • Page 31: Question & Answer

    RKM MK802 IIIS User Manual Notice: 1. Don’t power off during updating or recovering. 2. Same computer just need install driver for one time 3. First turn on the unit after recovery/update will cost more long time, and even occur some lag issue, it’s normal since internal apk file need be decompressed and occupy RAM, after 5 minutes, then...

  • Page 32: Specifications

    RKM MK802 IIIS User Manual  Cannot find file in SD card or open drive: Please check all the connection of the device. And make sure you have tick of SD and USB Host in “Setting” Specifications Model# MK802 IIIS RK3066 Dual Core Quad- Core 2D/ 3D/ OpenGL ES2.0(MALI-400)/ OpenVG1.1...
