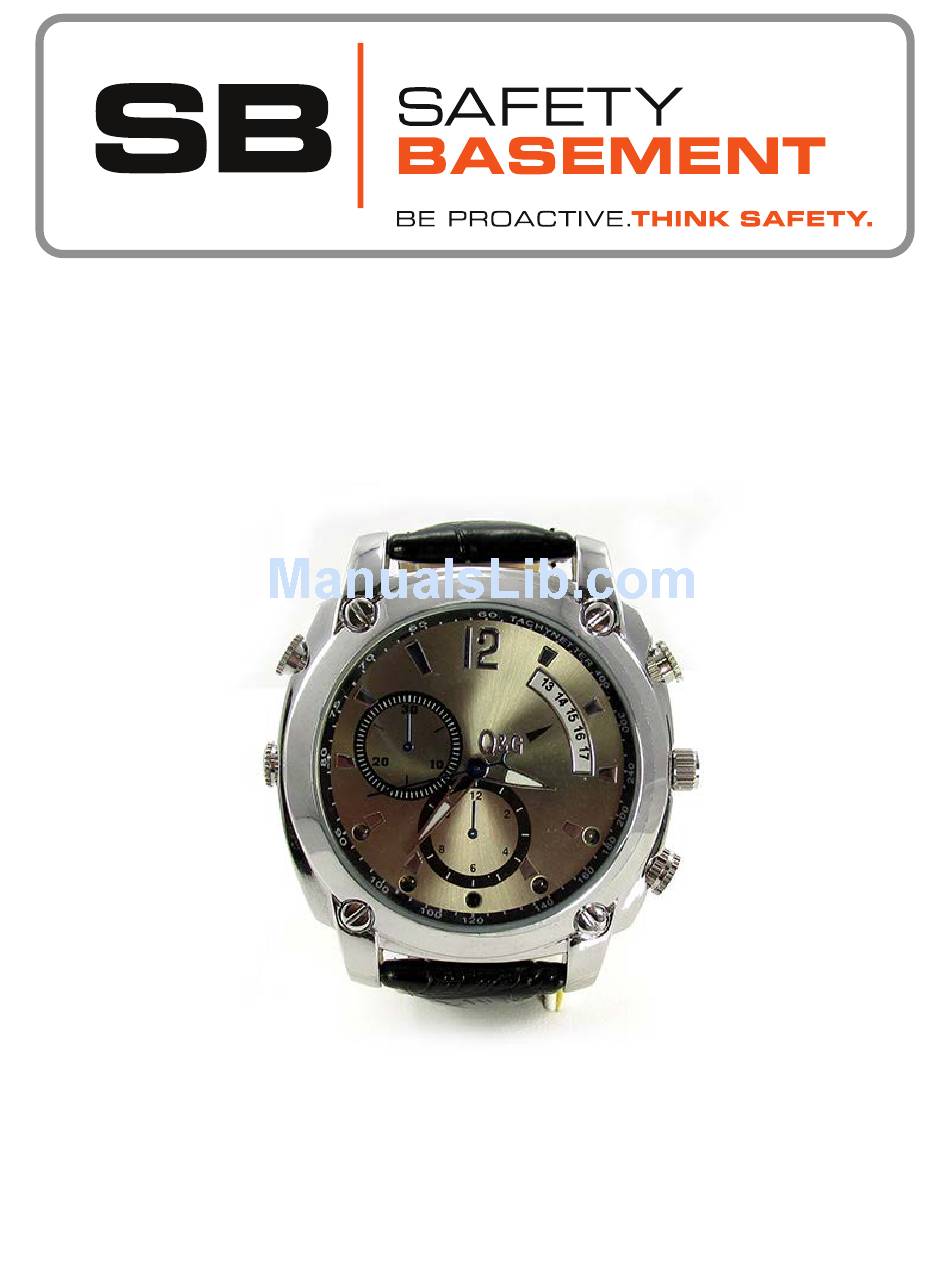

INSTRUCTION MANUAL
16GB Pathfinder IR HD Watch
SB-WR9800
Revised: June 10, 2013
Thank you for purchasing from SafetyBasement.com! We appreciate your business.
We made this simple manual to help you enjoy your new product as quickly and easily as
possible.
Be sure to check the TECH SUPPORT tab on your product page at SafetyBasement.com
for the latest available manual.
Advertisement
Table of Contents
Related Manuals for Safety Basement SB-WR9800
Summary of Contents for Safety Basement SB-WR9800
- Page 1 INSTRUCTION MANUAL 16GB Pathfinder IR HD Watch SB-WR9800 Revised: June 10, 2013 Thank you for purchasing from SafetyBasement.com! We appreciate your business. We made this simple manual to help you enjoy your new product as quickly and easily as possible.
-
Page 2: Product Reference
PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 PRODUCT REFERENCE Status Light B Button A Button Modes / IR Power / Start / Stop USB Port Time Adjustment IR Lights (4x) Microphone Camera STATUS LIGHTS / MODE • BLUE - Video Mode •... -
Page 3: Before You Start
PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 BEFORE YOU START You will first need to connect your watch to your PC or Mac. You do not need additional drivers to do this - your PC may install standard drivers when it first connects. This is normal. - Page 4 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 LOCATE TECH SUPPORT SafetyBasement has made it easy for you to download the latest manuals and tech support files you may need for your products. Just go to our website to get started.
- Page 5 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 LOCATE TECH SUPPORT Your product, or a list of similar products will appear. Just click on the picture of your product to go to the Product Page. This sample shows one of our watches.
- Page 6 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 LOCATE TECH SUPPORT In this example, you can download the latest manual for this product, and some files. Now, find the product page for your product. You will need a file from the website to set up your product.
- Page 7 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 TIME FILE Now, use Windows Explorer (the file explorer, not the internet browser), or the Mac Finder to locate your watch. When you plugged it in, your computer automatically connected to it. In this example in Windows, the watch appears as REMOVABLE DISK F: Your location will vary.
- Page 8 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 TIME FILE The TIME. TXT file in proper location Your Watch (drive letter may vary) Save the TIME.TXT to the location shown. Now, you are going to set the timestamp for your watch.
- Page 9 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 SET THE TIMESTAMP You will now set the correct time in the time.txt file. DOUBLE-CLICK (left button) on the TIME.TXT file on your watch. A text editor window will appear. Please adjust the year, month, day, hours, minutes and seconds to the proper time.
-
Page 10: Recording Video
PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 RECORDING VIDEO Status Light A Button Camera (see notes!) • POWER ON & Start Recording Video - Hold the A button until the status light appears. In a few moments it will blink blue 3 times. Then the status light will go dark. You are now recording video. - Page 11 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 RECORDING VIDEO WITH IR A Button B Button IR Lights • POWER ON & Start Recording Video - Hold the A button until the status light appears. In a few moments it will blink blue 3 times. Then the status light will go dark. You are now recording video.
- Page 12 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 PHOTOS / PHOTOS WITH IR A Button B Button You must be in Stand By Mode first before you can switch to another mode. • POWER ON & Start Recording Video - Hold the A button until the status light appears.
-
Page 13: Audio Only
PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 AUDIO ONLY A Button B Button You must be in Stand By Mode first before you can switch to another mode. • POWER ON & Start Recording Video - Hold the A button until the status light appears. - Page 14 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 RETRIEVING YOUR FILES To view your videos and photos, and to listen to your audio recordings, you will need to copy them to your PC first. Make sure your watch is OFF. Then connect the USB cable to it as noted earlier in the manual.
- Page 15 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 RETRIEVING YOUR FILES Video File (.avi) Audio File (.wav) Photo File (.jpg) You may go into the folders noted above to view and copy your files. You may also delete files from these folders.
- Page 16 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 SUGGESTED SOFTWARE Your Windows PC or Mac has built-in software that will play most of the files created by devices like yours. However, if you are having problems playing your files, or need more options, please download and try these programs.
-
Page 17: Device Specifications
PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 DEVICE SPECIFICATIONS Audio Formats Audio Encoding 128 Kbps WAV Bit Rate Mode Constant WAV Bit Rate 128 Kbps WAV Sampling Rate 16 Hz Video Format .AVI Codec MJPG Bit Rate 29.8 Mbps... - Page 18 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 DEVICE SPECIFICATIONS Memory Built In 16 GB Memory Expansion Battery Type Internal Rechargeable for camera Replacable for watch function Charger via USB port or included adapter Please check our site for the latest available manual for this product.
