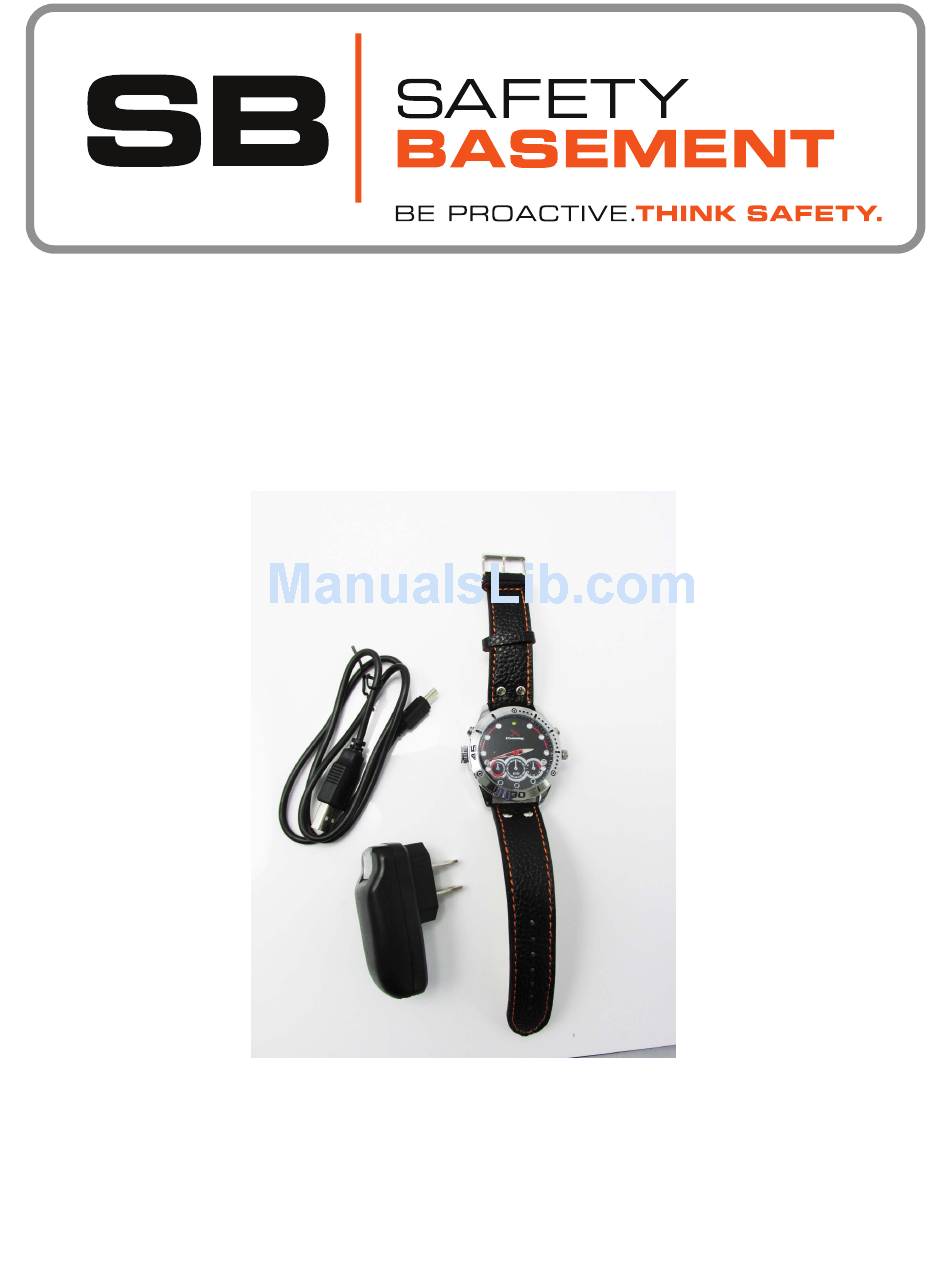

INSTRUCTION MANUAL
AUTO-ROTATE MEN'S WATCH VIDEO RE-
CORDER
Revised: MARCH 2015
Thank you for purchasing from SafetyBasement.com! We appreciate your business.
We made this simple manual to help you enjoy your new product as quickly and easily as
possible.
Be sure to check the TECH SUPPORT tab on your product page at SafetyBasement.com
for the latest available manual.
Advertisement
Table of Contents
Related Manuals for Safety Basement WR0577
Summary of Contents for Safety Basement WR0577
- Page 1 INSTRUCTION MANUAL AUTO-ROTATE MEN’S WATCH VIDEO RE- CORDER Revised: MARCH 2015 Thank you for purchasing from SafetyBasement.com! We appreciate your business. We made this simple manual to help you enjoy your new product as quickly and easily as possible. Be sure to check the TECH SUPPORT tab on your product page at SafetyBasement.com for the latest available manual.
-
Page 2: Product Reference
PRODUCT MANUAL 5 Hour Men’s Watch Recorder. WR0577 PRODUCT REFERENCE Status Light (RED) MODE switch ON/OFF Camera/Video/Audio Time Adjust knob USB Port (unscrew to expose hole) IR lights Camera VITAL STATS: - Video resolution: 1920 x 1080 - Frame rate: 30fps - Memory consumption rate: 10.5GB per hour... -
Page 3: Installing Sd Card
PRODUCT MANUAL Auto Rotate Watch Recorder. WR9005 INSTALLING SD CARD This watch normally comes with a 16GB SD card already installed. However if for some reason that is not the case (and you see a 16GB SD card included in your package, then please follow below instructions, else skip to page 6 or BEFORE YOU START section). - Page 4 PRODUCT MANUAL Auto Rotate Watch Recorder. WR9005 4. Insert SD card as shown in photo to right and close cover. Carefully note SD card orinetation. SD card should fit perfectly into bottom holder. It will not fit any other way! 5.
- Page 5 PRODUCT MANUAL Auto Rotate Watch Recorder. WR9005 6. Replace batteries and screw back cover on (Righty tighty!). Now you are ready for next step! Page 5 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524...
-
Page 6: Before You Start
PRODUCT MANUAL Auto Rotate Watch Recorder. WR9005 BEFORE YOU START You will first need to connect your watch to your PC or Mac. You do not need additional drivers to do this - your PC may install standard drivers when it first connects. This is normal. - Page 7 PRODUCT MANUAL Auto Rotate Watch Recorder. WR9005 TIME FILE We recommend you set up time stamp right off the bat. Plug in and follow instructions below: Now, use Windows Explorer (the file explorer, not the internet browser), or the Mac Finder to locate your watch.
- Page 8 PRODUCT MANUAL Auto Rotate Watch Recorder. WR9005 TIME FILE The TIME. TXT file in proper location Your Watch (drive letter may vary) Save the TIME.TXT to the location shown. The double click the file to open contents Please note: some computers may not show the “.txt” of the file name. This is normal. Page 8 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524...
- Page 9 PRODUCT MANUAL Auto Rotate Watch Recorder. WR9005 SET THE TIMESTAMP A text editor window will appear. Please adjust the year, month, day, hours, minutes and seconds to your current date and time. Very important that you maintain the format. If you change it by accident, please return it to original format, or just re-save time file if you dont remember! Also note the use of a 24 hour clock.
-
Page 10: Recording Video
PRODUCT MANUAL Auto Rotate Watch Recorder. WR9005 RECORDING VIDEO POWER On/OFF Button Indicator light Camera (see notes!) • POWER ON - Hold the POWER ON/OFF button until BLUE light turns on. Release. Your unit in now ON and in STANDBY mode. •... -
Page 11: Audio Only Recording
PRODUCT MANUAL Auto Rotate Watch Recorder. WR9005 AUDIO ONLY RECORDING POWER On/OFF Button Indicator light Camera (see notes!) • POWER ON - Hold the POWER ON/OFF button until lights turn on. Release. You will notice steady blue light. Your unit in now on and in STANDBY mode. •... - Page 12 PRODUCT MANUAL Auto Rotate Watch Recorder. WR9005 PHOTOS Picture mode is when RED light is ON and remains STEADY. • POWER ON - Hold the POWER ON/OFF button until lights turn on. Release. Light will settle on steady blue. Your unit in now on and in STANDBY mode. (if you unit is already on, just get to the picture mode via the MODE button.
- Page 13 PRODUCT MANUAL Auto Rotate Watch Recorder. WR90057 RETRIEVING YOUR FILES To view your videos and photos, and to listen to your audio recordings, you will need to copy them to your PC first. You may view or listen to them directly from your watch, however it may be choppy.
- Page 14 PRODUCT MANUAL Auto Rotate Watch Recorder. WR9005 SUGGESTED SOFTWARE Your Windows PC or Mac has built-in software that will play most of the files created by devices like yours. However, if you are having problems playing your files, or need more options, please download and try these programs.
-
Page 15: Device Specifications
PRODUCT MANUAL Auto Rotate Watch Recorder. WR9005 DEVICE SPECIFICATIONS Audio Formats Audio Encoding 128 Kbps WAV Bit Rate Mode Constant WAV Bit Rate 128 Kbps WAV Sampling Rate 16 Hz Video Format .AVI Codec MJPG Bit Rate 29.8 Mbps Resolution 1920x1080 pixels (16:9) Frame Rate 30 fps... - Page 16 PRODUCT MANUAL Auto Rotate Watch Recorder. WR9005 DEVICE SPECIFICATIONS Memory Built In Memory Expansion 2GB - 32GB Battery Type Internal Rechargeable for camera Replacable for watch function Charger via USB port or included adapter Please check our site for the latest available manual for this product. File sizes shown are approximate.
