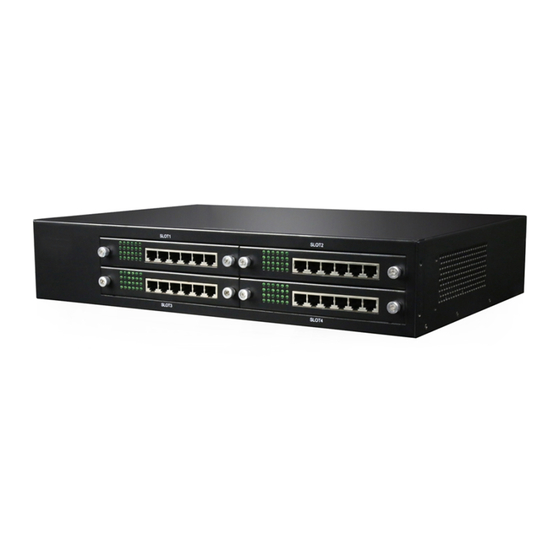

Summary of Contents for Real Tone Technology WSS Voice Gateway Series
- Page 1 WSS Voice Gateway Series User Configuration Guide...
-
Page 2: Amendent Records
The content was modified according to the release of new Web interface. Document Rev. 01 (June 16, 2005 ) Real Tone Technology Co., Ltd. All Rights Reserved All or part of this document may not be excerpted, reproduced and transmitted in any form or by any means without prior written permission from the company. -
Page 3: Table Of Contents
Contents of Table Amendent Records........................2 Contents of Table........................3 Contents of Figure........................5 Contents of Table........................7 1 Overview..........................9 1.1 Product Introduction........................9 1.2 Functions and Features ......................... 10 1.3 Equipment Structure........................10 1.3.1 WSS8..........................10 1.3.2 WSS50 ....................错误！未定义书签。 1.3.3 WSS100-AG........................14 1.3.4 WSS120 ........................... - Page 4 2.6.2 Media Stream ........................45 2.6.3 SIP related configuration....................47 2.6.4 Characteristics of subscriber line ..................49 2.6.5 Characteristics of trunk line....................50 2.6.6 Radius call logs......................... 52 2.6.7 Encryption........................53 2.6.8 Call progress tone plan...................... 54 2.6.9 Functional keys......................... 55 2.7 Call status and statistics ........................
-
Page 5: Contents Of Figure
Contents of Figure Figure 1-1 WSS8 Front Panel ......................11 Figure 1-2 WSS8 Back Panel ......................11 Figure 1-3 WSS50 Front Panel ......................12 Figure 1-4 WSS50 Back Panel......................14 Figure 1-5 WSS100-AG Front Panel....................15 Figure 1-6 WSS100-AG Back Panel ....................16 Figure 1-7 WSS120 Front Panel ...................... - Page 6 Figure 2-28 Interface of export data ....................64 Figure 2-29 Interface of software upgrade................... 64 Figure 2-30 Interface of file upload..................... 64 Figure 2-31 Upgrade interface ......................65 Figure 2-32 Prompt of upgrade process....................65 Figure 2-33 Interface of successful upgrade ..................65 Page 6/67...
-
Page 7: Contents Of Table
Contents of Table Table 1-1 Differences Between WSS Gateway Series................9 Table 1-2 Common Configuration Combination of WSS8 ..............10 Table 1-3 Description of WSS8 Front Panel..................11 Table 1-4 Description of WSS8 Back Panel ..................11 Table 1-5 Configuration Description of Analog Line Interfaces for All WSS8 Models ......12 Table 1-6 Configuration Combination of WSS50 ................ - Page 8 Table 2-17 Mapping between the reliability requirement and the TOS value ........47 Table 2-18 SIP related configuration parameter................... 48 Table 2-19 Subscriber-line characteristics configuration parameter ............49 Table 2-20 Configuration parameter of trunk line characteristics............51 Table 2-21 Configuration parameter of Radius call logs ..............52 Table 2-22 Encryption configuration parameters .................
-
Page 9: Overview
WSS Gateways support SIP and MCGP protocols. They can provide Real Tone Technology Co., Lted www.realtonetech.com Page 9/67... -
Page 10: Functions And Features
WSS8 can provide up to 8 analog line interfaces. WSS8 supports the following types of configuration: Table 1-2 Common Configuration Combination of WSS8 Models Number of FXS Ports Number of FXO Ports WSS8-4S WSS8-8S WSS8-4FXO Real Tone Technology Co., Lted www.realtonetech.com Page 10/67... -
Page 11: Figure 1-1 Wss8 Front Panel
③ indicates that it is in use. Figure 1-2 WSS8 Back Panel Table 1-4 Description of WSS8 Back Panel Description ① Power interface, 5-9 VDC input ② 10/100 M Ethernet Interface, RJ45 Real Tone Technology Co., Lted www.realtonetech.com Page 11/67... -
Page 12: Figure 1-3 Wss50 Front Panel
RJ45 for the interface socket of analog lines. WSS50 supports the following types of configuration: Table 1-6 Configuration Combination of WSS50 Models Number of FXS Ports Number of FXO Ports WSS50-16S WSS50-24S WSS50-16FXO WSS50-24FXO WSS50-8S/8 WSS50-12S/4 WSS50-16S/8 WSS50-20S/4 Figure 1-3 WSS50 Front Panel Real Tone Technology Co., Lted www.realtonetech.com Page 12/67... -
Page 13: Table 1-7 Description Of Wss50 Front Panel
System in a diagnostic mode and able to execute Red Flash limited operation Green No alarms Alarm Red Flash New alarms occurred but not confirmed ALARM Indication Alarms existed and all alarm information confirmed Real Tone Technology Co., Lted www.realtonetech.com Page 13/67... -
Page 14: Wss100-Ag
25-pair cable supplied with the unit. WSS100-AG supports the following types of configuration: Table 1-13 Configuration Combination of WSS100-AG Models Number of FXS Ports Number of FXO Ports WSS100-AG-48S WSS100-AG-32FXO WSS100-AG-16S/16 WSS100-AG-32S/4 Real Tone Technology Co., Lted www.realtonetech.com Page 14/67... -
Page 15: Figure 1-5 Wss100-Ag Front Panel
System in a diagnostic mode and able to execute Red Flash limited operation Green No alarms Alarm Red Flash New alarms occurred but not confirmed Indication Alarms existed and all alarm information confirmed Real Tone Technology Co., Lted www.realtonetech.com Page 15/67... -
Page 16: Wss120
WSS120 dual-chassis system can provide up to 96 ports. It supports the following configurations: Table 1-17 Configuration Combination of WSS120: Models Number of FXS Ports Number of FXO Ports WSS120-48S WSS120-72S WSS120-96S WSS120-24FXO WSS120-48FXO WSS120-72FXO WSS120-96FXO WSS120-40S/8 WSS120-64S/8 WSS120-88S/8 WSS120-36S/12 WSS120-60S/12 WSS120-84S/12 WSS120-32S/16 WSS120-56S/16 Real Tone Technology Co., Lted www.realtonetech.com Page 16/67... -
Page 17: Figure 1-7 Wss120 Front Panel
CAT-5 cables are used to connect the interface card and distribution panel in equipment installation. Standard RJ11 telephone lines can be used to plug in a RJ45 socket. The telephone/trunk lines are connected to the 3 pair of pins for simple call test. Real Tone Technology Co., Lted www.realtonetech.com Page 17/67... -
Page 18: Figure 1-8 Schematic Diagram Of Wss120 Subscriber Line Connection
System operation status indication: This is the mode for displaying information on system operation of equipment in specific conditions. Usually, this mode is entered when some prompts Real Tone Technology Co., Lted www.realtonetech.com Page 18/67... -
Page 19: Figure 1-9 Wss120 Back Panel
System in a diagnostic mode and able to execute Red Flash limited operation Green No alarms Alarm Red Flash New alarms occurred but not confirmed Indication Alarms existed and all alarm information confirmed Real Tone Technology Co., Lted www.realtonetech.com Page 19/67... -
Page 20: Figure 1-10 Schematic Diagram For Front Panel Of Wss120 Dual-Chassis System
(users who plan to expand capacity should reserve a space for expansion chassis during the initial installation of single chassis), the up or lower position is not strictly required for the chassises. Real Tone Technology Co., Lted www.realtonetech.com Page 20/67... -
Page 21: Parameter Setting
WAN address returned by access network after PPPoE service is started and user name and password are set. Users can dial “# #”on the gateways to receive the IP address and version information of firmware the gateways has obtained. Real Tone Technology Co., Lted www.realtonetech.com Page 21/67... -
Page 22: Log On Gateway
They are required to log in again for continuing operations. Upon completion of configuration, click "Logout" button to return to the login page, so as not to affect the login permission of other users. Real Tone Technology Co., Lted www.realtonetech.com Page 22/67... -
Page 23: Buttons Used On Gateway Management Interface
Subscribers can click “Restart” on the “Tool” page to restart. 2.3 Basic Configuration 2.3.1 Network Configuration After login, click “Basic > Network” tab to open the configuration interface. Figure 2-2 Network Configuration Interface Real Tone Technology Co., Lted www.realtonetech.com Page 23/67... -
Page 24: Table 2-3 Network Configuration Parameters
Enter the IP address of preferred time server here. This parameter must be set due to no default value. Secondary Enter the IP address of standby time server here. This parameter must be set Server due to no default value. Real Tone Technology Co., Lted www.realtonetech.com Page 24/67... -
Page 25: System Configuration
Almaty (GMT+06:00) (GMT+07:00) Bangkok (GMT+08:00) Beijing (GMT+09:00) Tokyo (GMT+10:00) Canberra (GMT+10:00) Adelaide (GMT+11:00) Magadan (GMT+12:00) Auckland 2.3.2 System Configuration After login, click “Basic > System” tab to open the system configuration interface. Real Tone Technology Co., Lted www.realtonetech.com Page 25/67... -
Page 26: Figure 2-3 System Configuration Interface
The gateways provide the following processing modes after detecting hook flash from subscriber terminals: processing the hook flash internally; transmitting the hook flash to platform with RFC 2833, and transmitting the flash-off to platform with SIP INFO. Real Tone Technology Co., Lted www.realtonetech.com Page 26/67... -
Page 27: Sip Configuration
Sending (ms) 13.3/15.2 iLBC 20/30 G729A 10/20/30/40 G723 5.3/6.3 30/60 PCMU/PCMA 10/20/30/40 2.3.3 SIP Configuration After login, click “Basic> SIP” tab to open the SIP configuration interface. Figure 2-4 SIP Configuration Interace Real Tone Technology Co., Lted www.realtonetech.com Page 27/67... -
Page 28: Table 2-6 Sip Configuration Parameters
If “register by line” is selected the password should be set on “Line > Feature” page (Refer to “Feature”). Registration Valid time of SIP re-registration in second. period Real Tone Technology Co., Lted www.realtonetech.com Page 28/67... -
Page 29: Mgcp Configuration
“,”. When gateways process the events listed here, they event will report to the call agent. Note: This parameter must be set since there is no default value. The factory setting is L/HD, L/HU: L/HD: Offhook; L/HU: Onhook. Real Tone Technology Co., Lted www.realtonetech.com Page 29/67... - Page 30 Select if a package name is included when the gateways reply to the default default package package, and default not selected. Keep connection Select if the gateways actively cancel connection disconnect when when on-hook subscribers hook on, and default not selected. Real Tone Technology Co., Lted www.realtonetech.com Page 30/67...
-
Page 31: Routing
# key. “*xx” End after receiving * and any two-digit number. "* xx" is primarily used to activate function keys for supplementary services,such as CRBT, Call Transfer, Do not Disturb, etc. Real Tone Technology Co., Lted www.realtonetech.com Page 31/67... -
Page 32: Routing Table
The routing rules in the table are executed from top to down, and the number matching follows the principle of minimum & priority matching; When there is no rule matched, the call will be processed as follows: Real Tone Technology Co., Lted www.realtonetech.com Page 32/67... -
Page 33: Table 2-9 Routing Table Format
FXS and FXO ports can be any port, represented with “FXS” or “FXO”; special lines can be represented with FXS or FXO + port number, eg. FXS1, FXO2 or FXS [1-2], etc. Real Tone Technology Co., Lted www.realtonetech.com Page 33/67... -
Page 34: Table 2-10 Number Transformations
Add 8888 at the end of the calling number starting with 6120 for calls from FXS port. REPLACE Number replacement. The replaced number is behind REPLACE. Example: FXS CPN88 REPLACE 2682000 Replace the calling number beginning with 88 for calls from FXS port to 2682000. Real Tone Technology Co., Lted www.realtonetech.com Page 34/67... -
Page 35: Table 2-11 Routing Destination
Table 2-11 Routing Destination Destination Description and Example ROUTE NONE Calling barring. Example: CPN[1,3-5] ROUTE NONE Bar all calls from IP, of which the calling numbers start with 1, 3, 4, 5. Real Tone Technology Co., Lted www.realtonetech.com Page 35/67... -
Page 36: Application Examples Of Routing Table
A hunting group can be associated with a set of FXS ports, and an inbound call from IP or FXO ports can be routed to a hunting group. There are three circuit selection algorithms available: 1) sequential selection, 2) circular selection, and 3) simultaneouse ringing. Routing Setting: Real Tone Technology Co., Lted www.realtonetech.com Page 36/67... -
Page 37: Ip Table
If the IP table is empty, the gateways will not perform IP address-based message filtering. For example: the gateway will only process the messages from 202.96.209.133 after adding 202.96.209.133 to its IP table. Real Tone Technology Co., Lted www.realtonetech.com Page 37/67... -
Page 38: Line Configuration
Fill in the telephone number associated with the trunk n (FXO port). This should be manually perform if Batch mode is not used. 2.5.2 Subscriber Line Features This page is only used for configuring gateways with subscriber lines (FXS port). Real Tone Technology Co., Lted www.realtonetech.com Page 38/67... -
Page 39: Figure 2-10 Configuration Interface For Subscriber Line Features
Delayed hot line: Automatically dial out the hotline number after offhook is timeout with a time delay of 5 seconds. Hot line number After the hotline function is activated on this line, the hotline number must be entered here. Real Tone Technology Co., Lted www.realtonetech.com Page 39/67... - Page 40 Select if Call waiting is activated on this line. By default this is not selected. CID on call Select if Caller ID Display is activated on this line during call waiting. By waiting default, this is not selected. Real Tone Technology Co., Lted www.realtonetech.com Page 40/67...
-
Page 41: Trunk Line Features
This page is only used for configuring gateways with trunks (FXO port). After login, click “Line > Trunk” tab to open the configuration interface. Figure 2-11 Configuration Interface for Trunk Line Features Real Tone Technology Co., Lted www.realtonetech.com Page 41/67... -
Page 42: Advanced Configuration
FXO port. Used with the configuration item of “Answer delay” on the “Advanced > Trunk” interface. Advanced Configuration 2.6.1 System After login, click the label of “Advanced > System” to open this interface. Real Tone Technology Co., Lted www.realtonetech.com Page 42/67... -
Page 43: Figure 2-12 Inferface Of System Advanced Configuraiton
NAT IP Address: Apply NAT address into the transmitted SDP; Local IP Address: Apply the gateway’s IP address into the transmitted SDP. Note: The parameter should come into effect only on condition that gateway successfully obtained NAT address. Real Tone Technology Co., Lted www.realtonetech.com Page 43/67... - Page 44 Auto provision Server Gateways may download software upgrade packages and configuration files automatically through auto-provision server. Once the auto provision is selected, you have to enter the IP address of ACS here. Real Tone Technology Co., Lted www.realtonetech.com Page 44/67...
-
Page 45: Media Stream
The maximum values of UDP ports for RTP’s transmission and receiving. This field must be filled in. It’s advisable to be greater than or equal to “2× number of lines ＋min. RPT port”. Real Tone Technology Co., Lted www.realtonetech.com Page 45/67... - Page 46 Set the transmission gain of T.38 fax, with the default of 0dB. Packet size Set the packet size of T.38. 30 milliseconds is the default value. Redundancy Set the number of the redundant frames in T.38 data packaget, default is Real Tone Technology Co., Lted www.realtonetech.com Page 46/67...
-
Page 47: Sip Related Configuration
WSS gateways provide good flexibility in content setting in order to improve the compatibility with the platform. After login, click the label of “Advanced > SIP” to open this interface. Figure 2-14 SIP related configuration interface Real Tone Technology Co., Lted www.realtonetech.com Page 47/67... -
Page 48: Table 2-18 Sip Related Configuration Parameter
3224422 as calling party number； if choose“Forwarding number”，the number 2551111 will be sent to 3224422 as calling party number； Do not validate Via Set whether to ignore Via field, By default, Via is ignored. Real Tone Technology Co., Lted www.realtonetech.com Page 48/67... -
Page 49: Characteristics Of Subscriber Line
The gateway will regard the flash duration between “Min.hookflash” and “Max.hookflash” as effective flash. Any flash lasting over the longest time will be considered by gateway as hang up. Generally, this value should not be less than 800 milliseconds. Real Tone Technology Co., Lted www.realtonetech.com Page 49/67... -
Page 50: Characteristics Of Trunk Line
It’s essential to understand whether the phone supports the indicators and lighting method when selecting the lighting method. 2.6.5 Characteristics of trunk line After login, click the label of “Advanced > trunk” to open this interface. Real Tone Technology Co., Lted www.realtonetech.com Page 50/67... -
Page 51: Figure 2-16 Trunk Line Characteristics Configuraiton Interface
10-60 seconds, with default of 24 seconds. Answer delay Set the delay time of outbound connection ranging from 10-60 seconds, with default of 12 seconds. Working with “Line >Trunk” interface and “Connect signal delay” configuration. Real Tone Technology Co., Lted www.realtonetech.com Page 51/67... -
Page 52: Radius Call Logs
Radius server, the gateway will automatically activate standby Radius server. Note: in case of no configuration of port number, use default port number of 1813. Real Tone Technology Co., Lted www.realtonetech.com Page 52/67... -
Page 53: Encryption
Choose whether to encrypt RTP voice pack, the default is “0” RTP encrypt 0: None（not to activate)； 1: RTP（fully encryption to RTP package)； 2: RTP Header（only encrypt RTP header)； 3: RTP Body（only encrypt RTP payload)； 13: Encrypt with Normal specific algorithm. Real Tone Technology Co., Lted www.realtonetech.com Page 53/67... -
Page 54: Call Progress Tone Plan
You may obtain it from service provider 2.6.8 Call progress tone plan After login, click the label of “Advanced > Tones” to open this interface. Figure 2-19 Call progress tone configuration interface Real Tone Technology Co., Lted www.realtonetech.com Page 54/67... -
Page 55: Functional Keys
Using *xx (dial * and 2 digits number ) to activate a service; Using #xx (dial # and 2 digits number) to cancel a service. Illustrate with following defaults of various parameters, which may be modified accoding to requirements. Real Tone Technology Co., Lted www.realtonetech.com Page 55/67... -
Page 56: Figure 2-20 Functional Keys Configuration Interface
(please see the instructions on relevant configuration of “subscriber line”). Deactivate CFB The function key for deactivating call forwarding on busy, with default of #61. User operation: Off hook → press #61 → hang up. Real Tone Technology Co., Lted www.realtonetech.com Page 56/67... - Page 57 User operation: off hook → dial the prefix number of abbreviated dialing（**）and dial abbreviated dialing number（20）。 Audit CRBT The function key for hearing the color ring，with default of *88. User operation: Off hook → press *88 → input color ring number. Real Tone Technology Co., Lted www.realtonetech.com Page 57/67...
-
Page 58: Call Status And Statistics
The call state includes Idle, Ooutpusling, Ring, Entering number, In progress, Ring back, Talk, Near end hung up, Far end hung up, Timeout. Click the label of “check detail” to open detail interface. Real Tone Technology Co., Lted www.realtonetech.com Page 58/67... -
Page 59: Log Management
The information about login of interface (including IP address and jurisdiction of the user); SIP registration status; Call related signaling and media (RTP) information; After login, click the label of “Logst > System Status” to open this interface. Real Tone Technology Co., Lted www.realtonetech.com Page 59/67... -
Page 60: Table 2-27 Parameters Of System Status
SIP Registration Info >>>>> ---- Not enabled ---- SIP Registration Info >>>>> Contact: <sip:2681403@220.248.27.70:1003； user=phone> latest response: 200 （timeout-555） Contact: <sip:2681402@220.248.27.70:1003； user=phone> latest response: 200 （timeout-555） Call Context Info Show the call status. Real Tone Technology Co., Lted www.realtonetech.com Page 60/67... -
Page 61: Call Message
Figure 2-24 Interface of system startup 2.8.4 Manage log After login, click the label of “Logs > Manage Log” to open this interface. Log files can be downloaded through this interface. Real Tone Technology Co., Lted www.realtonetech.com Page 61/67... -
Page 62: System Tool
The password being used by operator will be displayed as hidden codes, which could be changed by administrator at any time. The administrator is allowed to change the operator’s password by entering new password into “Operator password>password”. Real Tone Technology Co., Lted www.realtonetech.com Page 62/67... -
Page 63: Configuration Import
After login, click “Tools >Export of configuration” to open this interface. It’s allowed to download the configuration files from the gateway through this interface. The downloading procedure is similar to the downloading procedure of log files.. Real Tone Technology Co., Lted www.realtonetech.com Page 63/67... -
Page 64: Software Upgrade
Step 3: Click “Browse” to select the upgrade files and click “Open”. Step 4: Click “Next” when the following interface appears, and start uploading the upgrade files to the gateway. Figure 2-30 Interface of file upload Real Tone Technology Co., Lted www.realtonetech.com Page 64/67... -
Page 65: Software Restart
For WSS100 and WSS120 gateways, the software upgrade operation must be conducted on an 100M Ethernet port. 2.9.5 Software restart After login, click “Tools > Restart” to restart the gateway, making modified configuration come into effect. Real Tone Technology Co., Lted www.realtonetech.com Page 65/67... -
Page 66: System Reboot
After login, click “Info” to view the gateway hardware and software version information. 2.11 Logout After login, click the “Logout” at top right to exit the gateway management system and return to the login interface. Real Tone Technology Co., Lted www.realtonetech.com Page 66/67... -
Page 67: Appendix
“T” The application software of gateway has been exited. If it can not be restored by rebooting the system, please contact your local distributor for further diagnosis. Real Tone Technology Co., Lted www.realtonetech.com Page 67/67...
