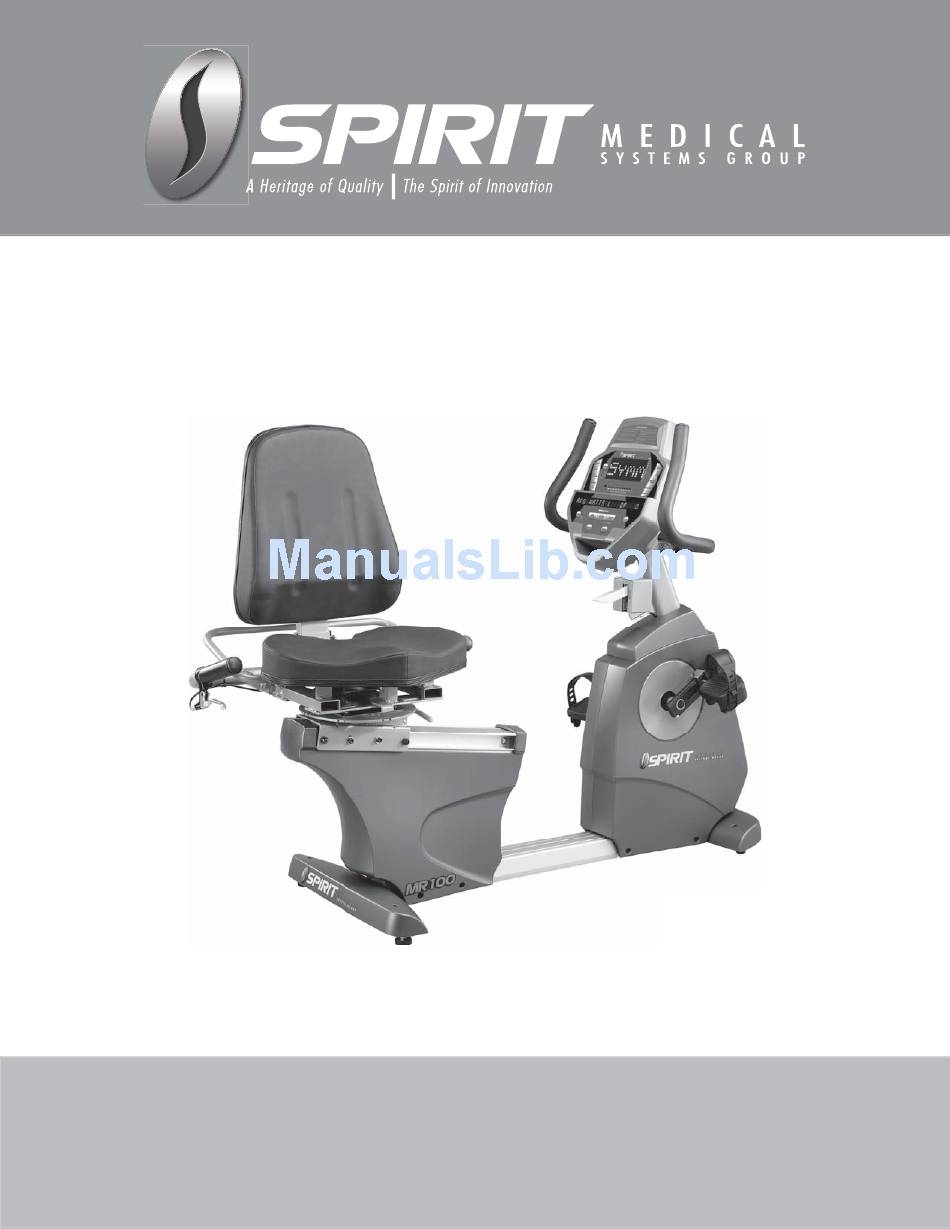

MR100
Rehabilitation Recumbent Bike
USER'S MANUAL
PLEASE READ THIS ENTIRE MANUAL CAREFULLY BEFORE OPERATING YOUR NEW LOWER
BODY ERGOMETER AND SAVE IT FOR FUTURE USE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR100 and is the answer not in the manual?

Questions and answers

Related Manuals for Spirit Medical Systems Group MR100

Summary of Contents for Spirit Medical Systems Group MR100

  • Page 1 MR100 Rehabilitation Recumbent Bike USER’S MANUAL PLEASE READ THIS ENTIRE MANUAL CAREFULLY BEFORE OPERATING YOUR NEW LOWER BODY ERGOMETER AND SAVE IT FOR FUTURE USE.

  • Page 2: Table Of Contents

    Table of Contents Product Registration…………………………………………………………………………. Important Safety Instructions………………………………………………………………… Important Electrical Information……………………………………………………………… Important Operation Instructions…………………………………………………………….. Features……………………………………………………………………………………….. Operation of Your New Bike…………………………………………………………….…… MR100 Assembly Instructions………………………………………………………………. MR100 Drawing & Parts List………………………………………………………………… Maintenance…………………………………………………………………………………… Specifications………………………………………………………………………………….. Manufacturer’s Limited Warranty…………………………………………………………….. 38 MR100...

  • Page 3: Product Registration

    Thank you for your recent purchase of this high quality lower body ergometer, the MR100, from Spirit Medical Systems Group. Your new product was manufactured by one of the leading fitness and medical products manufacturers in the world. Further, it is backed by one of the most comprehensive warranties in the industry.

  • Page 4: Important Safety Instructions

    In the unlikely event that the electronics fails, or the Auto-brake function is disabled in the software, a spinning flywheel can make the bike difficult to stop when pedaling at higher RPM. There is an emergency brake lever provided that will stop the flywheel when pressed. MR100...

  • Page 5: Important Electrical Information

    Make sure the user warms up and cools down properly to avoid over taxing the ● cardio vascular system. Allow three to five minutes of warm up and cool down during each exercise session. MR100...

  • Page 6: Features

    8. Seat Fore/Aft Adjustment 9. Leveling Glide The Spirit MR100 is an easy product to set up and use, from the adjustments to the intuitive interface. This section explains how to set up, adjust and operate your MR100 from Spirit Medical Systems Group.
  • Page 7 Connecting to A.C. Power:  The MR100 has a built-in universal power supply. You can plug the MR100 into any A.C. power source from 90 to 260 volts, 47 to 63 Hz. The A.C. input is located in the front of the unit.

  • Page 8: Operation Of Your New Bike

    MR100. The console will automatically power down after 20 minutes of inactivity. Press any key to wake the console up again. Always turn off the main power switch when the MR100 is not in use. MR100...

  • Page 9: Console Operation

    The Set Up key function will allow you to enter patient data, set seat and pedal adjustments for various knee ranges of motion and customize the settings of the MR100. When the Set Up key is pressed the first option in the menu appears. Use the up/down arrows to scroll through the menu and press the enter key to select an option.

  • Page 10: Quick Start

    The program keys also function as a Number Key Pad when you are in the data-setup mode. The number for each key is shown above the program name. If you are entering new data such as Time, Age, weight etc., you can use these keys to enter the numbers quickly. MR100...

  • Page 11: Preset Programs

    Pressing the work keys actually change the peak level of the program not the current segment level. You may need to change the peak setting several times before the current segment increases. MR100...
  • Page 12 4. Now you are finished editing the settings and can begin the program by pressing the Start key. You can also go back and modify your settings by pressing the Enter key. NOTE: At any MR100...
  • Page 13 10. During the Facility program you will be able to scroll through the data in the message window by pressing the adjacent Display key. Running a saved program: Press Facility key then Enter Enter Time then set Auto-brake on or off and press enter. Then press start to begin program. MR100...
  • Page 14 2nd Stage 750 kgm/min 600 kgm/min 450 kgm/min 300 kgm/min 150W 125W 100W 3rd Stage 900 kgm/min 750 kgm/min 600 kgm/min 450 kgm/min 175W 150W 117W (100W 4th Stage 1050 kgm/min 900 kgm/min 700 kgm/min 600 kgm/min (if needed) MR100...
  • Page 15 Time is the total elapsed time of the test. After the test:  Cool down for about one to three minutes.  Take note of the score because the console will automatically return to the start-up mode after a few minutes. MR100...
  • Page 16 28-32 above average 42-46 39-44 34-37 31-33 28-31 25-27 average 38-41 35-38 31-33 28-30 25-27 22-24 below average 33-37 31-34 27-30 25-27 22-24 19-22 poor 28-32 26-30 22-26 20-24 18-21 17-18 very poor <28 <26 <22 <20 <18 <17 MR100...
  • Page 17 7. When the program ends you may press Start to begin the same program again or Stop to exit the program, or you can save the program you just completed as the Facility program by pressing the Facility key and following the instructions in the message window. MR100...
  • Page 18 41 vs. 34 watts. The graph reflects the higher wattage of the left leg. If the power is equal in both legs only two dots would be lit on the bottom center of the graphic screen. MR100...
  • Page 19 (6) The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the whole machine 90 degrees may de-tune the interference. (7) If there is another person wearing a chest strap within 1 meter, it will interfere. (8) If you continue to experience problems contact your dealer. MR100...
  • Page 20 9. When the program ends you may press Start to begin the same program again or Stop to exit the program or you can save the program you just completed as a custom user program by pressing the Facility key and following the instructions in the message window. MR100...

  • Page 21: Mr100 Assembly Instructions

    ASSEMBLY INSTRUCTIONS FOR MR100 1) Hardware STEP 1. #65- 3/8" × 2- 1/4" (4PCS) #77- 3/8" × 3/4" (6PCS) #71- 3/8" × 2" (4PCS) #84- 3/8" × 1" (4PCS) #175- 3/8" × 2-3/4" (2PCS) #205- 8.5mm × 26mm (2PCS) #208- 5/16" ×1-1/4" (1PC) #89- 3/8"...
  • Page 22 STEP 2. #216- M6 × P1.0 (2PCS) #221- M6 × P1.0 × 40L (2PCS) #83- 5/16" × 3/4" (4PCS) STEP 3. #136- M5 × 20L (4PCS) #220- 3/8" × 1-3/4" (2PCS) #215- 3/8" (2PCS) #206- 10mm × 25mm (2PCS) MR100...
  • Page 23 #68- 5/16" × 5/8" (8PCS) #82- 5/16" (2PCS) #76- 5/16" × 3/4" (6PCS) #83- 5/16" × 3/4" (2PCS) #187- M4 × 5L (4PCS) #98- M6 × 15L (2PCS) STEP 5. #99- M5 × 12L (8PCS) #222- M6 × 25L (4PCS) MR100...
  • Page 24 2) Tools #112- 12.14m/m Open wrench (1PC) #114- Phillips Head Screw Driver (1PC) #132- 14.15m/m Open wrench (1PC) #200- 5m/m L Allen Wrench (1PC) MR100...
  • Page 25 #283- 8m/m L Allen Wrench (1PC) #201- Short Phillips Head Screw Driver (1PC) #284- 17m/m Wrench (1PC) #280- 10m/m Wrench_single (1PC) MR100...
  • Page 26 4. Connect the left (L) and right (R) hand pulse wires together. Slide the safety cover (242) onto the handle bar bolts (175), between the frame and washer & nuts. Tighten all hardware securely. Plug the hand pulse connectors (21 & 27) into the jacks in the rear shroud (26 & 42). MR100...
  • Page 27 2. Mate the left, flat side of the release handle to the flat side of the solid bar on the left side of the seat carriage. Secure with the M6 x 40mm bolt (221), two curved washers (83) and M6 nut (216). MR100...
  • Page 28 1. Slide the seat back assembly (5) into the seat back angle adjustment bracket and secure with the two 3/8” x 1-3/4” bolts (220), 3/8” washers (206) and 3/8” nuts (215). 2. Install the seat back cover (128) onto the seat back assembly (5) with four M5 x 20mm screws (136). MR100...
  • Page 29 Slide the cover down and snap in place on the main body. 6. Assemble the handle bar to the mast with two 5/16” x 5/8” bolts (68), two 5/16” split washers (82) and two 5/16” flat washers (76). MR100...
  • Page 30 Make sure to tighten the pedals as much as you possibly can. It may be necessary to re-tighten the pedals if you feel a thumping during pedaling the bike. A noise or feeling such as a thumping or clicking is usually caused by the pedals not being tight enough. MR100...
  • Page 31 MR100 Exploded View Drawing MR100...

  • Page 32: Mr100 Drawing & Parts List

    MR100 Parts List Item Part Number Description CC010052 Main Frame CC020043 Console Mast Handle Bar, Front CC030033 CC040039 Seat Carriage CC040038 Seat Back Bracket Handle Bar, Rear CC030054 CC050001 Rear Stabilizer C140011 Crank Axle CC060017 Seat Wheel Adjustment Plate (L)
  • Page 33 3/8" Nylon Nut J139461 1/4" Nylon Nut J139061 5/16" Nylon Nut J032513I M6 × 38mm Socket Head Cap Bolt J010502 5/16" × 3/4" Hex Head Bolt J552002 M5 × 12mm Flat Head Socket Screw J517007 3mm × 20mm Self Tapping Screw MR100...
  • Page 34 M5 × 25mm Flat Head Socket Screw J552005 P060409 Ø15 × Ø6 × 4T Nylon Washer M5 × 45mm Socket Head Cap Bolt J032009C J210004 3/16" × 3/8" Flat Washer J139161 M5 Nylon Nut 3/8" × 2-3/4" Hex Head Bolt J011011 P270008 Rubber Foot Pad MR100...
  • Page 35 5/16" × UNC18 × 3/4" Button Head Socket Bolt J020502 J129171 M5 × P0.8 Lock Nut J310005 Ø16mm C-Clip C120045 14mm × 10mm (ID) × 25mm Sleeve Bearing K010047 Ø116 × 66L Tension Spring, Idler K010048 Ø16 × 92L Tension Spring, Idler MR100...
  • Page 36 Eye Bolt J210063 1/2" × 1" Flat Washer Adjustable Crank Arm (L) ADD14 ADD14 Adjustable Crank Arm (R) J330043 10mm Wrench E010084 80mm Connecting Wire (black) P040157 12mm x 8mm Powder Metal Bushing J330012 M8_L Allen Wrench J330015 17m/m_Wrench MR100...

  • Page 37: Maintenance

    1. Turn on or off the speaker to silence beeping sound. d. Security i. Allows you to lock the keypad so no unauthorized use is allowed. When the keypad is locked press the Start and Enter key for 3 seconds to unlock. e. Factory settings i. Brake Test MR100...

  • Page 38: Specifications

    3. Rotate the right pedal clockwise until the console beeps. iv. Watts Calibration (Factory use only) v. Unit Type 1. Selects Upright bike (MU100) or Recumbent bike (MR100). Specifications: Dimensions: Length = 57” (145cm), Width = 30” (77cm), Height = 51” (130cm) Weight: 158-1/2 lbs.

  • Page 39: Manufacturer's Limited Warranty

    Manufacturer’s Limited Warranty Effective July 15, 2013 - BIKE LIMITED WARRANTY Spirit Medical Systems Group warrants this product for a period of time listed below from the date of retail sale as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date.
  • Page 40 © 2013 All Rights Reserved. www.spiritmedicalsystems.com/ MR 100 s ’ I140391-A1, Rev . 1...
