IMPORTANT DOCUMENT - DELIVER TO MANAGER

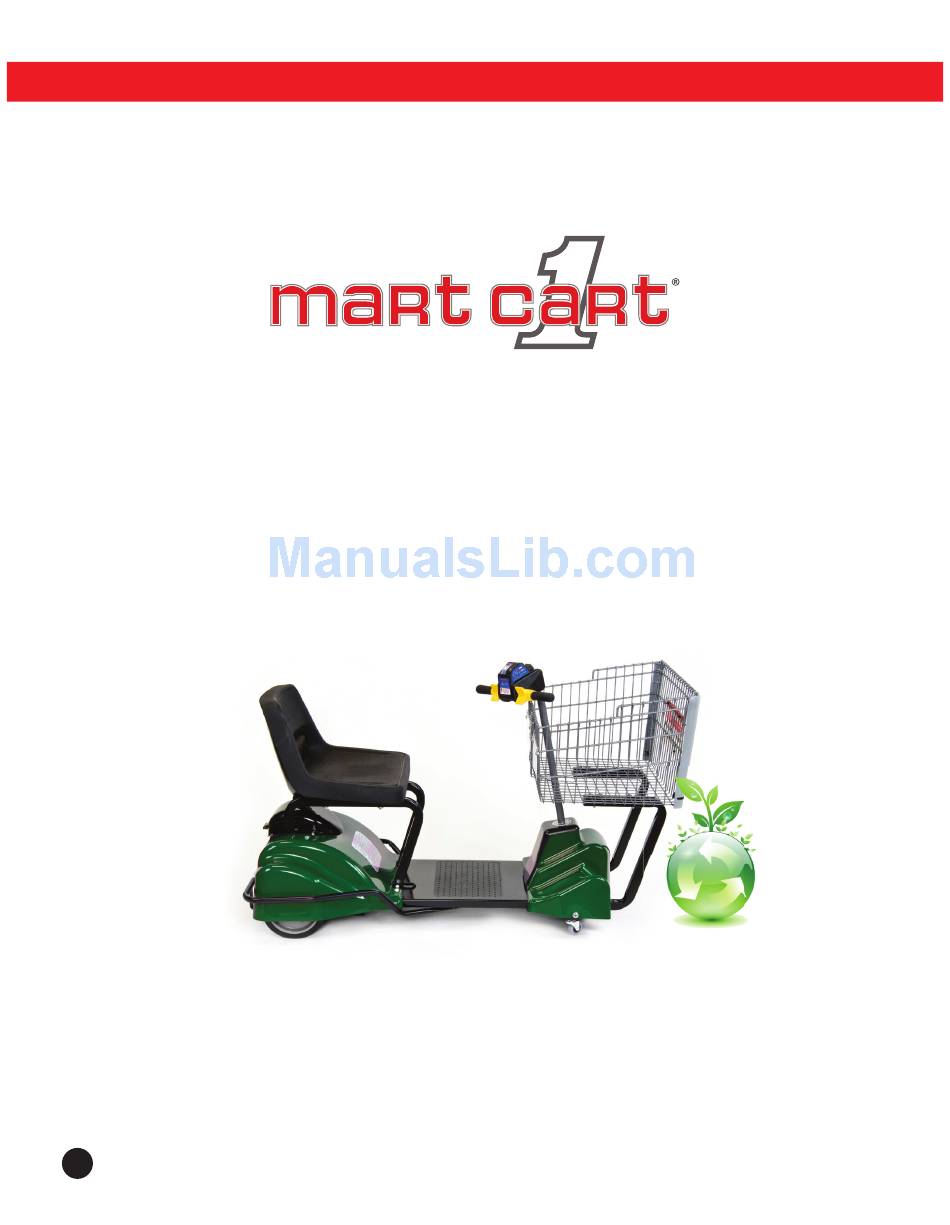

OWNER'S MANUAL
and TECHNICAL DOCUMENTATION
Model 280-3563
Mart Cart® is a quality product line of Assembled Products® Corporation
115 E. Linden • Rogers, Arkansas 72756 USA
(479) 636-5776 • (479) 636-3245 fax
1-800-548-3373 www.martcart.com
E

Advertisement

loading
Need help?

Need help?

Do you have a question about the 280-3563 and is the answer not in the manual?

Questions and answers

Summary of Contents for mart cart 1 280-3563

  • Page 1 IMPORTANT DOCUMENT - DELIVER TO MANAGER OWNER’S MANUAL and TECHNICAL DOCUMENTATION Model 280-3563 Mart Cart® is a quality product line of Assembled Products® Corporation 115 E. Linden • Rogers, Arkansas 72756 USA (479) 636-5776 • (479) 636-3245 fax 1-800-548-3373 www.martcart.com...
  • Page 2: Battery Charging Instructions

    — IMPORTANT INFORMATION — • ELECTRIC CORD—Replace cord if cord is worn or frayed, 3-pronged plug is broken or reel (optional) will not retract. Be sure power outlet Please read before operating. provides protection through an operating “Ground Fault Circuit Interrupter”...
  • Page 3: Battery Replacement Instructions

    Please read before disposing your old battery. — BATTERY REPLACEMENT INSTRUCTIONS — The Mart Cart model number 280-3563 is certified 100% by Recycle Please read before replacing battery. America, LLC., a subsidiary of Waste Management and those models are PVC free.
  • Page 4 — DECALS FOUND ON MART CART ELECTRIC SHOPPING CART — ® Please call 1-800-548-3373 if your decals are missing or are needing replacement. Standard decals and signs are English and Spanish (see part numbers below). Call for other languages. 280-1095 200-1127 280-3007 280-1663...
  • Page 5 Serial # Location Item Part No. Description Item Part No. Description 280-1818 Main Frame (280-1820 with bumper) 280-1712 Main Wire Harness/Battery Cover Assy. 000-1224 5/8” Bushing (2 on each wheel) 280-1202 Steering Wire Harness w/Connectors 280-1268 8” Wheel, Poly-U 280-1281 Floor Cover 000-1075 5/8”...
  • Page 6 Optional Parts Item Part # Description 290-1385 Small Basket 280-1374 Jumbo Basket (w/castors & lower shelf) 200-8153 Folding Produce Tray 280-1586 Check-Writer 280-1653 Safety Flag 200-1393 Cord Reel - 6’ 280-1956 Hour Meter 280-1609 Crutch Holder Assembly (for basket) 280-1440 Seat Latch Hook Assembly 280-1833 Crutch Holder Assembly (for seat)
  • Page 7 OPTIONAL HOUR METER 280-1569 Electrical Schematic DETAIL -A- When this cart is equipped with controller 280-1569, 1. BLACK HOUR METER 2. YELLOW use this schematic. 3. BLUE 00.0 Brown For USB 4. GREEN WHITE Charger 5. ORANGE 6. WHITE 7. YELLOW 8.
  • Page 8 115 E. Linden • Rogers, Arkansas 72756 USA (479) 636-5776 • Fax: (479) 636-3245 International (001) 479-636-5776 www.martcart.com 800-548-3373 MC1-MODEL 3563-OM-140423-EN Specifications are subject to change without notice . Printed in the USA.
