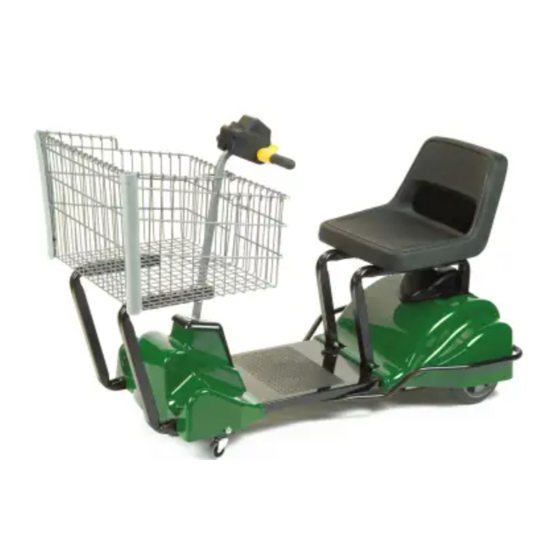

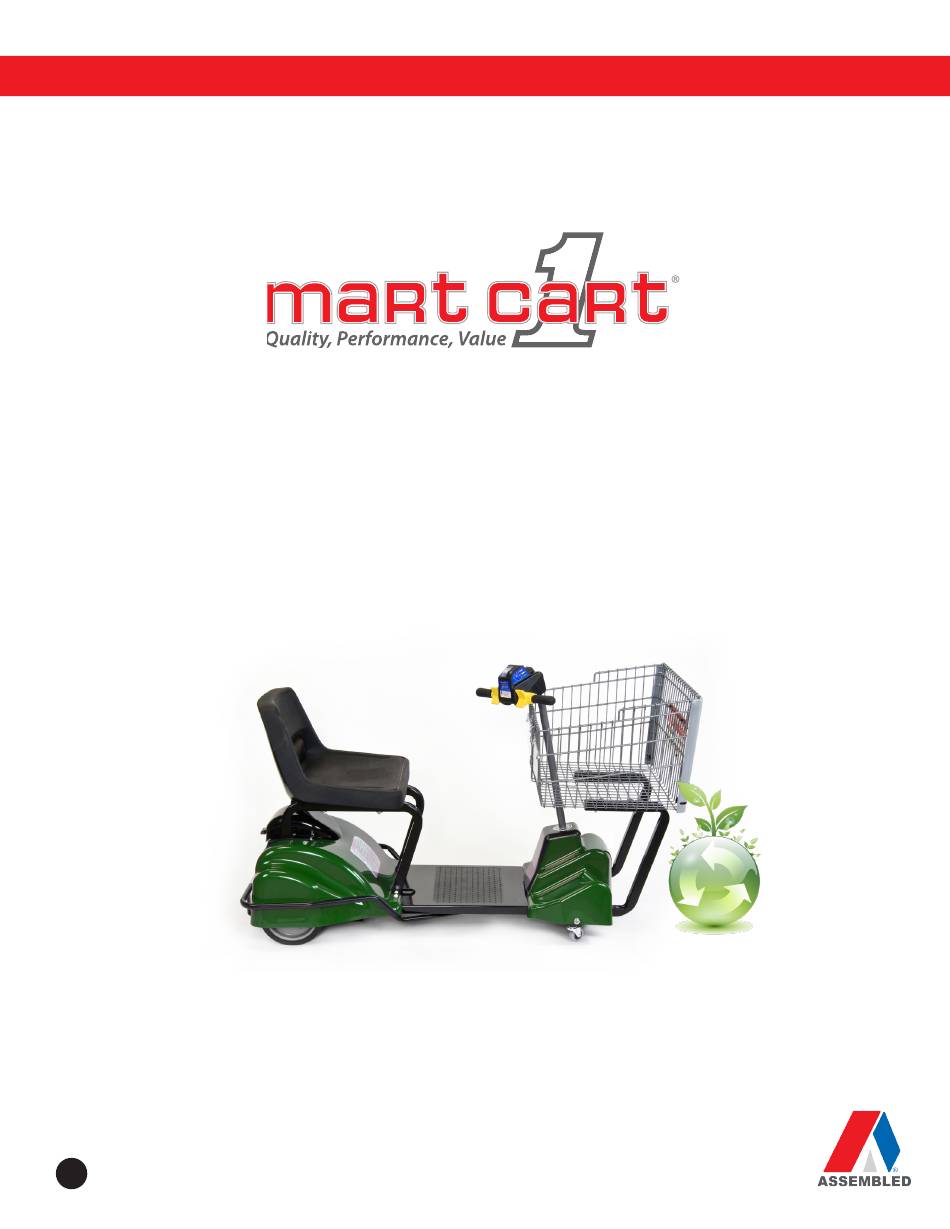

- Page 1 IMPORTANT DOCUMENT - DELIVER TO MANAGER OWNER’S MANUAL and TECHNICAL DOCUMENTATION Model 280-5563 Mart Cart™ is a quality product line of Assembled Products™ Corporation 115 E. Linden • Rogers, Arkansas 72756 USA (479) 636-5776 • (479) 636-3245 fax 1-800-548-3373 www.martcart.com...
- Page 2 — IMPORTANT INFORMATION — DAILY MAINTENANCE CHECK LIST For optimum cart availability and performance, the following items should Please read before operating. be checked daily: • ELECTRIC CORD—Replace cord if cord is worn or frayed, 3-pronged CONGRATULATIONS! plug is broken or reel (optional) will not retract. Be sure power outlet You have just purchased the best electric shopping cart on the market today.
- Page 3 Electrolyte) Battery during the manufacturing process as original equipment. The manufacturer recommends that you replace the original battery only The Mart Cart model number 280-5563 is certified 100% by Recycle with the same type and rating to prevent damage to your cart’s internal America, LLC., a subsidiary of Waste Management and those models...
- Page 4 — DECALS FOUND ON MART CART ELECTRIC SHOPPING CART — ® Please call 1-800-548-3373 if your decals are missing or are needing replacement. Standard decals and signs are English and Spanish (see part numbers below). Call for other languages. 280-2194 200-1127 280-3007 280-1663...
- Page 5 Serial # Location Item Part No. Description Item Part No. Description 280-1818 Main Frame (280-1820 with bumper) 280-1712 Main Wire Harness/Battery Cover Assy. 000-1224 5/8” Bushing (2 on each wheel) 280-1943 Steering Wire Harness w/Connectors 280-1877 8” Wheel, Poly-U 280-1281 Floor Cover 029-0047 Snap Ring...
- Page 6 Optional Parts Item Part # Description 290-1385 Small Basket 280-1374 Jumbo Basket (w/castors & lower shelf) 200-8153 Folding Produce Tray 280-1586 Check-Writer 280-1653 Safety Flag 200-1393 Cord Reel - 6’ 280-1956 Hour Meter 280-1609 Crutch Holder Assembly (for basket) 280-1440 Seat Latch Hook Assembly 280-1833 Crutch Holder Assembly (for seat)
- Page 7 OPTIONAL HOUR METER 280-1569 Electrical Schematic DETAIL -A- When this cart is equipped with controller 280-1569, 1. BLACK HOUR METER 2. YELLOW use this schematic. 3. BLUE Brown 00.0 4. GREEN For USB WHITE Charger 5. ORANGE 6. WHITE 7. YELLOW 8.
- Page 8 115 E. Linden • Rogers, Arkansas 72756 USA (479) 636-5776 • Fax: (479) 636-3245 International (001) 479-636-5776 www.martcart.com 800-548-3373 MC1-MODEL-5563-OM-191101-EN Specifications are subject to change without notice . Printed in the USA.
