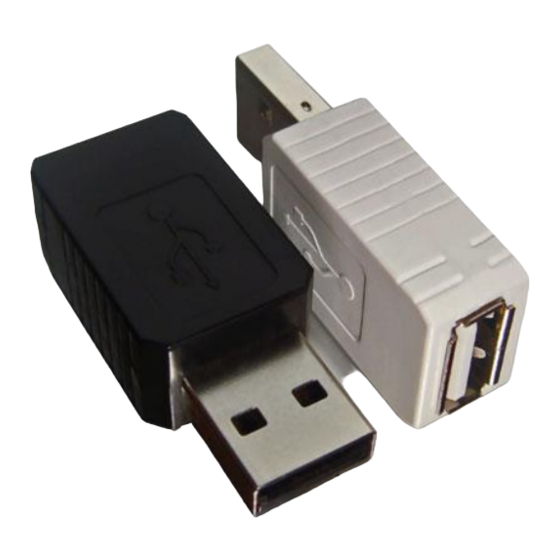

KeeLog 16 MB KeyGrabber Nano User Manual
16 mb
Hide thumbs
1
Table Of Contents
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
page
of
20
Go
/
20
Contents
Table of Contents
Troubleshooting
Bookmarks
Table of Contents
Table of Contents
Getting Started
Introduction
About the Product
Features
Requirements
Applications
Quick Start
Recording Keystrokes
Viewing Recorded Data
Flash Drive Options
Phrase Searching
Memory Erasing
Memory Formatting
Configuration Options
National Keyboard Layouts
Using KL Tools
Specifications
Troubleshooting
List of Special Keys
Legal Disclaimer
Advertisement
Quick Links
1
Viewing Recorded Data
Download this manual
KeyGrabber Nano
User's Guide
KeyGrabber Nano
16 MB
Check http://www.keelog.com/ for the latest version of this document.
Copyright © 2013 KeeLog
1
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Related Manuals for KeeLog 16 MB KeyGrabber Nano
Data Loggers KeeLog KeyGrabber USB User Manual
16 mb/2 gb usb hardware keylogger (22 pages)
Data Loggers KeeLog SerialGhost DB-9 User Manual
2 gb serialghost wi-fi (33 pages)
Summary of Contents for KeeLog 16 MB KeyGrabber Nano
Page 1
KeyGrabber Nano User’s Guide KeyGrabber Nano 16 MB Check http://www.keelog.com/ for the latest version of this document. Copyright © 2013 KeeLog...
Page 2: Table Of Contents
Quick start New to KeyGrabber hardware keyloggers? Learn about keystroke recording first: section Recording keystrokes Then learn to retrieve the recorded data: section Viewing recorded data Questions or problems? Go through the Troubleshooting section. Copyright © 2013 KeeLog...
Page 3: Introduction
Ultra compact and discrete, only 1" (2.5 cm) long Requirements Computer with standard USB 1.1 or 2.0 port USB HID-compliant keyboard (Low-Speed, Full-Speed, or High-Speed) Operating system with USB Mass-Storage device support Copyright © 2013 KeeLog...
Page 4: Applications
Observe WWW, E-mail, and chat usage Save a copy of written documents Investigators: Monitor remote computers Retrieve unknown passwords, operating system independent Collect computer-related evidence Detect unauthorized use of computer equipment Copyright © 2013 KeeLog...
Page 5: Quick Start
To view recorded data, plug the device in-between the keyboard and USB port, and press the 3-key combination simultaneously (by default K, B, S) The keylogger will pop up as a removable drive, containing the file LOG.TXT. This file will contain all recorded keystroke data. Copyright © 2013 KeeLog...
Page 6: Recording Keystrokes
Connect the hardware USB keylogger between the USB keyboard and the USB port. Keystroke logging will start automatically. Note: If an external USB hub is being used, connect the keylogger between the hub and the USB keyboard. Copyright © 2013 KeeLog...
Page 7: Viewing Recorded Data
Depending on the drive letters available, the device will be visible as a new drive, for example F:. Use the systems file manager to browse this disk (for example Explorer). The keyboard will be disconnected and unavailable, so the mouse must be used to browse the disk. Copyright © 2013 KeeLog...
Page 8
If mouse operation is dependent on the keyboard (i.e. wireless desktop or USB keyboard with mouse attached to it), connect the keyboard/mouse combo to a different USB port after switching to Flash Drive mode. Copyright © 2013 KeeLog...
Page 9: Flash Drive Options
This can be achieved by the standard system file delete procedure while in Flash Drive mode. For MS Windows active the context menu for the log file and select Delete. A new log file will be created on the next power-up. Copyright © 2013 KeeLog...
Page 10: Memory Formatting
Quick Format. Disconnect and reconnect the keylogger from the USB port immediately after formatting has finished. Default settings will be restored and a new log file will be created. Copyright © 2013 KeeLog...
Page 11: Configuration Options
Allowed values are Yes (logging disabled) and No (logging enabled). Default value is No. DisableLayout allows disabling the currently loaded layout, without having to delete the layout file. Allowed values are Yes (layout disabled) and No (layout enabled, if present). Default is No. Copyright © 2013 KeeLog...
Page 12
Yes (default) CheckModifierByte CheckModifierByte=No Modifier byte check flag. Filter value (range 0…255, FrameFilter FrameFilter=226 Frame filter value. default 98) Auto (default) Full KeyboardSpeed KeyboardSpeed=Auto USB keyboard speed setting. Mixed CheckOverflow CheckOverflow=Yes Overflow check flag. No (default) Copyright © 2013 KeeLog...
Page 13: National Keyboard Layouts
The file must be copied in Flash Drive mode. Layout files may be obtained from the CD-ROM attached with the device. To enable the layout, safely remove the flash disk. On power-up, the layout file will be loaded automatically. Copyright © 2013 KeeLog...
Page 14: Using Kl Tools
KL Tools will ask for the device type, and assist in configuring the device and retrieving the log file. There is no special knowledge required to use KL Tools – simply follow the instructions displayed by the application. Copyright © 2013 KeeLog...
Page 15: Specifications
(L x W x H) All KeyGrabber products come with 1 year warranty against manufacturer defects. Defect products must be shipped by the customer. All warranty repairs and delivery to the customer will be paid by the manufacturer. Copyright © 2013 KeeLog...
Page 16: Troubleshooting
This can happen on wireless keyboards and keyboard/mouse combos. In Flash Drive mode, the keylogger will install the removable disk instead of the keyboard/mouse combo. To get around this, connect the keyboard/mouse to a different USB port after switching to Flash Drive mode. Copyright © 2013 KeeLog...
Page 17
2. Check if the problem appears on a different computer. 3. Contact the dealer you have purchased the device from. Please supply all necessary information (keyboard model and manufacturer, OS type and version, and a short description of the problem). Copyright © 2013 KeeLog...
Page 18: List Of Special Keys
6 / Right (num) [Win] [7N] 7 / Home (num) [Aps] Apps [8N] 8 / Up (num) [Cap] Caps Lock [9N] 9 / Page Up (num) [Ent] Enter [Pwr] Power [Bck] Backspace [Slp] Sleep [Tab] [Wke] Wake Copyright © 2013 KeeLog...
Page 19: Legal Disclaimer
You should not use this device to intercept data you are not authorized to possess, especially passwords, banking data, confidential correspondence etc. Most countries recognize this as a crime. Please consult a legal representative for logging requirements in your country. Copyright © 2013 KeeLog...
Page 20
KeyGrabber Nano Notes: European Office U.S. Office KeeLog Aqua Electronics Lekcyjna 42 1550 Louis Ave. PL 51-169 Wroclaw Elk Grove Village, IL. 60007 Poland U.S.A http://www.keelog.com/ keelog@keelog.com RoHS Copyright © 2004-2013. All rights reserved. Copyright © 2013 KeeLog...
