Summary of Contents for Goldenote PH 7

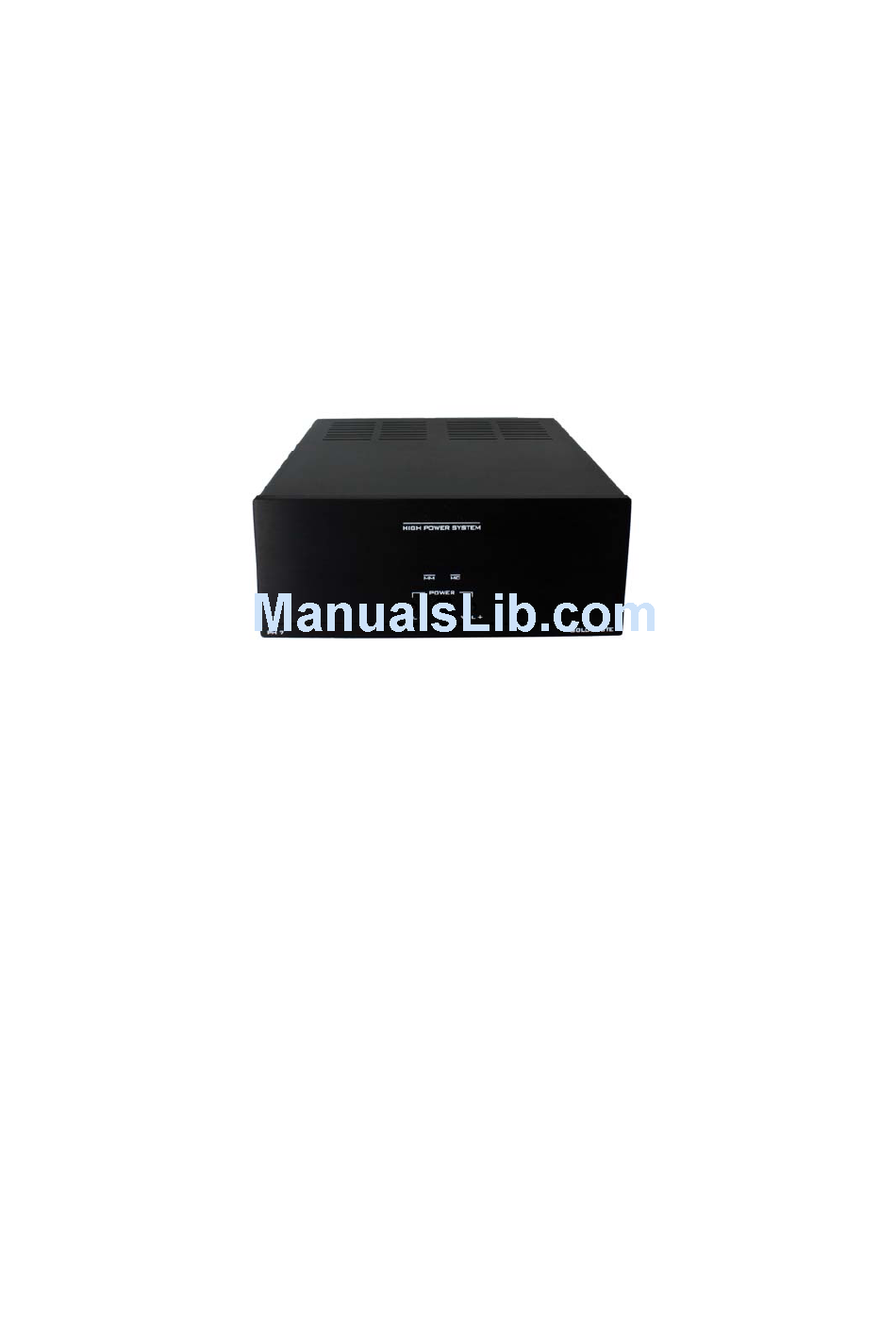

- Page 1 Goldenote® PH 7 ITALIAN MM & MC Phono Preamplifier Owner’s Manual MANUFACTURED IN ITALY TEL.+39.0571.675005 FAX.+39.0571.675013...
-
Page 2: Table Of Contents
Italian MM & MC Phono Preamplifier Table Of Contents Congratulations & Introduction Contents of Packaging Back Panel Features Operating Conditions & Front Panel PH 7 Gain & Load – Upgrade with PSU 7 Technical Specifications Warranty, Customer Service, Warnings & F.A.Q. Troubleshooting F.A.Q. VERY IMPORTANT: Please read the following instructions carefully before installing your Goldenote®... -
Page 3: Congratulations & Introduction
PH 7 Italian MM & MC Phono Preamplifier Congratulations Thank you for having purchased a Goldenote® product. Introduction The Goldenote PH7 is a high performance convenient MM & MC phono preamplifier featuring Hybrid Power Supply with temperature automatic stabilizer. The innovative design developed for the PH7 allows matching easily any kind of MM and M;C cartridge... -
Page 4: Contents Of Packaging
Open all the cartons inside the main box and look that all the components listed are present. Carefully remove the PH 7 MM & MC Phono Preamplifier chassis from the shipping box and foam. Connect the audio cable (not supplied) and the AC Power Chord supplied. -
Page 5: Operating Conditions & Front Panel
In any case, take care to unplug completely the unit every time you need to move it, or to move the turntable on which it is installed. PH 7 Front Panel (7) ON/OFF - Master switch, it turns the unit ON/OFF completely. - Page 6 To eventually adjust the load or the capacitance or the unit once select MM or MC insert proper pre made plugs into the RCA connectors dedicated (4). Ask Goldenote to get proper plug eventually. PSU 7 EXTERNAL POWER SUPPLY UNIT...
-
Page 7: Ph 7 Gain & Load - Upgrade With Psu
POWER CONSUMPTION 50watt Max UPGRADES EXTERNAL PSU Plug & Play Power Supply Unit EXTERNAL AC FILTER Dumbo AC Other Goldenote Lucca Power Chord PHYSICAL DIMENSIONS 200mm L x 80mm H x 260mm D TOTAL WEIGHT 3Kilos (7Lbs.) FINISHES FRONT PANEL... -
Page 8: Warranty, Customer Service, Warnings & F.a
(Warranty Certificate) The warranty certificate is enclosed separately and to be valid must be completed fill and returned to Goldenote factory or the official distribution. In all countries where there is an official distribution network, the dealer must stamp the warranty certificate. -
Page 9: Troubleshooting
PH 7 Italian MM & MC Phono Preamplifier Troubleshooting SYNPTOM DESCRIPTION CAUSE REMEDY SPEAKER HUMMING speakers • The Phono Stage is very • Be sure your area and PROBLEMS when the Phono Stage SENSITIVE house personal environment are connected environment positions and... -
Page 10: F.a.q
PHONO 2 Italian Prestige phono stage F.A.Q. PHONO 2 Phono Stage ACTION DESCRIPTION HOW TO ADJUST IT MATCHING CARTRIDGE • Your cartridge needs • Once you disconnect the Phono Stage from IMPEDENCE proper IMPEDANCE the AC plug Once you disconnect the matching to chose between Phono Stage from the AC plug remove,...
