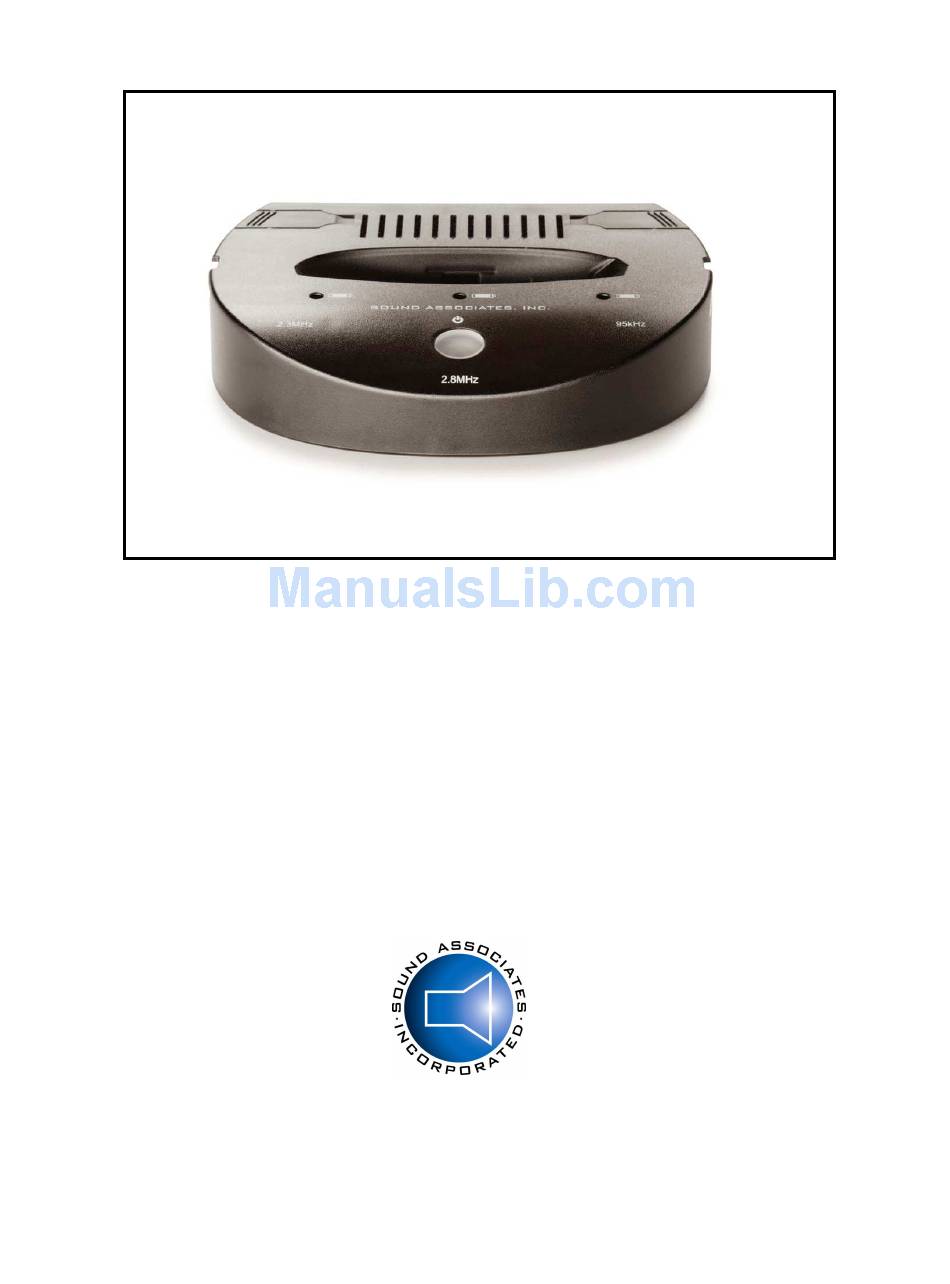

- Page 1 OPERATION MANUAL SA1401 SMALL AREA INFRARED TRANSMITTER SOUND ASSOCIATES, INC. 424 West 45th Street, New York, NY 10036 Tel: (212)757-5679 Fax: (212)265-1250 Toll free: 888-772-7686 Homepage: www.soundassociates.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INFORMATION..................2 INTRODUCTION..........................3 UNPACKING THE UNIT .........................3 FEATURES…..........................3 INSTALLATION To Connect to Television or Home Entertainment System ............4 To Use as Recharger Only .......................5 OPERATION Using the Transmitter .......................5 Location and Use of Controls ....................5 TONE ALERTS AND LED INDICATORS FOR RECEIVERS............7 TROUBLESHOOTING ........................7 SERVICE OR REPAIRS .........................8... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DO NOT EXPOSE TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 4: Introduction
MHz, 2.8 MHz or 95 kHz (via selector switch located on the back of the unit.) The SA1401 uses infrared light to transmit audio to the receiver. As it is a “line of sight” technology, the receiver (headset) must be used in direct line of sight with the transmitter. The receiver must be free of any obstructions that would block the infrared light from the receiver. - Page 5 Connect audio from desired source. Note: for home use, it is recommended to connect to television to ensure all video devices including cable, DVD, etc. are available in the headset/receiver. Option A (recommended) Note: Audio output can be “variable” (audio level on output jack increases and decreases with television volume) or “non-variable”...
-
Page 6: To Use As Recharger Only
Gently depress power switch on. Power switch will glow red to show it is on. Place receiver (SA1520 series only) in cradle to charge battery in the headset or; Remove battery from receiver and slide into one of two battery charging slots until the tab on the battery fits into the cut out on the top of the transmitter. - Page 7 2 – Battery Extractor: Each transmitter includes a pair of plastic extractors to assist in removing the battery from SA1520 series receivers. To remove the extractor, apply pressure at the ridged area and slide away from transmitter. (To uninstall battery from receiver, insert extractor tip in to slot on back of receiver and gently twist until battery slides free of receiver.) 3 –...
-
Page 8: Tone Alerts And Led Indicators For Receivers
12 – Audio Input: Receives audio from selected source (i.e. television, home entertainment system, etc.) via one of two audio cables included. In most cases, use 3.5mm (black) from audio input to RCA (red, white) Audio output on audio source. The second cable, 3.5mm (black) to 3.5mm (black), will connect to earphone jack but may cause external speakers to mute. -
Page 9: Service Or Repairs
Rechargeable battery (for SA1520 series receivers) WARRANTY The SA1401 Small Area Transmitter is covered by a full one year warranty from date of original purchase against defects in workmanship or materials. If any component fails due to defects in craftsmanship or materials within that time, we will repair or replace that component(s) without charge.
