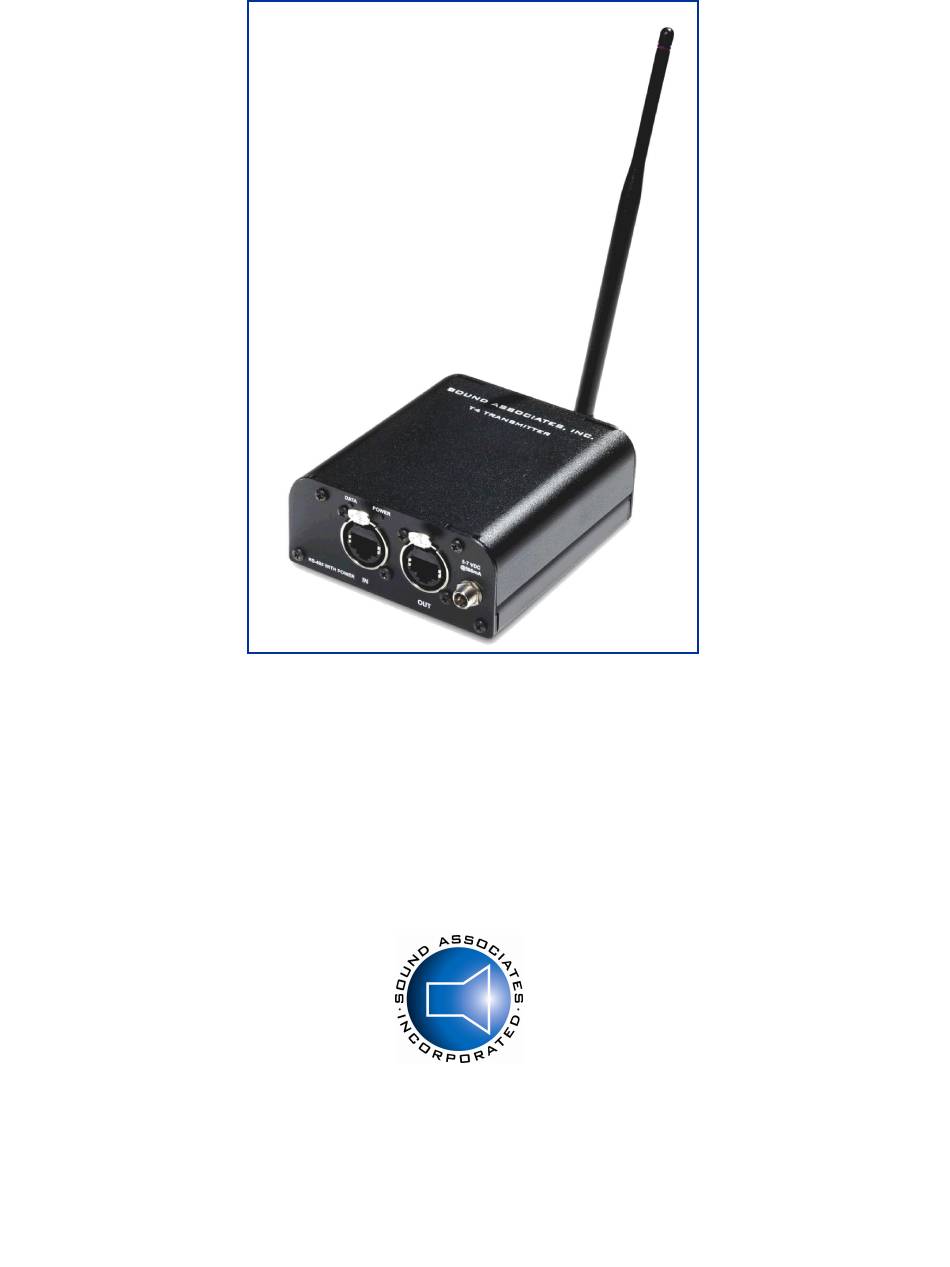

OPERATION MANUAL
®
I-CAPTION
T4 TRANSMITTER/COORDINATOR
®
I-CAPTION
T4R REPEATER
®
TRANSMITTER / REPEATER FOR THE AUDIEN
SUITE OF PRODUCTS:
®
TM
®
I-CAPTION
, D-SCRIPTIVE
AND AUDIEN
TRANSLATOR
SOUND ASSOCIATES, INC.
424 West 45th Street, New York, NY 10036
Tel: (212) 757-5679
Fax: (212) 265-1250
Toll free: 888-772-7686
Homepage: www.soundassociates.com
Advertisement
Table of Contents
Related Manuals for Sound Associates I-CAPTION T4
Summary of Contents for Sound Associates I-CAPTION T4
- Page 1 ® TRANSMITTER / REPEATER FOR THE AUDIEN SUITE OF PRODUCTS: ® ® I-CAPTION , D-SCRIPTIVE AND AUDIEN TRANSLATOR SOUND ASSOCIATES, INC. 424 West 45th Street, New York, NY 10036 Tel: (212) 757-5679 Fax: (212) 265-1250 Toll free: 888-772-7686 Homepage: www.soundassociates.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INFORMATION ....................1 INTRODUCTION ..........................2 FEATURES ............................2 UNIT TYPES ............................2 UNPACKING UNIT ..........................2 MOUNTING ............................3 BOTTOM PANEL CONNECTIONS / CONTROLS................. 3 TOP PANEL CONNECTIONS ......................4 POWER CONNECTION ........................4 INPUT &... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DO NOT EXPOSE TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 4: Introduction
INTRODUCTION Thank you for choosing a Sound Associates, Inc. manufactured product. All Sound Associates’ products are carefully designed and engineered for cutting edge performance and world class reliability. I-Caption® is a state-of-the-art, wireless visual aid that provides verbatim closed captions and subtitling on an individual hand-held receiver. -
Page 5: Mounting
The T4 can mount to a wall or microphone stand with a MB10 mounting bracket. The T4 utilizes a small speaker mount to secure units to ceiling, walls or microphone stands. Sound Associates offers the MB-10 that includes hardware to attach to a T4 chassis to wood or sheetrock walls and / or microphone stand. -
Page 6: Top Panel Connections
TOP PANEL CONNECTIONS 6 – Antenna Connection: Screw ¼ wave swivel antenna to RP-SMA threaded connector on top of unit. Make sure Antenna does not touch or is blocked by and metal objects. POWER CONNECTION The transmitter is shipped with a 5-7 VDC power supply. The power supply is wired with the inside +DC and the outer shield as -DC. -
Page 7: Standard Designs And Installations
STANDARD DESIGNS AND INSTALLATIONS Standard Wireless Repeater Installation: T4 Coordinator connects directly to the Control Station via CAT5E cable and powered locally with 5-7 VDC power supply. T4 Coordinator connects wirelessly to R6 Receivers and T4R Repeaters that are powered locally with 5-7 ... -
Page 8: Service Or Repairs
To order accessories or equipment related to the T4 or T4R I-Caption® Transmitter / Repeater, please contact Sound Associates’ Customer Service Department Monday – Friday 10:00 am - 5:30 pm EST at (888) 772-SOUND (7686) or newyork@soundassociates.com. For your convenience, we have included... -
Page 9: Warranty
WARRANTY We, Sound Associates, Inc., warrant to you the original owner or any subsequent owner of each new I- Caption® T4 / T4R Transmitter / Repeater that the unit is free of defects in workmanship and materials for a period of three years from the date of original purchase. (Excluding the external power supply accessory which carries a 90-day warranty.) If the product fails due to defects in craftsmanship or...
