GMC Sierra 2008 Owner's Manual

GMC Sierra 2008 Owner's Manual

Hide thumbs Also See for Sierra 2008:

Getting to know manual (24 pages)

page of 578

/ 578
Contents
Table of Contents
Bookmarks

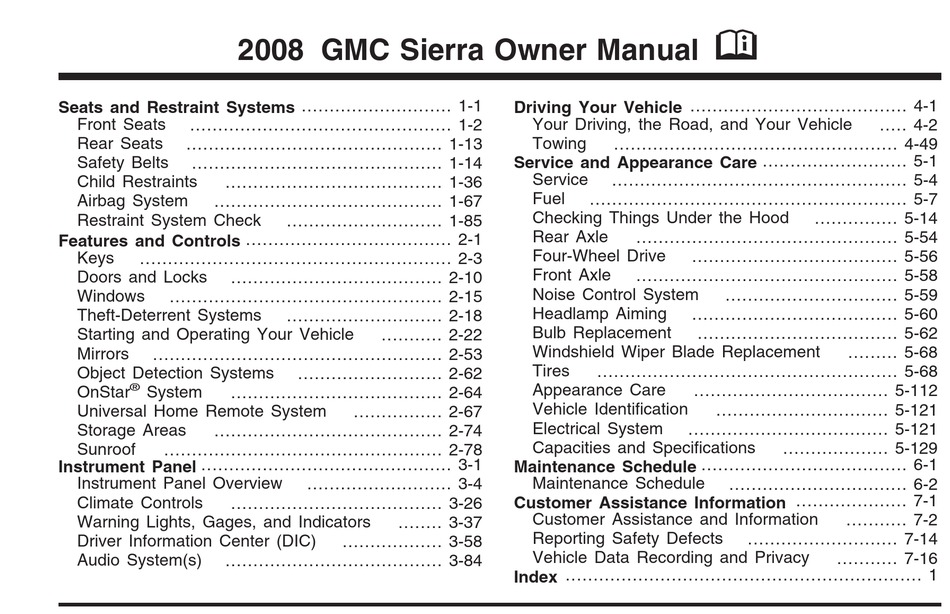

Table of Contents
