TRACTOR - - MODEL NUMBER YTH20K46 (96045000410), PRODUCT NO. 960 45 00-04

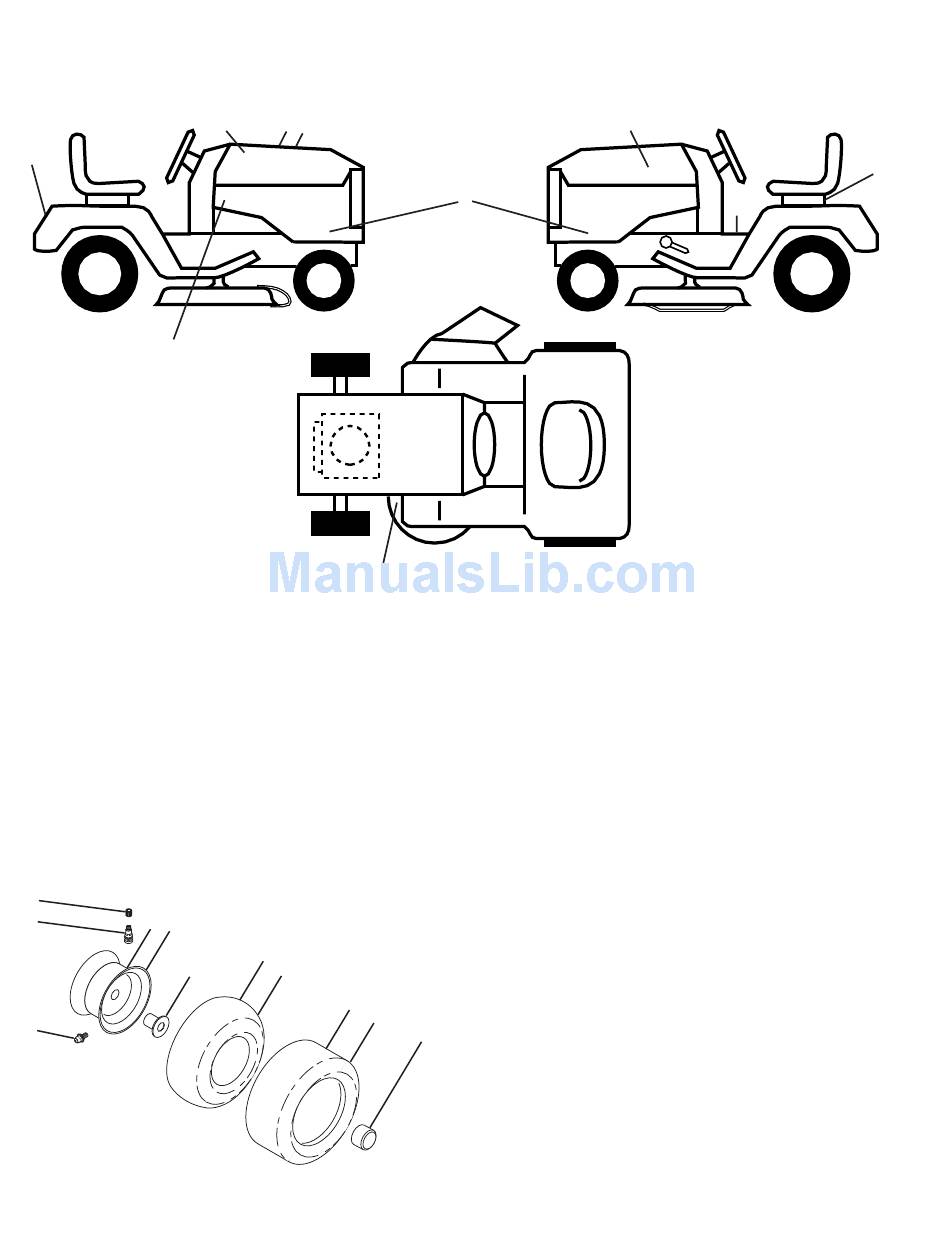

DECALS
8
4
KEY PART
NO. NO. DESCRIPTION
1 532 41 91-38 Decal, Fender Warning
2 532 42 20-12 Decal, Hood
3 532 41 01-08 Decal, Hood Panel SD
4 532 42 38-30 Decal, Hood E85 Warning
5 532 18 09-41 Decal, Customer Respons.
6 532 42 41-93 Decal, Replacement
8 532 19 15-54 Decal, Fender

WHEELS AND TIRES

1
2 11
3
7
6
2 5 6
12
4
10
5
9
wheel_art_1-tex
3
KEY PART
NO. NO.
9 532 14 50-05
12 532 16 03-96
- - 532 16 69-60
- - 532 41 08-05
- - 532 41 08-06
KEY PART
NO. NO.
1 532 05 91-92
2 532 06 51-39
3 532 13 83-36
4 532 05 99-04
5 532 10 62-22
6 532 00 02-78
7 532 00 90-40
8 532 17 50-39
9 532 42 05-31
10 532 00 71-52
8
11 532 13 83-37
- - 532 14 43-34
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
38
2
1
DESCRIPTION
Decal, Battery Dnge/Poi
Decal, Mower V-Belt Schematic
Decal, Bypass
Pad, Footrest, LH
Pad, Footrest, RH
DESCRIPTION
Cap Valve Tire
Stem Valve
Rim Front
Tube Front (Service Item Only)
Tire Front 15 x 6.0-6
Fitting Grease (Front Wheel Only)
Bearing Flange (Front Wheel Only)
Cap Axle Blk 1 50 x 1 00
Tire R 18 x 9.5-8 Turf Saver LT
Tube Rear (Service Item Only)
Rim Asm 8" Rear
Sealant, Tire (10 oz. Tube)
