Summary of Contents for URC CAM-DC-I

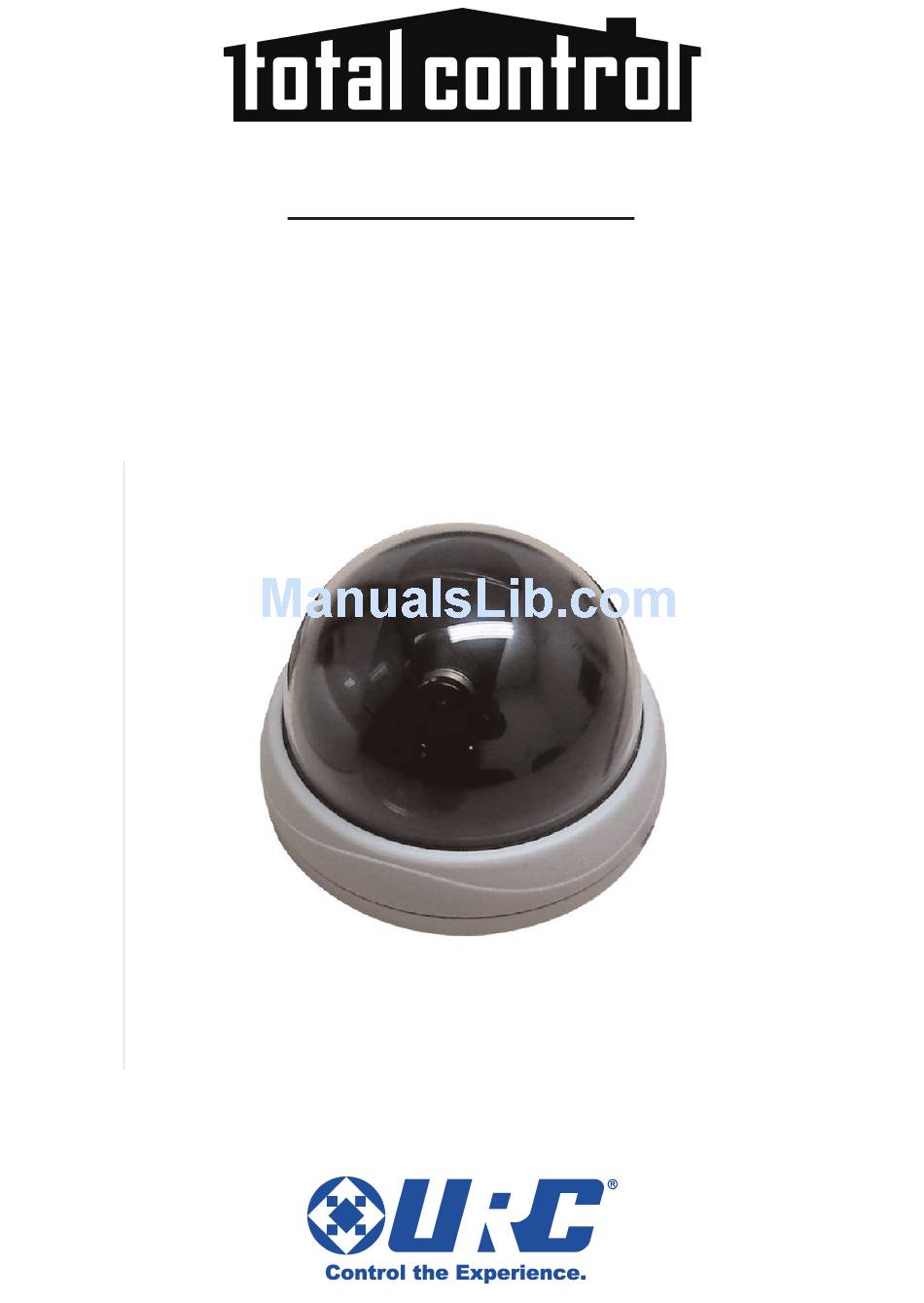

  • Page 1 Owner’s Manual CAM-DC-I Indoor Network Camera...
  • Page 2 The information in this Owner’s Manual may be subject to change without prior notice. Total Control is a registered trademark of Universal Remote Control, Inc. URC - Control the Experience is a registered trademark of Universal Remote Control, Inc. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations.
  • Page 3: Table Of Contents

    ABLE ONTENTS Introduction Features and Benefits Parts Guide CAM-DC-I Description Basic Installation Communicating with the Camera Navigating the Web Interface - Live View Navigating the Web Interface - Admin Specifications Limited Warranty Statement End User Agreement Regulatory Information to the user...
  • Page 4: Introduction

    AMERA Introduction Congratulations on your purchase of the CAM-DC-I Indoor Surveillance Dome IP Camera! The CAM-DC-I is an indoor IP camera that allows for seamless viewing over the network with Total Control interfaces such as the TRC-1280, TKP-2000, TKP-7000 and future Total Control graphical interfaces. Once networked, it relays video to these devices or your PC.
  • Page 5: Cam-Dc-I Description

    Note: If you need to focus the lens, turn it until the image is clear. LAN: Plug an Ethernet cable from the camera’s LAN connection to a PoE router or switch like URC's MFS-POE8. (If a PoE switch is not used, you must use a PoE injector to supply power to the camera.)
  • Page 6: Basic Installation

    CAM-DC-I I NDOOR ETWORK AMERA Basic Installation Follow these basic steps to install the Indoor Network Camera CAM-DC-I. 1. Fasten the camera to your planned location. 2. Plug an ethernet cable to the LAN port of the camera. Note: No separate power supply is needed as the camera receives power via a PoE supply or a MFSPOE-8 router.
  • Page 7: Communicating With The Camera

    IP address 10.20.30.40 1. Enter the camera’s IP address into the web browser’s address bar. URC recommends using Internet Explorer to view the live surveillance. 2. The IP camera’s web interface opens. You now have access to the Live View and Administration sections described next.
  • Page 8: Navigating The Web Interface - Live View

    CAM-DC-I I NDOOR ETWORK AMERA Navigating the Web Interface - Live View Select from the options below to modify the Live View. Control Bar Channel Control Displays multiple camera streams. It modifies the primary and secondary streams (frame rate, image size, encoding, camera name, rate control mode, image quality and group of pictures structure) from the Admin page (Device Configuration>...
  • Page 9: Navigating The Web Interface - Admin

    CAM-DC-I I NDOOR ETWORK AMERA Navigating the Web Interface - Admin Use the Admin interface to modify advanced features for the camera. To gain acccess to the Admin site, enter the default username and password(root and root). Quick Configuration: A guided step-by-step walkthrough to setup your camera’s configuration settings.
  • Page 10: Specifications

    CAM-DC-I I NDOOR ETWORK AMERA Specifications Camera Type Plastic Mini Dome IP Camera 1/3" D1 progressive scan Image Sensor CMOS image sensor Indoor / Outdoor Use Indoor only Lens 3.8mm F2.0, aperture, fixed, non-zoom Color 4 Lux at F2.0 Min. illumination BW 0.1 Lux at F2.0 with DSS...
  • Page 11: Specifications

    WARRANT THAT THE URC SOFTWARE IS BUG-FREE OR ERROR FREE OR THAT THERE ARE NO ERRORS/BUGS IN THE URC SOFTWARE. URC warrants that at the time of purchase the URC equipment and the URC software complied with all applicable regulations and policies of the Federal Communications Commissions (“FCC”) regarding electromagnetic...
  • Page 12 In the event of any warranty claim, URC will, at its sole option, repair the URC equipment using new or comparable rebuilt parts, or exchange the URC equipment for new or rebuilt equipment.
  • Page 13 God, third-party installation, misuse, limitations of technology, or modification of or to any part of the URC equipment. This limited warranty does not cover the URC equipment sold as used, as is, refurbished, so called "B stock"...
  • Page 14: End User Agreement

    NDOOR ETWORK AMERA IN NO EVENT SHALL URC BE LIABLE FOR THE ACTS OR OMISSIONS OF END USER OR ANY THIRD PARTY. THE LIMITATIONS OF LIABILITY MAY NOT APPLY TO END USER IN WHOLE OR IN PART, WHERE SUCH ARE RESTRICTED LIMITED OR EXCLUDED BY APPLICABLE LAW AND SUCH SHALL APPLY TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW.
  • Page 15: Regulatory Information To The User

    : EN 50130-4 lPower : EN-61000-3-2, 3 n Declaration of Conformity “Hereby, Universal Remote Control Inc. declares that this CAM-DC-I is in compliance with the Essential requirements and other relevant provi- sions of EMC Directive 2004/108/EC.” Certification Type No.(Model No.) CAM-DC-I Batch/Serial No.
  • Page 16: Declaration Of Conformity

    CAM-DC-I I NDOOR ETWORK AMERA Declaration of Conformity Company Name Universal Remote Control Inc. Company Address 500 Mamaroneck Avenue, Harrison, NY 10528, U.S.A www.universalremote.com Contact Information Phone: (914)835-4484 Fax: (914)835-4532 Brand Name UNIVERSAL remote control Product Name D1 CMOS IP CAMERA...
  • Page 17 Page 14...
  • Page 18 Page 15...
  • Page 19 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 www.universalremote.com OCE-0139A Rev 01...
