Summary of Contents for URC CAM-DC-I

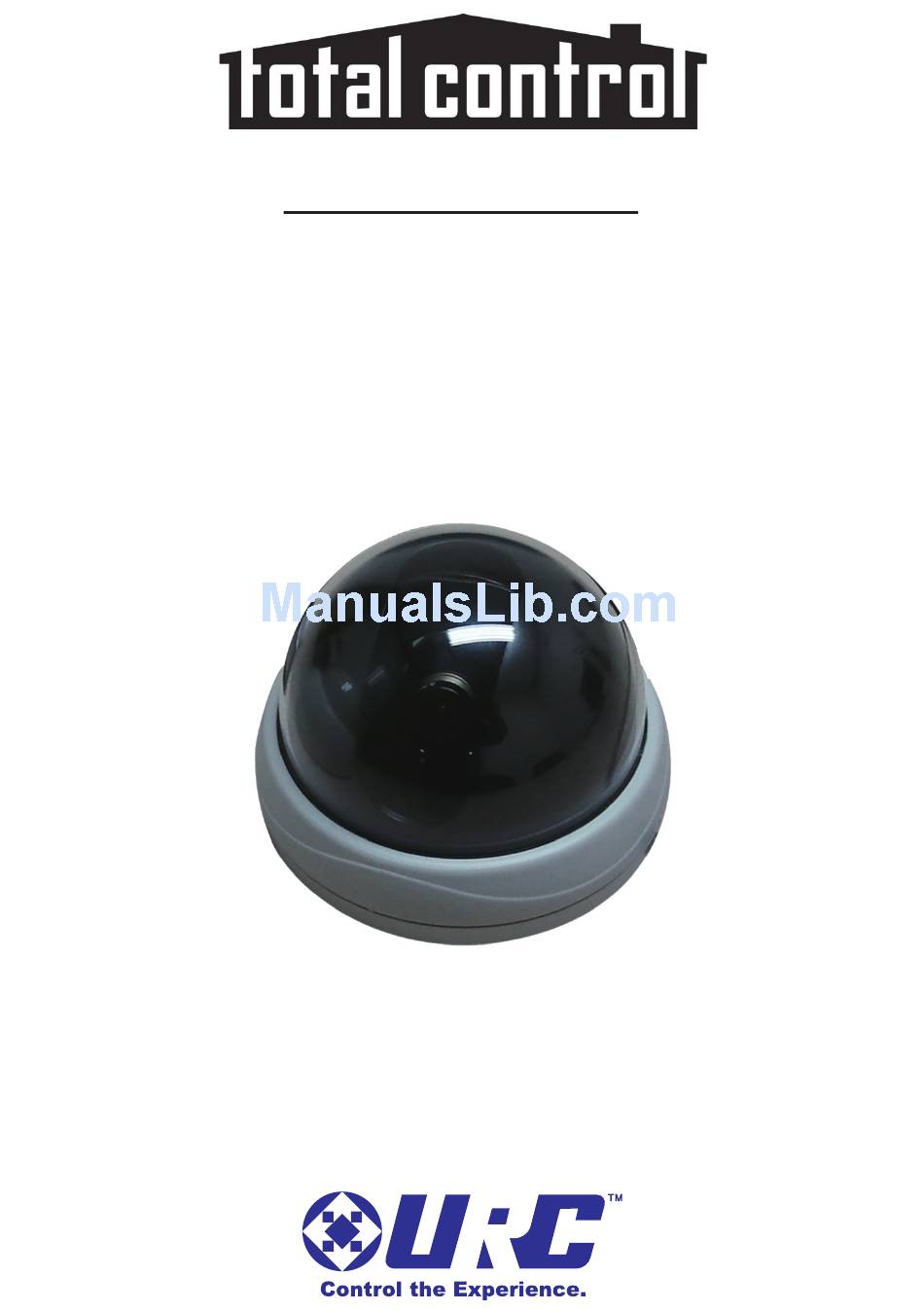

  • Page 1 Owner’s Manual CAM-DC-I Indoor Network Camera...
  • Page 2 The information in this Owner’s Manual may be subject to change without prior notice. Total Control is a registered trademark of Universal Remote Control, Inc. URC - Control the Experience is a registered trademark of Universal Remote Control, Inc. All other brand or product names are trademarks or registered trademarks of their...
  • Page 3: Table Of Contents

    ABLE ONTENTS Introduction Features and Benefits Parts Guide CAM-DC-I Description Basic Installation Communicating with the Camera Navigating the Web Interface - Live View Navigating the Web Interface - Admin Specifications Limited Warranty Statement End User Agreement Federal Communication Commission Interference Statement...
  • Page 4: Introduction

    AMERA Introduction Congratulations on your purchase of the CAM-DC-I Indoor Surveillance Dome IP Camera! The CAM-DC-I is an indoor IP camera that allows for seamless viewing over the network with Total Control interfaces such as the TRC-1280, TKP-2000, TKP-7000 and future Total Control graphical interfaces. Once networked, it relays video to these devices or your PC.
  • Page 5: Cam-Dc-I Description

    CAM-DC-I I NDOOR ETWORK AMERA CAM-DC-I Description Front View Dome Cover OPEN connection CLOSE Dome Cover: Mini dome cover twists to open and close. Open the dome cover to reveal the lens and position it to the correct viewing angle.
  • Page 6: Basic Installation

    CAM-DC-I I NDOOR ETWORK AMERA Basic Installation Follow these basic steps to install the Indoor Network Camera CAM-DC-I. 1. Fasten the camera to your planned location. 2. Plug an ethernet cable to the LAN port of the camera. Note: No separate power supply is needed as the camera receives power via a PoE supply or a MFSPOE-8 router.
  • Page 7: Communicating With The Camera

    CAM-DC-I I NDOOR ETWORK AMERA Communicating with the Camera An IP address is required to view the camera and modify surveillance options. Once installed, locate the IP address assigned by your router (which will differ from the default address below). Your router contains a DHCP table which displays each connected device and its IP address.
  • Page 8: Navigating The Web Interface - Live View

    CAM-DC-I I NDOOR ETWORK AMERA Navigating the Web Interface - Live View Select from the options below to modify the Live View. Control Bar Channel Control Displays multiple camera streams. It modifies the primary and secondary streams (frame rate, image size, encoding, camera name, rate control mode, image quality and group of pictures structure) from the Admin page (Device Configuration>...
  • Page 9: Navigating The Web Interface - Admin

    CAM-DC-I I NDOOR ETWORK AMERA Navigating the Web Interface - Admin Use the Admin interface to modify advanced features for the camera. To gain acccess to the Admin site, enter the default username and password(root and root). Quick Configuration: A guided step-by-step walkthrough to setup your camera’s configuration settings.
  • Page 10: Specifications

    CAM-DC-I I NDOOR ETWORK AMERA Specifications Camera Type Plastic Mini Dome IP Camera 1/3" D1 progressive scan Image Sensor CMOS image sensor Indoor / Outdoor Use Indoor only Lens 3.8mm F2.0, aperture, fixed, non-zoom Color 4 Lux at F2.0 Min. illumination BW 0.1 Lux at F2.0 with DSS...
  • Page 11: Specifications

    Limited Warranty Statement 1. Limited Warranty and Disclaimers Universal Remote Control, Inc. (“URC”) warrants that the URC equipment shall be free from defects in material and workmanship under normal usage for one (1) year from purchase when such is purchased from URC. This limited warranty is valid only in the United States of America.
  • Page 12 CAM-DC-I I NDOOR ETWORK AMERA TERMS OF CORRECTNESS, ACCURACY, RELIABILITY OR OTHERWISE. EXCEPT AS EXPRESSLY PROVIDED FOR HEREIN, TECHNICAL SERVICES ARE SUPPLIED “AS IS”, WITHOUT ANY WARRANTY, EXPRESS, STATUTORY OR IMPLIED, OF ANY KIND. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, URC EXPRESSLY DISCLAIMS ALL...
  • Page 13 CAM-DC-I I NDOOR ETWORK AMERA equipment support and other important information, please visit URC's website available at www.universalremote.com or call the Customer Service Center at (914) 835-4484. This limited warranty only covers the URC equipment issues caused by defects in material or workmanship during ordinary consumer use. It does not...
  • Page 14: End User Agreement

    CAM-DC-I I NDOOR ETWORK AMERA IN NO EVENT SHALL URC BE LIABLE FOR THE ACTS OR OMISSIONS OF END USER OR ANY THIRD PARTY. THE LIMITATIONS OF LIABILITY MAY NOT APPLY TO END USER IN WHOLE OR IN PART, WHERE SUCH ARE RESTRICTED LIMITED OR EXCLUDED BY APPLICABLE LAW AND SUCH SHALL APPLY TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW.
  • Page 15: Federal Communication Commission

    CAM-DC-I I NDOOR ETWORK AMERA Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 16: Regulatory Information To The User

    : EN 50130-4 lPower : EN-61000-3-2, 3 n Declaration of Conformity “Hereby, Universal Remote Control Inc. declares that this CAM-DC-I is in compliance with the Essential requirements and other relevant provisions of EMC Directive 2004/108/EC.” Certification Type No.(Model No.) CAM-DC-I Batch/Serial No.
  • Page 17: Declaration Of Conformity

    CAM-DC-I I NDOOR ETWORK AMERA Declaration of Conformity Company Name Universal Remote Control Inc. Company Address 500 Mamaroneck Avenue, Harrison, NY 10528, U.S.A www.universalremote.com Contact Information Phone: (914)835-4484 Fax: (914)835-4532 Brand Name UNIVERSAL remote control Product Name D1 CMOS IP CAMERA...
  • Page 18 Page 15...
  • Page 20 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 www.universalremote.com OCE-0139A Rev 02...
