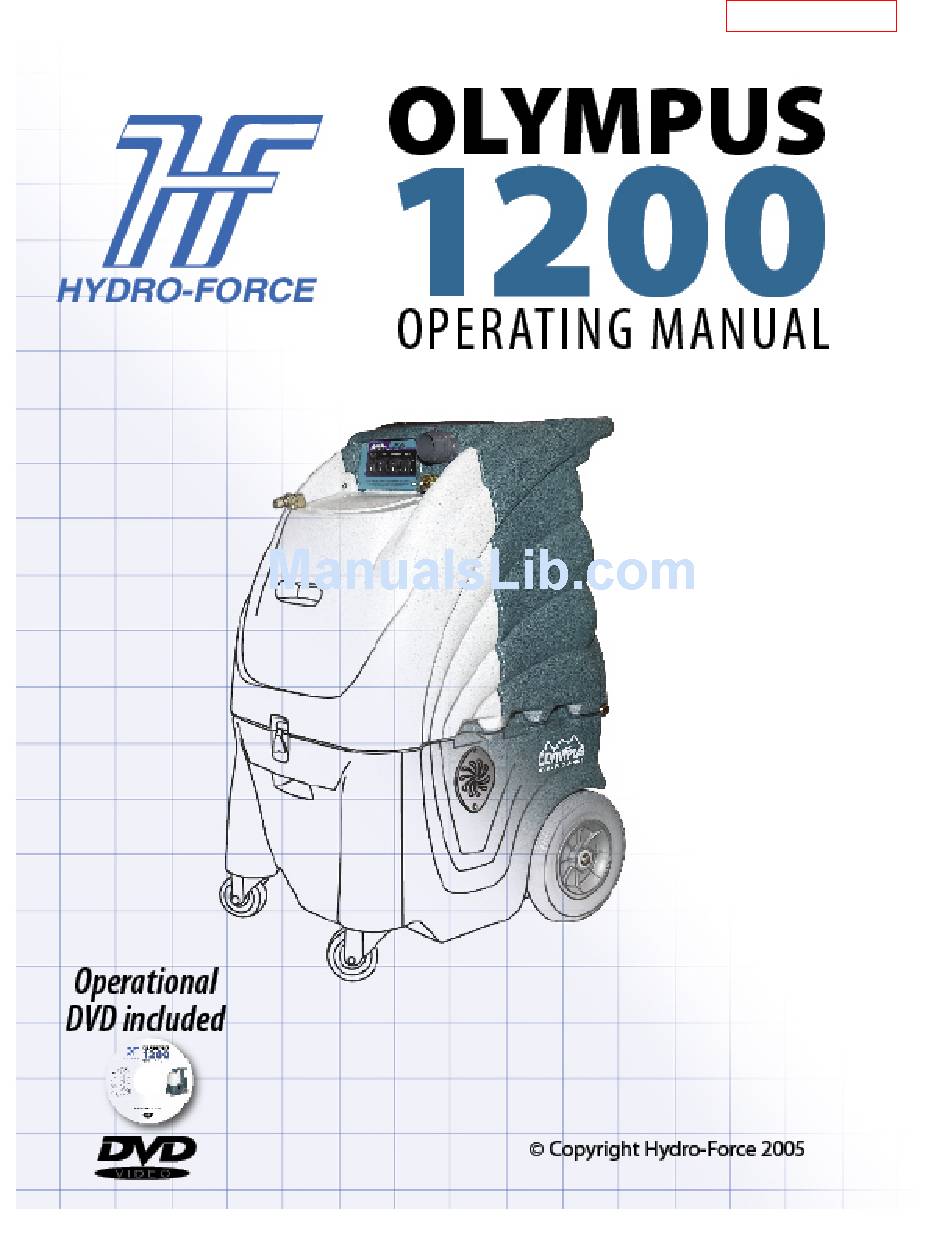

Hydro-Force M1200 Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
REVISED: 4-07-07
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M1200 and is the answer not in the manual?

Questions and answers

Related Manuals for Hydro-Force M1200

Summary of Contents for Hydro-Force M1200

  • Page 1 REVISED: 4-07-07...

  • Page 2: Table Of Contents

    Olympus M1200 Operating Manual TABLE OF CONTENTS TOPIC PAGE # • Introduction • Technical Specifications • Optional Equipment SECTION 1: Operational Safety • Electrical Safety • Mechanical Safety SECTION 2: Operation Procedures • Electrical Supply • Water Supply & Chemicals •...

  • Page 3: Introduction

    Years of experience, engineering, and planning have gone into the design and manufacturing of the M1200. We take a great deal of pride in the M1200; our goal is no less than your complete satisfaction.

  • Page 4: Technical Specifications

    Technical Specifications M1200 High Pressure Extractor Height: 38” Length: 28” Width: 19-1/2” Weight: 141 lbs. Solution Tank Capacity: 12 gallon Recovery Tank Capacity: 12 gallon Solution Pump: Pump-Tec #356 pump with 1-1/2 HP Motor 0-1200 psi – 2.2 gpm Vacuum Motors: Two AMETEK Lamb 5.7”...

  • Page 5: Optional Equipment

    Additional / Optional Equipment Carpet Wand: AW29 SX-12 Hard Surface Tool: AW104 SX-7 Tile & Grout Tool: AW101 Gekko Tile & Grout Wand: AR54 Gekko Hand Tool: AR52 Gekko SX-7 Tool: AW102 1-1/2” Vacuum Hose: (Sold per foot – No cuffs) AH36 2”...

  • Page 6: Electrical Safety

    • Plug unit into grounded outlets only. Do not remove ground prong from plug. Use of a Ground Fault Interrupting (GFI) device will reduce the risk of electrical shock. • Do not use the M1200 outdoors, in standing water or on wet surfaces. • Do not store the M1200 in wet conditions.

  • Page 7: Mechanical Safety

    Store, transport, and use this equipment only in temperatures well above freezing. (32ºF or 0ºC). If you suspect the M1200 has been frozen, do not plug in or turn on machine until you are sure it has thawed completely.

  • Page 8: Section 2: Operation Procedures

    SET UP AND OPERATION 1. Electrical Cords: Two 50’ power cords are supplied with the Olympus M1200. Cord #1 powers both vacuum motors; Cord #2 powers the high pressure solution pump and the waste pump. The amperage required by each cord requires that the two cords be plugged into separate circuits: •...

  • Page 9: Water Supply & Chemicals

    16-1/4oz of chemical to each gallon of water.) • The standard tip included with the M1200 is the turquoise tip with a dilution rate of 256:1. This means that for each gallon of water flowing into the machine, 1/2 ounce of chemical will be added.

  • Page 10: Chemical Metering Tips

    How To Change the Metering Tip: • Remove the chemical feed hose from the barb on the side of the proportioning valve. • Unscrew and remove the old tip. • Screw in the proper tip for your chemical tip and place the hose back on the barb Proportioning Valve Turquoise Tip Dilution 256 - 1...

  • Page 11: Water Supply

    Water Supply: • Once the correct metering tip is in place: o Connect the Auto-Fill Water Supply Hose to the water inlet (the male quick-connect on the front of the machine.) o Connect the other end of the hose to a water faucet, and then turn on the water. •...

  • Page 12: Pump Priming

    3. Priming the High-Pressure Pump: Once water is in the solution tank, the high-pressure solution pump must be primed: • There is a prime valve located on the front lower portion of the machine. • Turn on both vacuums and the water pump. Press the priming lever for a few seconds while you block off the vacuum inlet with your hand.

  • Page 13: Solution & Vacuum Hoses

    The other end with the 1-1/2” cuff is connected to the cleaning tool. When ready to begin cleaning, turn both vacuum switches to the ON position. While the M1200 can be operated with only one vacuum for cleaning delicate fabrics, in most situations you will turn both vacuum switches ON.
  • Page 14 The Foam Downer is an attachment that draws a small amount of defoamer in a constant slow flow into the waste tank of Olympus through its vacuum system. We recommend diluting a gallon at 1 to 32 and open the needle nose valve up one half turn as a starting place.

  • Page 15: Pump-Out System

    6. Connection of Pump-out Hose: The pump-out hose is a 50’ section of 3/4” garden hose. • Remove the cap from the pump-out outlet fitting on the back of the machine. • Connect the pump-out hose to the outlet fitting. •...

  • Page 16: Pressure Adjustments

    7. Pressure Adjustment: When the high-pressure solution pump is on and primed, pressure will show on the gauge only while the tool is being sprayed. When the tool is sprayed the gauge will display the pressure being delivered to the tool. When the tool is not being sprayed the gauge will return to zero.

  • Page 17: Shutdown Procedures

    Shutdown Procedures: • If using the auto-fill system, turn the water supply off before finishing each job. This will allow use of the water and chemical already in the tank, and will reduce the amount of excess water to be disposed of later. •...

  • Page 18: Troubleshooting

    Section Troubleshooting Troubleshooting – Olympus M1200 Problem Cause Solution Machine not Building circuit breaker tripped. Reset breakers or move cords to other outlets turning on - Faulty power cord Replace cord No power Faulty switches or internal wiring Check wiring & test switches - Repair as needed *...
  • Page 19 Problem Cause Solution Pump-out Building circuit breaker tripped. Reset breakers or move cords to other outlets not working Faulty power cord Replace cord Faulty switches or internal wiring Check wiring & test switches - Repair as needed * Pump-out pump faulty Replace pump-out pump Clean pump-out - Keep recovery tank clean - Use Hydro- Pump-out pump clogged...
  • Page 20 Problem Cause Solution Solution Tank Water source turned off Turn on faucet or find other water source not filling Float not on valve arm Reconnect float to valve arm - Adjust to proper height/level Float valve faulty Repair or replace float valve Water hose restricted Un-kink, clean out or replace hose Quick connects faulty...

  • Page 21: Solution Flow Path

    M1200 Solution Flow Path Inlet Quick Float Valve Connect Solution Tank Outlet Quick Connect Filter Chemical Jug Pump – AP48 Pressure Regulator / Unloader – PT019 Denotes Denotes Water Denotes by-pass Denotes incoming water flow in high water flow from...

  • Page 22: Wiring Diagrams

    M1200 Wiring Diagram Solution Waste Pump Vacuum #2 Vacuum #1 Pump VACUUM VACUUM 2-Stage 3-Stage SOLUTION PUMP CORD #1 WHITE TO COMMON GROUND FOR ALL COMPONENTS GREEN WASTE PUMP WHITE TO COMMON GROUND FOR ALL COMPONENTS GREEN CORD #2 BLACK...
  • Page 24 OLYMPUS SWITCH PANEL: Vacuum #1 – Power from Cord #1. Solution Pump Switch – Power from Cord #2. When the switch is turned to the ON When the switch is turned to the ON position position power is supplied to the vacuum power is supplied to the solution pump motor.

  • Page 25: Maintenance

    Section Maintenance Proper maintenance is required to keep the M1200 operating properly, prevent downtime and to extend the life of your equipment. WARNING: Disconnect electrical power before performing any service or maintenance inside machine base or before testing or repairing switches or power cords.
  • Page 26 Inside the recovery tank, on top of the stand pipe, is the Vacuum Shutoff Assembly. It functions to prevent debris and water from being sucked into the vacuum motors. Operating the M1200 without the Vacuum Shutoff Assembly or with a poorly maintained assembly will greatly decrease the life of the vacuum motors and will void the warranty.
  • Page 27 A torn filter bag will allow debris past the filter and into the recovery tank. This debris can clog the Waste Pump and the Vacuum Shutoff Assembly. The Hydro-Filter must be examined and cleaned regularly to keep the M1200 functioning properly: • Push the latch lever and open the Hydro-Filter lid.
  • Page 28 CLEAN WASTE PUMP-OUT PUMP: Build-up of fine silt inside the Waste Pump can clog the pump even if the pump is not used, so this maintenance procedure should be performed regardless of whether the Waste Pump has been used. • After cleaning out the recovery tank, remove the cap and connect the Pump-Out hose to the Waste Pump outlet fitting on the back of the machine;...
  • Page 29 FLUSH SOLUTION TANK AND PUMP: (continued from previous page) Direct the end of the prime hose into the recovery tank vacuum barb Vacuum acid solution out of Solution Tank CLEAN PUMP INLET FILTER A restricted Pump Inlet Filter can prevent the solution pump from providing adequate pressure for cleaning. A restriction or air leak on the pump inlet can also damage the solution pump check valves and plunger seals.
  • Page 30 FLUSH CHEMICAL SYSTEM: Chemical build-up in the chemical system can prevent the system from drawing chemical. • Rinse the chemical system with fresh water (For heavy chemical build- up, a mild acid can be added to the rinse water.) Place Chemical Feed Hose into •...
  • Page 31 LUBRICATE PRESSURE REGULATOR O-RINGS: To maintain consistent adequate pressure delivery to the cleaning tool, the o-rings on the stem of the M1200 pressure regulator must be lubricated regularly. 1. Remove nut from the end of the regulator stem. 2. Remove the black knob from the regulator stem.
  • Page 32 10. Apply thread sealant to the threads of the stem retainer and screw the retainer back into the regulator body. Tighten using wrenches. Screw stem retainer back into Apply thread sealant to stem regulator body retainer 11. Place the regulator back into the opening on the base wall. Reconnect any hoses which were removed to access the regulator.
  • Page 33 CLEAN RECOVERY TANK DRAIN Debris and sand accumulation in the drain valve can damage the valve or prevent it from closing completely. This will result in dirty water leaking from the valve. Use of the Hydro-Filter and regular cleaning of the recovery tank will help prevent this, but occasionally the drain valve will require cleaning or replacement.

  • Page 34: Freeze Protection

    This will assure that the anti-freeze will be drawn into the proportioning valve. 5. Connect any cleaning tools that will be stored with the M1200. Direct tool spray back into the solution tank or into a bucket. Repeat for all tools to be protected.

  • Page 35: Pump

    Section Parts Replacement parts available for repair of your M1200. M1200 PUMP – AP48 PARTS ASSEMBLY KIT C – PT046 KIT A – PT042 KIT B – PT044...
  • Page 36 PUMPTEC #356 PUMP – AP48 ITEM DESCRIPTION PART NUMBER PLUNGER 0311-0006-0002 PLUNGER GUIDE 0311-0009 O-RING FOR PLUNGER GUIDE C0100-1124 U-CUP C0220-1075 U-CUP BACKING RING 0311-0011 PUMP HEAD 0356-0002-0001 PUMP MANIFOLD 0356-0004-0001 VALVE ASSEMBLY 0205-0012 VALVE SEAT (Part of #8 - Valve Assembly) 0205-0017 VALVE POPPET (Part of #8 - Valve Assembly) 0205-0013...

  • Page 37: Auto-Fill

    Part Number Description OLYMPUS AUTO-FILL 16-3 3’ Discharge Tubing 25-78 Pipe Nipple FLOAT VALVE ASSEMBLY 34-17 16” Chain with Connector 34-22 Backflow Preventer 35-12 Float Hanger Clip – PDE35-12 35-18 Float Assembly – PHY005-003 35-31 Magnet Housing 35-32 Magnet Holder...

  • Page 38: Pressure Regulator

    DESCRIPTION REGULATOR BODY REGULATOR KNOB SPRING SPRING PLATE SPRING WASHER CAP / RETAINER O-RING (QTY 3) POPPET O-RING POPPET POPPET SPRING RETAINING RING SPRING – BALL SEAT BALL STEM NUT OUTLET ADAPTER CAP INLET ADAPTER CAP STEM RETAINER SEAT STEM NUT –...

  • Page 45: Limited Warranty

    Section Limited Warranty Your Olympus M1200 is designed to give you years of reliable service. If a problem should arise use the troubleshooting section in the operation manual to diagnose and correct the problem if possible. If you are unable to determine the cause or solution to the problem contact your distributor or Hydro-Force for assistance.
