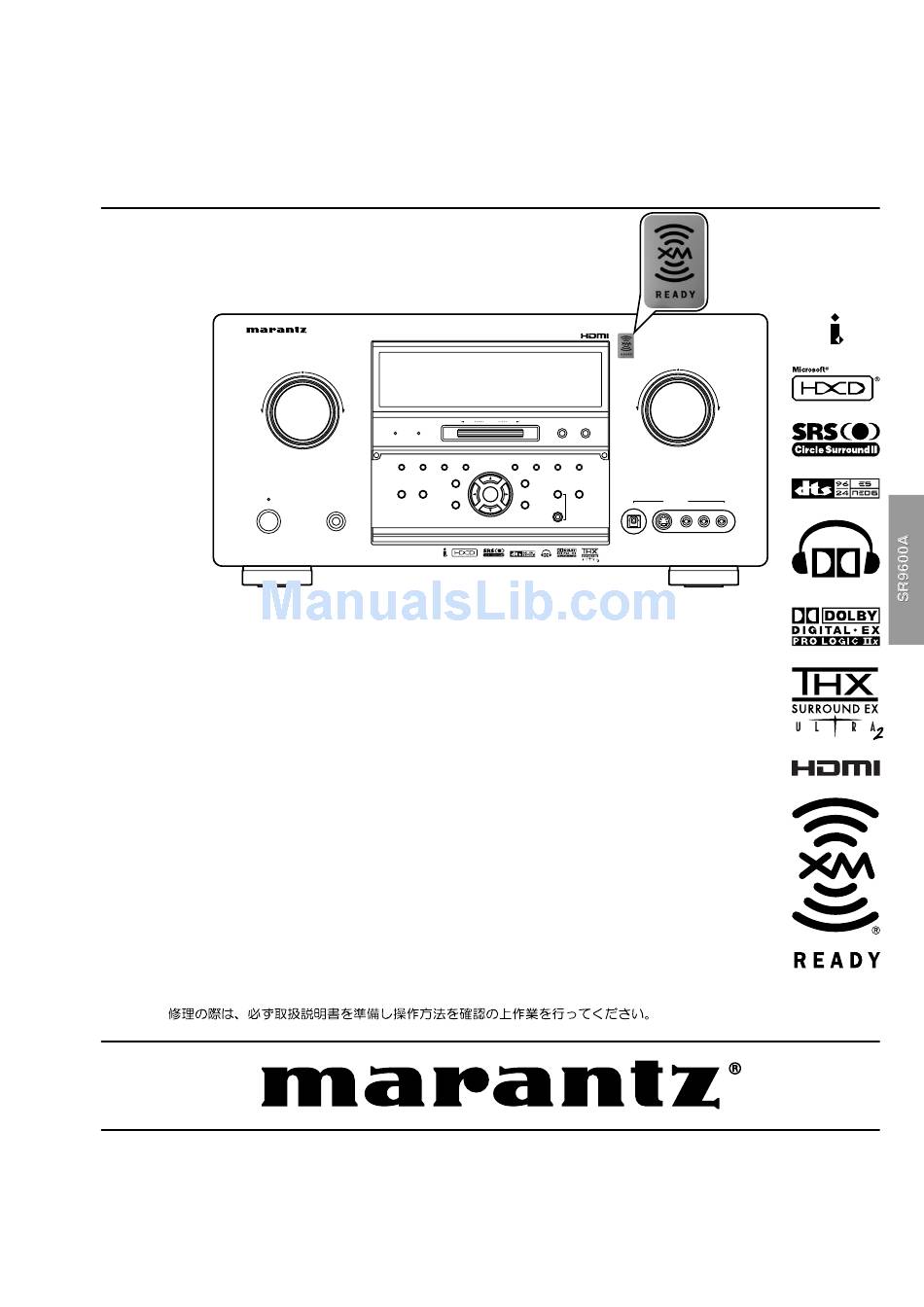

Marantz SR9600 Service Manual

Service
Manual
STANDBY STANDBY
POWER ON/OFF POWER ON/OFF
2nd EDITION
1. This service manual is the revised one for modifi ed SR9600A, which is applicable to the latest
products from the serial number "xxxx06xxxxxxxx".
2. The most signifi cant changes from SR9600A (serial no.xxxx05xxxxxxxx) to SR9600A (serial
no.xxxx06xxxxxxxx) are "Deletion of Regulator Circuit (XM READY SUPPLY PWB PX24)" and
"Change XM READY PWB PXM1".
3. Please refer to this service manual page 3 to 16 for SR9600A serial no. xxxx05xxxxxxxx.
Please refer to this service manual page 17 to 42 for SR9600A serial no. xxxx06xxxxxxxx.
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
AV SURROUND RECEIVER SR9600 AV SURROUND RECEIVER SR9600
INPUT SELECTOR INPUT SELECTOR
PURE DIRECT PURE DIRECT THX THX
SURROUND SURROUND MULTI MULTI
MODE MODE AUTO AUTO MULTI MULTI SPEAKER SPEAKER
7.1CH INPUT 7.1CH INPUT
PURE DIRECT PURE DIRECT THX THX
MENU MENU
PHONES PHONES
SR9600A
AV Surround Receiver
( XM Satellite Radio )
DOWN DOWN
DOWN DOWN TUNING TUNING UP UP BAND BAND F/P F/P
AUTO TUNE AUTO TUNE T-MODE T-MODE MEMORY MEMORY CLEAR CLEAR
DISPLAY DISPLAY
SPEAKERS SPEAKERS
MRAC MRAC A/B A/B
ENTER ENTER
EXIT EXIT
DIGITAL DIGITAL
MIC MIC
SR9600A /
VOLUME VOLUME
UP UP
AUX 1 INPUT AUX 1 INPUT
S-VIDEO S-VIDEO VIDEO VIDEO L L AUDIO AUDIO R R
Part no. 90M11AJ855030
First Issue 2006.03
U1B
MZ
