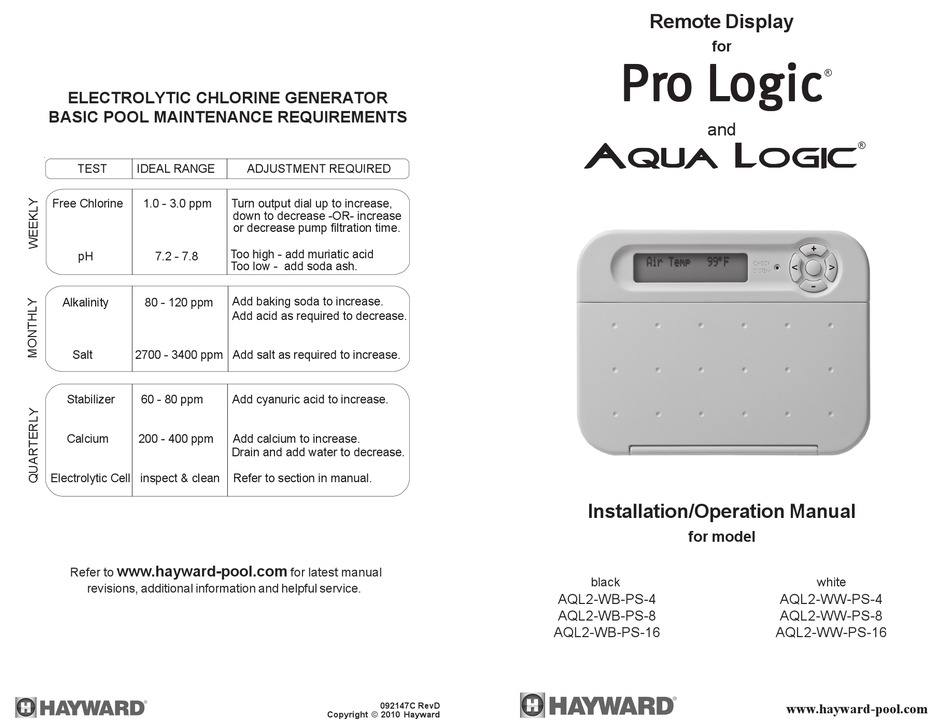

ELECTROLYTIC CHLORINE GENERATOR
BASIC POOL MAINTENANCE REQUIREMENTS
TEST
IDEAL RANGE
Free Chlorine
1.0 - 3.0 ppm
pH
7.2 - 7.8
Alkalinity
80 - 120 ppm
Salt
2700 - 3400 ppm Add salt as required to increase.
Stabilizer
60 - 80 ppm
Calcium
200 - 400 ppm
Electrolytic Cell inspect & clean
www.hayward-pool.com
Refer to
revisions, additional information and helpful service.
ADJUSTMENT REQUIRED
Turn output dial up to increase,
down to decrease -OR- increase
or decrease pump filtration time.
Too high - add muriatic acid
Too low - add soda ash.
Add baking soda to increase.
Add acid as required to decrease.
Add cyanuric acid to increase.
Add calcium to increase.
Drain and add water to decrease.
Refer to section in manual.
for latest manual
092147C RevD
Copyright © 2010 Hayward
Remote Display
for
Pr Pr Pr Pr Pr o L
o L
o L
o L ogic
ogic
ogic
ogic
o L
ogic
and
Aqua Logic
Aqua Logic
Aqua Logic
Aqua Logic
Aqua Logic
Installation/Operation Manual
for model
black
AQL2-WB-PS-4
AQL2-WB-PS-8
AQL2-WB-PS-16
®
®
white
AQL2-WW-PS-4
AQL2-WW-PS-8
AQL2-WW-PS-16
