Summary of Contents for Hypex Electronics DS 1.2
-

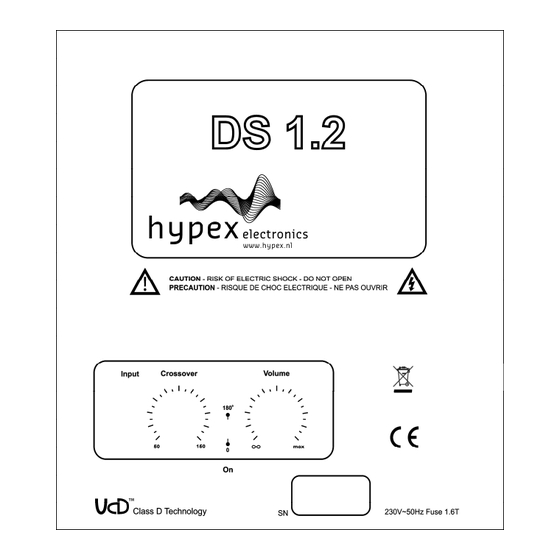

Page 1: User Manual
Hypex Electronics BV Kattegat 8 9723 JP Groningen, The Netherlands +31 50 526 4993 info@hypex.nl User Manual Subwoofer Module DS 1.2 Hypex DS - Series... - Page 2 DS1.2 DS1.2 Technical Data General safety instructions ……………………………………………… Continuous output power (8 Ohm) 75 Watts (+0, -0.5dB) Introduction ………………………………..……………..……………………. Continuous output power (4 Ohm) 120 Watts (+0, -0.5dB) Subsonic-filter 20Hz / -3dB, 24dB/Octave Crossover frequency subwoofer 50Hz - 150Hz, 18dB/Octave Connections ……………………………………..……………………………..
- Page 3 DS1.2 DS1.2 CAUTION Crossover settings NO USER SERVICEABLE PARTS INSIDE. Crossover example 1. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: SHOCK HAZARD. AVIS: RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR. CAUTION: REPLACE FUSE WITH SAME TYPE AND RATING. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE. DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE.
- Page 4 DS1.2 DS1.2 The DS 1.2 is a state-of-the-art Class D amplifier module for active subwoofer use. Accurate Introduction rendition of the low bass range is a substantial component of a high-quality music reproduction. For an impressive bass rendition large loudspeakers are unfortunately inevitable.
