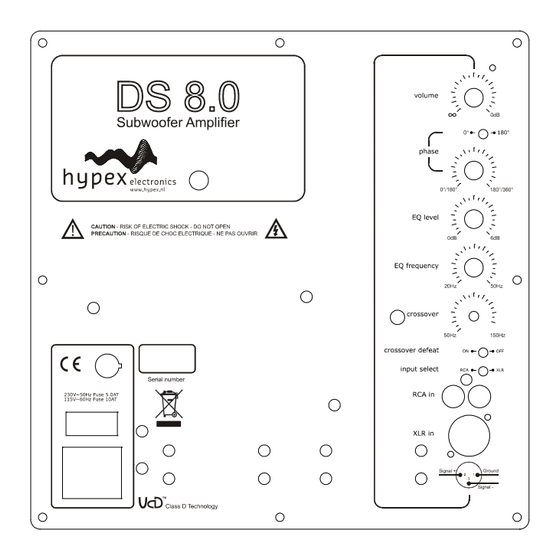

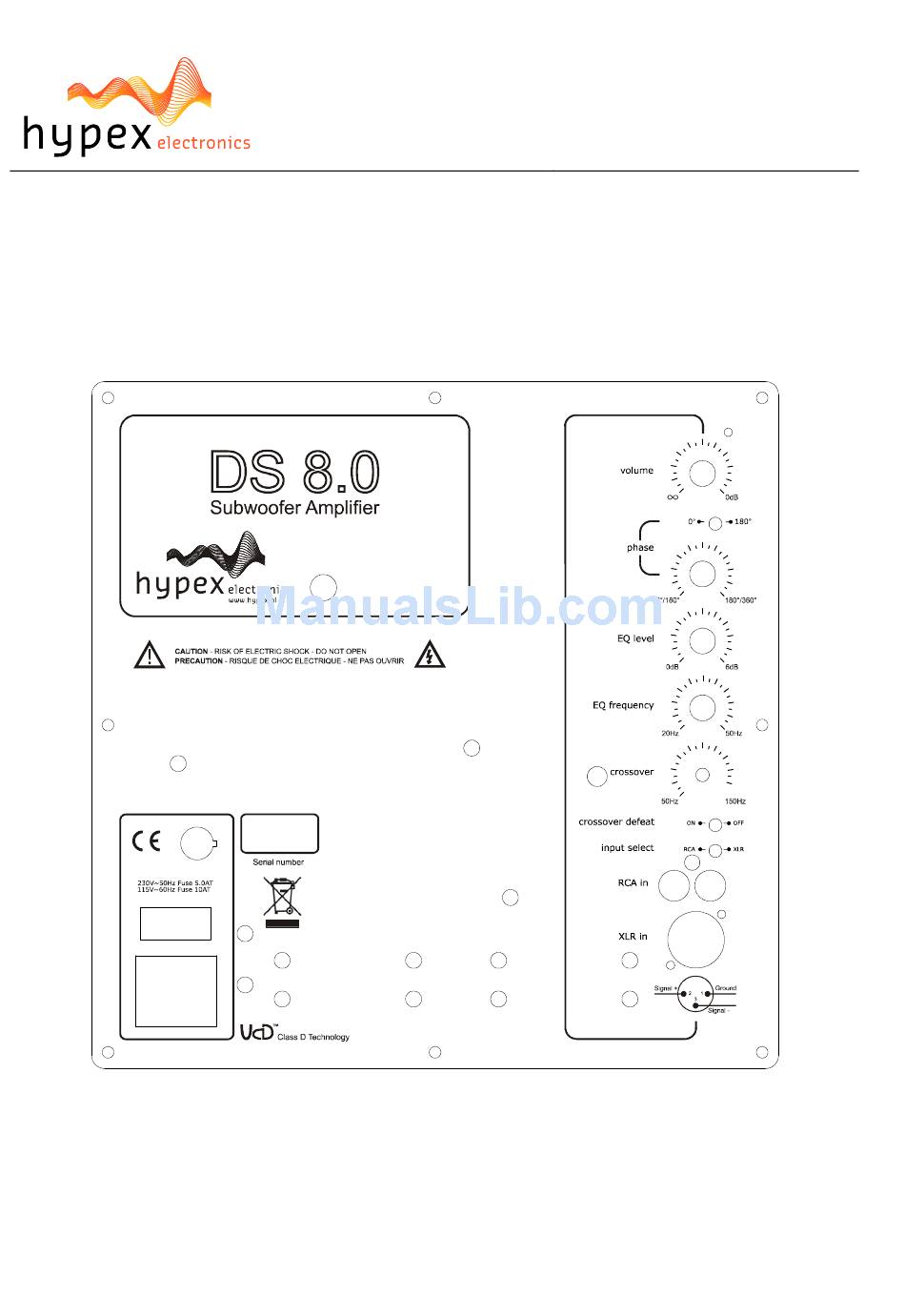

Page 1: User Manual
Hypex Electronics BV Kattegat 8 9723 JP Groningen, The Netherlands +31 50 526 4993 info@hypex.nl User Manual Subwoofer Module DS 8.0 Hypex DS - Series... - Page 2 DS8.0 General safety instructions ……………………………………………… Introduction ………………………………..……………..……………………. Connections ……………………………………..…………………………….. Crossover settings ………………….………..……………………………. Technical data / Warranty …………………………..…………………. - 2 -...
- Page 3 DS8.0 CAUTION NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: SHOCK HAZARD. AVIS: RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR. CAUTION: REPLACE FUSE WITH SAME TYPE AND RATING. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE. DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE.
- Page 4 DS8.0 Introduction High efficiency Class D design. Active subwoofer amplifier. Power output 800 Wrms into 4 ohms. Crossover filter, 24dB/octave. Subsonic-filter 12Hz, 24dB/octave. - 4 -...
- Page 5 DS8.0 The DS 8.0 is a state-of-the-art Class D amplifier module for active subwoofer use. Accurate rendition of the low bass range is a substantial component of a high-quality music reproduction. For an impressive bass rendition large loudspeakers are unfortunately inevitable.
- Page 6 DS8.0 Crossover settings Crossover example 1. Settings shown for a 50Hz, 150Hz crossover setting and the crossover defeat. Crossover example 2 Settings shown for a 20Hz and 50Hz bassboost setting. - 6 -...
- Page 7 DS8.0 Technical Data Continuous output power (8 Ohm) 530 Watts Continuous output power (4 Ohm) 800 Watts Gain (XLR) 38dB Gain (RCA) 32dB Input sensitivity (XLR) 0,7Vrms Input sensitivity (RCA) 1,4Vrms Subsonic-filter 12Hz / -3dB, 24dB/Octave Phase 0° - 180°, 180° - 360° Crossover frequency subwoofer 50Hz - 150Hz, 24dB/Octave Bassboost...
- Page 8 LIFE SUPPORT POLICY: Use of Hypex products in life support equipment or equipment whose failure can reasonably be expected to result in injury or death is not permitted except by explicit written consent from Hypex Electronics BV.
