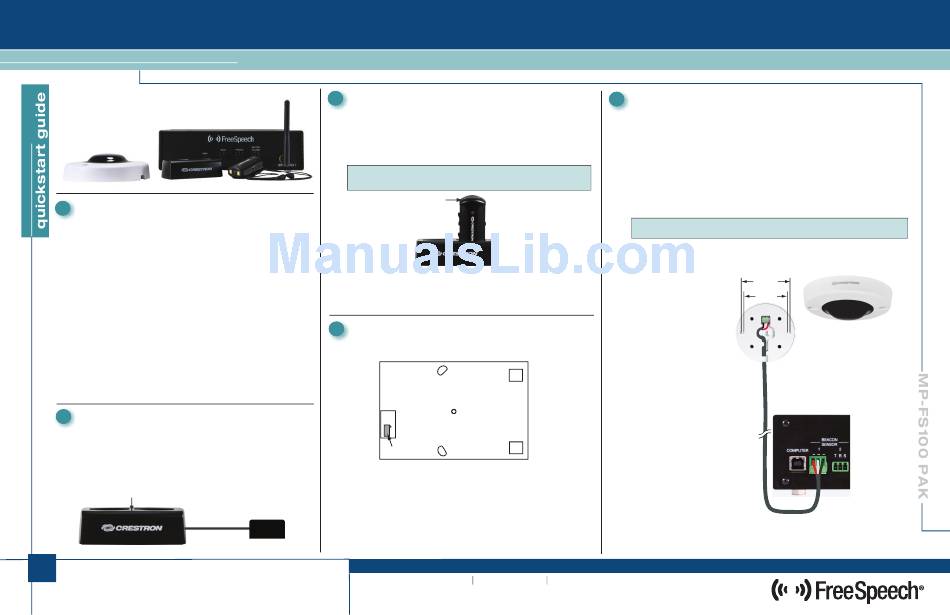

Crestron FreeSpeech MP-FS100 PAK Quick Start Manual

MP-FS100 PAK
1
System Components
The following items are included in the MP-FS100 PAK kit:
• One single-channel receiver, MP-FS-RX1
• One dual docking station/charger, MP-FSDS2
• One IR beacon sensor, MP-FSIR
• One wireless microphone, MP-FSMIC, with lanyard and LED
code chart
• One power pack: 2.0 Amps @ 24 Volts DC, 100-240 Volts AC,
50/60 Hz (for MP-FS-RX1)
• One power pack: 1.2 Amps @ 5 Volts DC, 100-240 Volts AC,
50/60 Hz (for MP-FSDS2)
The following items are available separately:
• PA audio sensor, MP-FS-PAS
• Tabletop mic stand, MP-FSTTS
• Ceiling-mount speakers, FSDI8 (Pair)
• Surface-mount speakers, FS6 (Pair)
• Speaker wire, CBL-SPK-P-35
• CBL-PWR-CTRL-P-TL-50
2 Install MP-FSDS2 Dual Docking Station/Charger
Install the dual docking station/charger as follows:
1. Select an appropriate location (tabletop, desk, shelf).
2. Connect the supplied power pack to the docking station and then to
line power.
3. The green LED on the docking station indicates power is applied.
Green
LED
1.2 Amps @
5 Volts DC
1 For details, refer to the latest version of the
MP-FS-RX1/RX2 Operations Guide, Doc. 7164.
QUICKSTART DOC. 7161B (2030815)
FreeSpeech ® Single-Channel Wireless Mic System
3
Install MP-FSMIC Wireless Microphone
Install the wireless microphone (mic) as follows:
1. Make sure power is applied to the docking station/charger
(the green LED is on).
2. Place the MP-FSMIC
allow it to charge for at least two hours. When the battery is fully
charged, the mic's Status LED blinks green.
NOTE: The mic is "keyed" and only fits into the charger in the orientation
shown in the following illustration.
Status LED
3. Use the included magnetic clip for lapel or lanyard attachment, or
place the mic in the tabletop stand accessory (available separately).
During operation, the mic should be positioned approximately four
inches (100 mm) below the speaker's chin.
4
Room Setup and Speaker Placement
Use the diagram below as a guide for placing the FreeSpeech
components in the classroom.
Instructor
w/ MP-FSMIC
Desk,
Table,
Shelf . . .
MP-FS-RX1
1. Locate the MP-FS-RX1 receiver on any flat surface such as a desk, table,
or shelf.
2. Crestron ® recommends using FS6 surface mount speakers OR FSDI8
ceiling mount speakers. Place FS6 speakers on the walls between the
instructor's usual location and the students, aimed toward the students;
Power Pack
place FSDI8 ceiling mount speakers at the rear of the room behind the
students.
3. The MP-FSIR IR beacon sensor(s) should be centrally located on the
ceiling or wall, away from fluorescent lighting and windows, with direct line
100-240 Volts AC
of sight to the MP-FSMIC wireless microphone.
50/60 Hz
www.crestron.com
08.11
Specifications subject to change
without notice.
5
in either position of the docking station, and
® system
FS
FSDI8
MP-FSIR
Students
FSDI8
FS
888.273.7876 201.767.3400
System Hookup
Install all accessory hardware and all required interconnecting cables.
1. Install 2-conductor cables between the MP-FS-RX1 receiver and the speaker
locations. Crestron recommends its plenum rated 16 AWG speaker cable
CBL-SPK-P-35. Use the supplied connectors at the receiver end, and connect to
the speakers following their included instructions.
2. Install any optional devices, such as the MP-FS-PAS audio sensor, following their
included instructions.
3. Attach the supplied antenna to the receiver.
4. Install a 3- or 4-conductor cable (minimum 24 AWG) up to 50 feet (~15 meters)
maximum, between the MP-FSIR location and the receiver. Refer to the illustration
below for mounting and hookup details.
As an alternative, use Crestron's CBL-PWR-CTRL-P-TL-50 or equivalent cable.
NOTE: Up to two MP-FSIR units can be connected in parallel to each of the two
MP-FS-RX1 BEACON SENSOR ports, allowing for a total of four MP-FSIRs.
5. Connect the included power supply to the receiver and then to line power.
MP-FSIR Hookup & Mounting
3.53 in
(90 mm)
3.23 in
(82 mm)
S R T
The outer jacket of the cable must
extend into the molded plastic channel l
of the MP-FSIR and under the wire
Mount the IR beacon sensor directly to
retaining guides, as shown.
the ceiling or wall using the supplied
1-1/2" 8-16 Phillips head screws and
Connect the T, R, and S terminals of
plastic wall anchors (if required). It can
the MP-FSIR to the T, R, and S terminal nal
also be mounted to a single-gang
positions of the supplied 3-pin
electrical box or an octagonal electrical
detachable connector for the BEACON N
box.
SENSOR T, R, and S terminals of the
MP-FS-RX1 receiver, and plug in the
connector.
If using the CBL-PWR-CTRL-P-TL-50
cable, connect drain and black together
to the S pin, connect red to T and white
to R. Blunt cut both ends of the blue
conductor and do not use.
If using a shielded cable, also connect
the shield to the S pin at the receiver
end only.
