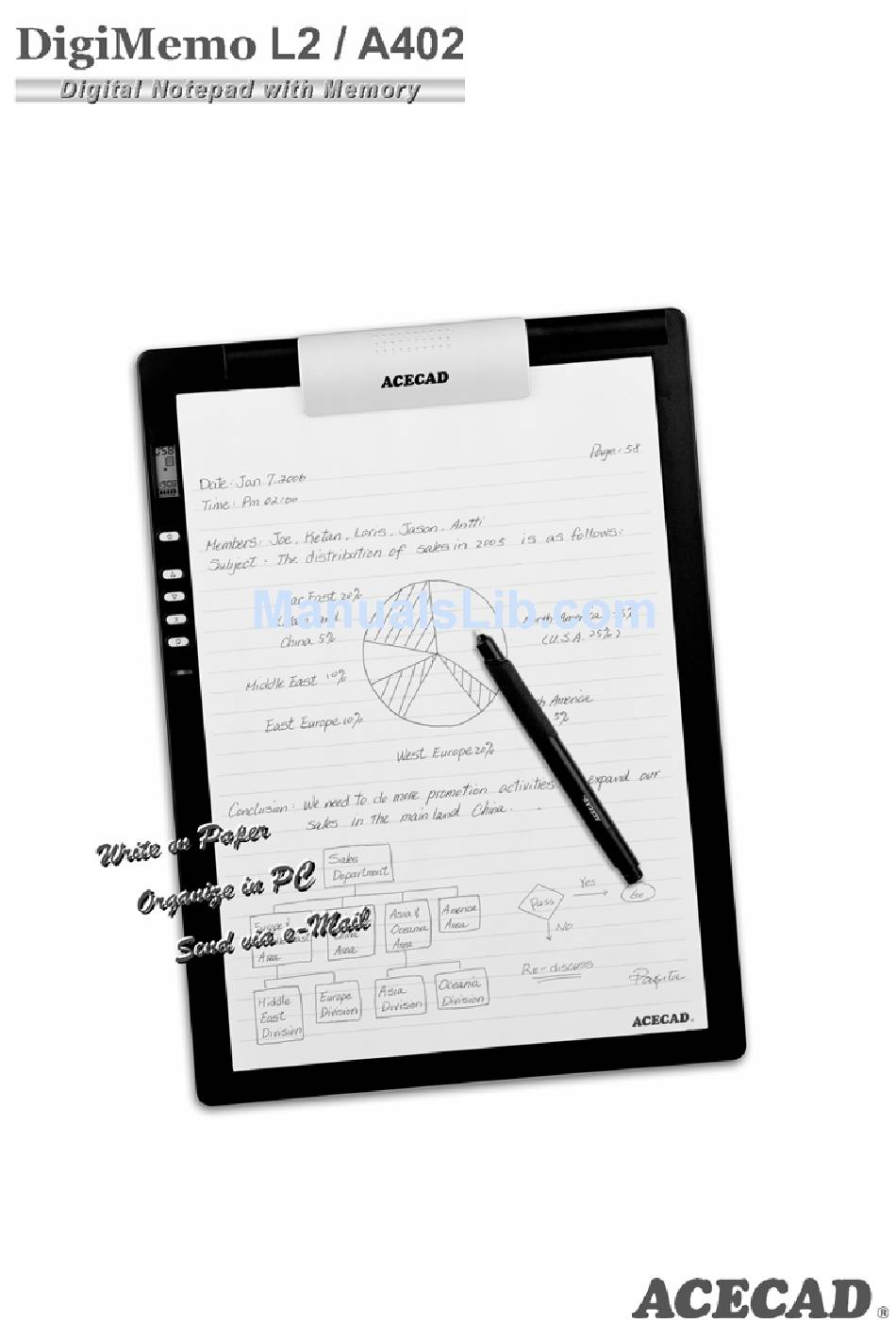

Page 1: User Guide
Digitally capture & store everything you write with ink on ordinary paper. User Guide... - Page 3 CAD Enterprise Co., Ltd. Modification could void authority to use this equipment. Trademark Information ACECAD and ACECAT are registered trademarks of ACE CAD Enterprise Co., Ltd. Microsoft and Windows are registered trademarks of Microsoft Corporation. SanDisk is a registered trademark of SanDisk Corporation.
-
Page 4: Table Of Contents
GETTING STARTED....................1 ....................1 QUIPMENT HECKLIST ..................2 ARTS OF THE IGITAL ............3 NSTALLING THE ATTERIES INTO THE IGITAL ...........3 NSTALLING THE ATTERY INTO THE IGITAL NKING ...........4 UTTING A OTEPAD OR APER ON THE IGITAL ................4 RITING REA AND HICKNESS ................5 TORAGE EVICE IN THE IGITAL... - Page 5 General Problems ....................35 Problems in the DigiMemo Manager Software............ 37 Problems When Connecting the Digital Pad to your Computer ......38 ......................39 PECIFICATIONS Digital Pad Specifications of DigiMemo L2 Model ..........39 Digital Pad Specifications of DigiMemo A402 Model......... 39...
- Page 6 General Digital Pad Specifications..............39 Digital Pen Specifications ..................40 File Formats......................40 System Requirements ....................40 Environment ......................40...
-

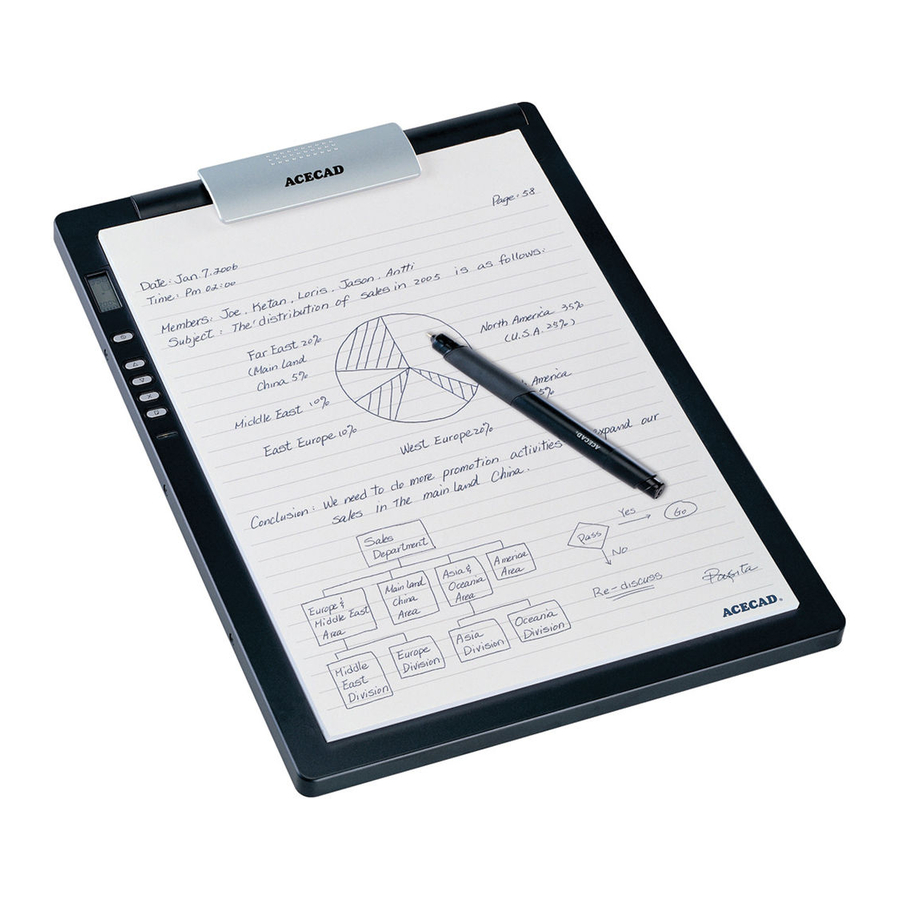

Page 7: Getting Started
Getting Started The DigiMemo is a stand-alone device with storage capability that digitally captures and stores everything you write or draw with ink on ordinary paper, without the use of computer and special paper. Then you can easily view, edit, organize and share your handwritten notes in Windows. -
Page 8: The Parts Of The Digital Pad
The Parts of the Digital Pad USB Connector Pen Holder SD Card Display Insertion Slot Power Button Notepad Clip Four Function Buttons Notepad Holder Battery Compartment Cover Battery Compartment Cartridge Compartment Two Replacement Cartridge Ink Cartridges and Compartment Cover One Plastic Pen Tip... -
Page 9: Installing The Batteries Into The Digital Pad
Installing the Batteries into the Digital Pad Open the battery compartment cover of the digital pad. Insert four batteries (1.5 volt, size AAA) into battery compartment in accordance with the indication in the battery compartment. Close the battery compartment cover. Note! Incorrect battery installation may damage the digital pad. -
Page 10: Putting A Notepad Or Paper On The Digital Pad
Note! You can clip the pen to the pad by using the pen clip to clip to the right or left pen holder on the notepad clip. Two Holes Note! You can attach some cord or accessory such as the pen to the pad through the two holes on the upper-right corner of the pad. -
Page 11: Storage Device In The Digital Pad
Storage Device in the Digital Pad The digital pad is equipped with a built-in 32 MB storage device to store your handwritten notes. You also can load an optional Secure Digital (SD) memory card into the pad to expand the storage capacity of the pad. To load an optional Secure Digital (SD) memory card, insert the memory card all the way into insertion slot until it clicks by holding the me mory card with the... -
Page 12: Writing And Recording Your Handwritten Notes
Writing and Recording Your Handwritten Notes Using the digital inking pen on the digital pad produces both familiar ink notes on ordinary paper and digital pages in the storage device of the pad. Note! The DigiMemo is a stand-alone device. You do not need to connect the digital pad to your computer for this function. -
Page 13: Changing The Current Digital Page
Battery Icon The Battery icon indicates the battery strength in the digital pad. Changing the Current Digital Page You can use the following function buttons on the pad to change the current digital page in the current storage device. Page Backward Button Press the Page Backward button to move to the previous digital page. -
Page 14: Writing Your Notes On A Page Already With Contents
The file name of this digital page is PGLT_XXX.DHW for the model DigiMemo L2, or PGA4_XXX.DHW for the model DigiMemo A402 (the XXX is the Digital Page Number such as 001). -
Page 15: Turning Off The Digital Pad
Note! When message appears, the erase procedure will be cancelled if you write or press any button to execute other functions. All contents remain intact in the digital page. Note! Once a digital page is erased, its original contents can not be recovered. -
Page 16: Batterie In The Pad.
Low Battery Indication on the Digital Pad When the batteries remain too low power and are in need of replacement, the Low Battery icon will appear on the display. Please replace the batteries in the pad. When the batteries are exhausted, the pad sounds 3 beeps. Then the pad is turned off immediately. -
Page 17: Organizing Your Notes In Windows
Organizing Your Notes in Windows With its DigiMemo Manager software, you can easily view, edit, organize and share your digital pages in Windows. You can save any digital pages you arbitrarily select as a book file (e-Book). Installing the DigiMemo Manager software 1. - Page 18 4. Click Next in the dialog box. 5. In the dialog box, click Next to start the installation. 6. The DigiMemo Manager software has been successfully installed. Click Close in the dialog box. Please restart your Windows.
-
Page 19: Connecting The Digital Pad To Your Computer
File digital page to a new book file (e-Book). Icon C eating Your e-Book File the Windows desktop, double-click the ACECAD Di iMemo Manager icon to open the software. ACECAD DigiMemo Manager... -
Page 20: Importing Your Digital Pages
Tools Toolbar Color Toolbar Width Toolbar To move a toolbar to the new location, drag the move handle on a docked toolbar or the title bar on a floating toolbar. Move Handle Move Docke oolbar Handle Title Bar Docked Toolbar Floating Toolbar Importing Your Digital Pages 1. - Page 21 that contains digital pages. Click OK. The Import Digital Pages d ialog box will appear. 4. To select nonadja cent digital pages, click one digital page, and then hold down the CTRL key and click each additional digital p age. To select adjace nt digital pages, click the first digital page in the sequence,...
-
Page 22: Saving An E-Book File
Creating a New e-Book File You can use the following methods to crea te a new e-Book file. On the Windows desktop, double-click the ACECAD DigiMemo Manager icon to create a new and blank e-Book file with a new page in a new software win dow. -
Page 23: Printing An E-Book File
In the folder of a digital page file, double-click the digital page file. The digital page will be imported to a new e-Book file in a new softwar e window. Note! By this way, you ca n open various e-Book files in different software windows. -
Page 24: Drawing A Freeform Line And Writing
Drawing a Freeform Line and Writing 1. Click the Pen button on the Tools toolbar. You can switch the color clicking a color butto n on the Color toolbar. You can change the width by clicking a width button on the Width toolbar. -
Page 25: Selecting Objects
Selecting Objects You can u se the following method s to select objects: To select only one object, click the Select button and then one digital ink stroke or line. A Selection box will appear around the selected object. To select one or several digital ink str okes, lines or text boxes, click the Select button . -
Page 26: Copying Or Moving Objects
Copying or Moving Objects 1. Select one or several digital ink strokes, lines or te xt boxes. 2. Do one of the following: To move the selected objects, click the Cut button on the Standard toolbar. To copy the selected objects, click the Copy button on the Standard toolbar. -
Page 27: Adding A New Page
text box. By editing a text box, you can click a color button to change the color of the selected text or click th e Font button to change the font of the selected text. Ad n di g a New Page Click th e Add Page butto on the Standard toolbar. -
Page 28: Showing The Background Of
Showing the Background of Pages 1. On the Edit menu, click Option. A dialog box will appear. 2. Choose or clear the follo wing check boxes to show th e background on: Current page Page thumbna 3. If necessary, sele ct the following one option button: Default backgr ound (Lines) -
Page 29: Sample Of An Edited E-Book File
1. Click the Save as Image button on the Standard toolbar. 2. In the dialog box, select a file type and enter a file name. Cl ick Save. Sample of an Edited e-Book File On-line W riting Your Notes When the digital pad is connected to your computer through a US B port, you can use the On-li... - Page 30 To use the On-line Writing function, execute the following steps: Make sure that the digital pad connected to your comput er throug USB port. The Connection icon appears on the display of the pa On the Tools toolbar in the software window, click the On-line Writing button to activate the function.
-
Page 31: Setting The Default New Page Size
DigiMemo model. The pa ge size in accordance with the DigiMemo Model is shown below. DigiM emo Model Page Size DigiMemo L2 Letter DigiMemo A402 Note! The page size of the current pag e is shown in the lower-right corner of the software window. - Page 32 To view and edit your e-Book file, the recipient must have the DigiMemo Manager software. If he or she does not have this software, please download it on the ACECAD website. http://www.acecad.com.tw/digimemo/download.html Open your e-Book file in the DigiMemo Manager software. Click the E-mail button on the Standard toolbar.
-
Page 33: Converting Your Handwritten Notes In Your E -Book File
Converting Your Handwritten Notes in Your e-Book If you have installed the optional DigiMemo Handwriting Re cognition software, cli ck the Conversion button on the Standard toolbar in the softwa re window of DigiMemo Manager. 2. In the dialog box, select the following one option button: Curren t Page In this option,... -
Page 34: Deleting The Digital Pages In The Digimemo Manager
of t he pad, is accessed to your computer. The following procedures can be ily executed in your Windows. Delete the digital page files in the built-in 32 MB storage device or the optional memory card of the digital pad. re is a brief recommendation: you may want to tear off the paper page or ply cross out the page number you wrote on the paper page. - Page 35 4. To select nonadjacent digital pages, click one d igital page, and then hold down the CTRL key and click each additional digi tal page. To select adjacent digital pages, click the first digital page in the sequence, and then hold down the SHIFT key and click the last digital page. To preview a digital page, select the digital page and click Preview.
-
Page 36: Tablet Device In Windows
Tablet Device in Windows en the digital pad is connected to your computer through a USB port, the nection icon will appear on the display of the pad and the LED on the pad will light. The digital pad is a tablet device in Windows and for all Windows applications. -
Page 37: Appendixes
Appendixes Replacing the Cartridge of the Digital Pen Open the cartridge compartment cover on the back of the digital pad. Two replacement ink cartridges and one plastic pen tip are stored in the cartridge compartment of the digital pad. Clip Hole To replace the cartri dge of the pen, you may use a small clip to gently pull th old one out. -
Page 38: Replacing The Battery In The Digital Pen
Removing the DigiMemo Manager Software in ndows n Add or Remove Programs icon in the Control Panel window. Remove ACECAD DigiMemo Manager software. Caring for the DigiMemo To assure proper functioning of the digital pen and pad, plea se observe the... -
Page 39: Error Codes On The Display Of The Digital Pad
battery liquid leaking from the batteries and corroding the digital pen. id placing disket tes or other magnetic media on the pad surface. Avoid plac ing hot o r heavy items on the pad. Clean the pen and p ad with a soft cloth lightly dampened with water or a neutral detergent. -
Page 40: Code E02
4. Then release the Erase button When the reset is finished, the digital pad will be turned on. Note! The display will show the current digital page 001 with no dig ital ink in the built-in 32 MB storage device if no SD memory card is loaded in the pad. -
Page 41: The Damage Of The Digital Pad - The Error Code E03 Or E05
E03 or E05 appears on the display of the digital pad, it If the erro at the digital pad may be damaged. It needs to be repaired. Please indicates th ACECAD distributor. contact the Troubleshooting General Problems Problem: A superimposed digital pa ge is created. - Page 42 thickness of the digital pad. Solution: Do not try to trace or write through any conductive material (for example: steel ruler). Problem: When you are writing or drawing on paper by using the digital pen on the digital pad, the Pen icon does not appear on the display. Solution: Try to alter the pressure you apply on the pen tip.
-
Page 43: Problems In The Digimemo Manager Software
Problem: Even though the stored digital pages have not reached 999, the memory (either in the built-in 32 MB storage device or in an optional memory card) is full. Solution: Although the digital pa d has the ability to manage up to 999 digital pages (either for the built-in 32 MB storage device or for an optional memory card), such ability is unrelated to the maximum storage capacity. -
Page 44: Problems When Connecting The Digital Pad To Your Computer
Problems When Connecting the Digital Pad to your Computer Problem: When connecting the digital pad to your computer through a USB port, your Windows can not recognize the built-in 32 MB storage device and an optional memory card in the pad as removable storage devices. -
Page 45: Specifications
Specifications Digital Pad Specifications of DigiMemo L2 Model 9.88" (width) x 13.22" (length) Size 251 mm (width) x 336 mm (length) Thickness 0.47" (12 mm) Approx. 1.4 lbs (635 g ) without batteries Weight Approx. 1.5 lbs (680 g ) with batteries Writing Area 8.5"... -
Page 46: Digital Pen Specifications
Ink Cartridge 2.3 mm (diameter) x 67 mm (len gth) 0.09" (diameter) x 2.64" (length) File Formats Digital Page ACECAD digital page file format (DHW) e-Book File ACECAD e-Book file format (DND) System Requirements Operating S ystem Windows 2000 or XP... - Page 48 Part Number: 91100-40590 English Version v1.0 www.acecad.com.tw Printed in China 2006.09...
