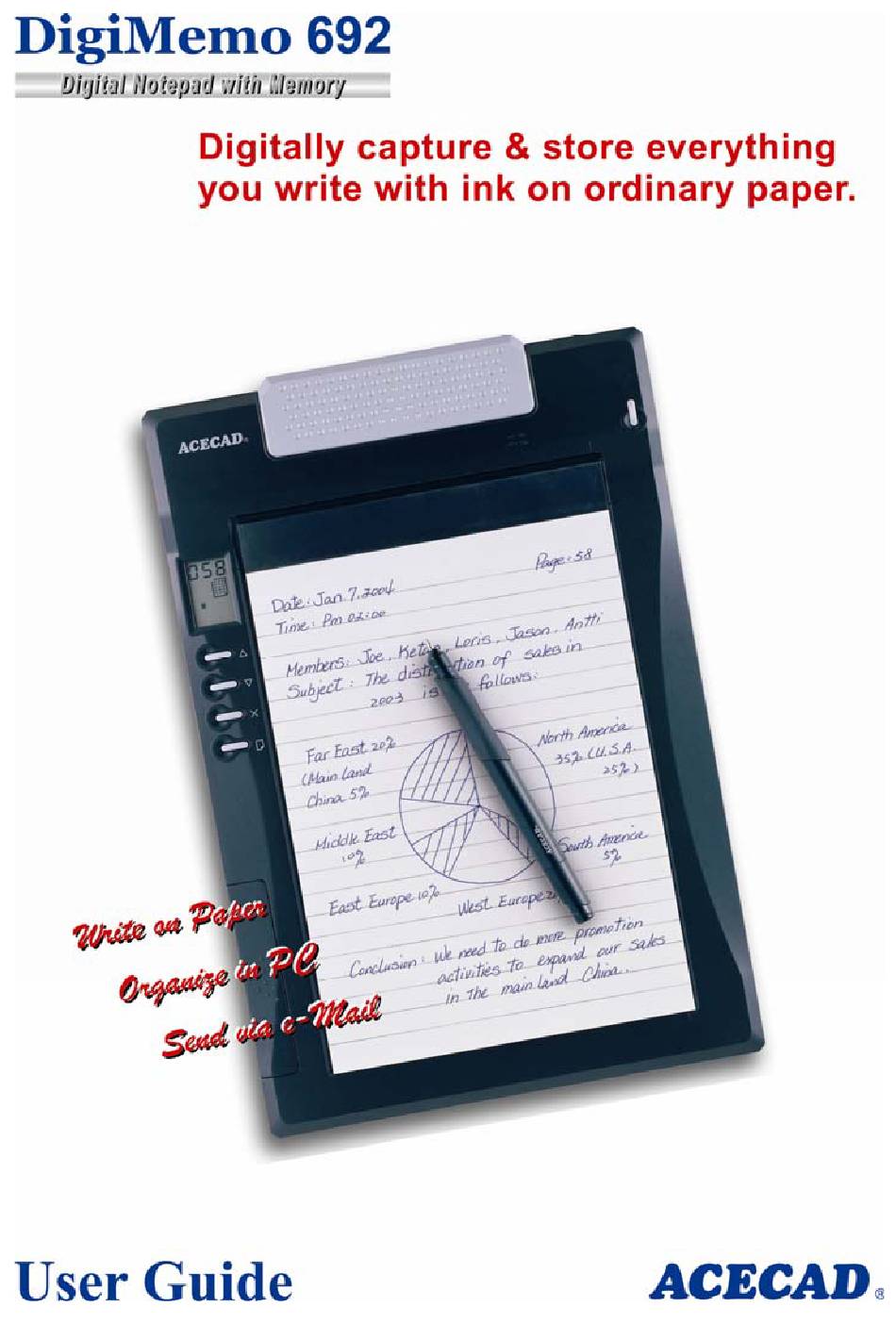

Acecad DigiMemo 692 User Manual

Digital notepad with memory
Hide thumbs Also See for DigiMemo 692:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DigiMemo 692 and is the answer not in the manual?

Questions and answers

Related Manuals for Acecad DigiMemo 692

Summary of Contents for Acecad DigiMemo 692

  • Page 2 CAD Enterprise Co., Ltd. Modification could void authority to use this equipment. Trademark Information ACECAD and ACECAT are registered trademarks of ACE CAD Enterprise Co., Ltd. Microsoft and Windows are registered trademarks of Microsoft Corporation. SanDisk is a registered trademark of SanDisk Corporation.

  • Page 3: Table Of Contents

    GETTING STARTED ....................1 ....................1 QUIPMENT HECKLIST ..................2 ARTS OF THE IGITAL ............2 NSTALLING THE ATTERIES INTO THE IGITAL ..........3 NSTALLING THE ATTERY INTO THE IGITAL NKING ..........4 UTTING A OTEPAD OR APER ON THE IGITAL ................4 RITING REA AND HICKNESS ................5 TORAGE...
  • Page 4 Moving Objects ....................18 Deleting Objects ....................18 Changing the Color and Width of Objects............18 Copying or Moving Objects................. 19 Adding a New Page ..................... 19 Moving the Current Page ..................19 Removing the Current Page ................20 Switching the Current Page by Keyboard Shortcuts ........... 20 Sample of an Edited e-Book File .................

  • Page 5: Getting Started

    Getting Started The DigiMemo 692 is a stand-alone device with storage capability that digitally captures and stores everything you write or draw with ink on ordinary paper, without the use of computer and special paper. Then you can easily view, edit, organize and share your handwritten notes in Windows.

  • Page 6: The Parts Of The Digital Pad

    The Parts of the Digital Pad Battery Compartment Cover Card-Slot Battery USB Connector Compartment Power Button Display Buzzer Four Function Buttons Notepad Slot Cartridge Compartment Notepad Holder Cartridge Compartment Cover Two Replacement Ink Cartridges Pen Holder Pen Holder Installing the Batteries into the Digital Pad To open the battery compartment cover of the digital pad, slide it outward while pressing the raised dots on the middle of the cover.

  • Page 7: Installing The Battery Into The Digital Inking Pen

    Take out the button cell battery (-) Cap (SR626SW, 377 or IEC-SR66) that is included in the package of the DigiMemo 692. Insert the battery into the battery compartment with the negative (-) cap facing the battery compartment. Screw the barrel cover clockwise onto the barrel until tight.

  • Page 8: Putting A Notepad Or Paper On The Digital Pad

    Putting a Notepad or Paper on the Digital Pad To hold a notepad on the pad, slide the backing of the notepad down into the notepad slot on the pad as far as the backing can possibly go. Note! The size of the notepad holder on the pad is 153 mm x 232 mm (6.0" x 9.1").

  • Page 9: Storage Device In The Digital Pad

    the digital pad can digitally capture and store everything you write with the digital inking pen as digital ink. The writing thickness is 0.47" (12 mm) about 120 sheets of paper. Storage Device in the Digital Pad The digital pad is equipped with a built-in 32 MB storage device to store your handwritten notes.

  • Page 10: Writing And Recording Your Handwritten Notes

    Writing and Recording Your Handwritten Notes Using the digital inking pen on the digital pad produces both familiar ink notes on ordinary paper and digital pages in the storage device of the pad. Turning on the Digital Pad Press and hold the Power button on the digital pad until the icon ap pears on the display.

  • Page 11: The Pen Icon

    Number moves fast and backward. Once release the button , it stops moving. Page Forward Button Press the Page Forward button to move to the next digital page. By pressing and holding the Page Forward button , the Digital Page Number moves fast and forward.

  • Page 12: Writing Your Notes On A Page Already With Contents

    wrote on paper. Note! If you frequently alternate the built-in 32 MB storage device and an optional memory card, we recommend you to write the page number like “Page M24”, “P M24”, “Page CF24”, “P CF24” … etc. It is more convenient for you to know which storage device the digital page is stored in.

  • Page 13: Low Battery Indication On The Digital Pad

    Number at the time it was turned off. Low Battery Indication on the Digital Pad When the batteries remain too low power and are in need of replacement, the Low Battery icon will appear on the display. Please replace the batteries in the pad. When the batteries are exhausted, the pad sounds 3 beeps and the Battery Exhausted icon appears.

  • Page 14: Organizing Your Digital Pages In Windows

    Organizing Your Digital Pages in Windows With its DigiMemo Manager software, you can easily view, edit, organize and share your digital pages in Windows. You can save any digital pages you arbitrarily select as a book file (e-Book). Installing the DigiMemo Manager software Turn on your computer and start Windows.
  • Page 15 Click Next in the dialog box. 5. In the dialog box, click Next to start the installation. The DigiMemo Manager software has been succe ssfully installed. Click Close in the dialog box. Please restart your Windows.

  • Page 16: Connecting The Digital Pad To Your Computer

    Connecting the Digital Pad to Your Computer Turn on your computer. Take out the USB cable for DigiMemo 692 that is included in the package. Plug the wide connector of the cable into an ava ilable USB port on your computer. Con...

  • Page 17: Importing Your Digital

    Color Toolbar Width Toolbar To move a toolbar to the new location, drag the move handle on a docked toolbar or the title bar on a floating toolbar. Move Move Handle Handle Docked Toolbar Title Bar Docked Toolbar Floating Toolbar orting Your Digital Pages Click the Digital Page button on the Standard toolbar.
  • Page 18 pages. Click OK. The Import Digital Pages dialog box will appear. To select nonadjacent digital pages, click one digital page, and then ho down the CTRL key and click each additional digital page. To select adjacent digital pages, click the first digital page in the sequence, and then hold down the SHIFT key and click the last digital page.

  • Page 19: Saving An E-Book File

    Creating a New e-Book File Yo can use the following methods to create a new e-Book file. On the Windows desktop, double-click the ACECAD DigiMemo Manager icon to create a new and blank e-Book file in a new softwar e window.

  • Page 20: Printing An E-Book File

    Note! By this wa y, you can open various e-Book files in different software windows. In the software window, click the New button on the Standard toolbar. A new and blank e-Book file will be created in the software window Note! If the previous e-Book file is not save d in its software window, you...

  • Page 21: Drawing A Straight Line

    toolbar. 3. Drag to draw a freeform line or write. wing a Straight Line Click the Line button on the Tools toolbar. You can switch the color by clicking a color button on the Color toolbar. Y ou can change the width by clicking a width button on the Width toolbar.

  • Page 22: Resizing Objects

    To select one or se eral digital ink strokes, lines or text boxes, click the Select button . Then click and drag a box around the whole of them. A Selection box will appear around the selected objects. Click the Select All button to select all objects in the current page.

  • Page 23: Copying Or Moving Objects

    button to change the font of the selected text. Copying or Moving Objects 1. Select one or several digital ink st rokes, lines or text boxes. Do one of the following: To move the selected objects, click the Cut button on the Standard toolbar.

  • Page 24: Removing The Current Page

    2. In the dialog box, type the page number (such as 5) which you want to move the current page to. 3. Click OK. The current page will then b e moved to the page you designated previously. Removing the Current Page Click the Remove Page button .

  • Page 25: Hiding Lines On The Background Of

    can save the current page as a image file whose file types can b BMP, , GIF or PNG. 1. Click the Save as Image button on the Standard toolbar. 2. In the dialog box, select a file type and ent er a file name.

  • Page 26: Using Another Optional Card Reader

    To view and edit your e-Book file, the recipient must have the DigiMemo Manager software. If he or she does not have thi software, please download it on the ACECAD website. http://www.acecad.com.tw/digimemo/download.html Open your e-Book file in the DigiMemo Manager software. Click the E-mail button on the Standard toolbar.

  • Page 27: Deleting The Digital Pages In The Digimemo Manager

    memory card. Otherwise the digital pad can not manage renamed digital pages. Deleting the Digital Pages in the DigiMemo Manager In the software window of DigiMemo Manager, click the Digital Page button on the Standard toolbar. The Digital Page dialog box will appear.
  • Page 28 To preview a digital page, select the digital page and click Preview. Click OK. The digital pages you select will be deleted. Here is a brief recommendation: you may want to tear off the pa per page or simply cross out the page number you wrote on the paper page. Note! Once a digital page file is deleted in a removable storage device (the built-in 32 MB s...

  • Page 29: Appendixes

    Appendixes Replacing the Ink Cartridge of the Digital Pen Two replacement ink cartridges are stored in the cartridge compartment of the digital pad. To open the cartridge compartment cover of the pad, slide it outward while pressing the raised dots on the middle of the cover. Clip Hole To replace the ink cartridge of the pen, you may use a small clip to gently pull the old one out.

  • Page 30: Replacing The Battery In The Digital Pen

    Removing the DigiMemo Manager Software in Windows Open Add or Remove Programs icon in the Control Panel window. Remove the ACECAD DigiMemo Manager software. Caring for the DigiMemo 692 To assure proper functioning of the digital pen and pad, please observe the following precautions: Remove the batteries from the digital pad if it is not expected to be used for long periods.

  • Page 31: Error Codes On The Display Of The Digital Pad

    Remove the button-cell battery from the digital inking pen if it is not expected to be used for long periods. This will eliminate the possibility of battery liquid leaking from the batteries and corroding the digital pen. Avoid placing diskettes or other magnetic media on the pad surface. Avoid placing hot or heavy items on the pad.

  • Page 32: The Damage Of The Built-In 32 Mb Storage Device

    If the error code E03 appears on the display of the digital pad, it indicates that the built-in 32 MB storage device may be damaged. It needs to be repaired. Please contact the ACECAD distributor. The File System Incompatibility of an Optional CF Memory Card...
  • Page 33 Solution: Please check the following situations for the digital pen: The battery is correctly installed in the pen. The battery must be inserted into the battery compartment with the negative (-) cap facing the battery compartment. The cushion (copper color) of the battery is still located inside the barrel cover.
  • Page 34 Solution: Make sure that you insert the memory card correctly a nd irmly into the card-slot in the pad. Problem: Even though the stored digital pages have not reached 999, the memory (either in the built-in 32 MB storage device or in an optional memory card) is full.

  • Page 35: Specifications

    Problem: Before disconnecting the digital pad from your computer, what should be noticed? Solution: The following stated notice is applied for all removable storage devices. Close any associated windows for the built-in 32 MB storage device or an optional CF memory card before attempting to disconnect the digital pad from your computer.

  • Page 36: Digital Pen Specifications

    Approx. 14 months Ink Cartridge 0.09" (diameter) x 2.64" (length) 2.3 mm (diameter) x 67 mm (length) File Formats Digital Page ACECAD digital page file format (DHW) e-Book File ACECAD e-Book file format (DND) System Requirements Operating System Windows 2000 or XP...
