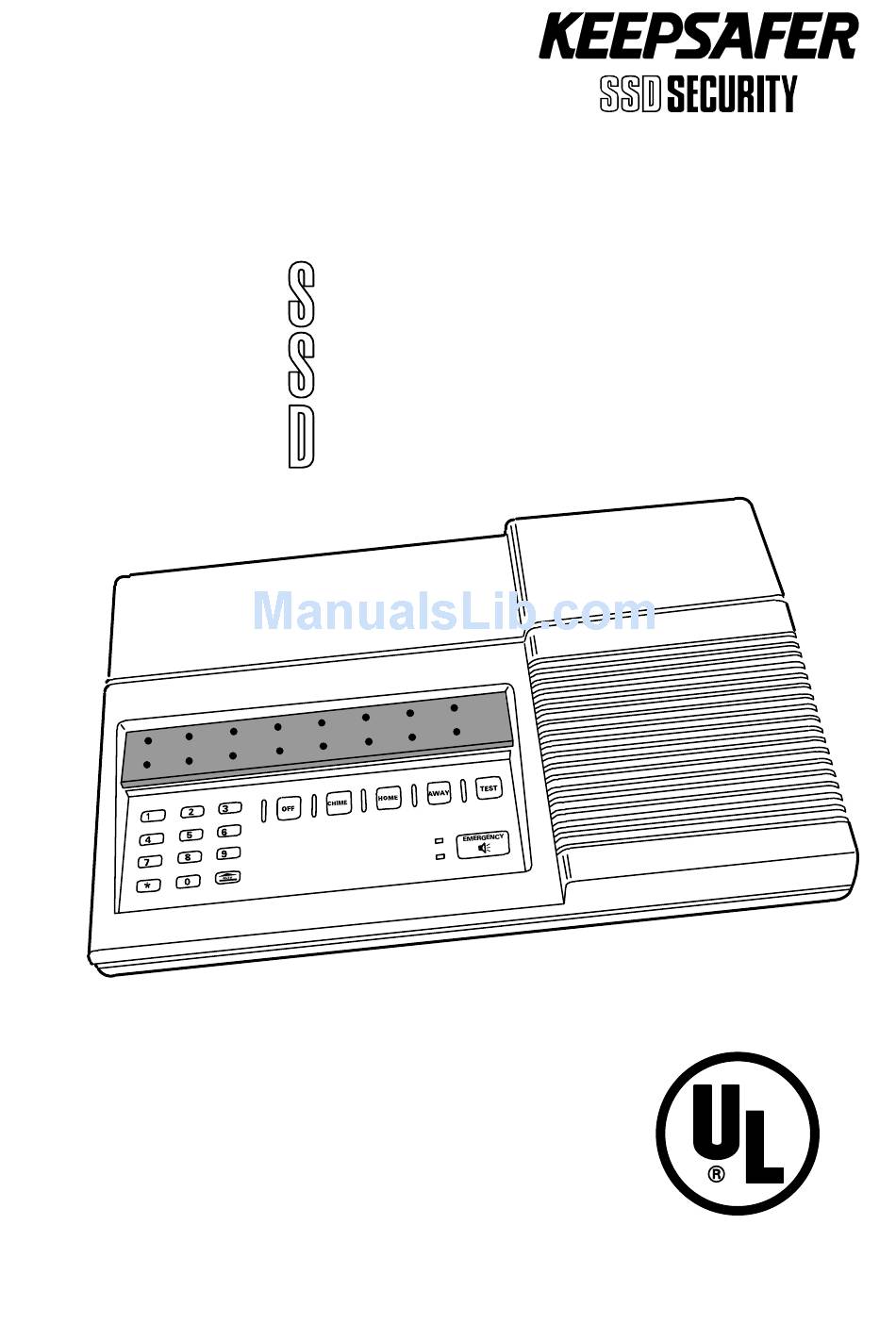

WIRELESS
SECURITY
SYSTEM
Featuring:
Owner's Manual
Help Line: 1-800-835-2680
ensor
tatus
isplay

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Keepsafer SSD and is the answer not in the manual?

Questions and answers

Summary of Contents for UL Keepsafer SSD

  • Page 1: Wireless Security

    WIRELESS SECURITY SYSTEM ensor Featuring: tatus isplay Owner’s Manual Help Line: 1-800-835-2680...
  • Page 2 The KEEPSAFER SSD Console and its accessories are designed and manufactured by the oldest wireless security company in North America. You can look ahead to many years of reliable service and peace of mind with KEEPSAFER SSD on guard for you and your family.
  • Page 3: Table Of Contents

    AUTOMATIC RESTORAL OF BYPASSED SENSORS 27 3. KEEPSAFER SSD ACCESSORIES ... . 5 DISABLING QUICK ARMING ... . . 27 4.
  • Page 4: Your Keepsafer Ssd Security System

    1. YOUR KEEPSAFER SSD SECURITY SYSTEM Your KEEPSAFER SSD Security System package consists of: One Control Console Three Door/Window Sensors Wireless Remote Control One AC Power Adapter One Installation and Operation Video Tape One KEEPSAFER SSD Yard Warning Sign CONSOLE...
  • Page 5: Console

    CONSOLE The KEEPSAFER SSD Console is the heart of the system. It monitors all of the system’s wireless sensors and controls the alarm sirens. The Console constantly monitors the condition of the system’s sensors, displaying which protected doors and windows are open or closed. If an alarm occurs, the Console displays which sensor caused it.
  • Page 6: Security System Floor Plan

    2. SECURITY SYSTEM FLOOR PLAN EXAMPLE SYSTEM The example below shows a typical KEEPSAFER SSD system. Any or all of the accessories shown can be used. A total of 16 sensors (including keypads) can be used with each Console. DESIGN YOUR SYSTEM Create a floor plan of your residence.
  • Page 7: Keepsafer Ssd Accessories

    3. KEEPSAFER SSD ACCESSORIES (See Section 18 for detailed descriptions) Backup Battery UL NOTE: Normal estimated life should be 3 to 4 years. Remote Siren Smoke Detector Motion Detector One-button Key chain Remote Control Two-button Key chain Remote Control Glass break detector...
  • Page 8: Console Features

    4. CONSOLE FEATURES ANTENNA # Receives signals from the system’s sensors. # Can be rotated towards the top of the Console case for wall mounting. STATUS INDICATORS # Indicates the status of each of the system’s sensors. # Lights show which doors and windows are open. # Lights flash to display sensors that have caused an alarm.
  • Page 9 # Off when AC power is off and no backup battery is installed (system disabled). MODE BUTTONS # Used to control the KEEPSAFER SSD Console. # Off Mode disarms the system. # Switching to Off Mode stops the alarm siren.
  • Page 10: System Sensors

    5. SYSTEM SENSORS DOOR/WINDOW SENSOR Sensor mounts on door or window with adjacent magnet. Opening door or window moves magnet away, triggering sensor. Pressing the case causes sensor to send a test signal. Sensors should be tested when the TEST SENSORS light on the Console goes on.
  • Page 11: Console Installation

    6. CONSOLE INSTALLATION PLACE CONSOLE NOTE: Sensor signals must be able to reach the Console.  Try to centrally locate the Console.  Keep Console away from large metal appliances.  Maximum sensor range is 400 feet under ideal conditions. NOTE: If you don’t use the Wireless Keypad, the Console should be easily accessible to your usual entrance.
  • Page 12: Plug In Ac Adapter

    PLUG IN AC ADAPTER Plug AC Adapter into the AC outlet. PLUG AC ADAPTER Secure AC Adapter with screw to prevent INTO 115 VAC OUTLET THAT IS NOT CONTROLED un-plugging. BY A LIGHT SWITCH IMPORTANT: Be sure to plug the AC adapter into a 115 VAC outlet that is not SCREW controlled by a wall switch.
  • Page 13: Mount Sensors

    7. MOUNT SENSORS SENSOR ON FRAME MAGNET ON DOOR MAGNET ON WINDOW SENSOR ON FRAME SET SENSOR SWITCH A switch on the bottom of the door/window sensor selects instant or delayed response. If the sensor is going to be used on your primary entry/exit door make sure that the switch is in the DELAYED position.
  • Page 14: Attach Sensors And Magnets

    ATTACH SENSORS AND MAGNETS On doors, mount sensor to door frame and magnet to door. NOTE: Magnet must line up with mark on sensor case both horizontally & vertically. MOUNT SENSOR PLATE TO FRAME Allow a maximum of 1/2" between magnet and sensor when door/window is closed.
  • Page 15: Preparing The Console

    8. PREPARING THE CONSOLE LABELING YOUR SENSORS The two sensors provided are pre-programmed as sensors 01, 02 and 03. USE LABELS PROVIDED A label sheet with sensor location names is TO IDENTIFY SENSORS provided with the Console. Open one protected door/window. Choose a label that describes the sensor location, or write the location on a blank label, and stick it in the area to the right of...
  • Page 16: Disarming The Console

    9. DISARMING THE CONSOLE OFF MODE Use this mode to disarm the burglary portion of the system. START HERE Switching to Off Mode stops any alarms in progress. (OPTIONAL) The 24-hour emergency functions are still active in Off Mode and can be triggered by pressing the [EMERGENCY] button.
  • Page 17: Using The System At Home

    10. USING THE SYSTEM AT HOME HOME MODE Use this mode when sleeping or when anyone is staying inside. START HERE Home Mode causes an instant alarm when any perimeter sensor switched to INSTANT (OPTIONAL) is triggered. Home Mode causes a delayed alarm when any perimeter sensor switched to DELAYED is triggered.
  • Page 18: Secure Exit

    SECURE EXIT If the system is already in the Home Mode and you want to exit the premises while leaving someone inside with the system still in Home Mode, press the [HOME] key for two seconds. A “gong” and two “beeps” will sound and the HOME light will blink for 30 seconds.
  • Page 19: Using The System When Leaving

    11. USING THE SYSTEM WHEN LEAVING AWAY MODE Use this mode when no one will be staying START HERE home. Away Mode causes an instant alarm when (OPTIONAL) any perimeter sensor switched to INSTANT is triggered. Away Mode causes a delayed alarm when any perimeter sensor switched to DELAYED YOUR is triggered.
  • Page 20: Automatic Bypassing Of Sensors

    ENTRY DELAY (For Entering the Premises) The Entry Delay gives you 45 seconds to enter the premises through a delayed perimeter door without triggering an alarm. If a perimeter delayed sensor is triggered, starting the Entry Delay, the interior sensors will also become delayed (this allows motion SECONDS in the premises during the Entry Delay).
  • Page 21: Using The System As Door Chime

    12. USING THE SYSTEM AS DOOR CHIME CHIME MODE Chime Mode is for monitoring entries and START HERE exits without causing alarms. Use Chime Mode as an “automatic door (OPTIONAL) chime” when at home. Opening any protected door or window causes the Console to sound a “ding-dong”.
  • Page 22: Bi-Weekly System Testing

    13. BI-WEEKLY SYSTEM TESTING TEST MODE When the TEST SENSORS light comes on, START HERE you should test each sensor in the system. The Console must be in Off Mode before (OPTIONAL) going to Test Mode. Switch the Console into Test Mode by entering your secret code and pressing [TEST].
  • Page 23: Home Automation Output

    14. HOME AUTOMATION OUTPUT HOME AUTOMATION INTERFACE The Console provides a Home Automation Output to control lights, devices and appliances. Home Automation Output can connect to most popular home automation devices and other simple electronic devices. Press [AUTO] to turn the Home Automation Output on, press [AUTO] again to turn it off.
  • Page 24: Expanding Your System

    15. EXPANDING YOUR SYSTEM Adding additional sensors will increase the protection provided by your system. All ground-level perimeter openings and accessible upper-story openings need protection. Motion detectors can protect interior areas and areas were valuables are kept. Wireless sensors make protecting a detached garage easy (no wires to run).
  • Page 25: Removing Sensors From The System

    REMOVING SENSORS FROM THE SYSTEM If a previously learned sensor isn’t going to START IN OFF be used with the system anymore, it should be removed from the Console’s memory. Start with the Console in Off Mode. YOUR Enter your secret code and press the [LEARN] SECRET button.
  • Page 26: Making A Sensor Interior

    MAKING A SENSOR INTERIOR Motion detectors are automatically START IN OFF programmed as interior sensors. Any other sensor can also be programmed as an interior sensor. YOUR Interior sensors can only trigger an alarm SECRET when the Console is in Away Mode. CODE The sensor must have already been learned by the Console (see “Adding sensors to the...
  • Page 27: Advanced Programming

    16. ADVANCED PROGRAMMING LEARN MODE To perform any of the advanced programming steps, the Console must be in START IN OFF the Learn Mode. Start with the Console in Off Mode (Learn Mode cannot be reached from any other mode). YOUR Enter Learn Mode by entering your secret SECRET...
  • Page 28: Home Automation Output Time

    HOME AUTOMATION OUTPUT TIME The factory setting causes the Home Automation Output to toggle between on PROGRAMMING STEP #40 and off with each activation. The Home Automation Output can be PROGRAM programmed to turn on, then automatically turn off after one to 2500 seconds (42 TIME IN SECONDS (1-2500) 0 = TOGGLE ON &...
  • Page 29: Automatic Bypassing Of Open Sensors

    AUTOMATIC BYPASSING OF OPEN SENSORS The factory setting causes the Console to automatically bypass any open sensors when PROGRAMMING STEP #60 the system is armed. Alternately, the Console can be programmed PROGRAM to not arm on the first attempt if there are 0 FOR AUTO BYPASS OFF any open sensors.
  • Page 30: Exit Delay Beeps

    EXIT DELAY BEEPS The factory setting causes the Console to beep during Exit Delays. PROGRAMMING STEP #65 Alternately, the Exit Delay beeps can be silenced. PROGRAM The Console will be silent after arming to the 0 FOR EXIT BEEPS OFF 1 FOR EXIT BEEPS ON Away Mode until the Exit Delay expires, then STORE PROGRAM...
  • Page 31: Home Automation Output Polarity

    HOME AUTOMATION OUTPUT POLARITY The factory setting causes the Console’s Home Automation Output to provide a current limited voltage source when PROGRAMMING STEP #68 activated. PROGRAM Alternately, the Console can be programmed so the Home Automation Output provides a 0 FOR VOLTAGE WHEN OFF 1 FOR VOLTAGE WHEN ON current limited voltage source when STORE PROGRAM...
  • Page 32: Home Automation Output While Armed

    HOME AUTOMATION OUTPUT WHILE ARMED The factory setting causes the Console’s Home Automation Output to activate when PROGRAMMING STEP #70 pressing the [AUTO] key, or when it’s triggered with a two-button remote control. PROGRAM In addition, the Console can be 0 FOR STANDARD TRIGGER programmed to activate the Home 1 FOR OUTPUT WHEN ARMED...
  • Page 33: Remote Control Arm/Disarm Chirp

    REMOTE CONTROL ARM/DISARM CHIRP When arming with the portable remote control, the factory setting causes the PROGRAMMING STEP #73 Console to “chirp” once when armed, twice when disarmed, and three times when PROGRAM arming with sensors bypassed. 0 FOR CHIRPS OFF Alternately, these chirps can be silenced.
  • Page 34: Restricted Secret Code

    RESTRICTED SECRET CODE The Console can be programmed with two PROGRAMMING STEP #98 secret codes, one that can access Learn Mode and one that cannot. PROGRAM The restricted secret code cannot access Learn Mode, the master secret code can. 1-5 DIGIT RESTRICTED CODE The restricted secret code is a good one to (3-5 DIGITS RECOMMENDED) give to children or any user that you want to...
  • Page 35: Advanced Programming Table

    17. ADVANCED PROGRAMMING TABLE SENSOR CODES OFF MODE CHIME MODE HOME MODE AWAY MODE 1 = HOME AUTOMATION ACTIVATES HOME AUTOMATION OUTPUT 2 = EMERGENCY EMERGENCY ALARM 3 = POLICE BURGLARY ALARM 4 = FIRE FIRE ALARM 5 = INSTANT NO ACTION CHIME INSTANT BURGLARY ALARM...
  • Page 36: Additional System Accessories

    18. ADDITIONAL SYSTEM ACCESSORIES NOTE: Use only KEEPSAFER SSD accessories with this system. Installation instructions are provided with each accessory. BACKUP BATTERY  Highly recommended accessory.  Powers Console if AC power fails.  At least 6 hours backup time.
  • Page 37 SMOKE DETECTOR  High quality, fast acting detector.  Triggers Console’s fire siren.  Built-in low battery alert and reports low battery to the Console. MOTION DETECTOR  Uses passive infrared technology to detect intruders.  Signals alarm when monitored area is entered (up to 40’...
  • Page 38: Evacuation Planning

    FCC NOTICE This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B digital device in accordance with Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation.
  • Page 39: Limited Warranty

    LIMITED WARRANTY Linear Corporation (the Company) warrants to the original purchaser that products delivered hereunder will be free of defects in materials and workmanship for a period of twelve (12) months from the date of purchase. The Company within said period shall, at its option, either repair or replace free of charge, any product or part thereof found (except batteries), upon the Company’s inspection, to be so defective,...
  • Page 40 Copyright © 2002 Linear Corporation 210771...
