- Page 1 EXTERNAL INSTRUMENT BATTERY MP3450i User Guide...
-
Page 2: Table Of Contents
USER GUIDE Contents Overview ................................ 2 Getting Started ............................... 2 Unpacking myPower ALL Plus ........................2 Getting to Know myPower ALL Plus ......................3 Storing myPower ALL Plus ........................3 Prolonging Battery Life ..........................4 Charging myPower ALL Plus ........................... 4 Charging with a Power Adapter ......................... -
Page 3: Overview
Overview myPower ALL Plus MP3450i is a rugged, high-capacity lithium ion battery for use with instruments ™ or industrial equipment. This universal battery provides instant power for devices that require between 5V and 19V, and is targeted to users who prefer a fixed voltage that will not be reset upon disconnection of the connected device. -
Page 4: Getting To Know Mypower All Plus

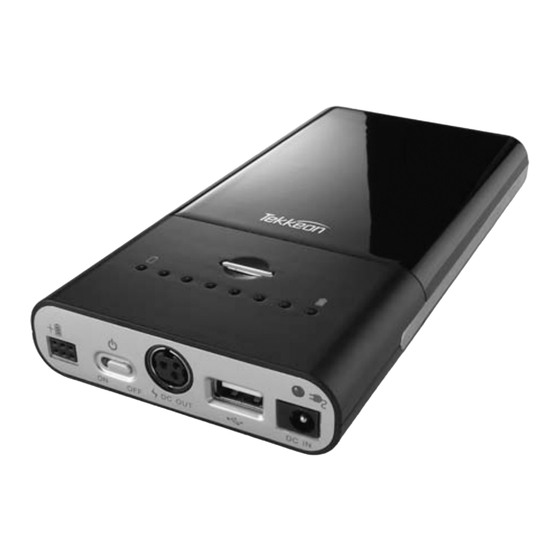

Getting to Know myPower ALL Plus MP3450i MP3450-10 Capacity Level USB Port for connection Capacity Level Indicators Button to 5V device DC OUT Charging/Indicator for connection to device ON/OFF Switch Sunbooster Solar Sunbooster Solar DC IN for connection to power adapter Charging Port Charging Port 6-Pin Input Port... -
Page 5: Prolonging Battery Life
Prolonging Battery Life Extreme heat and cold will affect your battery’s performance. At temperatures above 80°F (27°C), the battery will discharge more quickly, and in colder temperatures, the battery won’t charge well. Therefore, it is recommended that the battery is used at room temperature, or between 68°F to 77°F (20°C to 25°C). The battery must be used at temperatures between 32°F to 104°F (0°C to 40°C). -
Page 6: Charging With A Solar Panel
The 6-Pin Input Port is designed to allow charging by smaller solar panels (lower than 25W), and requires an optional Smart 6-Pin Adapter (Sunbooster) available from Tekkeon. To use the solar panel with this port, the solar panel must have a minimum open circuit voltage of 12V. However, there is no minimum output current requirement from the solar panel. -
Page 7: Charging Through The 6-Pin Input Port
Charging through the 6-Pin Input Port 1. Connect the 6-Pin end of the Smart 6-Pin Adapter into the 6-Pin Input Port on myPower ALL (shown) and the other end into the solar panel output port. 2. Verify that the charging indicator next to the input jack on the Smart 6-Pin Adapter (shown) turns on to indicate the battery is charging. -
Page 8: Select/Connect The Adapter Tip
Center Negative WARNING: myPower ALL Plus supports Center Positive polarity only. If your device has a Center Negative polarity, do not power the device with myPower ALL Plus; contact support@tekkeon.com for assistance. 3. Connect the adapter tip to the power output cord (but not the device). -
Page 9: Adjust The Voltage Level
Adjust the Voltage Level 1. Locate the voltage specification for your portable device. This can be found on the device power adapter label or device specification label which typically is found on the bottom of the unit. (If available, use the voltage specification shown on the power adapter.) 2. - Page 10 Most portable DVD players require 9 or 12 volts. Set the voltage to 7.5V and test to see if myPower ALL Plus will power your device at this setting. If not, increase the voltage by one level and retest. VOLTAGE ChART USER GUIDE...
-
Page 11: Connect The Portable Device
Connect the Portable Device 1. Connect the adapter tip into the power jack on the portable device. 2. Slide the ON/OFF switch to ON to turn on myPower ALL Plus. 3. Turn on the portable device and use it as you would normally. While connected, myPower ALL Plus will power and charge your device. -
Page 12: View Mypower All Plus Battery Capacity
4. Slide the Power switch to OFF to turn off the power when myPower ALL Plus is not in use. NOTE: The USB port provides only 5V of power, so the voltage cannot be changed. When using this port, you will not select the voltage. View myPower ALL Plus Battery Capacity The capacity in myPower ALL Plus will decrease as the battery powers and/or charges your devices. -
Page 13: Obtaining Adapters
You can obtain most adapters, including the Smart 6-pin Adapter, from Tekkeon’s online store or by contacting Tekkeon by e-mail at support@tekkeon.com, or by phone at 888-787-5888 or 949-788-9228. If available through Tekkeon, the adapter will be sent to you for a nominal fee. -
Page 14: Using Multiple Batteries
Using Multiple Batteries You can increase the capacity of myPower ALL Plus by adding one or more extra battery units. There are two options for adding multiple batteries: • Add an Extended Battery MP3450-10, which is attached to the first battery with a bracket, and can be used only as a second battery. -
Page 15: Charging The Extended Battery
ALL. To identify the input adapter tip compatible with your laptop, go to the Tekkeon online store and search for “input adapter” , or e-mail support@tekkeon.com for assistance. These accessories can be ordered from our web site at www.tekkeon.com or by phone at 888-787-5888 or 949-788-9228. EXTERNAL INSTRUMENT BATTERY... -
Page 16: Troubleshooting
If not, try another adapter. 5. Verify that the polarity of the device power jack is Center Positive. If the polarity is Center Negative, please contact support@tekkeon.com for assistance. 6. Check that the output voltage for your portable device matches or is just below the output voltage set on myPower ALL Plus. -
Page 17: Limited Warranty
The product enclosed herein is warranted to be free of operational defects for a period of one year from the date of purchase. In the event of a defect in operation during the warranty period Tekkeon, Inc. will replace the defective product when the owner returns all product contents. The limited warranty will be considered void if the unit is tampered with, subject to misuse, negligence or accidental damage, has been improperly serviced, or if the security seal is removed. -
Page 18: Customer Support
Tekkeon, Inc. c/o myPower ALL Plus 30 Mauchly, Suite A Irvine, CA 92618 888-787-5888 / 949-788-9228 Tekkeon, Inc. must issue a Return Merchandise Authorization (RMA) number for all exchanges or refunds. www.tekkeon.com “Like” us on Facebook: http://www.facebook.com/tekkeon Follow us on Twitter: http://www.twitter.com/tekkeon... - Page 19 © 2012 Tekkeon, Inc. All rights reserved. myPower is a trademark of Tekkeon, Inc. Specifications are subject to change without notice. iPad, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. 0312 Made in China. Rev D Cut loose.
