General Safety
Information
(Continued)
3. Only persons well acquainted with
these rules of safe operation should
be allowed to use the compressor.
4. Keep visitors away and NEVER allow
children in the work area.
5. Wear safety glasses and use hearing
protection when operating the
pump or unit.
6. Do not stand on or use the pump or
unit as a handhold.
7. Before each use, inspect compressed
air system and electrical components
for signs of damage, deterioration,
weakness or leakage. Repair or
replace defective items before using.
8. Check all fasteners at frequent
intervals for proper tightness.
WARNING
!
Motors, electrical
equipment and controls
can cause electrical arcs
that will ignite a flammable gas or
vapor. Never operate or repair in or
near a flammable gas or vapor. Never
store or spray flammable liquids or
gases in the vicinity of the compressor.
CAUTION
!
Compressor parts may
be hot even if the unit
is stopped.
9. Keep fingers away from a running
compressor; fast moving and hot
parts will cause injury and/or burns.
10. If the equipment should start to
abnormally vibrate, STOP the
engine/motor and check
immediately for the cause. Vibration
is generally a warning of trouble.
11. To reduce fire hazard, keep
engine/motor exterior free of oil,
solvent, or excessive grease.
Never remove or
WARNING
!
attempt to adjust
safety valve. Keep safety valve free
from paint and other accumulations.
DANGER
!
Never attempt to repair
or modify a tank!
Welding, drilling or any other
modification will weaken the tank
resulting in damage from rupture or
explosion. Always replace worn or
damaged tanks.
Drain liquid from
NOTICE
tank daily.
13. Tanks rust from moisture build-up,
which weakens the tank. Make sure
to drain tank regularly and inspect
periodically for unsafe conditions
such as rust formation and corrosion.
14. Fast moving air will stir up dust and
debris which may be harmful. Release
air slowly when draining moisture or
depressurizing the compressor system.
SPRAYING PRECAUTIONS
WARNING
!
Do not spray flammable
materials in vicinity of
open flame or near
ignition sources including the
compressor unit.
15. Do not smoke when spraying paint,
insecticides, or other flammable
substances.
16. Use a face mask/
respirator when
spraying and spray in
a well ventilated area
to prevent health and
fire hazards.
17. Do not direct paint or other sprayed
material at the compressor. Locate
compressor as far away from the
spraying area as possible to
minimize overspray accumulation
on the compressor.
18. When spraying or cleaning with
solvents or toxic chemicals, follow
the instructions provided by the
chemical manufacturer.

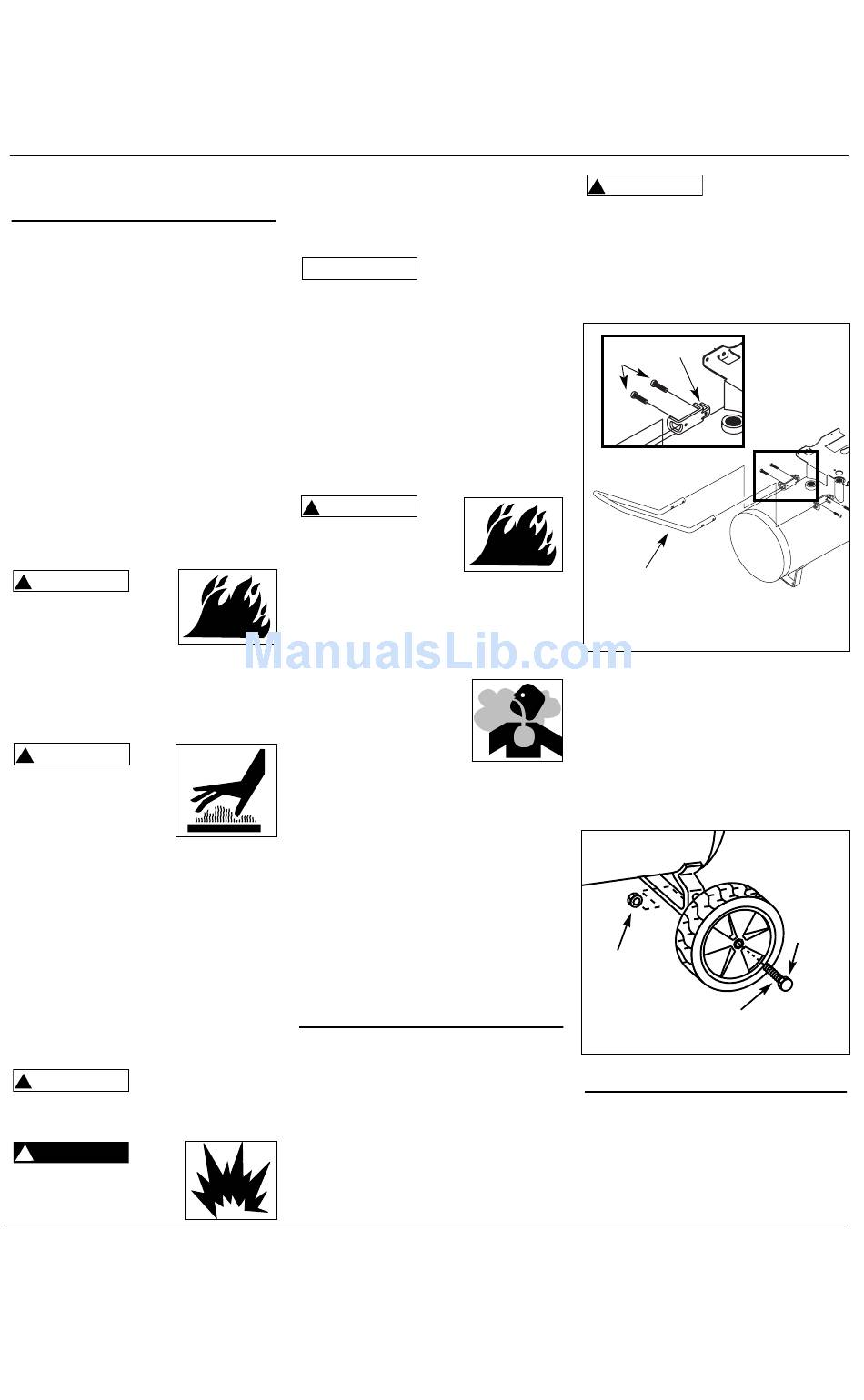

Assembly
HANDLE ASSEMBLY
1. Place a short piece of wood against
end of handle and tap it with a
mallet or hammer to drive handle
into handle bracket until holes in
handle and bracket line up.
2. Assemble and tighten 4 screws (from
parts package) through holes in
handle, ensuring it goes through
handle and bracket.
2
Never use the
WARNING
!
handle to lift the
unit completely off the ground. Only
use the handle to lift one end so the
wheels may be used to move the unit.
3. Insert threaded post of rubber foot
into hole in ground iron. Tighten
securely with lock nut.
Bracket
Screws
Handle
Figure 1 - Handle Assembly
WHEEL ASSEMBLY
The items marked with an asterisk (*)
are included in parts package.
Insert shoulder bolt through wheel
hub and wheel bracket. Tighten
securely with lock nut. The bolt hex
head should be on the opposite
side of protruding hub center.
*
Lock nut
*
Wheel
Figure 2 - Wheel Assembly

Installation

LOCATION
When assembled, the tank must sit
level or slope slightly towards the drain
cock to allow the tank to drain
properly.
*
Shoulder
bolt
