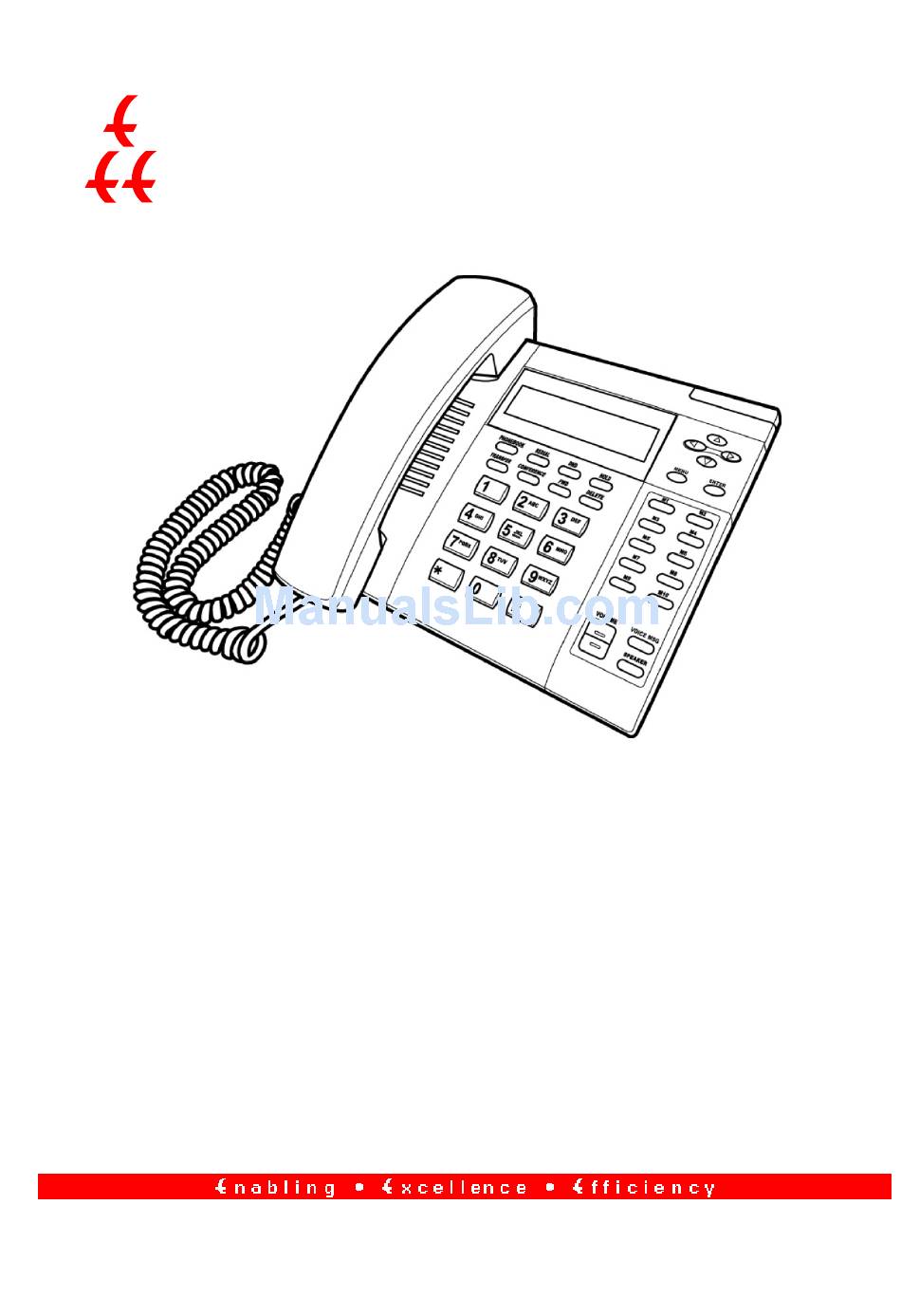

- Page 1 ® Essence Technology EIP 7012 Essence VoIP Phone Administration Guide Version 1.0B...
-
Page 2: Table Of Contents
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B Table of Contents Introduction............................... 1 Hardware Overview ........................1 Software Overview........................1 Keypad interface for IP Phone demo system....................3 Keypad description ........................3 Recording ............................. 4 Keypad Function and setting List ....................4 2.3.1 Phone Book ......................... - Page 3 2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B Network............................17 3.5.1 Network Status........................17 3.5.2 WAN Settings........................18 3.5.3 LAN Settings ........................18 3.5.4 DDNS Settings........................19 3.5.5 VLAN Settings........................19 3.5.6 DMZ Setting ........................20 3.5.7 Virtual Server ........................21 SIP Settings ..........................
-
Page 4: Introduction
MAG-07005-2 Rev. B 1 Introduction This administration guide is for VoIP Phone, EIP 7012. The administration guide explains the keypad instruction, web configuration and command line configuration for EIP 7012. Before using EIP 7012, some setup processes are required to make the VoIP Phone work properly. Please refer to the Setup Menu for further information. - Page 5 2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B ․ Busy Tone ․ ․ User Programming Tone QoS field Phone Function NAT Traversal ․ ․ Volume Adjustment STUN ․ Speed dial, Phone book Configuration ․ ․ Flash Web Browser ․ ․ Speaker Phone Console/Telnet ․...
-
Page 6: Keypad Interface For Ip Phone Demo System
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B 2 Keypad Interface for IP Phone Demo System 2.1 Keypad Description Key Name Description Note “1” “2”, “a”, “b”, “c”, “A”, “B”, “C” “3”, “d”, “e”, ”f”, “D”, “E”, “F” “4”, “g”, “h”, “I”, “G”, “H”, “I” “5”, “j”, “k”, “l”, “J”, “K”, “L”... -
Page 7: Recording
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B phone on the system. DELETE Press to erase the number you dialed when making a call. M1~M9 Press any of the keys to speed dial the preset contact number. Press to record the conversation, please refer to section 2.2 for further details. -
Page 8: Call History
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B 2.3.2 Call History Name Description Incoming Calls Show all incoming calls. Dialed Numbers Show all dialed calls. Erase Record Delete call history. All: Delete all call history. Incoming: Delete all incoming call. Dialed: Delete all dialed call. -
Page 9: Network
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B Secondary SNTP Set Secondary SNTP server IP address. Time Zone Set Time zone. Sync. Time Set adjustment time period. Volume & Gain Handset Volume Set Handset volume from 0~15 (max.) for you to hear. Speaker Volume Set Speaker phone volume from 0~15 (max.) for you to hear. -
Page 10: Sip Settings
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B 2.3.5 SIP Settings If you want to use keypad to set the SIP setting, you have to go to item 8 Sys. Authority to input the password, or you can not change the SIP setting. Name Description Service Domain... -
Page 11: Administrator
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B STUN Enable/Disable STUN. STUN Setting STUN Server The address of STUN server. 2.3.7 Administrator If you want to use keypad to set the Administrator setting, you have to go to item 8 Sys. Authority to input the password, or you can not change the Administrator setting. -
Page 12: Setup The Voip Phone By Web Browser
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B 3 Setup the VoIP Phone by Web Browser Default the IP Phone’s Bridge is enabled, WAN port is in DHCP Client Mode. LAN port is the same as WAN. Connect the IP Phone to DHCP server, and the server assign an IP address to the phone. Check the IP address and add the port number “:9999”... -
Page 13: Phone Book
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B 3.3 Phone Book Phone Book contains Phone Book and Speed Dial Settings. You can setup the Phone Book and Speed Dial number. The Phone Book can store 140 phone numbers and the Speed Dial can store 9 phone numbers. If you want to use Speed Dial you just dial the speed dial number then press “#”. -
Page 14: Speed Dial List
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B If you want to delete a phone number, you can select the phone number you want to delete then click Delete Selected. If you want to delete all phone numbers, you can click Delete All. 3.3.2 Speed Dial List In Speed Dial List function, you can add/delete Speed Dial number. -
Page 15: Forward Settings
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B 3.4.1 Forward Settings You can setup the phone number you want to forward in this page. There are three type of Forward mode. You can choose All Forward, Busy Forward, and No Answer Forward by clicking the icon. 3.4.1.1 All Forward All incoming calls will forward to the number you select. -
Page 16: Sntp Settings
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B 3.4.2 SNTP Settings You can setup the primary and second SNTP Server IP Address, to get the date/time information. Also you can base on your location to set the Time Zone, and how long need to synchronize again. When you finished the settings, click Submit. -
Page 17: Ringer Settings
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B 3.4.4 Ringer Settings You can select the melody for the incoming calls. When you finished the setting, click Submit. Go to the Save changes page and click Save to reflect the changes. 3.4.5 DND Settings You can setup the DND Setting to keep the phone silence. - Page 18 2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B 3.4.6.1 Symbol Explain: x or X 0,1,2,3,4,5,6,7,8,9 Drop Prefix: The default is No for adding the prefix to the dial plan in Replace Rule. Click Yes to delete the prefix of the dial plan in Replace Rule. Replace Rule 1~4: Enter rule for matching.
-
Page 19: Call Waiting Settings
Submit. Go to the Save changes page and click Save to reflect the changes. 3.4.8 Soft-key Settings EIP 7012 supports soft-key settings for voice messages. You can press SPEAKER, and then VOICE MSG on the IP phone to dial out the entered number in order to get into the voice mail service. -
Page 20: Alarm Settings
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B Hot Line Number: Enter a phone number as a special line. When you finished the setting, click Submit. Go to the Save changes page and click Save to reflect the changes. 3.4.10 Alarm Settings Alarm Settings is to inform user at a certain time. -
Page 21: Wan Settings
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B 3.5.2 WAN Settings In this page, you can configure the IP Phone’s WAN port setting. The WAN port is for you to connect to the ADSL Router, or Broadband Router. Also, you can use PPPoE to get the WAN IP address from your ISP. The default setting is Bridge mode. -
Page 22: Ddns Settings
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B The LAN settings’ default does not effect as Bridge mode is enabled. To configure LAN settings, go to Network -> WAN Settings, and click NAT under LAN Mode. You can connect your PC to the LAN port, set your PC as DHCP Client mode, and then you can get IP address from the TA. -
Page 23: Dmz Setting
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B There are two kind of destination packets will come from the TA’s WAN port, one kind of packets will go to the TA, and the other will go through the LAN port to the PC. VLAN Packets: if you enable the first VLAN Packets and set the VID, User Priority, and CFI, all the incoming packets will be check with the IP Address and the VID. -
Page 24: Virtual Server
MAG-07005-2 Rev. B 3.5.7 Virtual Server EIP 7012 provides configuring as a virtual server function. If you need to add a virtual server into the Virtual Server list, you need to enter the num, server IP, internal/external port, and select a protocol. When you finished a new phone list, just click Add Server. -
Page 25: Service Domain
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B information correctly then you can register to the SIP Proxy Server correctly. 3.6.1 Service Domain In Service Domain Function, you need to input the account and the related information in this page. Please refer to your ISP provider. -
Page 26: Port Settings
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B User Name: you need to input the User Name get from your ISP. Register Name: you need to input the Register Name get from your ISP. Register Password: you need to input the Register Password get from your ISP. Domain Server: you need to input the Domain Server get from your ISP. -
Page 27: Codec Id Settings
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B 3.6.4 Codec ID Settings You can set the Codec ID to meet the other device’s requirement. When you finished the settings, click Submit. Go to the Save changes page and click Save to reflect the changes. 3.6.5 DTMF Settings You can setup the RFC2833 Out-Band DTMF, Inband DTMF and Send DTMF SIP Info in this page. -
Page 28: Rport Function
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B 3.6.6 RPort Function You can setup the RPort Enable/Disable in this page. To change this setting, please follow your ISP information. When you finished the setting, click Submit. Go to the Save changes page and click Save to reflect the changes. 3.6.7 Other Settings You can setup the Hold by RFC, Voice/SIP QoS and SIP Expire Time in this page. -
Page 29: Others
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B STUN Setting: you can setup the STUN Enable/Disable and STUN Server IP address in this page. This function can help your VoIP Phone working properly behind NAT. To change these settings please following your ISP information. -
Page 30: Advanced Settings
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B 3.8.3 Advanced Settings You can configure some more advanced settings such as ICMP Not Echo, Send Anonymous CID, Send Flash Event, and SIP Encrypt in this page. ICMP Not Echo: setup the ICMP echo Enable/Disable. This function can disable echo when someone pings this device, it can avoid hacker try to attack the device. -
Page 31: System Auth
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B 3.9 System Auth In System Authority, you can change your login name and password. 3.10 Save Changes In Save changes, you can save the changes you have done. If you want to use new setting in the VoIP Phone, You have to click Save. -
Page 32: Auto Update Settings
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B Update from Local PC: Click Browse at the right side of the File Location to select a firmware or you can type the correct path and the filename in File Location blank. Select the correct file you want to download to the VoIP Phone, and then click Update. -
Page 33: Restore Default Settings
2/14/2007 VoIP Phone Administration Guide MAG-07005-2 Rev. B Scheduling (Time): select a period of time for updates. Immediate Update: When the IP phone detects there is newer version of firmware, you can select either to send out a notification only or directly update to the newer version. 3.11.3 Restore Default Settings In Default Settings, you can restore the VoIP Phone to factory default in this page. -
Page 34: Automatic Client Configuration With Essence Ip Pbx
IP PBX web page. Once the VoIP phone is connected to the IP PBX, it automatically downloads a predefined configuration setting from Essence IP-PBX. ACC function is enabled in IP-Phone default settings. User does not need to change any settings in EIP 7012.
