18947_ins_alc_wireless_temp_xmtr
Overview
The Automated Logic Wireless Temperature Transmitter measures the room temperature and transmits the data through
418MHz or 433 MHz RF to a receiver. The transmitter is mounted in an Automated Logic LS3 style enclosure and has
an open-air range of 100 feet.
The transmit rate is approximately once every 10 seconds with an estimated battery life of 5 to 8 years using two high-
capacity 3.6V lithium batteries. Each transmitter has a unique address with built in error detection. Each variable sent by
the transmitter is picked up by the receiver and converted by a Automated Logic Analog Output Module to a voltage,
current or resistance signal which is sent to the controller. The unit can be set up to trigger an alarm on the controller
when the batteries need replacing.
Product Identification
Tools and Materials
#2 Philips Screwdriver, 1/8" Screwdriver with 1/16" Allen wrench (BAPI BA/116W or equivalent), Drill
Mounting

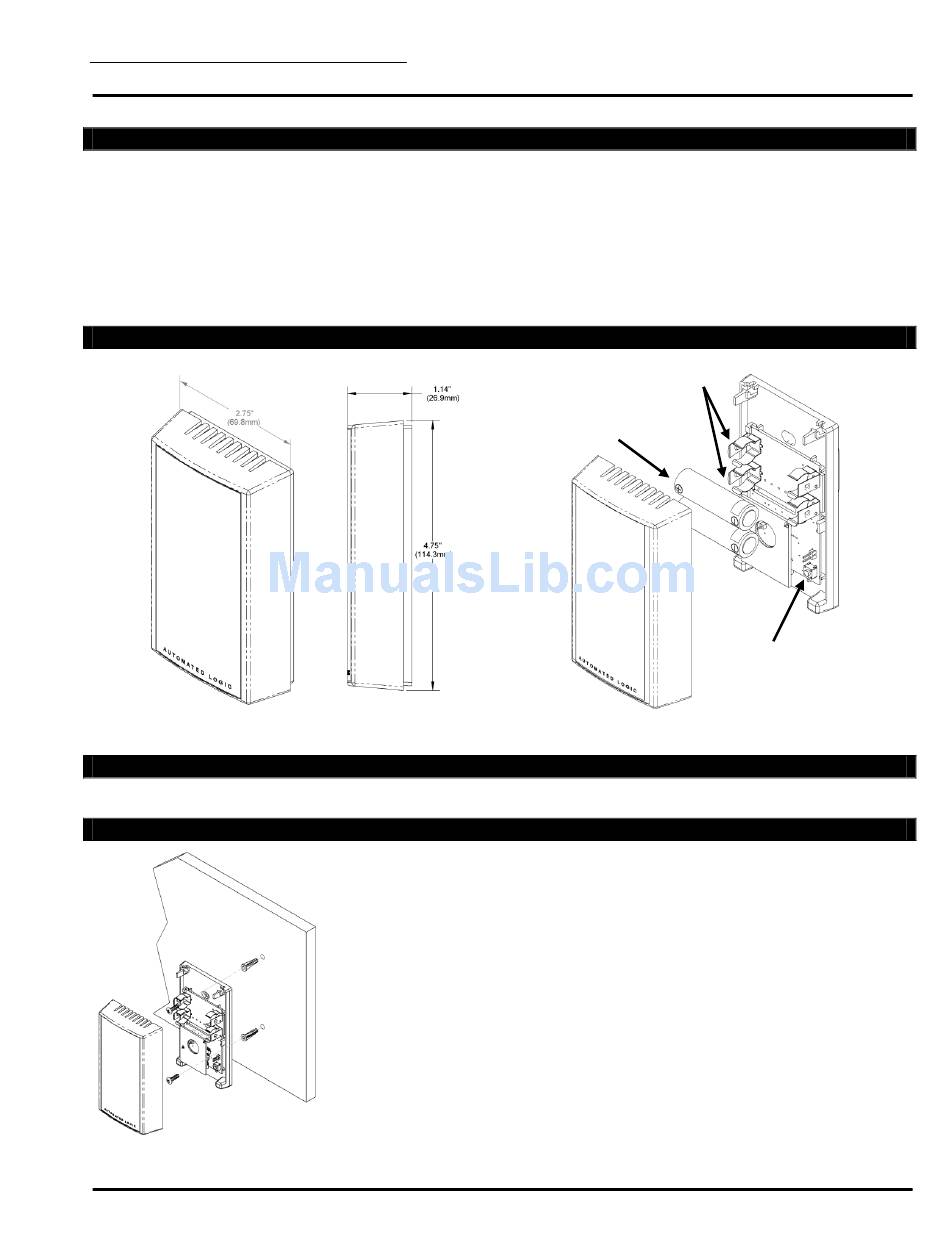

Figure 2: Drywall Mounting
Automated Logic Corporation
1150 Roberts Boulevard
Kennesaw, GA 30144
Figure 1: Wireless Temperature Transmitter
Drywall Mounting
1.
Place the base plate against the wall where you want to mount the sensor.
2.
Using a pencil mark out the two mounting holes.
3.
Drill two 3/16" holes in the center of each marked mounting hole. Insert a
drywall anchor into each hole.
4.
Secure the base to the drywall anchors using the #6 x 1 inch mounting screws
provided.
5.
Attach cover by latching it to the top of the base, rotating the cover down and
snapping it into place.
6.
Secure the cover by backing out the lock-down screws using a 1/16" Allen
wrench until they are flush with the bottom of the cover.
7.
Remove the battery tabs or install the batteries to start the sensor transmitting.
(See Figure 1)
Installation and Operating Instructions
Two Battery Tabs
Battery Polarity
Important
LS3-WT
Rev 03/07/2008
Transmitter
Training Button
Phone: (770) 429-3000
Fax: (770) 429-3001
http://www.automatedlogic.com
Advertisement
Table of Contents
Related Manuals for Automated Logic LS3-WT
Summary of Contents for Automated Logic LS3-WT
- Page 1 The Automated Logic Wireless Temperature Transmitter measures the room temperature and transmits the data through 418MHz or 433 MHz RF to a receiver. The transmitter is mounted in an Automated Logic LS3 style enclosure and has an open-air range of 100 feet.
- Page 2 Antenna: Built inside the enclosure Environmental Operation Range: FCC Approval: FCC ID# T4F16963N16964 Temp: 0° to 60°C (418MHz only) Humidity: 5% to 95% RH non-condensing Automated Logic Corporation Phone: (770) 429-3000 1150 Roberts Boulevard Fax: (770) 429-3001 Kennesaw, GA 30144 http://www.automatedlogic.com...
