Automated Logic B6 Series Specification

N2-B6 Series - 8/23/23
Overview

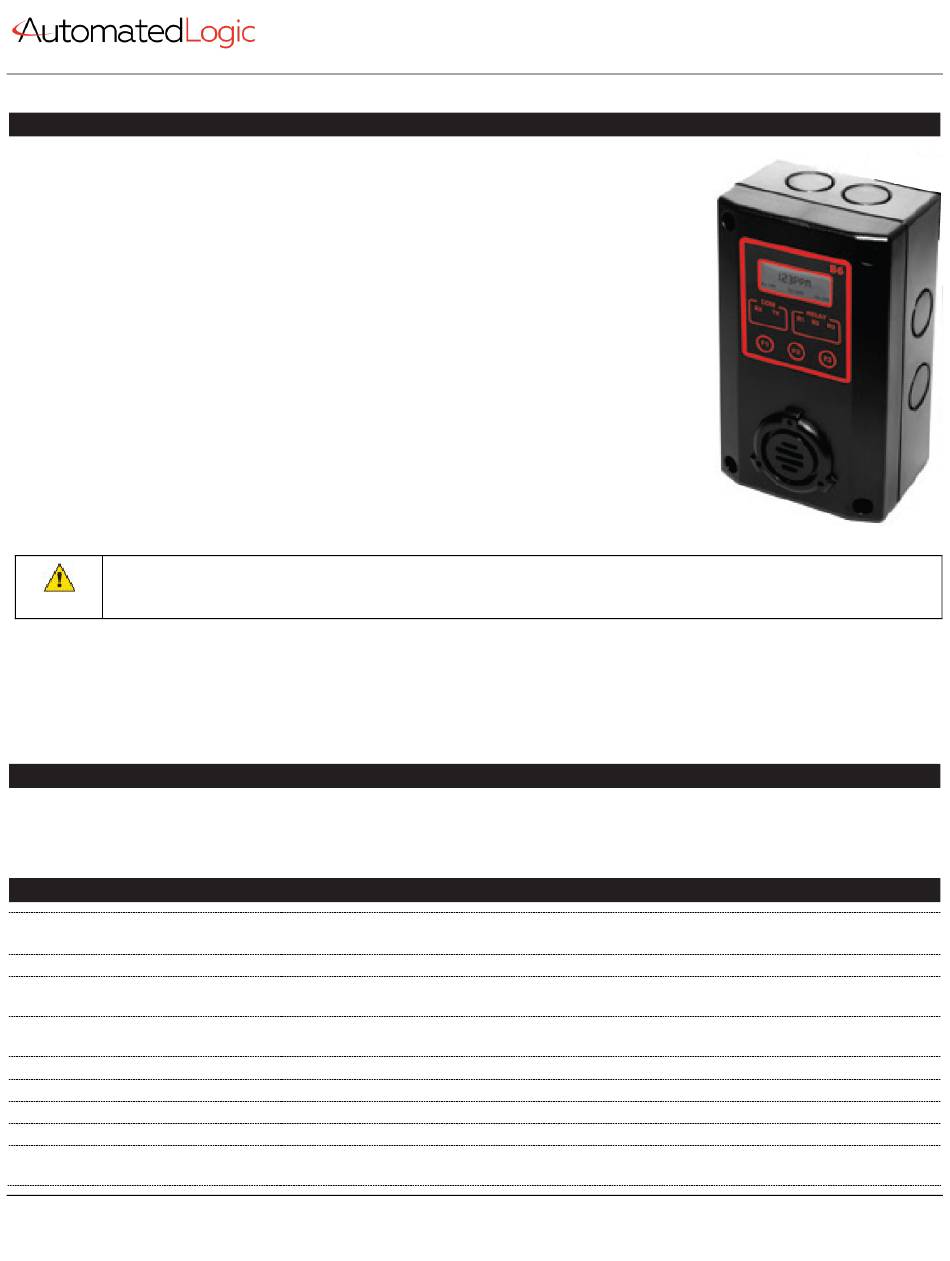

The B6 Series Toxic/Combustible Gas Detectors use various sensing technologies to
detect a wide assortment of gases. These units are housed in a NEMA 4X rated plastic
enclosure that will meet a wide variety of applications. The combo unit consists of a main
unit (Carbon Monoxide only) with an LCD, LED status indication, 3 user configurable
relays and a remote sensing unit (various gas types available) for installation at high or
low elevations based on the density of the gas being detected. The main and remote unit
gas concentrations levels are both displayed on the main unit's LCD. This series also
features a sensor module that can be easily replaced by removing a couple of screws
and unplugging the existing module before inserting the new factory calibrated sensing
module. All units should be verified for proper functionality and calibration once the
replacement sensor module has been reinstalled. A user selectable password can be
used to protect the system integrity.
Applications: Mechanical Rooms, Warehouses, Refrigeration Plants, Industrial Plants,
Process Monitoring, Leak Detection, Parking Garages, Auto/Truck Maintenance
Facilities, Oil and Gas Industry
It is your responsibility to ensure that the B6 Series meets all of your applicable Federal, State, Provincial
and Local Health and Safety laws and regulations before using these products.
Caution
The B6 Series Gas Transmitters are covered by a Two (2) Year Limited Warranty against defects in material and
workmanship from the date of shipment with the exception of the Sensor Modules (Electrochemical/Toxic: Six Months and
Catalytic/ Combustible: One Year)
Part Numbers
N2-B6-CO/NO2-10P
Specifications
Supply Voltage:
Fuse Protection:
Supply Current | Power
Consumption:
Communication Protocols:
B6 Communication Baud Rates:
Factory Calibration Range:
Display:
Keypad
Relays | Contact Type | Relay
Contact Ratings:
VDC Supply Voltage: 24 VDC nominal (+18 to 30 VDC)
VAC Supply Voltage: 24 VAC nominal (+15 to 24 VAC) (AC Power must not be grounded)
0.750A Polyswitch; (Resets after fault is cleared & power to circuit is removed)
0.3A maximum | 8.4 VA
RS-485 Serial BACnet TM MS/TP (Master and Slave; Default: Master)
9600, 19200, 38400, 76800 Bits/Second (Default: 38400)
See Gas Sensor Selection & Specification Table on back of data sheet
LCD Graphic Display with backlight (Displays: TWA, STEL and Concentration)
Three Capacitive Touch sensing keys
Three | SPDT (Form C) Dry Contacts | 1.0A max. @ 30 VDC or 0.3A max. @ 125 VAC
(Resistive Loads)
Specifications subject to change without notice.
1150 Roberts Boulevard, Kennesaw, Georgia 30144
770-429-3000 Fax 770-429-3001 | www.automatedlogic.com
B6 Toxic/Combustible Gas Transmitter
Specification
Page 1 of 16
