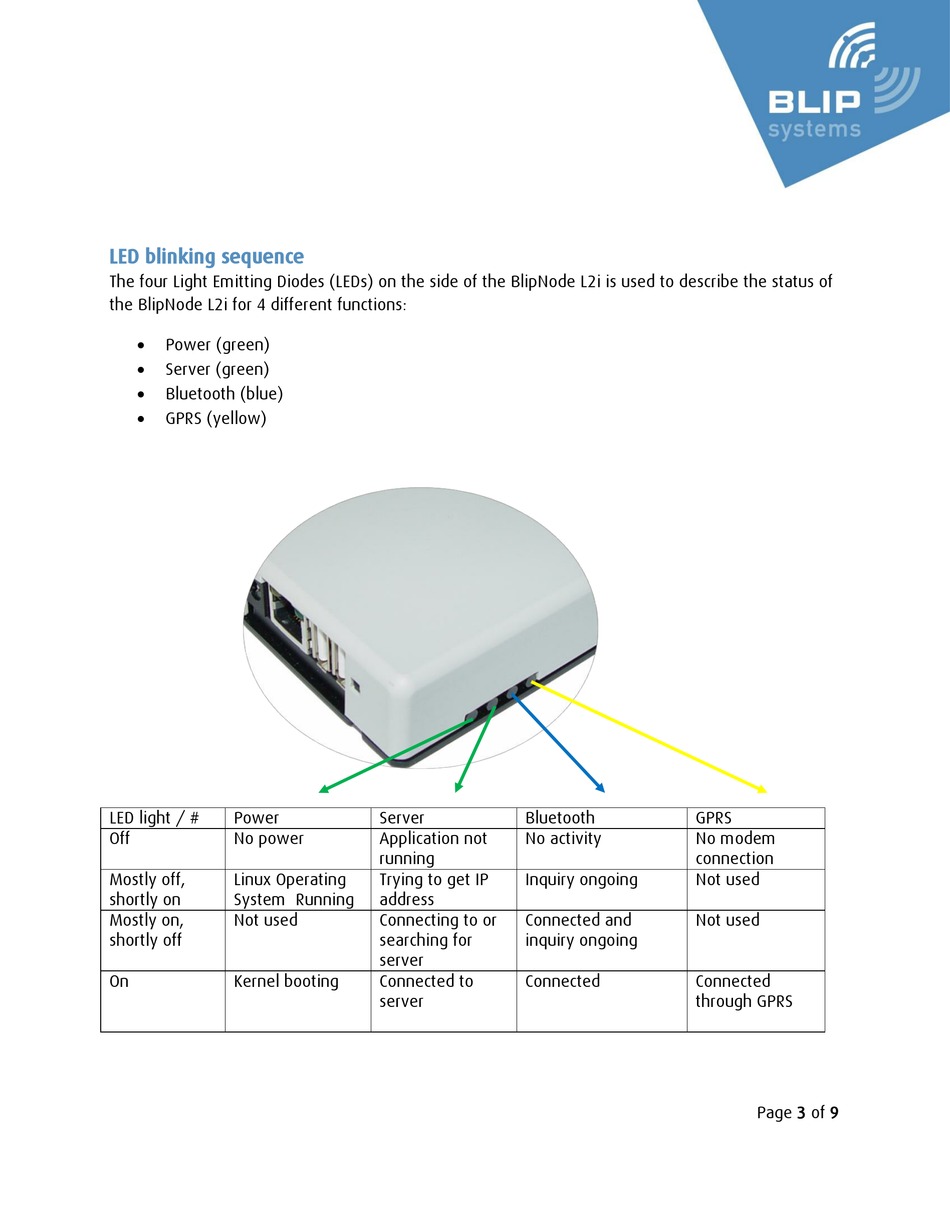

LED blinking sequence

The four Light Emitting Diodes (LEDs) on the side of the BlipNode L2i is used to describe the status of
the BlipNode L2i for 4 different functions:

Power (green)

Server (green)

Bluetooth (blue)

GPRS (yellow)
LED light / # Power
Off No power
Mostly off, Linux Operating
shortly on System Running
Mostly on, Not used
shortly off
On Kernel booting
Server Bluetooth
Application not No activity
running
Trying to get IP Inquiry ongoing
address
Connecting to or Connected and
searching for inquiry ongoing
server
Connected to Connected
server
GPRS
No modem
connection
Not used
Not used
Connected
through GPRS
Page 3 of 9
