Supply of secondary combustion air is controlled by an air rosette (Fig. 08), situated in the boiler's stoking door, which has a direct
effect on the level of emission.
Hot water temperature can be checked on a thermometer (Fig. 09), which is situated in the front boiler cover above the stoking door.

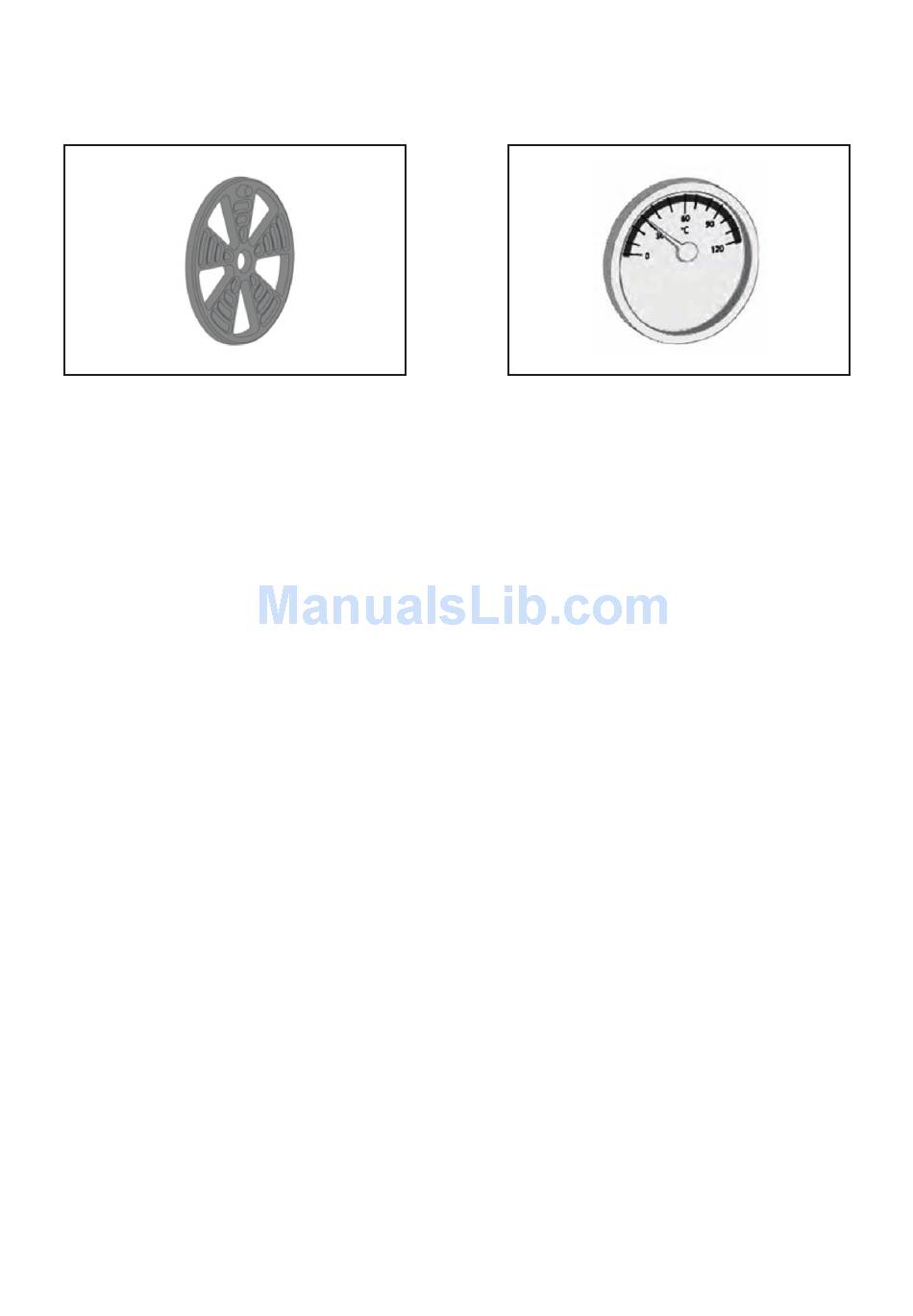

Air rosette
Thermometer
fig. 08
fig. 09
Temperature safety valve
The Angus Max boilers can be equipped with a safety heat exchanger with thermal safety valve as an optional which ensures
dissipation of excessive heat without additional device and supply of external energy in such a way that the maximum permissible
boiler temperature of 95°C is not exceeded.
For more information on the safety heat exchanger with thermal safety valve please see http://www.ecoangus.co.uk/
ecoangus_images/Test_Reports_and_Instruction%20Manuals/1958_Safety_Heat_Exchanger_Manual_FINAL.pdf
INSTALLATION, OPERATION AND MAINTENANCE MANUAL 8
