Read And Save These Instructions
NOTICE: This Product May Temporarily Produce An Odd Odor When First
Turned On. This Is NORMAL And Will Dissipate After A Few Hours.
If you have any problems with this product, please call 1-800-643-8341
BEFORE returning it to your retailer.
Evaporative cooling is an economical way to cool. Air is cooled while being drawn across wet evapora-
tive media. The movement of this fresh cooled air over the skin is what makes it feel cool. It is important
when using an evaporative cooler in an enclosed space to have adequate exhaust by opening windows,
doors, etc. Without an outlet to exhaust the air, humidity will build up in the enclosed space and the
unit will not cool adequately. It is preferable to have an opening behind the unit to bring in fresh air and
another opening across the room to exhaust and help move the air.
1. Unit must be in the Off Position and Unplugged from power receptacle when performing any mainte-
nance.
2. To reduce the risk of electric shock, plug unit into a properly grounded 120 Volt A.C., 60 Hz receptacle.
3. To reduce the risk of electric shock, install only on a circuit protected with a Ground Fault Circuit Inter-
rupter (GFCI).
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
WARNING: To reduce the risk of fi re or electric shock, do not use this fan with any "solid-state
fan speed control device."
110489-7
1/10

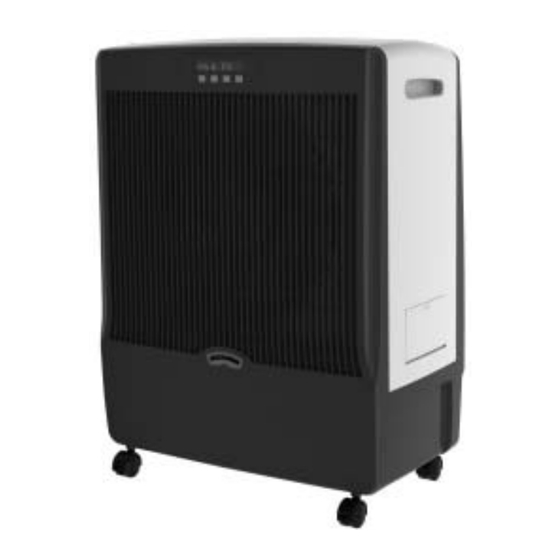

Portable Evaporative Cooler
Model
CP25
Evaporative Cooling
Safety Rules
Champion Cooler
5800 Murray St.
Little Rock, AR 72209
www.championcooler.com
Advertisement
Table of Contents
Related Manuals for Champion CP25
Summary of Contents for Champion CP25
-
Page 1: Safety Rules
Portable Evaporative Cooler Model CP25 Read And Save These Instructions NOTICE: This Product May Temporarily Produce An Odd Odor When First Turned On. This Is NORMAL And Will Dissipate After A Few Hours. If you have any problems with this product, please call 1-800-643-8341 BEFORE returning it to your retailer. -
Page 2: Cooler Installation
Cooler Installation Install Casters Note: Casters are located inside unit. These must be removed before starting the unit. This unit comes equipped with 4 stem casters; 2 locking and 2 non-locking. Before operation turn the unit on its side and press the stem casters into the corner holes. Install the locking caster on one side of the unit and the non-locking casters on the opposite side. -
Page 3: Limited Warranty
Clean / Replace Evaporative Media Keeper Keeper The evaporative media should be cleaned twice a season or when Disk Stem needed. To clean the media, rinse with clean water. Light scrubbing might be necessary. Be careful not to damage media. After about 2 years, or when it becomes clogged, the media will need to be re- 45°... -
Page 4: Troubleshooting
• Check that unit is plugged into a 120V power receptacle. • Check the fuse or breaker. • If connected to a GFCI outlet, check if it is tripped. Replacement Parts Description CP25 Evaporative Media............110132-4 Evaporative Media Frame Assembly......110875-3 Set Of (4) Keepers ............110871 Pump ................110440-1 Drain Plug ..............110698-1... -
Page 5: Reglas De Seguridad
Enfriador Evaporativo Portátil Model CP25 Lea y Conserve Estas Instrucciones AVISO: Este Producto Puede Producir Temporalmente Un Olor Extraño Al Principio. Esto Es NORMAL y Se Disipará Después De Unas Horas De Uso. Si usted tiene algún problema con este producto, por favor llame al 1-800-643-8341 ANTES de devolverlo a la minorista. -
Page 6: Instalación
Instalación Instalar Las Ruedas NOTA: Las ruedas son situadas dentro de la unidad. Quítelas antes de funcionar la unidad. Este unidad viene equipado con 4 ruedas giratorias; 2 con frena y 2 sin frena. Antes de funcionar, pone la unidad por su lado y presiona los vástagos de las ruedas dentro de los agujeros de esquina. Instale las ruedas con frena a un lado y las sin frena por el otro lado. -
Page 7: Garantía Limitada
Limpiar / Cambiar El Filtro Debe limpiar el fi ltro dos veces al temporada o cuando sea necesario. Disco Vástigo Para limpiar el fi ltro, aclare con el agua potable. Puede ser necesario fre- gar ligeramente el fi ltro. Tenga cuidado de no dañar el fi ltro. Después de 2 años o cuando el fi... -
Page 8: Piezas De Repuesto
• Compruebe el fusible o el cortacircuito. • Si está conectado con un enchufe de GFCI, compruebe si se desconectó. Piezas De Repuesto n°. Descripción CP25 Filtro ................110132-4 Montaje De Armazón Del Filtro ........110875-3 Equipo De (4) Sujetadores...........110871 Bomba .................110440-1 Tapón De Goma ............110698-1...
