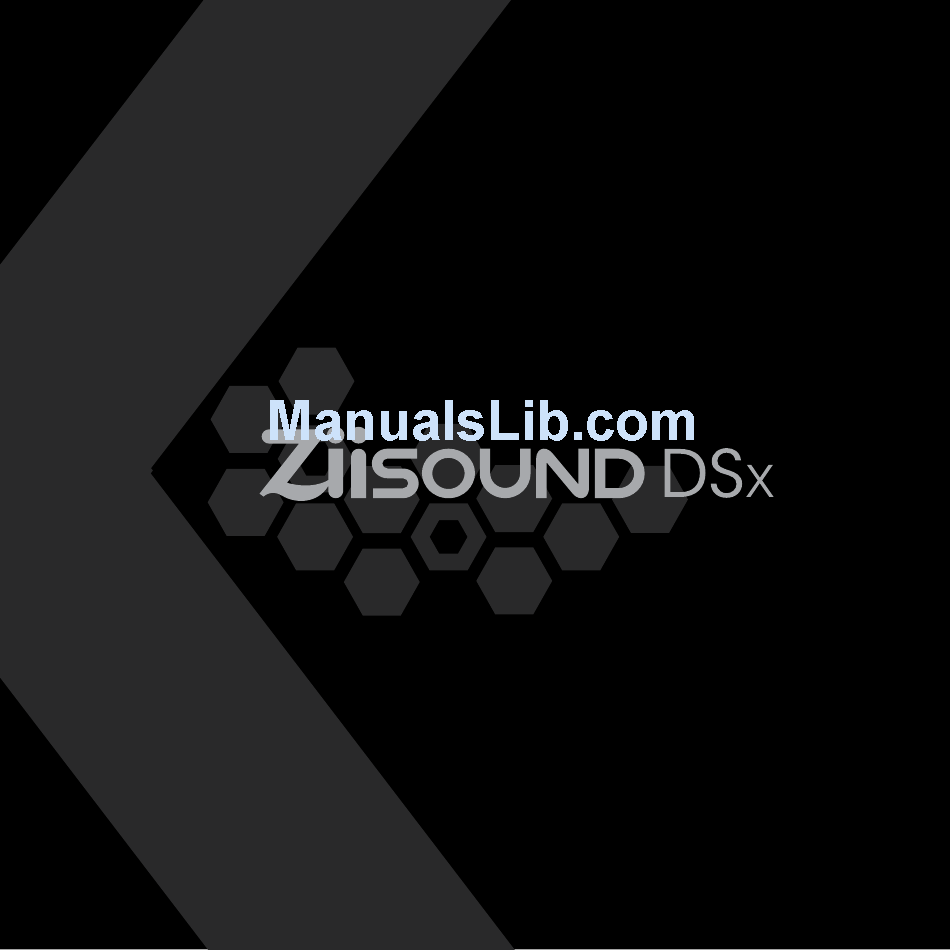

- Page 1 Model No.: MF8125...
- Page 2 Congratulations on purchasing the ZiiSound DSx Wireless Subwoofer, a perfect complement to the ZiiSound series of wireless speaker systems featuring SLAM (Symmetrically Loaded Acoustic Module) Technology. Experience a whole new definition of freedom in placement for that perfect acoustic projection with our wireless systems. Additional ZiiSound D5x, D3x or DSx shown here and throughout the user manual are for illustration purposes only.
- Page 3 For detailed product information, instructions or to find out more about our speakers, visit www.creative.com/speakers Safety Instruction Please read the following before using the Creative Products: • Use a mains plug that is appropriate for your country or region. • To be completely disconnected from the power input, the mains plug has to be disconnected /detached from the mains. • Disconnect the mains plug when the device is expected to be unused for several days. Additional guidelines for wireless devices • The short wave radio frequency signals of a wireless device may impair the operation of other...
- Page 4 Technical Specifications • Input Rating: 100-240V~ 50/60Hz 300mA • Operating Frequency : 5725 – 5850 MHz • Supported Speaker models : ZiiSound D5x , ZiiSound D3x • Operating Range: Up to 30 meters (Measured in open space. Walls and structures may affect range of device.) • Device Operating Temperature : 0ºC to 50ºC Note: Compliance markings are located at the back of this product. Compatibility Disclaimer • Every electronic device is subjected to radio frequency (RF) interference from external sources. These include the connection between linked ZiiSound D5x, D3x and wireless subwoofer. • Creative will not be liable for any loss of data or leakage resulting from the use of these devices.
- Page 5 Product Overview / Connectivity Diagram ZiiSound DSx LED Status Indicator LED lights up to indicate active wireless link status SLAM Master driver Do not poke objects into these areas SLAM Pressure drivers Do not poke objects into these areas...
-
Page 6: Link Button
LINK Button For various actions to LINK and connect to ZiiSoundD5x or D3x Bass Level Control To Increase or decrease the bass level AC IN Attach supplied AC cord into AC IN, then into mains LED Status Subwoofer Status Standby (Mains Powered ON, not connected to any speaker) LINK discoverable mode Rapid blinking LED LED blinks twice and goes off Restored to Factory default setting LED stays ON Linked to speaker... - Page 7 To Power ON the ZiiSound DSx Plug in the AC cord into the AC IN and switch on the mains. The ZiiSound DSx is powered ON and in standby mode.
- Page 8 To link up with the ZiiSound D5x or D3x To link to the ZiiSound D5x or D3x master speaker unit, the ZiiSound DSx needs to be in LINK Discoverable mode for the master speaker unit to establish a link to ZiiSound DSx. To activate LINK discoverable mode, follow the instructions below. Link discoverable mode Rapid blinking LED With the Subwoofer mains powered ON, Press and hold the Link button for 4 seconds and release when the LED blinks once. The Subwoofer is now ready to recieve connection from a master speaker unit. Link established with Master Speaker LED lit steady When the Wireless Subwoofer is successfully linked up, the Led Status indicator will be lit steady. Note: At any one time, the ZiiSound DSx can only remember one device in its memory bank.
- Page 9 To de-link the ZiiSound DSx from any master speaker unit To de-link the ZiiSound DSx from any master speaker unit for linking to another master speaker unit, perform the following instructions below. Return to Factory default Two Led Flashes and Led stops blinking With the Subwoofer is powered ON, press and hold the Link button for 10 Seconds until 2 flashes of LED is seen and the LED stops blinking. Subwoofer is cleared of memory and in standby mode. LINK discoverable mode Rapid blinking LED Press and hold the Link button for 4 seconds and release when the LED blinks once. The Sub- woofer is now ready to recieve connection from a master speaker unit.
-
Page 10: Frequently Asked Questions (Faq)
Frequently Asked Questions (FAQ) Perform the following trouble-shooting steps before sending it for servicing. For more information, please refer to support.creative.com The ZiiSound DSx cannot be Powered ON. What should I do? • Make sure that the power cords are firmly connected to the unit and that the power outlet is turned on. • Press the LINK Button at the rear of the Subwoofer. The LED status indicator should blink. This indicates that the Subwoofer is powered ON and in standby. There’s no wireless link between the ZiiSound DSx and ZiiSound D5x or D3x. What should I do? •... - Page 11 To comply with the Europe CE requirement, this device must be installed with CE certified computer equipment which meet with Class B limits. All cables used to connect this device must be shielded, grounded and no longer than 3m in length. Operation with non-certified computers or incorrect cables may results in interference to other devices or undesired effects to the product. MODIFICATION: Any changes or modifications not expressly approved by Creative Technology Limited or one of its affiliated companies could void the user’s warranty and guarantee rights.
- Page 12 DECLARATION OF CONFORMITY According to LVD Directive (2006/95/EC) and R&TTE Directive (1999/5/EC) Company Name : Creative Technology Ltd Company Address : 31, International Business Park Creative Resource Singapore 609921 Declare under our sole responsibility that the product(s): Product Name : ZiiSound DSx Model Number : MF8125 Intended Use : Office and Home Usage Restrictive use : Nil To which this declaration relates are in conformity with the following standard(s): Radio : EN 300 440-1 V1.6.1:2010 : EN 300 440-2 V1.4.1:2010 EMI/EMC : EN 55013: 2001 +A1: 2003 +A2: 2006 EN 55020: 2007 EN 55022: 2006 + A1: 2007 EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 EN 61000-3-3: 2008 EN 301 489-1 V1.8.1: 2008...
- Page 13 Por la presente, Creative Technology Ltd, declara que este altavoz subwoofer inalámbrico cumple con los requisitos esenciales y otras cláusulas de la directiva 1999/5/EC. Creative Technology Ltd verklaart hierbij dat dezedraadloze subwoofer voldoet aan de vereisten en andere relevante voorwaarden van de richtlijn 1999/5/EG. A Creative Technology Ltd. declara pelo presente que este subwoofer sem fios está em conformidade com os requisitos essenciais e outras disposições relevantes da Directiva 1999/5/CE. Härmed intygar Creative Technology Ltd. att denna wireless subwoofer uppfyller viktiga krav och bestämmelser i EU-direktivet 1999/5/EC. Creative Technology Ltd. bekrefter med dette at trådløs subwoofer overholder kravene og andre relevante forskrifter i EU-direktiv 1999/5/EC Creative Technology Ltd. erklærer hermed, at denne trådløse subwoofer overholder de obligatoriske krav og øvrige...
- Page 14 © 2011 Creative Technology Ltd. All rights reserved. Creative, the Creative logo, SLAM™, Zii and ZiiSound are trademarks or registered trademarks of Creative Technology Ltd in the United States and/or other countries. All other trademarks are the property of their respective owners and are hereby recognized as such. All specifications are subject to change without notice.
