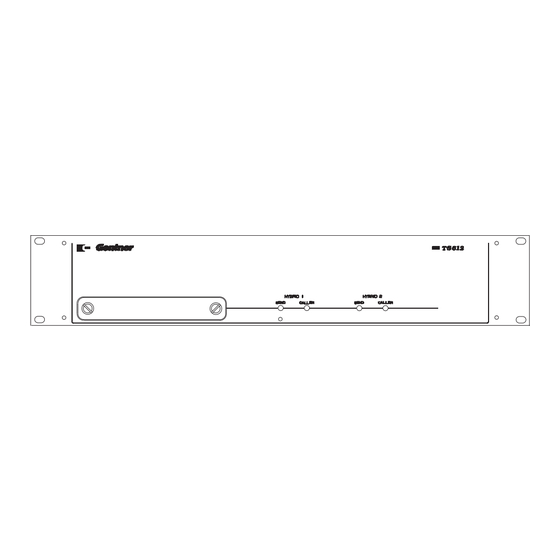

Multi-line, on-air telephone system
Hide thumbs Also See for TS612:
Table of Contents

Advertisement

Quick Links

Multi-Line, On-Air T elephone System
Installation & Operations Manual
Perfect Communication through Technology, Service, and Education.
TM

Advertisement

Table of Contents
loading

Related Manuals for Gentner TS612

Summary of Contents for Gentner TS612

  • Page 1 Multi-Line, On-Air T elephone System Installation & Operations Manual Perfect Communication through Technology, Service, and Education.
  • Page 2 Gentner Part No. 800-003-000 July 1999 (Rev. 3.0) © Copyright 1999 by Gentner Communications Corporation. All rights reserved. Gentner Communications Corporation reserves specification privileges. Information in this manual is subject to change without notice. This equipment complies with the requirements of the EU guidelines: 89/336/EEC “Electromagnetic Compatibility”...

  • Page 3: Table Of Contents

    Line Expansion ........12 Configuring the TS612 ........13 Single-Studio Mixed Caller .
  • Page 4 Setup and Operation ....31 Operational Setup ........31 Networking Mode .

  • Page 5: Introduction

    Ease of use, quick installation, and versatility have made the TS612 one of the most popular telephone interface systems in the broadcast industry today. The TS612 features two internal digital hybrids, providing high-quality interface to six telephone lines (expandable to 12).

  • Page 6: What's In This Manual

    “Appendices” include additional information such as schematics, connector pinouts, and serial communications protocol. For additional help on how to install, set up, or operate the TS612 system, please contact Gentner: Sales and Customer Service Telephone: 1.800.945.7730 (USA) or 1.801.975.7200...

  • Page 7: Unpacking

    Part 800-003-000 Warranty Instructions Please register your TS612 online by visiting Gentner Technical Support on the World Wide Web at www.gentner.com. When your product is properly registered, Gentner Communications will be able to serve you better should you require technical assistance. Warranty information will also be used to notify you of upgrades, new product information, etc.
  • Page 8 TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...

  • Page 9: Overview

    The mainframe contains two internal digital hybrids which provide high-quality interface to six telephone lines (expandable to 12). The dual hybrids allow the TS612 to operate as a single-studio telephone system able to conference up to four callers simultaneously, or a two-studio system able to conference two callers to each studio.

  • Page 10: About Version 2.5

    Split-Caller Mode You can use the TS612 as a single studio system and bring each of the hybrid outputs independently to the audio console with a single feed for both hybrids.

  • Page 11: Operational Requirements

    (although not infallible) test is to connect to an external modem or fax machine. If the modem or fax operates correctly, the line will probably work with the TS612. To set up analog loop-start extensions for the TS612, contact your PBX system provider.
  • Page 12 TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...

  • Page 13: Installation

    Connecting six or 12 telephone lines to the Phone Lines Out connector on the mainframe enables the loop-out function of the TS612. Lines not in use by the TS612 are then available for use on a separate telephone system. Phone Line...

  • Page 14: Line Expansion

    To prevent electrical shock Line Expansion or possible equipment A six line TS612 is shipped from the factory configured for six telephone damage, disconnect the lines. You may expand a six line system to 12 lines by adding two unit from all electrical power before additional telco cards.

  • Page 15: Configuring The Ts612

    Configuring the TS612 To best suit your requirements, the TS612 may be configured in several ways. The type of configuration is determined by the positions of the DIP switches located behind the access panel on the front of the main- frame.
  • Page 16 INSTALL ATION • CONFIGURING THE TS612 The TS612 may be used as a single-studio or dual-studio system. In a single-studio setting, the TS612 operates as a dual-hybrid telephone system, with up to 12 lines and three control surfaces: main/studio 1, aux/studio 2, and screener.

  • Page 17: Single-Studio Mixed Caller

    In mixed-caller mode, all calls placed to air are routed to the audio console through the Main Caller output regardless of which hybrid a call is routed through. Each of the TS612’s two hybrids has two call slots. This allows up to four calls to be placed to air simultaneously by conferencing them together.

  • Page 18: Single-Studio Split Caller

    DIP Switch Settings. For split-caller mode, DIP switch 6 should be down. DIP switch 3 determines the mix-minus setup for the configuration. If DIP switch 3 is in the up position, the TS612’s internal 4 5 6 7 8 9 mix-minus feature is active.

  • Page 19: Single-Studio Split-Hybrid

    This allows the studio console operator to adjust mix from the studio console to the the caller to caller level between the two TS612 hybrids. TS612. 4 5 6 7 8 9...

  • Page 20: Dual-Studio

    Main Caller output. All calls placed to air by studio 2 are routed to the audio console through the Aux Caller output. Because each of the TS612’s two hybrids has two call slots, each studio can conference a maximum of two calls together.

  • Page 21: Equipment Interconnections

    Send trim pots. For instructions, see the Calibration section beginning on page 26. As shipped from the factory, the TS612 is set for operation with external (console) mix-minus. If your console does not supply a mix-minus, the TS612 will generate internal mix-minus when DIP switch 3 is placed in the up position.
  • Page 22 (and from the telephone line) to an input on the console. When calls are conferenced, the Caller output contains a mix of these callers. The TS612 can conference up to four callers at a time in the conference mode. Both Caller output connections may be required depending on the TS612’s...

  • Page 23: Record Control Hookup

    50 Vdc 40 mA. It is a DB9 female connector. For pinout mapping, see Appendix B (page 54). As shipped from the factory, the TS612 is set for momentary action of the control signals. If you wish to change the action of the control signals to latching, move DIP switch 2 DIP Switch 2 is a global to the down position.

  • Page 24: Aux I/O Hookup

    Aux I/O Hookup The Aux I/O port is a DB25 female connector used to connect auxiliary devices to the TS612. These Aux inputs and outputs provide status information and control using the control surface Aux buttons. The six auxiliary inputs are opto-isolated and require a closure to ground for activation of the input.
  • Page 25 INSTALL ATION • EQUIPMENT INTERCONNECTIONS Aux Input Functions Table Inputs Latching Momentary Screener AUX LED* On when latched Toggles with each closure Studio 1 AUX LED On when latched Toggles with each closure Studio 2 AUX LED* On when latched Toggles with each closure NEXT button input Places the next caller to handset...

  • Page 26: Control Surface Hookup

    Control Surface Hookup You may connect up to three control surfaces to the mainframe. Each Control Surface port on the back of the TS612 mainframe is a DB15 female connector. The port on the back of the control surface is a DB15 male connector.
  • Page 27 INSTALL ATION • EQUIPMENT INTERCONNECTIONS To prevent accidental disconnection of power to the control surface, install a cable clamp. Secure the U-clamp to the bottom of the control surface. Replace the existing screw with the #4 X 3/8 PPH self-tapping screw (supplied with the U-clamp).

  • Page 28: Calibration

    INSTALL ATION • CALIBRATION Calibration Your TS612 has been calibrated at the factory to give optimum audio levels for most studios (+0 dBu). You can make adjustments to audio levels with the front-panel trim pots. The trim pots for send audio, hold audio, caller audio, and automatic gain control of caller audio are behind the front access panel of the mainframe.

  • Page 29: Calibration Of Caller Audio

    INSTALL ATION • CALIBRATION 5. Using the talent control-surface handset in studio 2, repeat steps 1–3 Step 5 through 7 apply to above. Or if you’re using split-hybrid operation, enable conference dual-studio and single-stu- mode and send a second call to air using any control surface. dio split-hybrid operations.

  • Page 30: Calibration Of Hold Audio

    INSTALL ATION • CALIBRATION Calibration of Hold Audio To adjust the hold audio, perform the following steps: 1. Calibrate the send audio for studio 1. 2. Set the program audio at normal operating level. If you have not already connected the program audio to the Hold XLR connector in the Main/Studio 1 section of the mainframe back panel, make that connection now.

  • Page 31: Calibration Of Agc

    INSTALL ATION • CALIBRATION Calibration of AGC AGC (Automatic Gain Control) keeps the caller level from the TS612 to your audio equipment at a relatively consistent level regardless of the level received from the phone line. It’s similar to having someone sitting at the caller trim pot and adjusting the pot up and down for each phone call.
  • Page 32 TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...

  • Page 33: Setup And Operation

    Networking Mode The COM port located on the rear panel of the TS612 can be used to network multiple TS612 systems together. In network mode, the TS612 Network Interface (Gentner part number 910-003-320) passes line...

  • Page 34: Loop-Override Mode

    An in-use line appears amber on the control surface and the line cannot be picked up by pressing the button. The TS612 can pick up lines which are already in use by downstream equipment when loop-override is activated. This feature should be used with caution.
  • Page 35 OPERATION • OPERATIONAL SETUP The table below shows the operational modes which can be selected during setup mode. Beginning on page 34, the operational modes are discussed in the order they appear on the table. To select an operational mode, follow the steps below: 1.

  • Page 36: Additional Operational Modes

    4. Return to Operational Mode. Once you have completed setup mode, disconnect power to the TS612 mainframe. Move DIP switch 10 to the up position, then reconnect power to the mainframe. All changes 4 5 6 7 8 9 made during setup are now in effect.
  • Page 37 *Master Mode Emulation (All Control Surfaces). This mode allows commands for all control surfaces to be received by the COM port. The TS612 treats commands just as if they were sent from the corresponding control surface. This mode is also valid only when used with RS232 standard mode.
  • Page 38 OPERATION • OPERATIONAL SETUP Screener Air Control. This mode allows the screener control surface to place callers to air and to remove calls from the air to place them on hold. To place calls to air directly from the handset, press the Air button.

  • Page 39: Using The Control Surface

    TS612 routes a selected line to the handset. 2. On-Air Telephone. When you leave the handset in the cradle and select a line, the TS612 routes the call to one of the internal dig- ital hybrids for use on-air.

  • Page 40: Control Surface Buttons

    If you are on a call and press another Line button, the first line will be automatically disconnected. However, the TS612 also offers a new fea- ture called Previous Hold Mode. When this mode is enabled in setup (page 32), you can switch lines without disconnecting the previous call.
  • Page 41 In use elsewhere. When a call is in use by another control surface, or a networked TS612 mainframe, or downstream equipment, the Line LED will appear solid amber. On hold. A line on hold is indicated by a green LED that is flashing at a slow 1 Hz rate.
  • Page 42 OPERATION • USING THE CONTROL SURFACE Touch-Tone Pad. The touch-tone pad is used for dialing out on the A B C D E F telephone system. Pressing any of these buttons will generate the appropriate touch tone. Remember that the touch tones generated are G H I J K L M N O...
  • Page 43 If the REC button is pressed while no line is selected to air, the TS612 will go into a record-standby mode. In this mode, the start-recording sig- nal will be automatically sent to the external recorder as soon as a line is selected to air.
  • Page 44 LED Color Coding. The MUTE LED is off when mute is off and solid red when mute is on. CONF Button. The CONF button places the TS612 into the confer- ence mode. Conference mode applies only to on-air lines, it does not apply to lines on the handset.

  • Page 45: Screener Control Surface Buttons

    OPERATION • USING THE CONTROL SURFACE Screener Control Surface Buttons The operation of each of the control surface buttons is dependent upon which mainframe port the control surface is connected to. This section describes the functions of the control surface when it is connected to the screener port.

  • Page 46: Call Handling

    OPERATION • CALL HANDLING Call Handling On the Handset The following section reviews how calls are handled on the handset. Answering a Call. Pick up the handset and press the line button of the ringing (green flashing) line. You may do this at any time, regardless of whether or not other calls are already on-air.

  • Page 47: On-Air

    OPERATION • CALL HANDLING On-Air The following section reviews how calls are handled on the air. Answering a Call On-Air. You must be at a studio control surface to answer a call on the air. (A screener control surface cannot answer calls on-air.) With the handset down, press the line button of the ringing (green rapidly flashing) line.
  • Page 48 REC button. If at least one line is active, the REC LED will glow red, indicating that the TS612 has started the recording device. If no line is active, the REC LED will flash red, indicating that the record mode is in standby, awaiting an active line before starting to record.

  • Page 49: Glossary

    For assistance specifying a microphone mixer or console for your application, contact Gentner Communications Corporation. Control Surface. The TS612 telephone used at the control locations. Broadcasters refer to these devices as control surfaces because of their system-control functions.
  • Page 50 Handset. The hand held part of a communications system usually con- sisting of a phone, speaker and a microphone. Hold. As with a business telephone, the TS612 hold feature takes calls off-air, or off the handset, and places them in a waiting mode. Special hold audio can be provided.
  • Page 51 Off. Disconnects callers that are active on the system. It does not affect TS612 power. On-Air. The operator is placing calls on the TS612 hybrids. In a broad- cast application, callers are being put on-air with the announcer so the listening audience may hear the conversation.
  • Page 52 Trim Pot. A potentiometer for adjusting (or trimming) signal levels. VIP. Very Important Person. With the TS612, lines 6 and 12 are selec- table VIP lines, preventing accidental disconnection from guest hosts and/or special interview guests. XLR. A type of electrical connector.

  • Page 53: Appendices

    Specifications Control Surface Dimensions 11”/48.3cmW x 2.5”(3.75” w/ handset)/4.45cm(9.5cm w/ handset)H x 8.0”/30.5cmD Mainframe Dimensions 19”/48.3cmW x 10-1/4”/26cmH x 3.5”/8.9cmD TS612 System Weight 12. 1 lbs./5.5 kg dry 19 lbs./8.6 kg shipping Operating Temperature Range 32–100 F/0–38 C Humidity Range 0–80 percent...
  • Page 54 APPENDICES • APPENDIX A: SPECIFICATIONS Connectors Power: Auto-adjusting power module RS232: DB9 female serial port 9600 Baud, no parity, 8 data bits, 1 stop bit Record Control: DB9 female. Open collector outputs. Auxiliary: DB25 female XLR: 3-pin audio connectors; pin 2 hot PHONE LineS IN: 21X, 50-pin centronix male PHONE LineS OUT:...
  • Page 55 APPENDICES • APPENDIX A: SPECIFICATIONS Audio Interface MAIN SEND Input: 10k ohm active balanced, XLR bridging input +4dBm nominal with clipping threshold of +20dBm. This connector contains either Send mix-minus or program audio depending on mode. Level is adjustable via front access panel trim pot.

  • Page 56: Appendix B: Pinouts

    APPENDICES • APPENDIX B: PINOUTS Appendix B: Pinouts Phone Line Wire Color* Wire Color* Telco IN/OUT Pinout Table blue/white RING white/blue orange/white RING white/orange green/white RING white/green brown/white RING white/brown silver/white RING white/silver blue/red RING red/blue orange/red RING red/orange green/red RING red/green brown/red...
  • Page 57 Record Enable Com Control Surface Cable Pinout Tables (both cable ends are shown) Use twisted pair cable for the connections indicated below. TS612 Mainframe (DB15M) TS612 Control Surface (DB15F) Description Description Serial TX - Serial TX - Serial TX +...
  • Page 58 APPENDICES • APPENDIX B: PINOUTS Description XLR Connector Pinout Table Ground Positive Audio (+) Negative Audio (-) Aux I/O Connector Pinouts Description Description Common Screener Aux Lamp Studio 1 Aux Lamp Common Studio 2 Aux Lamp Next Button Input Common Next Hybrid 1 Input Next Hybrid 2 Input Common...

  • Page 59: Appendix C: Serial Communications Protocol

    The value accepted is the value that was seen in two of the three samples. When issuing commands to the TS612 through the COM port, there is a 4 byte buffer. Bytes must be spaced 20–50ms apart.

  • Page 60: Status Bytes

    APPENDICES • APPENDIX C: SERIAL COMMUNICATIONS PROTOCOL Button Closure Hex Codes Button Function Released Pressed Button Function Released Pressed Line 1 DTMF 1 Line 2 DTMF 2 Line 3 DTMF 3 Line 4 DTMF 4 Line 5 DTMF 5 Line 6 DTMF 6 Line 7 DTMF 7...
  • Page 61 APPENDICES • APPENDIX C: SERIAL COMMUNICATIONS PROTOCOL LINE 1 LED Status byte Indication Status Both red and green off Line not active Solid red on Line is selected on air Solid green on Line is selected on handset Solid red and green on (amber) Line is in use elsewhere Not used Not used...
  • Page 62 APPENDICES • APPENDIX C: SERIAL COMMUNICATIONS PROTOCOL LINE 5 LED Status byte Indication Status Both red and green off Line not active Solid red on Line is selected on air Solid green on Line is selected on handset Solid red and green on (amber) Line is in use elsewhere Not used Not used...
  • Page 63 APPENDICES • APPENDIX C: SERIAL COMMUNICATIONS PROTOCOL LINE 9 LED Status byte Indication Status Both red and green off Line not active Solid red on Line is selected on air Solid green on Line is selected on handset Solid red and green on (amber) Line is in use elsewhere Not used Not used...
  • Page 64 APPENDICES • APPENDIX C: SERIAL COMMUNICATIONS PROTOCOL MODE LED Status byte Indication Status Both red and green off Mode not active Solid red on Invalid register entry Solid green on Indicates register is selected Solid red and green on (amber) Awaiting register selection Not used Not used...
  • Page 65 APPENDICES • APPENDIX C: SERIAL COMMUNICATIONS PROTOCOL SCRN LED Status byte Indication Status Both red and green off Screening disabled (studio) Solid red on Screening active (studio) Solid green on Screener control surface (on) Solid red and green on (amber) Screening locked out (studio) Flashing red @ 1 Hz rate Not used...
  • Page 66 APPENDICES • APPENDIX C: SERIAL COMMUNICATIONS PROTOCOL HOLD LED Status byte Indication Status Both red and green off Previous Hold Mode disabled Solid red on 2 Button Hold Mode enabled Solid green on Calls in the hold queue Solid red and green on (amber) Previous Hold Mode enabled Flashing red @ 1 Hz rate Not used...

  • Page 67: Peek/Poke, Reset, And Other Commands

    Haddr Laddr data checksum byte Note that the TS612 echoes the command back to the PC before send- ing one byte of data and one byte checksum. Haddr is the high order address byte of the data, and Laddr is the low order address byte of the data.
  • Page 68 Master mode is enabled during Setup (see page 32). The master mode protocol is as follows: PC sends: surface TS612 replies: code surface The valid cmd and code values are the assigned hex code values (see page 56).

  • Page 69: Appendix D: Schematics

    APPENDICES • APPENDIX D: SCHEMATICS Appendix D: Schematics CALLER1_RED CALLER1_GREEN SEND1_RED SEND1_GREEN TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 70 APPENDICES • APPENDIX D: SCHEMATICS TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 71 APPENDICES • APPENDIX D: SCHEMATICS TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 72 APPENDICES • APPENDIX D: SCHEMATICS TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 73 APPENDICES • APPENDIX D: SCHEMATICS TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 74 APPENDICES • APPENDIX D: SCHEMATICS TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 75 APPENDICES • APPENDIX D: SCHEMATICS TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 76 APPENDICES • APPENDIX D: SCHEMATICS TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 77 APPENDICES • APPENDIX D: SCHEMATICS TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 78 APPENDICES • APPENDIX D: SCHEMATICS TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 79 APPENDICES • APPENDIX D: SCHEMATICS TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 80 APPENDICES • APPENDIX D: SCHEMATICS TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 81 APPENDICES • APPENDIX D: SCHEMATICS TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 82 APPENDICES • APPENDIX D: SCHEMATICS TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 83 APPENDICES • APPENDIX D: SCHEMATICS TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 84 APPENDICES • APPENDIX D: SCHEMATICS TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 85 APPENDICES • APPENDIX D: SCHEMATICS TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 86 PCB ASSY, DIGITAL INT'L (CYBERGATE) 460-402-013 TWEAKER, TRIMPOT ADJUSTMENT? (international) 585-600-001 FOAM, TAPE MISC 1" 820-003-106 PCB ASSY, GCU TS612 VER 1.5B 664-500-003 CONN, XLR F 3P CABLE MNT 820-003-108 PCB ASSY, CYBERGATE TELCO CARDEDGE 664-600-003 CONN, XLR M 3P CABLE MNT...
  • Page 87 APPENDICES • APPENDIX E: BILL OF MATERIALS PCB ASSY, AUDIO CARDEDGE (CYBERGATE) 820-003-113 Item Item Description(s) Item Location(s) 432-500-010 LABEL, BLANK 1 X.5 WHT. 500-005-817S DIODE, 1N5817 SOD-87 PKG SMT CR1, CR2 507-012-001 LED, RED/GRN RECTANGULAR 2X5 MM DS1, DS2, DS3, DS4 511-011-150S RES, 150 OHM 1/10 W 1% 0805 C SMT R140, R141, R167, R168, R169, R170, R171,...

  • Page 88: Appendix E: Bill Of Materials

    APPENDICES • APPENDIX E: BILL OF MATERIALS PCB ASSY, AUDIO CARDEDGE (CYBERGATE) 820-003-113 Item Item Description(s) Item Location(s) 540-300-347S IC, ANA LF347M QUAD BI-FET OP AMP SMT U4, U6, U7, U8, U13, U14, U15, U17, U22, U24, 540-302-142 IC ANA SSM2142 LINE DRIVER U1 U2 U3 U5 540-405-532S IC ANA NE5532D DUAL OP-AMP LW NOISE SMT...
  • Page 89 CONN, HEADER STRIP 2X13=26P M, SHROUDED 673-023-043 CONN, CARD EDGE 43P . 1 56 SINGLE ROW J11, J12, J13, J14 678-103-002S TEST POINT, PC MOUNT SMT TP1, TP2, TP3 720-003-113 PCB, AUDIO/CPU, TS612 (CARDEDGE) TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
  • Page 90 APPENDICES • APPENDIX E: BILL OF MATERIALS PCB ASSY, DIGITAL, TS612 (CYBERGATE) 800-003-114 Item Item Description(s) Item Location(s) 432-500-010 LABEL, BLANK 1 X.5 WHT. 511-010-100S RES, 10 OHM 1/10 W 1% 0805 (international) 511-011-301S RES, 301 OHM 1/10 W 1% 0805 C SMT...
  • Page 91 APPENDICES • APPENDIX E: BILL OF MATERIALS PCB ASSY, DIGITAL, TS612 (CYBERGATE) 800-003-114 Item Item Description(s) Item Location(s) 432-500-010 LABEL, BLANK 1 X.5 WHT. 511-010-100S RES, 10 OHM 1/10 W 1% 0805 (international) 511-011-301S RES, 301 OHM 1/10 W 1% 0805 C SMT...
  • Page 92 670-040-002S CONN, 40 P F .21 H .05 X .05 SMT 678-700-080S JUMPER, 0 OHM 0805 C SMT 720-130-013 PCB, GCU, SINGLE-SIDED UNIT ASSY, TS612 CONTROL SURFACE (850-003-200) Item Item Description 401-000-060 BAG, 12" 4MIL CLR PLASTIC TUBING 432-000-018 LABEL, BLANK 1.75 X 2.5, PRODUCT I.D...
  • Page 93 APPENDICES • APPENDIX E: BILL OF MATERIALS PCB ASSY, CONTROL SURFACE, TS612 (820-003-201) Item Item Description Item Location(s) 500-004-004 DIODE, 1N4004 1 AMP 400V 507-010-022 LED, BI-COLOR FLAT D1, D2, D3, D4, D5, D6, D7, D8, D13, D14, D15, D16, D17, D18, D19, D20, D21, D22,...
  • Page 94 APPENDICES • APPENDIX E: BILL OF MATERIALS PCB ASSY, CYBERGATE TELCO CARDEDGE (820-003-108) Item Item Description(s) Item Location(s) 511-011-150S RES, 150 OHM 1/10 W 1% 0805 C SMT R19, R36, R48 511-011-301S RES, 301 OHM 1/10 W 1% 0805 C SMT R14, R31, R47, R49, R50, R51 511-012-249S RES, 2.49 KOHM 1/10 W 1% 0805 C SMT...

  • Page 95: Appendix F: Warranty

    APPENDICES • APPENDIX F: WARRANT Y Appendix F: Warranty Warranty Gentner Communications Corporation (Manufacturer) warrants that this product is free of defects in both materials and workmanship. Should any part of this equipment be defective, the Manufacturer agrees, at its option, to: A.

  • Page 96: Warranty

    Operation of this equipment in a residential area is likely to cause harm- ful interference, in which case the user will be required to correct the interference at his/her own expense. Changes or modifications not expressly approved by Gentner Communications Corporation could void the user’s authority to operate the equipment.

  • Page 97: Fcc Part 15 Compliance

    If you experience problems with this equipment, contact Gentner Communications Corporation, 1825 Research Way, Salt Lake City, Utah 84119, or by phone at (801) 975-7200 for repair and warranty informa- tion.

  • Page 98: Safety Information

    Network Compatibility Declaration Gentner Communications Corporation of 1825 Research Way, Salt Lake City, Utah 84119 USA declares that the product TS612 is designed to be compatible with the following networks: Austria, Belgium, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Liechtenstein, Luxembourg, The Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, and United Kingdom.
  • Page 99 INDEX ndex AIR Button: 27-30, 35, 40, 43-44 Answering a Call: 44-45 Aux Button: 23, 36, 41, 43 Aux (Studio 2): 20, 25, 34 Aux I/O: 23, 41 Calibration: 27-30 Calibration of Caller Audio: 28 Calibration of DEA: 30 Calibration of Hold Audio: 29 Calibration of Send Audio: 27 Call Handling: 44 CONF Button: 42-43, 46...
  • Page 100 INDEX DIP Switch Settings: 14, 16-19 Dual-Studio: 15, 19, 20, 28, 37, 42 FLSH Button: 34, 41, 43 Hex Codes: 56, 65 Hold Audio: 27, 29, 44-45, 48 Hold Button: 20, 29, 35-36, 40, 42-45, 48, 52 Hook Flash Timing: 36 Hybrid 1: 15, 17-18, 27-30, 36, 65 Hybrid 2: 15, 17-18, 28-30, 36, 65 Latching: 22-23, 48...

  • Page 101: Alphabetical Index

    INDEX NEXT Button: 6, 40, 41, 43-45, 48 Off Button: 7, 28-29, 36, 38, 40, 42-43, 45, 48 On-Air: 6, 17, 25, 29, 34-35, 37, 39, 40-49 Operational Modes: 31-34 Parallel Control: 36 PBX: 8, 10-11, 36, 41, 49 Phone Lines IN: 9, 50 Phone Lines OUT: 9, 50 Pinouts: 49, 53 Previous Hold Mode: 34, 36, 38, 41, 44-45...
  • Page 102 INDEX Telephone Line: 6, 8-10, 12-13, 20-21, 28-29, 31-32, 38, 48-49, 51, 94- Trim Pot: 20-21, 27-30, 49, 52 Two Button Hold Mode: 34-36, 40 Two Button Off Mode: 36, 40 VIP: 6, 42-43, 46, 49 Warranty: 5, 93, 95 TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760...
