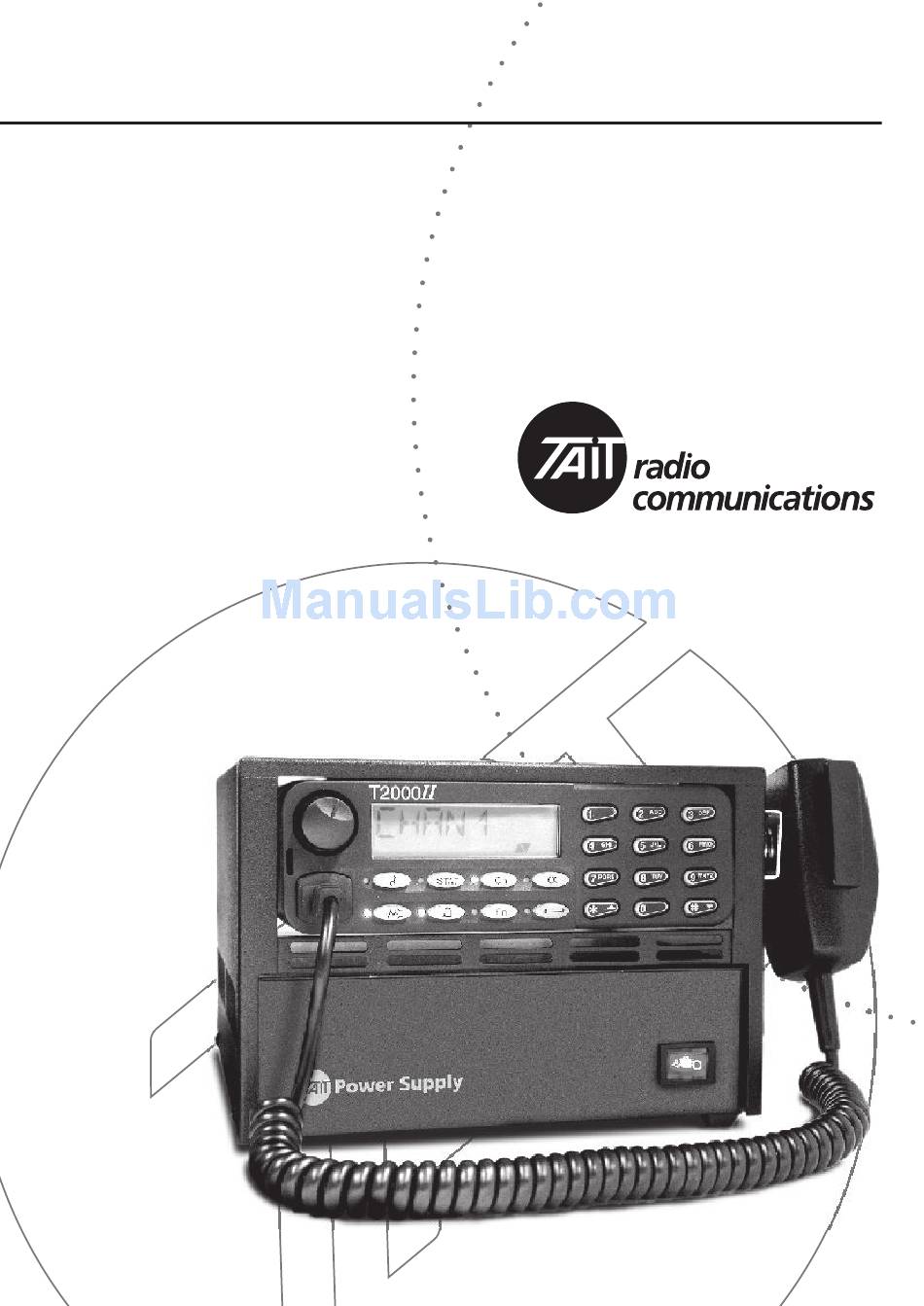

- Page 1 T2009 Power Supply for Tait T2000 Mobile Radios User’s Guide www.taitworld.com...
-
Page 2: Table Of Contents
Copyright © Copyright Tait Electronics Limited November 2004. All information contained in this user’s guide is the property of Tait Electronics Ltd. All rights are reserved. This user’s guide may not, in whole or in part, be copied, photo- copied, reproduced, translated, stored, or reduced to any electronic medium or machine-readable form, without prior written permission from Tait Electronics Ltd. -
Page 3: Important Safety Information
Important safety information Please read these warnings before using your T2009 power supply. Warning: Safe operation To reduce the risk of fire or electric shock, please adhere to these warnings: Moisture: Do not expose this appliance to rain or mois- ture. - Page 4 We recommend that you return the power supply to a qualified Tait Electronics Ltd dealer for all services and repairs. Warning: High voltage levels Some of the components inside the T2009 operate at voltage levels that may be lethal. Important safety information 3...
-
Page 5: User Information
Before you plug in and turn on the power supply for the first time, please check the mains supply voltage. The voltage rating of the T2009 is printed on a label on the bottom of the power supply. Verify that it corresponds with... - Page 6 Tait dealer. Installation information Caution: Install the T2009 indoors. It is not designed for operation out-of-doors or in wet environments. Note: When using a Tait radio in a desktop or despatcher...
- Page 7 The correct installation of the T2009 and mobile radio is crit- ical to its performance. Tait authorised dealers are able to offer a prompt, professional installation service. 6 User information...
-
Page 8: Installation
Installation The parts you will need in order to install a T2000 on a T2009 power supply are included in the radio cabinet kit shown here. radio cabinet mains cable T2009 power supply power cable microphone clip 2 x screws... -
Page 9: Quick Reference
To install a T2000 radio on a T2009 power supply, you will require a T2009 radio cabinet kit (refer to page Quick reference ❏ Disassemble the radio cradle and cabinet. ❏ Reassemble the radio cradle and cabinet. ❏ Connect the power supply connector to the radio. - Page 10 Disassembly: Remove the cradle lid The cradle consists of two outer covers made from metal, held together by two plastic side mouldings. The plastic mouldings have ribs that mate with the metal covers. cradle plastic rib cover plate 1. To disassemble the cradle, place the tip of a small screw- driver on the first protruding plastic rib, as indicated above.
- Page 11 1. Unplug the T2009 from the mains supply. 2. Remove the four mounting screws on the side of the power supply. 3. Remove the radio cabinet from the T2009, but do not remove the T2009’s cover plate. Assembly: Mount the T2000 cradle The T2000 cradle is mounted inside the radio cabinet.
- Page 12 1. Fit a M4 washer on each of the mounting studs inside the radio cabinet. 2. Fit the metal cover plate onto the mounting studs. The end of the cover plate that overhangs the plastic side mouldings must face towards the rear of the supply. 3.
- Page 13 Mount the microphone clip The power cable has a single black wire that ends in a solder tag: this is the ground strap. For correct hookswitch opera- tion (as described in “Using the microphone” on page the ground strap’s solder tag must be fastened to the micro- phone clip.
- Page 14 T2000 power connector 1. Make sure that the radio and the T2009 are both turned off and unplug the T2009 from the mains supply outlet. 2. Connect the power cable’s positive (red) wire to the posi- tive terminal and connect the negative (black) wire to the negative terminal on the back of the T2009.
- Page 15 4. Make sure that the power indicator in the switch illuminates. If the indicator fails to light up, check the connection and mains power outlet. If the problem persist, refer to “Troubleshooting” on page 5. Connect the radio’s antenna. 6. Turn on the radio and make sure that it operates satisfac- torily, as described in the user documentation for the radio.
-
Page 16: Troubleshooting
Troubleshooting Power switch does not illuminate when turned on Probable cause: No power in the AC outlet, or the main input fuse inside the power supply is blown. Suggested solution: Check the mains power outlet, or replace the mains input fuse inside the unit (refer to the input fuse ratings on page 16). -
Page 17: Electrical Specifications
Electrical specifications Input voltage T2009-22 100 to 130V 60Hz T2009-21 200 to 250V 50Hz T2009-23 200 to 250V 50Hz T2009-24 200 to 250V 50Hz Output voltage 13.8V Output ripple & noise Less than 10mV (on full load) Output current, continuous... - Page 18 Electrical specifications 17...
- Page 19 www.taitworld.com Aug 05 IPN: MMZ-00007-01...
