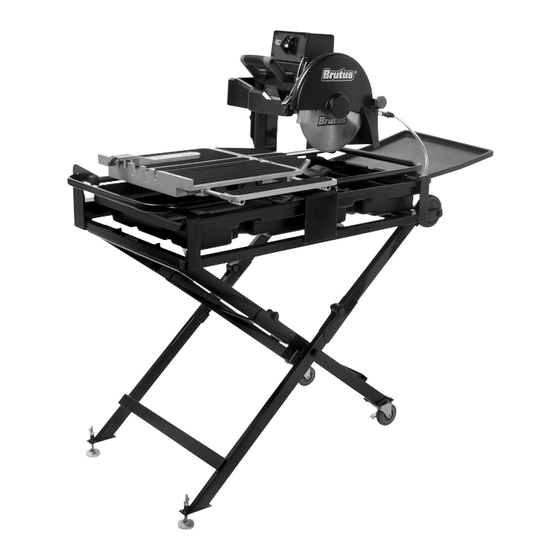

- Page 1 BT65011 & BT65011IND Power Pro 1100 Tile Saw OWNER’S MANUAL WARNING! Read and follow all safety and operating instructions *CE relates to 230v-240v only’ before using this saw.
-
Page 2: Table Of Contents
BT65011 & BT65011IND Power Pro 1100 Tile Saw WARNING For your own safety, read instruction manual before operating saw. 1. Always wear safety goggles when cutting. 2. Use splash hood for every operation for which it can be used. 3. Disconnect saw before cleaning or changing blade. -
Page 3: Safety Instructions For Tile Saw
GENERAL SAFETY INSTRUCTIONS FOR TILE SAW WARNING! READ THIS OWNER’S MANUAL COMPLETELY AND MAKE SURE YOU UNDERSTAND ALL OF IT’S SAFETY GUIDELINES. KEEP GUARDS IN PLACE and in working order. REMOVE ADJUSTING KEYS AND SPANNERS. Always check to see that keys and adjusting spanners are removed from tool before turning it on. -
Page 4: Warning/Electrical Requirements
GENERAL SAFETY INSTRUCTIONS FOR TILE SAW WARNING! For Your Own Safety Read Instruction Manual Before Operating Saw • Wear eye protection. • Use blade guard when cutting. • Disconnect saw before servicing, when changing cutting wheels, and cleaning. • Use tool only with continuous rim cutting wheels free of opening and grooves. •... -
Page 5: Unpacking
SPECIFIC SAFETY INSTRUCTIONS WARNING! Ensure that the directional arrow marked on the blade corresponds with the rotational direction of the motor. With the saw disconnected from the power supply, rotate the blade by hand to ensure it is free from obstruction. Always keep the blade-securing bore and collars clean. -
Page 6: Assembly & Set Up
ASSEMBLY & SET UP The following is step-by-step installation and operation instruction manual. CAUTION! Please read the information thoroughly prior to using your tile saw. A. Stand Setup 1. The Saw and Stand are ready to use. Simply unfold it as shown below. 2. -
Page 7: Water Pump Installation
Diagram 7 Make sure that the directional arrow on the blade CAUTION! points in the same direction as the arrow marked on the blade guard fixing plate. E. Water Pump Installation Step 1: Make sure the water pump is not cracked or damaged in any way. Step 2: Attach the end of the tube to the pump nipple and L -shaped water flow at the back of blade guard. -
Page 8: Saw Operation
SAW OPERATION CAUTION! 1. Do not adjust the saw without first turning off the motor. Failure to do so may result in serious injury to the operator. 2. Always keep the saw clear. Never put things on rail while cutting. Adjustable Cutting Table Extension Diagram 12 The adjustable cutting extension table is for the support of large format tiles. -
Page 9: Steps For Angle Cuts
Angle / Mitre Cuts Diagram 17 The saw is adjustable to three positions (0°, 22.5 °or 45°). WARNING! Any other angle cut will damage the work table. Step 1: Turn off the power. Step 2: Position the cutting table in its farthest back position and lock with slide tube locking knob. -
Page 10: Diamond Blades
Diagram 22 DIAMOND BLADES 1. Use only 250 mm wet continuous rim diamond blade with this saw. 2. Bore size is 16 mm Please choose the right size to fit the inner flange. 3. Do not use wood sawing blade, or other blades not suitable for ceramic, porcelain or stone. - Page 11 NOTES ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ - 11 -...
- Page 12 Made in China Brutus is a registered trademark of Q.E.P. Co., Inc. ® Q.E.P. Co., UK Ltd, Everest Road, Lytham St Annes, Lancashire. FY8 3AZ England Tel. +44 (0) 1253 789 180 www.qep.com S0910-5913...
