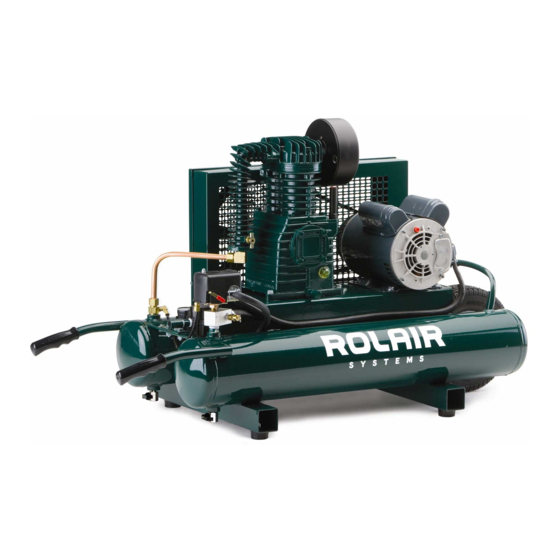

Portable air compressor

Advertisement

PORTABLE AIR COMPRESSOR
COMPRESSOR DISCHARGE AIR MAY CONTAIN HYDROCARBONS AND OTHER
CONTAMINANTS! DO NOT USE DISCHARGE AIR FOR BREATHING!
Genuine ROLAIR
replacement parts are sold nationwide through a network of authorized dealers and service centers.
®
Please contact the dealership where your air compressor was purchased or our factory Customer Service Department if
you need help troubleshooting, obtaining parts, or locating an authorized ROLAIR
To order replacement parts:
Make a permanent record of the model and serial number of your new air compressor here. You'll save time and
expense by including this reference information when requesting service or replacement parts.
Place & Date of Purchase
Model
Serial #
With the tank gauge at 0 PSI and air line(s) disconnected, close drain valve(s) and record the amount of time it takes
to build tank pressure on the space provided. Periodically test your air compressor against this pump-up time to
determine if it is operating correctly. If time test is considerably off, contact your local ROLAIR
arrange service.
Date
606 South Lake Street > P.O. Box 346 > Hustisford, WI 53034-0346 > 920.349.3281 > fax 920.349.3691 > www.rolair.com
OWNER'S MANUAL
WARNING
RECORD OF PERTINENT INFORMATION
From 0 to ______*PSI
Min
Sec
PARTS
1.
Give compressor model number
2.
Give compressor serial number
3.
Name of part
4.
Part number
5.
Quantity required
Volts
HZ
HP
From 0 to ______*PSI
Date
- 1 -
service representative.
®
representative to
®
Min
Sec

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PORTABLE AIR COMPRESSOR and is the answer not in the manual?

Questions and answers

Summary of Contents for Rolair PORTABLE AIR COMPRESSOR

  • Page 1 If time test is considerably off, contact your local ROLAIR representative to ® arrange service. From 0 to ______*PSI From 0 to ______*PSI Date Date 606 South Lake Street > P.O. Box 346 > Hustisford, WI 53034-0346 > 920.349.3281 > fax 920.349.3691 > www.rolair.com - 1 -...
  • Page 2: Table Of Contents

    Identification of System Controls Pre-Start Checklist Operation Maintenance 9-11 Troubleshooting Guarantee INTRODUCTION ROLAIR Congratulations on the purchase of your new air compressor! ® ROLAIR With over 50 years experience building air compressors specifically designed for the professional, ® Associate Engineering Corporation has earned a reputation for providing a product unsurpassed in quality and reliability.
  • Page 3: Safety Warnings - Risk Of Asphyxiation & Bursting

    WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. SAFETY WARNINGS READ AND UNDERSTAND ALL SAFETY WARNINGS BEFORE USING AIR COMPRESSOR Hazard Level Potential of Hazard How to Avoid Hazard Serious injury or death may occur from Never inhale compressed air directly from the...
  • Page 4: Safety Warnings - Risk Of Moving Parts, Burns, & Lifting

    SAFETY WARNINGS (con’t) Never operate the air compressor without Serious injury may occur from moving parts protective belt guards installed. Replace such as belts, pulleys, flywheels or fans if they damaged protective covers or guards came in contact with you or your clothing. immediately.
  • Page 5: System Controls

    Do not tamper with or attempt to eliminate the safety relief valve. (2) MANUAL OVERLOAD / MOTOR RESET Every ROLAIR electric air compressor is built with manual overload protection. If the ®...
  • Page 6 (See drawing in section on operating instructions for proper tension) Re-tighten 1/2” locknuts to secure engine and maintain desired belt tension setting. (15) VIBRATION DAMPENER(S) The rubber pads installed beneath every portable ROLAIR tank assembly are very important to ®...
  • Page 7: Pre-Start Checklist

    PRE-START CHECKLIST Read the owner’s manual thoroughly. Make sure that you completely understand all of the safety warnings, system controls and instructions provided before attempting to operate this air compressor. Every effort has been made to provide you with the information needed to obtain many years of reliable and trouble-free service out of your new air compressor.
  • Page 8: Direct-Drive Electric

    All ROLAIR belt-driven air compressors are equipped with S1 or 100% duty cycle motors and pumps. Given ® proper ventilation and electrical power, your ROLAIR compressor is capable of operating continuously when set up ® for constant speed operation. However, an excessive amount of starts per hour may generate enough heat to trip the motor overload.
  • Page 9: Maintenance

    OPERATION (con’t.) High Altitude Operation: Due to a decrease in atmospheric pressure air compressor pumps produce less CFM at higher elevations. As a rule of thumb the output will decrease approximately three percent per 1000 feet of elevation. Also, because air at higher elevations is less dense and does not cool as well, electric motors cannot be subjected to the full nameplate service factor amp rating and may need to be upgraded to avoid repeated overheating.
  • Page 10: Maintenance Schedule

    MAINTENANCE (continued) MAINTENANCE SCHEDULE Recommendation Daily Weekly Monthly Quarterly Check Oil Level Drain Moisture from Tank(s) Inspect Air Filter(s) Check for Unusual Noise or Vibration Inspect Belt Guard Check for Air or Oil Leaks Clean Exterior of Air Compressor Check Condition of Vibration Pads Tighten/Retorque Bolts Check Belt Tension Check Operation of Safety Valve...
  • Page 11 MAINTENANCE (con’t) SCHMIDT BELT-TIGHTENING DEVICE (FOR GAS UNITS ONLY) To tighten belt tension, proceed as follows: 1. Loosen locknuts for engine hold-down bolts only until washers beneath spin freely. 2. Rotate 1/2” adjusting bolt clockwise until desired tension is reached. (See Figure 4).
  • Page 12: Troubleshooting

    TROUBLESHOOTING WARNING Make sure you completely understand all of the safety warnings and operation of each system control component before attempting any maintenance or repair. Always drain the tank pressure completely, make sure the power cord is unplugged, and unit has time to cool before performing any maintenance or service operations.
  • Page 13: Guarantee

    Rely on ROLAIR for all the newest and finest features that are available for the modern ® compressor. 606 South Lake Street > P.O. Box 346 > Hustisford, WI 53034-0346 > 920.349.3281 > fax 920.349.3691 > www.rolair.com 5/13 - 13 -...
