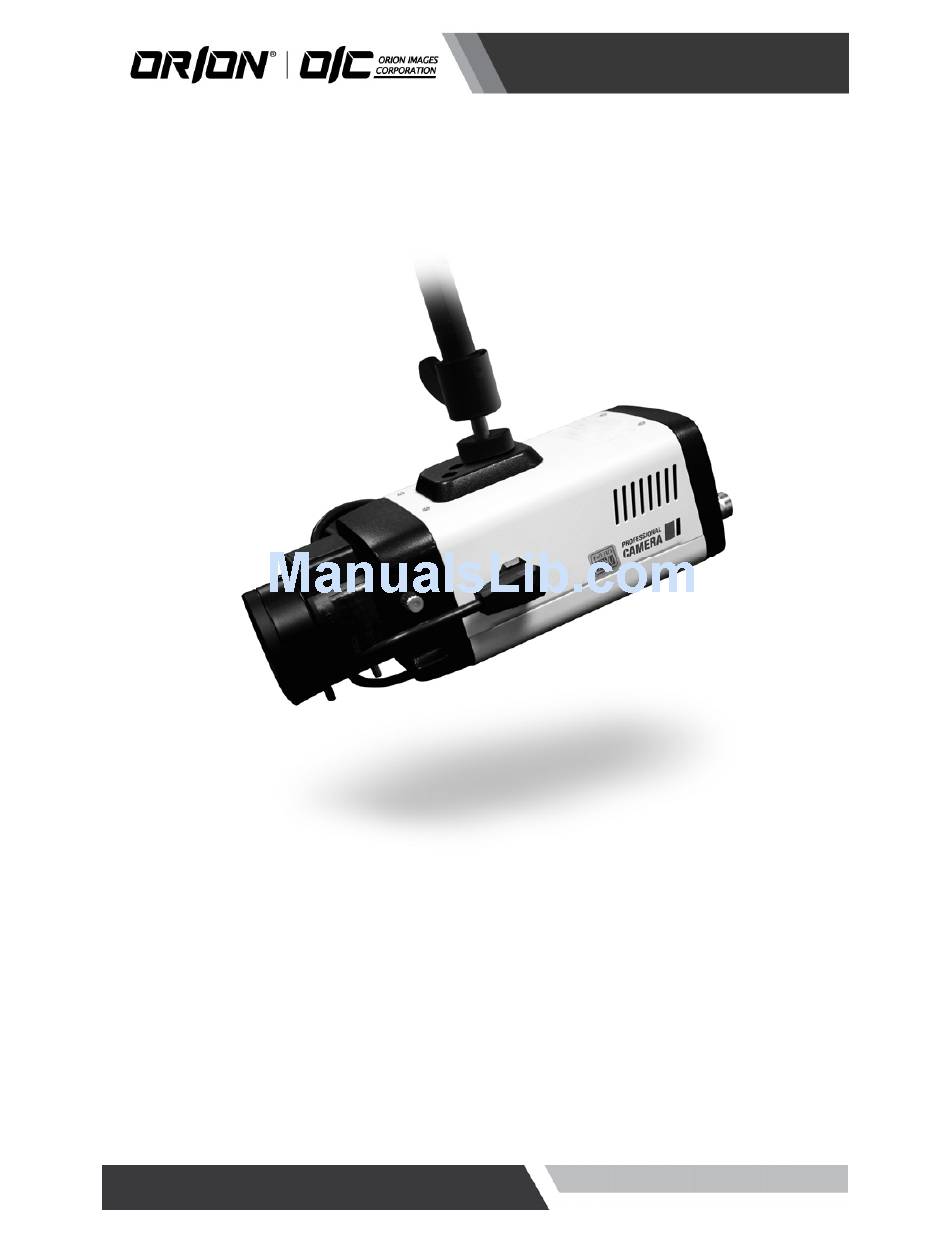

- Page 1 Installation and User’s Guide Installation and User’s Guide 1/2.8” 3.4 Mega Pixel CMOS SENSITIVE DAY/NIGHT HD CCTV CHDC-34BSDC HD CCTV CAMERA http://www.orionimages.com All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein...
-
Page 2: Table Of Contents
Thank you for choosing ORION Images high quality HD CCTV Camera. Please read this instruction manual carefully to keep your ORION Images product at peak performance for longer service duration. All ORION Images products are designed and manufactured with utmost care and craftsmanship to provide long life and high quality performance, if it is properly used and maintained as outlined in this manual. - Page 3 Installation and User’s Guide http://www.orionimages.com CAUTION The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device. Pursuant to Part 15 of the FCC Rules.
-
Page 4: Handling Precautions
The camera is best suited for HD CCTV surveillance purposes, from single camera operation to large scale integrated systems for visual information management. 3. PACKAGE OF CONTENT CHDC-34BSDC Camera x 1 C-Mount Ring x 1 Manual x 1 Auto Iris Plug x 1... - Page 5 Installation and User’s Guide http://www.orionimages.com 4. NAME & FUNCTIONS OF EACH PART ① Protective cover ② C-Mount lens adaptor ③ DC Iris Jack for DC Auto Iris Lens ④ Mounting Bracket Holder Mounting bracket holder can be separated and attached on the bottom side as well. Please use the supplied clamp screws only to change the position than 5mm depth can cause a serious damage to the inside of this camera.
- Page 6 Installation and User’s Guide http://www.orionimages.com ⑨ RS-485 Control port You can control SETUP menu through this port by using external controllers like remote controller that RS-485 Communication is supported. ⑩ Day & Night Out port This unit can be synchronized by an External IR LED kit through this port.
-
Page 7: Installation
Installation and User’s Guide http://www.orionimages.com 5. INSTALLATION 5-1. Lens Lens is not supplied with the unit. C-Mount or CS-Mount type of lens is available. Please select a lens that has a good F-Stop number in order to get the best picture quality. Use of DC auto iris lens is recommended to achieve the best results for operating this product effectively. - Page 8 Installation and User’s Guide http://www.orionimages.com 5-3. When using a C-mount Lens ● Please assemble C-Mount adaptor. ● C-Mount adaptor is included in the package. ● Fix the lens by turning it clockwise. 5-4. When using a CS-mount Lens ● Take off the Protection cover. ●...
-
Page 9: Installation
Installation and User’s Guide http://www.orionimages.com 5-5. Application of HD-SDI output Impedance alliance in the system connection. Make sure to connect the cable with the power off. Please locate the impedance switches of each equipment as instructed. Locate the switch to Hi-z position for the interim equipments. Locate the switch to 75Ω for the last equipment. ... -
Page 10: Function & Operation
Installation and User’s Guide http://www.orionimages.com 6. FUNCTION AND OPERATION 6-1. On Screen Menu MAIN MENU SAVE/ VIDEO OUTSIZE FRAME RATE CVBS OUT MODE VIDEO OUT RETURN 50HZ INDOOR 60HZ INDOOR OUTDOOR NORMAL RETURN AUTO MENU D TO N LEVEL D TO N TIME AUTO/COLOR/IR D/N RESET... -
Page 11: Setting Up The Menu
Installation and User’s Guide http://www.orionimages.com 6-2. Setting Up the Menu Settings can be made using the OSD Switch located on the back of the camera. 1. Press the button to access the SETUP mode. The SETUP menu is displayed on the monitor. 2. -
Page 12: Video Out
Installation and User’s Guide http://www.orionimages.com 6-3. VIDEO OUT VIDEO OUTSIZE VIDEO OUTSIZE can be set to 1080P, 1080i, 720P to Local Regulation. According (2) FRAME RATE Six modes of 60/59.94/50/30/29.97/25 can be selected (3) CVBS OUT MODE CVBS output can be set to NTSC or PAL according to local TV standard ☞... - Page 13 Installation and User’s Guide http://www.orionimages.com (5) AUTOSET RESET When set as ON and press SET KEY, it turns into AUTOSET NORMAL MODE automatically, which means initial factory reset. 6-5. DAY / NIGHT You can display pictures in Color/IR MODE/AUTO. (1) DAY/NIGHT MODE Please position the cursor on ‘DAY/NIGHT’...
- Page 14 Installation and User’s Guide http://www.orionimages.com (6) D/N RESET Resets all setting of DAY/NIGHT menu into initial factory default value. (7) RETURN Returns to the MAIN MENU 6-6. AWB (Auto White Balance) This is useful when the cameras are installed in different artificial lighting conditions where a standard ‘White Balance’...
- Page 15 Installation and User’s Guide http://www.orionimages.com (7) 8,000˚K/6,000˚K/4,200˚K/3,200˚K MODE 8,000˚K : Shade 6,000˚K : Cloudy weather 4,200˚K : Fluorescent light 3,200˚K : Electric light blub (8) AWB RESET Resets all setting of AWB menu into initial factory reset value. (9) RETURN Returns to the MAIN MENU.
- Page 16 Installation and User’s Guide http://www.orionimages.com (6) BLC (Back Light Compensation) Enables a user to directly select a desired area from a picture, and to view the area more clearly even under backlight environment. BLC : Used for backlight environment. (Indoor objects can be seen) FLC : Compensates the saturation of image when camera faces toward the same direction as sunlight.
- Page 17 Installation and User’s Guide http://www.orionimages.com (1) AREA NUMBER You can select up to 4 PRIVACY areas. (2) MASK DEFINE Determines whether to use the MASK or not. (3) MASK PATTERN Defines the Mask Color or type. 6 types of BLACK/RED/GREEN/BLUE/YELLOR/MOSAIC are selectable. (4) MASK SIZE By moving the cursor LEFT/RIGHT, TOP/BOTTOM, the size of masking area can be determined..
- Page 18 Installation and User’s Guide http://www.orionimages.com (5) 2DNR Cuts off the noise in low light condition. 4 modes of OFF/LOW/MID/HIGH are available. NOTE : ☞ Higher 2DNR level reduces more low light noise but deteriorates resolution as well. (6) 3DNR Cuts off the noise in low light condition 4 modes of OFF/LOW/MID/HIGH are available.
- Page 19 Installation and User’s Guide http://www.orionimages.com Lock in the letters by using the button. ③ When the letter is locked in, the cursor moves to the next space. Please repeat the above to input NAME DISPLAY. ④ D. When a name has been chosen, please select a position for the name to display. ①...
-
Page 20: Trouble Shooting
Installation and User’s Guide http://www.orionimages.com 7. TROUBLE SHOOTING If there are problems in operating, please refer to the checklist below. If the problem persists, please contact the agent where this product is purchased. PROBLEMS Troubleshooting Tip 1. Please check that the power cord and line connection between the camera and the monitor are fixed properly. -
Page 21: Specifications
Installation and User’s Guide http://www.orionimages.com 8. SPECIFICATIONS CHDC-34BSDC Image Sensor Sony 1/2.8 inch progressive scan CMOS, 3MegaPixel Total Pixels 2144(H) x 1588(V) 3.4 Megapixel Effective Pixels 2096(H) x 1561(V) 3.27 Megapixel Scanning System Progressive Scan Horizontal More than 1100 TVL... -
Page 22: Outline Dimension
Installation and User’s Guide http://www.orionimages.com 9. OUTLINE DIMENSION Unit: Inch Front View Side View Top View Rear View pg22 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310... -
Page 23: Warranty & After Sale Service
Keep this card in a safe place. Please consult ORION Images Corporation or your dealer for full warranty information. Your dealer will repair or replace free of charge within the warranty period according to the warranty coverage.
