DSC PK5590CL Installation Manual

PK5590CL Color Touchscreen Security Interface

Installation Guide

Touch-sensitive Colour LCD Display. Compatible on partition 1 of single-partition PowerSeries control panels.
The PK5590CL Touchscreen is a touch-sensitive color LCD Interface. This
keypad provides interactive operation for the User of PowerSeries alarm pan-
els (programmed for partition 1).
• Alarm Panel programming must be performed with a PowerSeries
Keypad. The PK5590CL is intended for User programming functions
and operations.
• This Installation Guide shall be used in conjunction with the
CONTROL PANEL Installation Manual to which this equipment is
connected.
• This device is powered from a Limited Power supply. The wiring
and/or cables used to connect the PK5590CL Touchscreen shall be
insulated with PVC, TFE, PTFE, FEP, neoprene or polyimide.
• Refer to the associated User Guide and Alarm Panel installation
manual for additional information.

Specifications

Operating Voltage Range ..............................9.5 - 24.0 V
Current Consumption ................................... 320 mA (max.)
Operating Temperature Range......... 14°-122°F(-10°+50°C)
Humidity ........................... 85%, RH non-condensing (max)

Installation

1. Select a mounting location in the drywall between two studs.
Ensure that there is at least 1.5" clearance from the outer edge of
the back box and the nearest stud.
2. Cut a hole in the drywall using the template provided (Fig 3).
3. Route the 4-conductor keybus wire out from the wall.
NOTE: Use 22AWG wire only (9.5V
4. Connect the Programming Keypad (PK5500) to the keybus and
program Panel as indicated (see Programming). Do NOT remove
the keypad when programming is completed.
5. Remove the front bezel from the PK5590CL. Insert a small slotted
screwdriver between the cover and plastic backplate and gently
pry apart exposing screws for the drywall tabs.
6. Enter [,][8] Installer Code [902]. Quickly remove Programming
Keypad and install the PK5590CL described in Step 7 (This must
be done within 30 seconds.
7. Connect the four Keybus wires to the terminals on the back of the
unit in the locations indicated.
8. Position the unit in the wall cut out and secure using the two
mounting screws and drywall tabs.
9. Replace the front bezel by snapping in place.
10. Verify Correct Operation. Refer to the PK5590CL User Guide.
IMPORTANT:
min. required for Touchscreen).
DC
Auto-arming is not supported on this command output panel.
Function Key 1 is used for Output Command 1, Function Key 2 is used for Command Output 2.

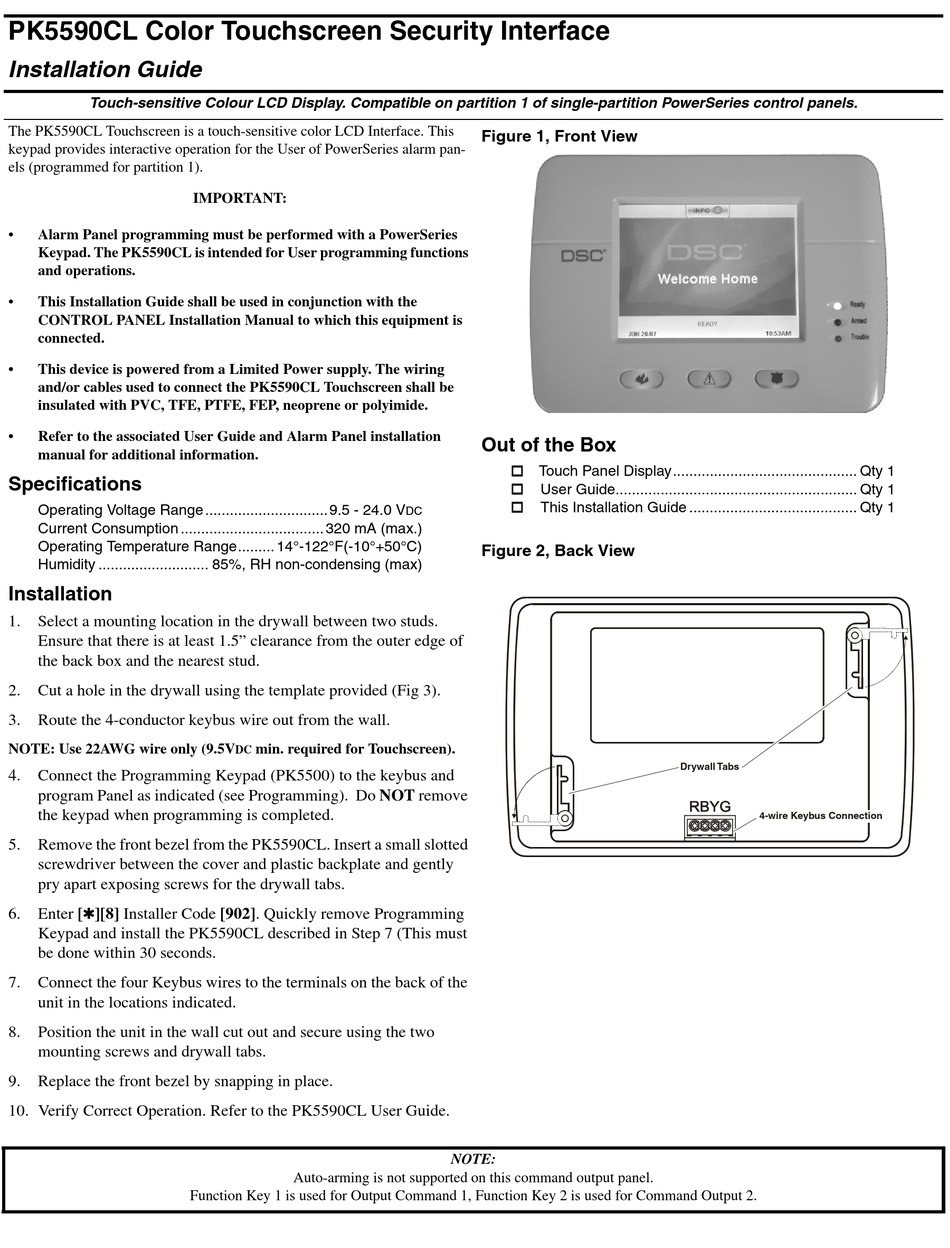

Figure 1, Front View
Out of the Box
Touch Panel Display............................................. Qty 1
User Guide........................................................... Qty 1
This Installation Guide ......................................... Qty 1
DC
Figure 2, Back View
NOTE:
Drywall Tabs
4-wire Keybus Connection
