Page 1: User Guide

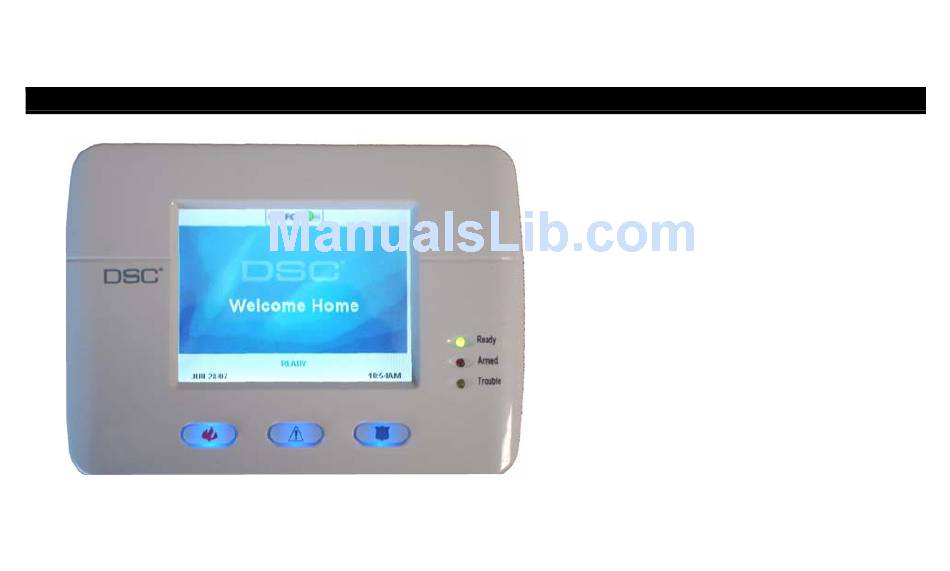

PK5590CL Touch Screen Security Interface Compatible with PowerSeries Control Panels User Guide IMPORTANT This manual contains information on the limitations regarding product use and function and information on the limitations as to liability of the manufacturer. Read the entire manual carefully. -
Page 2: Table Of Contents
INDEX ......Page QUICK REFERENCE Access Codes .....13 Welcome > Main Menu >Settings > More > Access Codes Arming ..Away ......8 Welcome > Main Menu > Arm Away ..Stay.......7 Welcome > Main Menu > Arm Stay Brightness......11 Welcome > Main Menu > Settings > More > [Brightness] Bypassing Zones ....9 Welcome >... - Page 3 1. Introduction The PK5590CL Touch Screen is an interactive touch-sensitive color LCD that can be used on Partition 1 of any PowerSeries control panel. Due to the custom requirements of individual installations some of the features described here may perform dif- ferently than described.
-
Page 4: Led Indicators
Controls & Indicators The following table lists the Led Indicator and push button functions. Most operations are performed by tapping an area indicated on the screen displayed. Function Description LED Indicators: Ready Light (GREEN) ON indicates the system is ready for arming. The system cannot be armed unless the Ready light is ON. - Page 5 Figure 1, Controls & Indicators Context Sensitive Help Title Bar Work Area Status Bar LED Status Indicators Time Fire Auxiliary Panic Date EMERGENCY BUTTONS...
-
Page 6: Welcome Screen
LCD Touch Screen The Touch Screen LCD is 1/4 VGA 320 x 240 pixel display This screen will blank after 15 minutes of inactivity. Tapping the screen will restore the display. During normal operation (unarmed) and system startup the WELCOME screen is displayed. From here a series of screens can be accessed that allow the user to perform Arming/disarm- Welcome screen ing and other User functions. - Page 7 Figure 2, Touch Screen Flowchart Welcome Screen Main Menu Screen Stay Arm Away Arm Settings (1) Bypass Logs Functions Screen Screen Screen Screen Screen Screen Numeric Numeric Numeric Keypad Keypad Keypad Arming Screen Settings Settings (2) Clean Mode Chime Disarm Screen Screen English/French...
- Page 8 Main Menu screen The Main Menu screen allows you to select the following functions. To select a function tap on the associated virtual push button. Note: If PowerSave has been enabled, the screen will blank after 1 minute. Tap the screen once to display the Welcome screen. Tap the screen again to display the Main Menu screen.
-
Page 9: Stay
Stay Armed When Stay Arm is Selected: NOTE: If Quick arm is not enabled by the installer, then a numerical keypad will be dis- played. Enter a valid access code, then tap “Enter” to proceed. • “System is Arming" will be displayed in the work area •... - Page 10 Away Arm When Away Arm is Selected: NOTE: If Quick Arm is not enabled by the installer, then a numerical keypad will be dis- played. Enter a valid access code, then tap “Enter” to proceed. • “System is Arming" will be displayed in the work area •...
-
Page 11: Logs
Bypass The Bypass screen displays the Zone Number and Status NOTE: If an Access Code is required to bypass zones • A numeric keypad is displayed • Enter (tap) your Access Code then tap the Enter button • The system returns to the updated Zone screen UP: scrolls cursor up through the displayed zones DOWN: scrolls cursor down through the displayed zones CHANGE: toggles highlighted zone to/from bypassed condition... -
Page 12: Functions
Function screen Allows the user to select any of four predefined functions NOTE: These functions must be configured by your Installer to Take effect. Function #1 __________________________ Code required Y/N Function #2 __________________________ Code required Y/N Function #3 __________________________ Code required Y/N Function #4 __________________________ Code required Y/N Selecting the Back button will return you to the Main Menu screen... -
Page 13: Brightness
Clean Mode The Clean Mode allows the user to touch (i.e., clean) the screen without enabling or disabling any functions. The screen will remain in this mode for 10 seconds, then return to the 1st Con- figuration Menu screen More > > Allows the User to: Adjust Display Contrast Configuration... -
Page 14: Time/Date
Time/Date This screen allows the User to Change Date and Time. Enter: Hour - Tap < icon to decrease value, tap > icon to increase value Minute - Tap < icon to decrease value, tap > icon to increase value - Tap <... -
Page 15: Access Codes
User Codes/Menu This screen allows you to Enable or Disable a User, or Delete a User Selecting Access Codes will display a numeric keypad • Enter your Master Code and tap Enter If the access code is correct, the User Menu will be displayed - allows you to scroll UP through the Users DOWN - allows you to scroll DOWN through the Users... -
Page 17: Fcc Compliance Statement
Controls could void the user’s authority to operate this equipment. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. ©DSC 2007 Printed in Canada 29007222R002...
