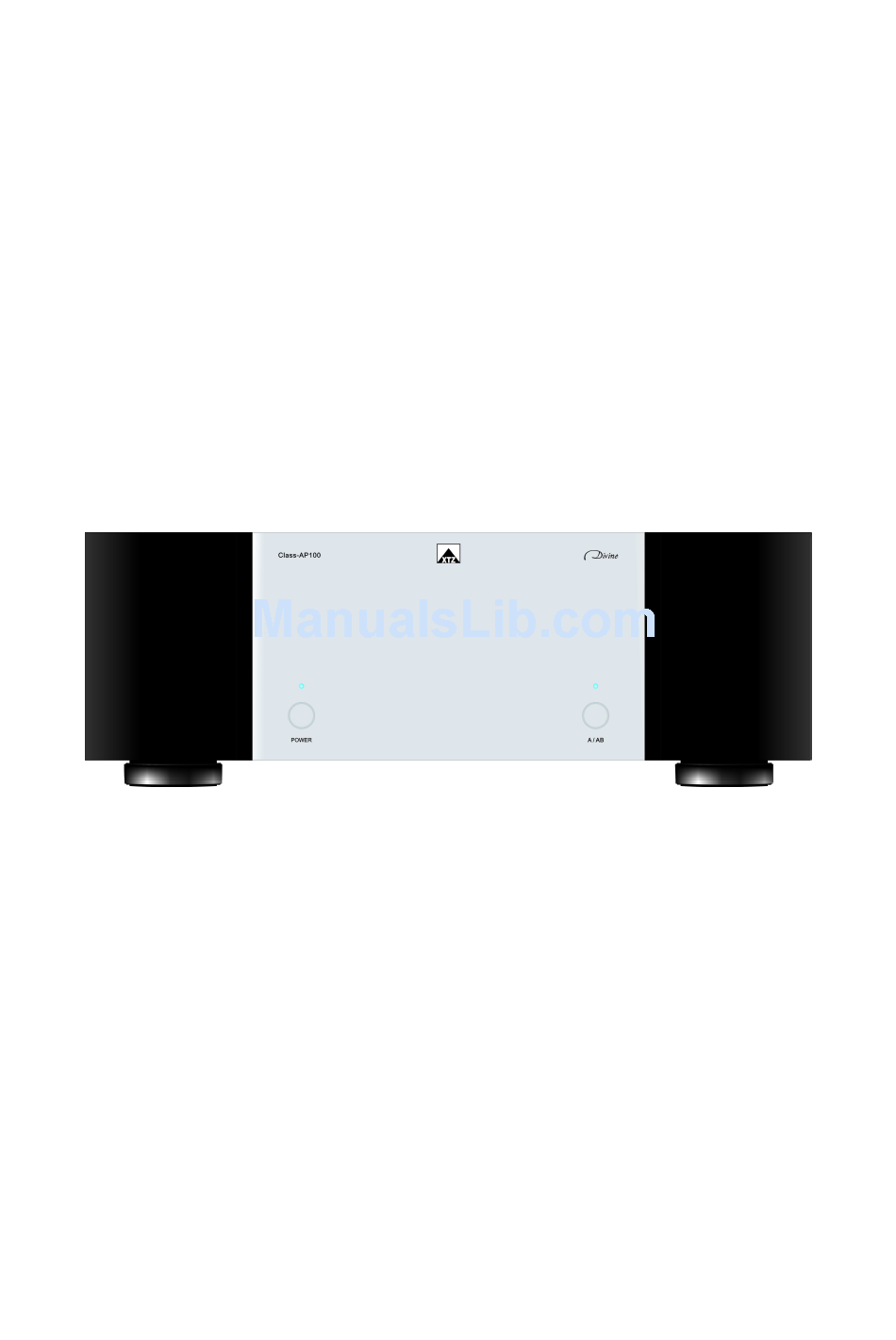

Page 1: User Manual

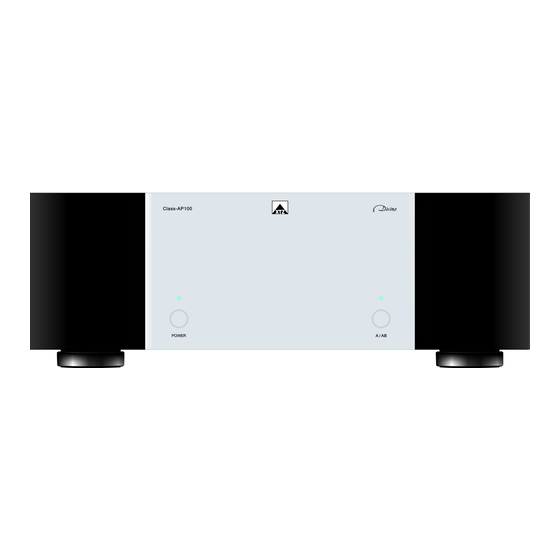

XTZ CLASS-AP 100 CLASS A HIGH-END POWER AMPLIFIER User manual © 2009 XTZ AB , www.xtz.se Page: 1 / 13... -
Page 2: Table Of Contents
Table of contents Page: Contents About XTZ Technical presentation Preparations Practice of sound / Installation and placement tips Mounting Functional reference Technical specifications Service & Support Page: 2 / 13... -
Page 3: Contents
CLASS AP100 provides many possibilities, in order to utilize this product in the best way, please read the manual carefully before using Class-AP 100. It takes patience to optimize a hifi system. If you lack experience from this kind of measurements or have any questions, please contact our “free of charge”... -
Page 4: About Xtz
About XTZ Philosophy Our reference and starting point is to reproduce a natural sound, taking into account that acoustics always is a matter of taste. XTZ Goal Our main goal is to provide the best value for money. Our concept:... -
Page 5: Technical Presentation
Technical presentation Amplifier CLASS AP100 is the first generation of this power amplifier. The amplifier is designed to provide maximum sound quality. All inputs and speaker connections are gold plated and of the highest quality. A powerful toroidal transformer contributes to an effective power supply. -
Page 6: Preparations
Preparations Unpacking Carefully unpack the product, and pay attention so you don't break anything. If possible, save the packing box for future transportations. Should there be any damage on the product, please contact your retailer. Check that the mains voltage marking on the back panel matches your local mains voltage. -
Page 7: Practice Of Sound / Installation And Placement Tips
Practice of sound / Installation and placement tips This chapter contains common information on loudspeaker placement and installation. These are general rules, so there are exceptions. No matter how good the equipment is, in the wrong In which room do listening environment it will inevitably sound bad. - Page 8 To achieve the best results the front speakers Front speakers should be placed symmetrically in front of the listener. The distance between the front speakers should be about 80% of the distance to the listener. In other words, the recommended angle between the front speakers is 45°.
-
Page 9: Mounting
Mounting Connect with the Always connect using the correct phase, from the If you by accident connect the other way, there is no risk of damage. However, the +-pole on the amplifier to the +-pole on the correct phase phase of the signal will be not correct, loudspeaker and respectively for the minus (-) pole resulting in improper sound. -
Page 10: Functional Reference
Functional reference POWER ON 9. BALANCED INPUT Left 2. CLASS A/AB 10. SWITCH BALANCED/UNBALANCED Left 3. SPEAKER TERMINALS Right 11. TIME SET 4. SPEAKER TERMINALS Left 12. ALWAYS ON/ AUTO BALANCED INPUT Right 13. STEREO MODE/BRIDGED MODE 6. UNBALANCED INPUT Right 14. - Page 11 The regulation takes a few minutes before 1 POWER ON Power on/off it becomes completely stable. During this time high listening volumes should be avoided. Green - works normally with output, Green led blinks - there is signal, but the unit does not enter work state completely.
-
Page 12: Technical Specifications
Technical specifications Power amplifier Construction type 158 x 445 x 468 mm (HxWxD) Inc Feet & Terminals Dimensions 26kg including cardboard box 21 kg Weight >105dB (A Weighted, 100W, 8ohm) SNR Ratio 20 kOhms Impedance (input) 30dB Voltage gain >100 Damping factor ~220-240V &... -
Page 13: Service & Support
Support Please contact our “free-of-charge” support if you need installation advice, or if any problems occur during the installation. Contact us by e-mail support@xtz.se and include your phone number if you require help, and we will ring you back. Guarantee...
