Hunter 21580 Parts Manual

PARTS GUIDE PARTS GUIDE
PARTS GUIDE PARTS GUIDE
Using the Parts Guide below, check to make sure all parts are included in the box.
If parts are missing or damaged call 1-888-830-1326.
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
Before installing your fan, record the following information for your records and warranty assistance.

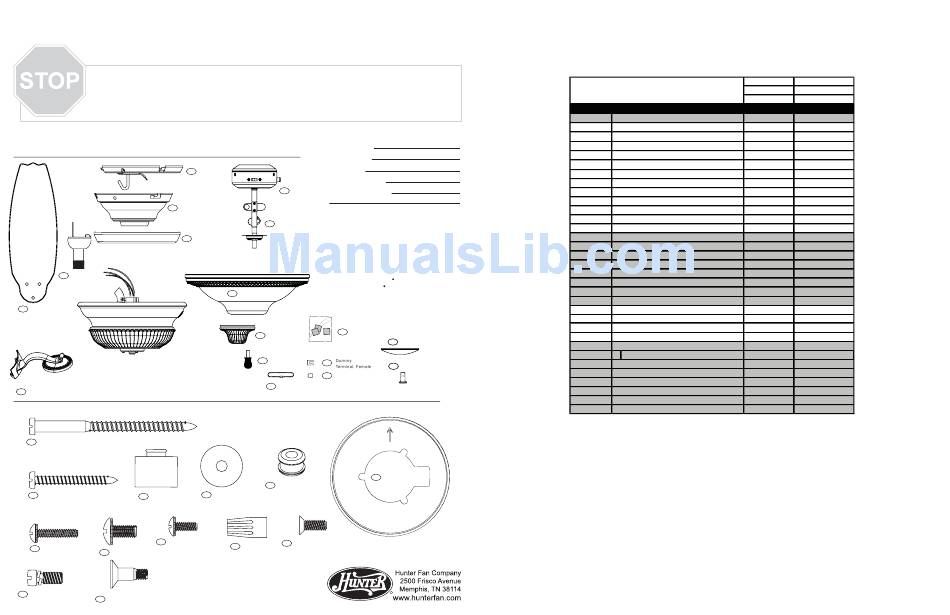

Fan Parts
(Not Drawn to Scale)
2 Ceiling Plate
3 Canopy
4 Canopy
Trim Ring
7 Hanger Ball /
Downrod
Assembly
46 Blade Set
Motor Housing Assembly
Hardware
44
Blade Iron Set
(Drawn to Scale)
65 Wood Screw
Wood Screw
64
71 Isolator
Screw, Machine, 6-32
69
100 Locking Screw
62 Canopy Screw
47 Screw, Blade Iron Armature
67 Blade Assembly Screw
Model Name
Catalog No.
Serial No.
Date Purchased
Switch Where Purchased
30
Housing
Assembly
Missing / Broken Parts:
Call 1-888-830-1326
28 Light Kit
Fan does not work:
1. Reference the Trouble Shooting guide in
your Instruction Manual.
2. Call your Local Service Center.
3. Call Technical Support at 901-248-2222.
For additional information on:
Hunter Products
Dealer Location
Call 1-800-448-6837
150
Glass Bowl
www.hunterfan.com
Balancing Kit
75
148 Bottom Cap
149
Finial
205
206 Dummy
Terminal, Male
78 Pull Chain
27
66 Rubber Blade Grommet
Flat Washer
68
131 Screw, Switch Housing
70 Wire Nut
Assembly
Trouble Shooting
Service Center Locator
29 Switch Housing Cover
41 Switch Housing Plug Button
Low Profile Washer
98000-01-667
11/17/06
R

Part List

Asm. Dwg. #
Item # Item Name
* Hanging System Kit
2 Ceiling Plate
3 Canopy
4 Canopy Trim Ring
7 Hanger Ball / Downrod Assembly
8 Set Screw (Not shown)
27 Low Profile Washer
62 Canopy Screw
64 Wood Screw
65 Wood Screw
68 Flat Washer
71 Isolator
100 Locking Screw
28 Light Kit
29 Switch Housing Cover
30 Switch Housing Assembly
41 Switch Housing Plug Button
44 Blade Iron Set
46 Blade Set
47 Screw, Blade Iron Armature
* Hardware Kit
66 Rubber Blade Grommet
67 Blade Assembly Screw
69 Screw, Machine, 6-32
70 Wire Nut
75 Balancing Kit
78 Pull Chain
131 Screw, Switch Housing Assembly
148 Bottom Cap
149 Finial
150 Glass Bowl
205 Dummy Terminal, Female
206 Dummy Terminal, Male
Model # 21580
97286-01
Finish Cocoa
Qnty Part #
1 92732-01-000
1 -----------
1 -----------
1 -----------
1 -----------
1 -----------
1 -----------
4 -----------
2 -----------
2 -----------
4 -----------
4 -----------
3 -----------
1 97231-02-000
1 73853-01-487
1 93574-67-000
1 73854-01-487
1 86450-05-487
1 75885-41-000
11 63755-02-247
1 97286-01-850
16 05989-01-000
16 63730-07-247
3 74506-36-247
4 05172-01-000
1 07570-01-000
1 63756-05-247
3 64555-02-247
1 87509-01-547
1 87510-01-547
1 76064-01-000
1 08200-01-000
1 08198-01-000
