C3

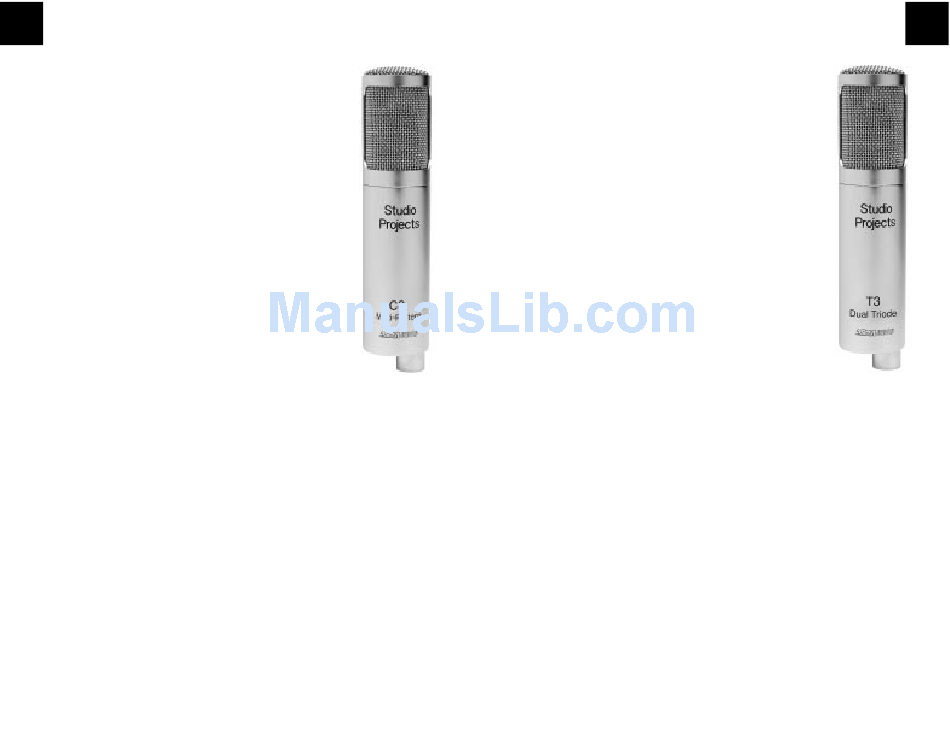

The C3 is a high quality true capacitor pressure gradient
microphone with an FET impedance converter. It is a large
diaphragm microphone with three selectable polar patterns,
Cardiod, Omni, and Figure Eight. The C3 uses a 6mu capsule
for thick natural reproduction of the vocal range. The C1
uses a transformerless circuit, that features extremely low
noise and wide dynamic range.
The C3's polar response is very linear over a wide incidence
angle. Signals coming from the side and rear are reproduced
accurately and without any coloration. The microphone capsule
is immune to typical interference and outside contamination.
The microphone is supplied with a shock mount, windscreen
and heavy duty road case with locking latches.
C3 SPECIFICATIONS
Type:
Polar pattern:
Frequency response:
Sensitivity:
Output impedance:
Load impedance:
Max. SPL:
Noise:
S/N:
Power requirement:
Current consumption:
Circuit:
Connector:
Pad:
Low cut:
Size:
Weight:
1 inch large dual diaphragm FET
condenser microphone .
cardioid/ Omni-directional/figure 8.
20~20000Hz.
12mV/Pa=-38dB(0dB=1V/Pa).
<200 Ohm.
>1000 Ohm.
132/142dB SPL for 1% THD
@1000Hz(0dB/-10dB pad, 0dB
SPL=0.00002Pa).
(Line)---28dB (A weighted)---18dB.
76 dB.
48 +/- 4V.
<2.5mA.
transformerless circuit, featuring
extremely low self noise and large
dynamic range.
Gold-plated 3-pin XLR .
10dB
6dB/Octave at 150 Hz.
dia: 2.1" length: 8.9"
26.9oz
T3
The T3 is a high quality condenser pressure gradient micro-
phone with an hand selected 6072 "Dual Triode" tube for that
sought after classic warm sound. It is a large diaphragm
microphone with three selectable polar patterns, Cardiod,
Omni, and Figure Eight. Via it's supplied power supply, an
additional six variable patterns are available for a total of
nine patterns. The T3 uses a 6mu dual capsule for thick
warm natural reproduction of the vocal range. The features
extremely low noise and wide dynamic range.
The T3's polar response is very linear over a wide incidence
angle. Signals coming from the side and rear are reproduced
accurately and without any coloration. The microphone capsule
is immune to typical interference and outside contamination.
The microphone is supplied with a shock mount, variable pattern
power supply, dedicated 7pin XLR cable, windscreen and heavy
duty road case with locking latches.
T3 SPECIFICATIONS
Type: 1 inch large dual diaphragm FET
condenser microphone .
Polar pattern: cardioid/ Omni-directional/figure 8 and
6 intermediate stages.
Frequency response: 20~20000Hz.
Sensitivity: 14mV/Pa=-37dB(0dB=1V/Pa).
Output impedance: <250 Ohm.
Load impedance: >1000 Ohm.
Max. SPL: 125dB SPL for 1% THD @1000Hz(0dB
SPL=0.00002Pa).
Noise: (Line)---28dB (A weighted)---18dB-A.
S/N: 76 dB.
Power requirement: Supplied Power Supply (SPT3) 110/220
Current consumption: <2.5mA.
Connector: Gold-plated 7-pin XLR
Size: dia: 2.1" length: 8.9"
Weight: 26.9oz
