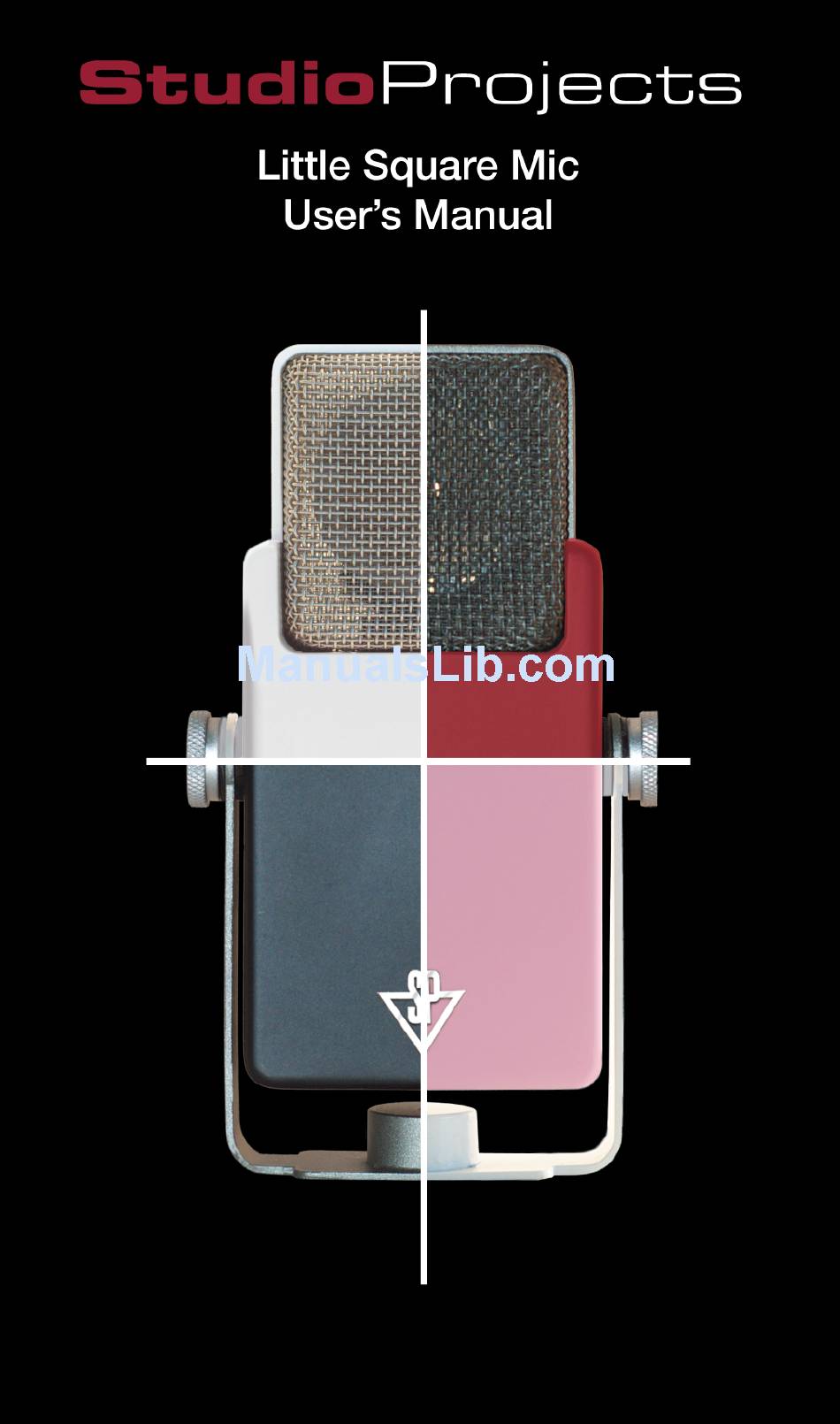

STUDIO PROJECTS LSM User Manual

Little square mic dual output condenser microphone

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the LSM and is the answer not in the manual?

Questions and answers

Summary of Contents for STUDIO PROJECTS LSM

  • Page 2 Designed with the convenience of the ubiquitous USB mini plug and a conventional three-pin mini XLR out- put, the LSM gives you two distinct ways to route your signal, as well as an integrated yoke, which means the LSM can stand freely upon a desktop, or mount to any...
  • Page 3 LSM, as a large capsule mic, is unparalleled. Fit- ting neatly in a laptop bag pocket, or even in your shirt pocket, the LSM, with its petite form factor is ideal for taking on the road wherever you go.
  • Page 4 3. To attach the LSM to a mic stand, there are 5/8-27 threads on the bottom of the stand yoke. That's a five-...
  • Page 5 (TPI), in case you were wondering... Anyhow, the LSM will thread onto the stand the same as any other mic clip or shock mount. Ta-da! Note that the yoke can be adjusted perpendicularly to the body of...
  • Page 6 2. Insert the other end of the xlr cable into a +48 volt phantom power equipped microphone preamp input. This can be the input to a mixing console, a dedicated mic preamp, such as our Studio Projects VTB-1, or any of the myriad digital audio interfaces with suitable p48 inputs.
  • Page 7 1. Insert the small end of the included mini USB cable into the USB plug on reverse side of the LSM, just above the round, three-pin xlr thingy. 2. Plug the other end of the USB cable into a computer, be it Mac or PC.
  • Page 8 Setting up the LSM as your default recording device, Windows XP: 1. Go to the start menu (lower left-hand corner of the screen) and open up the control panel 2. Select sounds and audio devices 3. Select the Audio tab 4.
  • Page 9 3. Click on the Recording tab in the Sounds menu and scroll down if needed until you locate Microphone. If the LSM is the only USB microphone plugged in to the computer, it will say "1- USB Microphone Working". 4. Mouse over and double-click in the field around the word Microphone to bring up the Microphone Proper- ties menu.
  • Page 10 Setting up the LSM as your default recording device, Mac OS X: 1. Connect LSM to Mac. 2. Mac OS should automatically detect USB LSM. 3. If Mac does not automatically detect mic, then go to “System Preferences” and select “Sound” in the “Hard- ware”...
  • Page 11 If you run into any issues with the setup of the LSM and you're completely lost, or nothing's working as it should - just relax, chin up, make a cup of tea and give us a call at 310-323-9050, or in the UK +44 (0)1803 612 700.
  • Page 12 ©2010 PMI AUDIO GROUP. ALL RIGHTS RESERVED. STUDIO PROJECTS® IS A REGISTERED TRADEMARK OF PMI AUDIO GROUP®.
  • Page 13 Little Square Mic User’s Manual...
