Summary of Contents for Blomberg Dishwasher

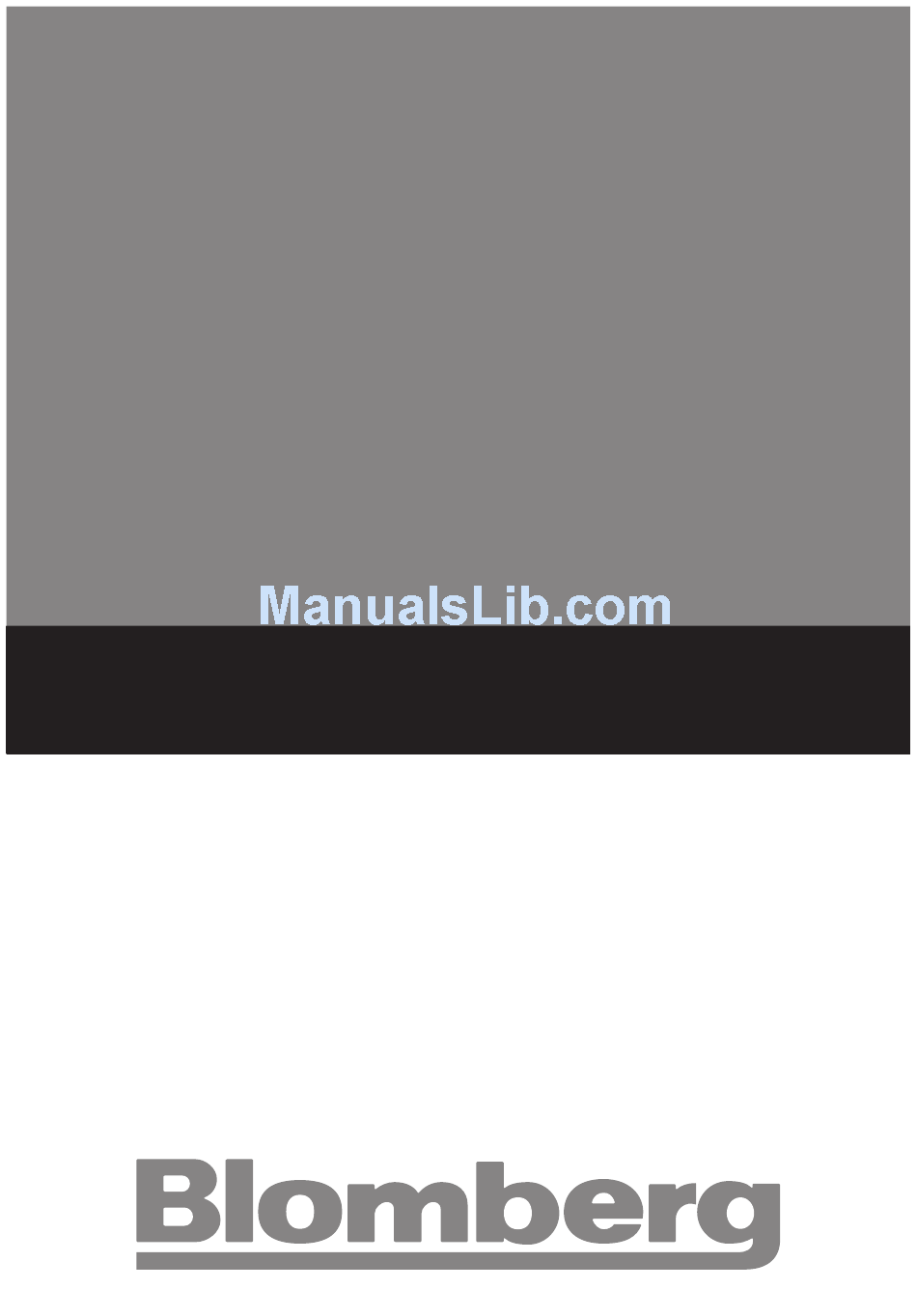

  • Page 1 Dishwasher Instruction Manual...
  • Page 2 Please read this user manual first! Dear Customer, We hope that you get the best results from the product which has been manufactured in state-of-the-art plants and passed through a strict quality control procedure. Therefore, please read the entire user manual carefully before using the product and keep it as a reference for future use.

  • Page 3: Table Of Contents

    CONTENTS Dishwasher Adjusting the height of loaded upper basket Important safety instructions Adjusting the height of loaded General safety upper basket Intended use Adjusting the height of empty Children’s safety upper basket Installation Starting Your Machine Appropriate installation location Language Selection...

  • Page 4: Dishwasher

    Dishwasher Overview � �� �� � �� �� � � � � � � � �� 1.Tabletop (depends on the model) 2.Upper impeller 3.Lower basket 4.Lower impeller 5.Filters 6.Control panel 7.Door 8.Detergent dispenser 9.Lower impeller slot 10.Silverware basket 11.Salt reservoir lid 12.Upper basket rail...

  • Page 5: Technical Specifications

    Technical specifications This product complies with the following EU directives: Development, production and sales stages of this product comply with the safety rules included in all pertaining European Community regulations. 2006/95/EC, 2004/108/EC, 93/68/EC, IEC 60436, EN 50242 Power input 220-240 V, 50 Hz Total power consumption 1900-2200 W Heater power consumption...

  • Page 6: Important Safety Instructions

    It must be used to do the domestic and remain undamaged. type dishes only. • • Unplug the product when not in Only dishwasher safe detergents, use. rinse aids and additives must be • Never wash the product by used.

  • Page 7: Children's Safety

    • This product should not be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product.

  • Page 8: Installation

    Installation Refer to the nearest Authorised flat floor that has sufficient load Service Agent for installation of your carrying capacity! The product product. To make the product ready must be installed on a flat surface for use, make sure that the electricity, in order for the door to be closed tap water supply and water drainage comfortably and securely.

  • Page 9: Connection To The Drain

    Connection to the drain Permitted water temperature: up to 25°C Water discharge hose can directly be The dishwasher may not be connected connected to the drain hole or sink’s to open warm water devices or flow- drainage. The length of this connection through water heaters.

  • Page 10: Adjusting The Feet

    Adjusting the feet Electrical connection If the door of the product cannot be Connect the product to a grounded closed properly or if the product swings outlet protected by a fuse complying when you push it slightly, then you with the values in the “Technical need to adjust the feet of the product.

  • Page 11: Disposing Of Packaging Material

    detergent while the machine is materials should not be disposed as empty. During the initial use, fill the normal domestic wastes. salt reservoir with 1 litre of water Refer to your local dealer or solid prior to filling it with salt. waste collection centre in your area to learn how to dispose of your product.

  • Page 12: Prewashing

    Do not put more detergent than suggested on the detergent package. Water softening system The dishwasher requires soft water. If the hardness of the water is above 6°dH, the water must be softened and descaled. Otherwise, ions that create the hardness will...

  • Page 13: Adding Salt

    � Water softening system needs to be regenerated in order for the product operates with the same performance continuously. Dishwasher salt is used for this purpose. Use in your product only the special softening salts produced particularly for use in dishwashers.

  • Page 14: Detergent

    5. If you will not start a washing Put the detergent into the detergent programme immediately after dispenser just before operating the adding the salt, run the machine machine as illustrated below. empty in the shortest programme 1. Push the latch to right to open the to dissolve and wash away the detergent dispenser lid (A).

  • Page 15: Tablet Detergents

    Information about suitable places In programmes with prewash and (detergent dispenser, basket etc.) at high temperature, in which you in the dishwasher to place the use tablet detergents, make sure tablet can be found amongst the that the detergent dispenser lid is usage instructions on the packages closed firmly.

  • Page 16: Rinse Aid

    • Do not wash iron alloy items in the � dishwasher. It can get corroded or leave stains on other items. • Do not wash silverware and cutlery with wooden or bone 2. Fill the reservoir until “MAX” level.
  • Page 17 Placing the dishes into the dishwasher You can use your dishwasher in the optimum way with respect to energy consumption and washing and drying performance only if you place the dishes in an orderly way.
  • Page 18 Suggestions for loading the Improper Loading Of Dishware dishwasher Lower basket Upper basket Improper Loading Of Dishware 17 EN...

  • Page 19: Silverware Basket

    Silverware basket Movable silverware basket (depends on the model) (depends on the model) Silverware basket is designed to wash Since the cutlery basket can be moved your dishes such as fork, spoon and (A, B), you can create a wider space etc.

  • Page 20: Collapsable Lower Basket Wires (2 Pieces)

    Collapsable lower basket wires larger spaces by folding each wire individually or all of them at once. Lay (2 pieces) the foldable wires down by pressing on (depends on the model) the latch (A). The two piece foldable wires located at the lower basket of the machine are designed for an easier placement of �...

  • Page 21: Lower Basket Multipurpose / Height Adjustable Service Rack

    Lower basket multipurpose / � height adjustable service rack � � (depends on the model) This accessory located at the lower � basket of the machine allows you � to easily wash pieces such as extra � � glasses, long ladles and bread knives. �...

  • Page 22: Upper Basket Drawer

    Upper basket drawer the tab of the glass support piece from the upper basket wire it is hooked to. (depends on the model) Thus, you can obtain a wider space. You can easily place additional desert � spoons, small forks and knives into the basket drawer installed to the upper basket of your machine.

  • Page 23: Collapsable Upper Basket Wires

    Collapsable upper basket of the loaded basket in up or down directions without removing it from the wires machine. (depends on the model) To bring the collapsable wires on the To raise the basket: upper basket of the machine into 1.

  • Page 24: Adjusting The Height Of Loaded Upper Basket

    � 2. Repeat the same process to lower To lower the basket: the other side of the basket. 1. Press the latch on the basket adjustment mechanism (right or 3. Make sure that both sides of left) to lower the basket (B). the basket height adjustment mechanism are at the same level (down or up).

  • Page 25: Adjusting The Height Of Empty Upper Basket

    Adjusting the height of empty upper basket (depends on the model) You can adjust the height of the upper basket according to the size of the dish to be washed. Use basket rollers to change the basket height. 1. Turn the stoppers on the ends of the upper basket rails by turning them aside (A).

  • Page 26: Starting Your Machine

    Starting Your Machine � � � � � On/Off Button Language Selection Salt Indicator • Press the On/Off button to turn Rinse Aid Indicator on your machine when its door is Start/Pause/Cancel Button open. Then, press the Start/Stop Display button for 10 secs. •...

  • Page 27: Selecting The Reference Program

    and program cancellation will not be water and energy consumed will possible. be displayed consecutively. • Press the On/Off button to turn off Starting Your Machine your machine when the program • Open the tap. is over. • • Plug the mains plug into the wall Close the tap.

  • Page 28: Key Lock

    • Turn on your machine by pressing lock is active, “Key Lock Active” is the On/Off button to return to the displayed and if you press the key washing display. for a second time, “Press for 5 sec” • When you press Start/Stop button, is displayed.

  • Page 29: Canceling A Program

    WARNING: resume the program if the key lock is activated after you have completed There might be residues of detergent your operation. or rinse aid in the machine and/or on the pieces already washed depending Canceling a program on the step the cancelled program was in at the end of such cancellation.
  • Page 30 dishes. Analysis takes less time for determined. Washing program is lightly soiled dishes, but more time determined on basis of the degree of for heavily soiled dishes. Cleaning soiling of the dishes in the machine. operation continues during the analysis Adding dishes into the machine after steps.

  • Page 31: Warning Messages

    program time is longer then the other machines and models since they do not have “drying step” in fast programs. Warning Messages Your machine will give you some important feedbacks while it is running. You can find what to do from the following table when these informative massages are displayed.
  • Page 32 31 EN...

  • Page 33: Maintenance And Cleaning

    Maintenance and cleaning Service life of the product extends and 1. Turn the micro filter (3) and frequently faced problems decrease if it coarse filter (2) assembly counter is cleaned at regular intervals. clockwise and pull it out from its Unplug the product and turn off the seating (A).

  • Page 34: Cleaning The Hose Filter

    6. Place the coarse filter into the microfilter. Make sure that it is properly seated. Turn the coarse filter clockwise until a “click” sound is heard. Do not use the dishwasher without filter. Incorrect placement of the filters will reduce washing efficiency. Cleaning the hose filter �...
  • Page 35 Upper impeller Check if the holes on the upper impeller (2) are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left to remove the upper impeller (C, D). � Make sure that the nut is tightened well �...

  • Page 36: Troubleshooting

    Troubleshooting Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •...
  • Page 37 • Surface quality of the kitchen utensils is deteriorated. >>> Tea and cafe stains or other dye spots may not be cleaned in dishwasher when they have penetrated in deteriorated surfaces. Desired washing performance can not be obtained at kitchen utensils with deteriorated surfaces and it is not suitable to use such utensils in terms of hygiene as well.
  • Page 38 "Cleaning and Care". • Dirty dishes are kept in dishwasher for 2-3 days. >>> If you are not going to start the machine right after you have put the dishes into it, remove the remnants on the dishes and run the Prewash programme without detergent every 2 days.
  • Page 39 • Kitchen utensils that are already corroded are washed in dishwasher. >>> Rust on a corroded item can migrate to other stainless steel surfaces and cause corrosion on those surfaces as well. Such items should not be washed in dishwashers.
  • Page 40 Decorations and ornaments on kitchen utensils are being erased. Decorated glasses and decorated luster porcelains are not suitable for washing in the dishwasher. Manufacturers of glassware and porcelain tableware items do not recommend washing such kitchen utensils in the dishwashers either.
  • Page 41 Baskets are overloaded. >>> Do not overload the baskets in excess of their capacity. Water remains in the dishwasher at the end of the programme. • Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section "Cleaning and Care".
  • Page 42 17 7899 01 00_AG_TT...
