Jet Assisted Pumps
JMM100
We recommend, for additional protection, the pump
to be supplied from socket outlet protected by a
Residual Current Device – RCD (also known as
an Earth Leakage Circuit Breaker – ELCB) with a
maximum rated residual current of 30mA.
Should you the installer or owner be unfamiliar with the correct
installation or operation of this type of equipment you should contact
the distributor for the correct advice before proceeding with the
installation or operation of this product.
1000 Series
JS100
JSM100
JS110
JSP110
JS120
JSP120
JSK110
JSK120
Advertisement
Related Manuals for onga JMM100
Summary of Contents for onga JMM100

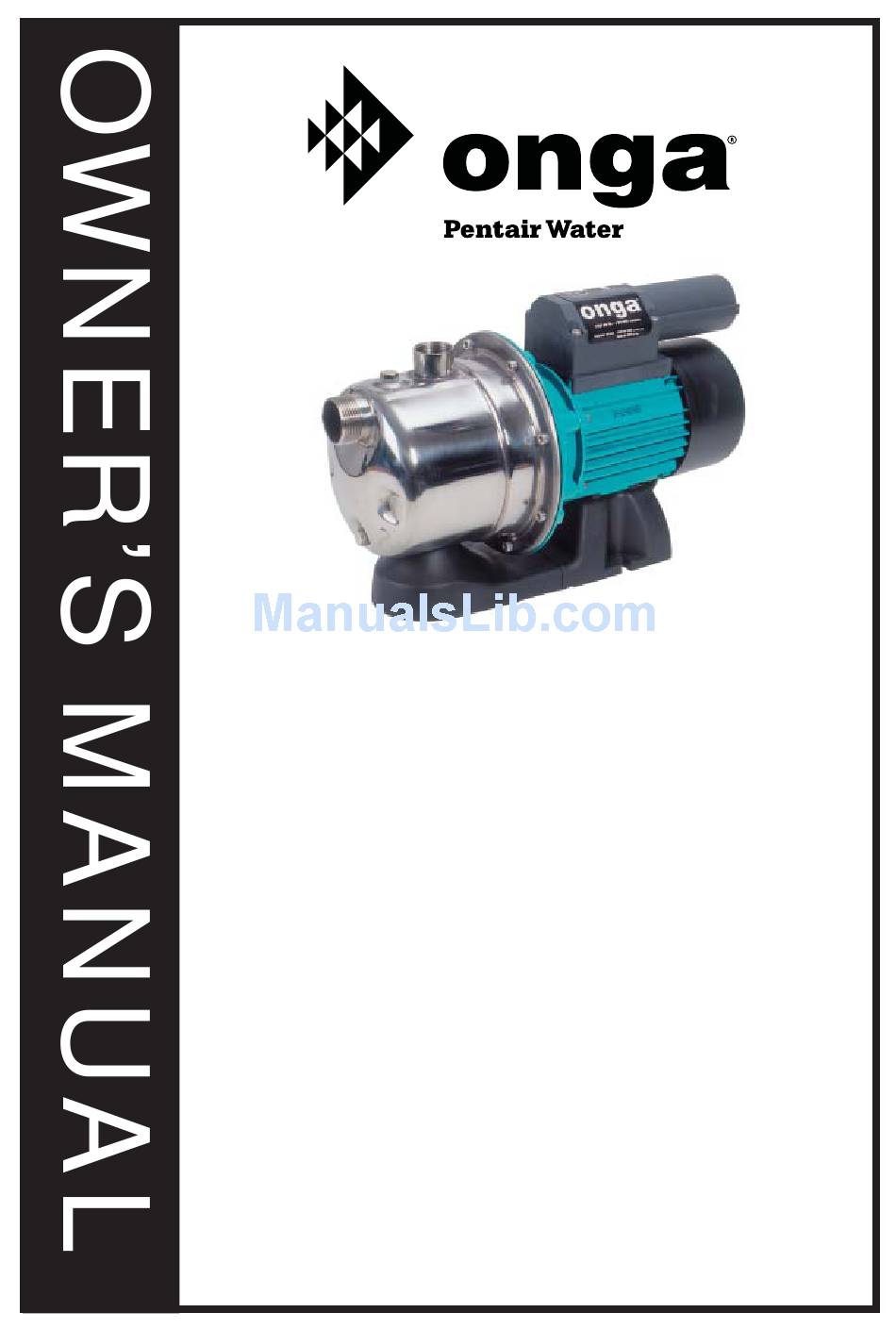

- Page 1 Jet Assisted Pumps 1000 Series JMM100 JS100 JSM100 JSK110 JS110 JSP110 JSK120 JS120 JSP120 We recommend, for additional protection, the pump to be supplied from socket outlet protected by a Residual Current Device – RCD (also known as an Earth Leakage Circuit Breaker – ELCB) with a maximum rated residual current of 30mA.
- Page 2 Relax - you’ve bought an Congratulations on your decision to purchase an Onga product. Onga is one of the best know brands in its fi eld, with a proud local and international reputation. Onga is a brand for reliability, value for money and technological innovation.
- Page 3 ISO 9001:2000 accreditation. A Fair Price Onga products are neither the cheapest nor the most expensive in their fi eld. Our products do, on the other hand, always represent very good value for money; they always have and they always will.
-
Page 4: Table Of Contents
Table of Contents Page Model Data Application Installation Operation Service and Maintenance Troubleshooting Warranty... -
Page 5: Model Data
Model Data Technical Information Inlet Connection 1”BSP Male 1”BSP Female Outlet Connection 1”BSP Male 1”BSP Female Power Supply 230V Voltage Limits (+/- 10%) 207-253V Impeller (s) Technopolymer Pump Case Polypropylene Stainless Steel Pump Shaft Stainless Steel Mechanical Seal Carbon/Ceramic Motor TEFC IP44 Maximum Water Temp ( Ambient Temp Range (... -
Page 6: Application
Application Onga 1000 Series pumps are suitable for pumping clean water in a domestic water system, small irrigation applications, and general water transfer. The Onga 1000 Series Jet-Asssisted pumps are fantastic at self- priming, easy to install, and come in a wide range of packages to suit... -
Page 7: Installation
Installation The electrical installation shall be in accordance with the national wiring rules (AS/NZS 3000) for class 1, IP44 rated products. These instructions are a guide only. Users not familiar with pumping equipment should seek advice from people experienced in pump equipment and installation. Freezing conditions will damage the unit, because when water freezes it expands. - Page 8 1. Preparation for Installation Inspect your pump for shipping damage. Report any damage to your Onga Dealer. Make sure the suction piping is free of air leaks and is laid so that there can be no airlocks. Warranty of these pumps is void unless they are operated in accordance with this owner’s manual.
- Page 9 Ensure that this location is on a seperate footing from your home. To do this you can mount the pump on a concrete tile or concrete base. 5. Power Source Arrange for an electrician to install an outdoor 10A GPO electrical outlet near the pump if there is not one there already.
- Page 10 To maintain optimum performance from your pump, the suction pipe should Kept to the shortest distance practical, but not shorter than the recommended length. Re-enforced crush resistant (non-collapsable) hose or pipe. All fi ttings should be air tight. Pipes should be equal to or larger than the diameter of the suction/inlet port.
- Page 11 9. Electical Installation The pump is supplied with a interconnection appliance coupler and standard Australian 10 Ampere plug and cord. Connection to the power supply is a matter of inserting the plug into the suitable socket outlet. Before plugging the power supply cord into the socket outlet, connect the pump to it using the provided IEC appliance connectors on the end of the interconnection cords.
-
Page 12: Operation
Operation The pump operator or owner must be provided with this owner’s manual. This must be read before operation, and followed during operation. Ensure that your pump is fi lled with water before operating. The pump is designed to be used with clean water in a residential application. - Page 13 the ‘restart’ button on the front of the pressure controller. Open a tap, (or garden hose nozzle) and the pump should start and deliver water. When the tap is closed, the pump will stop once pressure is built up in the system. The system is now working correctly.
-
Page 14: Service And Maintenance
Service and Maintenance Pump should only be serviced by qualifi ed personel. For best results, use only genuine service parts. Be sure to prime pump before starting. To avoid dangerous or fatal electrical shock hazard, turn OFF power to motor and remove plug from power outlet before working on pump or motor. -
Page 15: Troubleshooting
Pump will not Debris is caught in the Take the pressure controller to your stop, even pressure controller Onga dealer for service. though there is no taps open. There are leaks in the Find and fi x leaks household plumbing... - Page 16 Talk to your Onga dealer about a better or fl ow. below the pump. pump for your situation, or move the pump closer to tank. Pump is worn or damaged Ask your Onga dealer to investigate worn parts. Should problems persist, contact your nearest Onga Service Agent.
- Page 17 Notes...
- Page 18 Pentair Water Product Warranty Pentair Water warrants that, when this product is used for the purpose it was designed, is correctly housed and vented against weather, vermin, dust etc., that it will be free of material and manufacturing defects at the time of the original purchase. This warranty is limited to the cost of the product and does not cover third party costs including the costs of electricians, plumbers, etc.
-
Page 19: Warranty
Exclusion of damages: PENTAIR WATER’S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. ONGA SHALL NOT BE LIABLE FOR: DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE OF BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. - Page 20 IMPORTANT Please attach your sales invoice/docket here as proof of purchase should warranty service be required. Please do not return Warranty - Retain for your records. Purchased From ........................Purchase Date........Serial No......Model No......Pacific Head Office Australia Pentair Water Australia Pty Ltd Notting Hill Victoria, Australia Tel: +61 3 9574 4000 Fax: +61 3 9562 7237...
