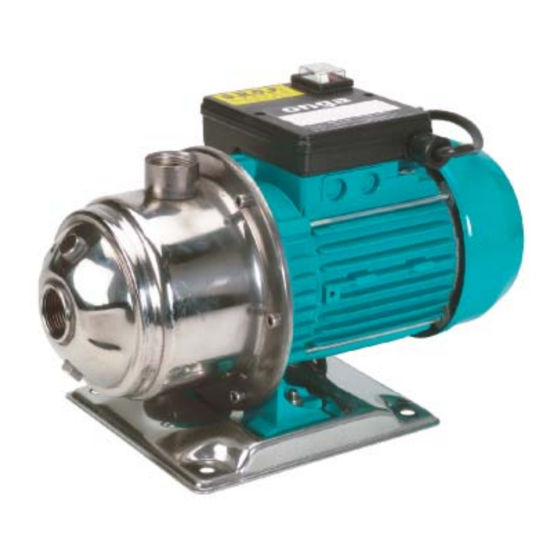

Horizontal Multistage
Centrifugal Pumps
SMH Range
SMH35 SMH45 SMH55 SMH75 SMH90
We recommend, for additional protection, the pump
to be supplied from socket outlet protected by
a residual current device – RCD (also known as
an Earth Leakage Circuit Breaker – ELCB) with a
maximum rated residual current of 30mA.
Should you the installer or owner be unfamiliar with the correct
installation or operation of this type of equipment you should contact
the distributor/manufacturer for the correct advice before proceeding
with the installation or operation of this product.
Advertisement
Related Manuals for onga SMH75
Summarization of Contents
Model Data
Technical Information
Detailed technical specifications including inlet/outlet, temperature range, IP rating, and electrical supply.
Installation
Preparation for Installation
Inspect pump for damage, ensure suction piping is free of air leaks and airlocks.
Pump Protection
Protect the pump from weather, chemicals, dust, and vermin using a weatherproof enclosure.
Pipe Installation
Connect pipes carefully to avoid straining the pump casing, using flexible connections and teflon tape.
Power Source
Arrange for an electrician to install an outdoor 10A GPO electrical outlet near the pump.
Suction
Crucial for performance; ensure short, reinforced, airtight piping and submerged suction.
Discharge
Pipe diameter and length affect pressure/flow; component ratings must exceed pump pressure.
Pump Priming
Ensure adequate water in the tank, check for leaks, and fill pump/suction line if needed.
Electrical
Connect to a suitable socket outlet using provided connectors, ensure dry location, avoid extension cords.
Operation
Start-up / Operation
Ensure the pump is primed correctly before starting and check motor rotation direction.
D.R.O.P (Dry Running Over-Temperature Protection)
Protects pump hydraulics from overheating when running dry; reset via condenser box switch.
Restoring Operation
Procedure to reset the pump after overheating, involving switching off, unplugging, and cooling.
Service and Maintenance
General Care and Maintenance
Requires minimal attention; periodically check pressure and power absorption for wear signs.
Pentair Water Product Warranty
Warranty Terms and Coverage
Covers 12 months international parts, 24 months AU/NZ parts & 12 months AU/NZ labour. Also covers defects in material/workmanship.
Warranty Exclusions
Excludes damage from accident, misuse, negligence, fire, unauthorized modification, shipment, installation.
How to Obtain Service
Contact numbers and required documentation for warranty claims and service requests.
Limitations and Exclusions
No implied warranties beyond description; liability limited to repair/replacement cost.
