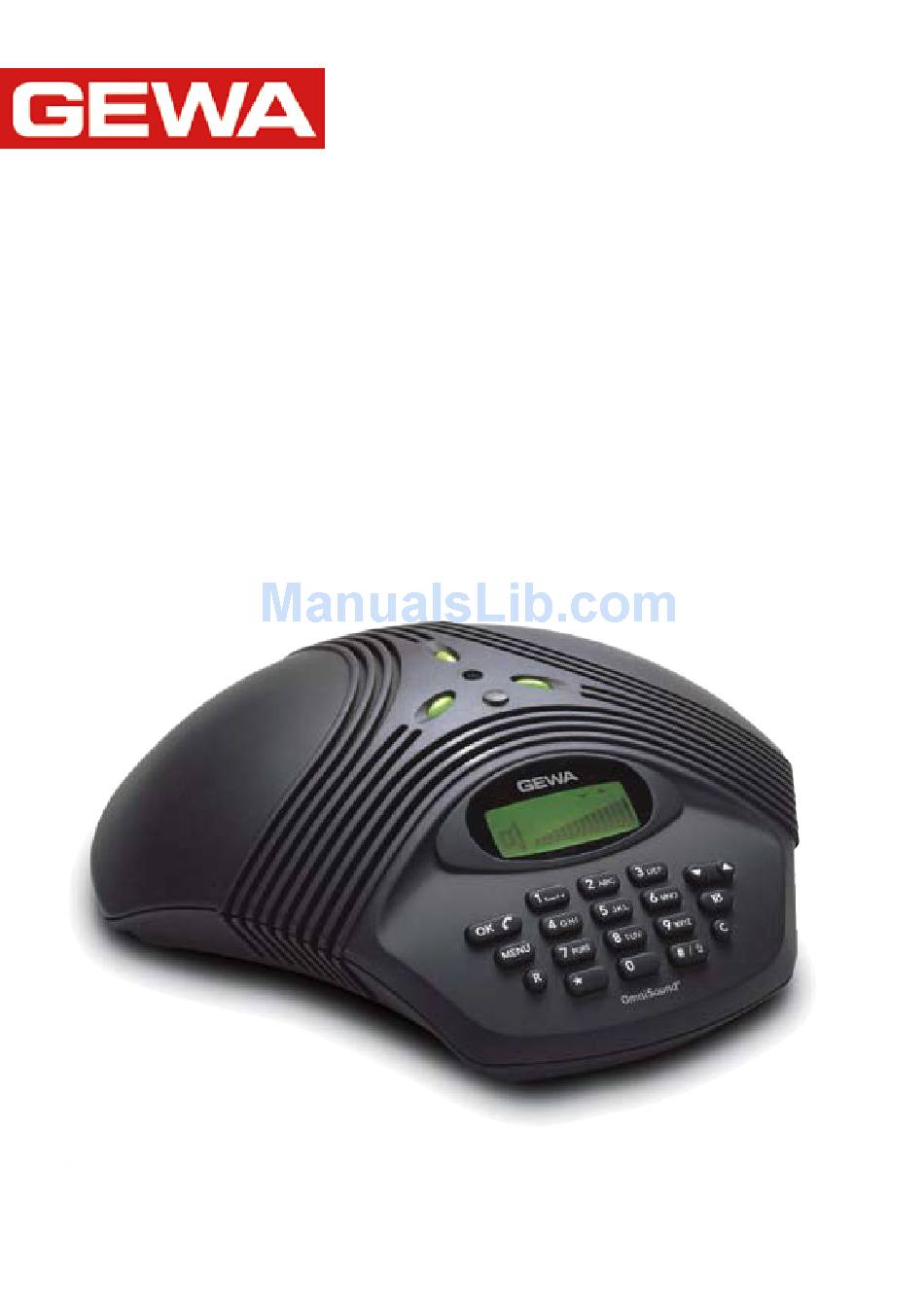

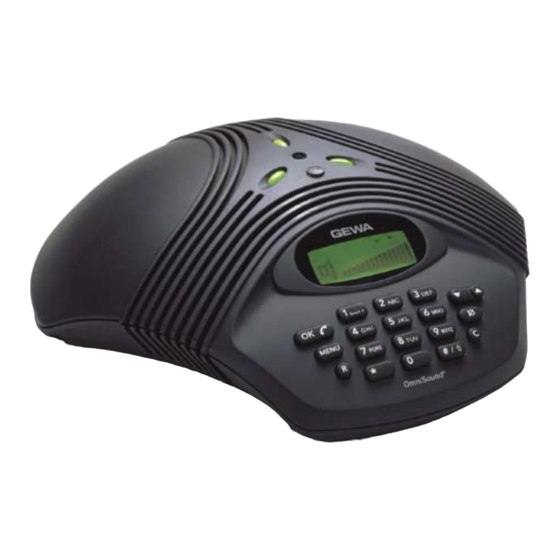

  • Page 1 User Guide Speaker phone GewaTel 200 English...
  • Page 2 This package contains the following items: User guide Speaker phone Mains transformer Power supply and network cable Tele plug Please check the contents. If any items are missing, please contact your retailer. GewaTel 200 • User Guide...

  • Page 3: Table Of Contents

    Edit phonebook Delete names and numbers Auto Answer Answer button IR control of keypad Adjusting ring volume Adjusting date and time Selecting languages Key pad tone Reset Accessories and spares Troubleshooting and maintenance Technical data GewaTel 200 • User Guide...

  • Page 4: Description

    Description Green/red microphone indicators Microphone Speaker IR receiver for remote control Display Keypad Bottom Analogue telephone Output earphones connection (POTS) Microphone Power supply inputs GewaTel 200 • User Guide...

  • Page 5: Display And Keyset

    9, W, X, Y, Z, w, x, y, z 4, G, H, I, g, h, i 5, J, K, L, j, k, l 6, M, N, O, Ö, Ø, Ñ, m, n, o, ö, ø, ñ GewaTel 200 • User Guide...

  • Page 6: Connection

    4 PIN (+) 5 PIN (+) Connections on the bottom of GewaTel Only the following makes of mains transformer may be used FRIWO type FW7237/12 or Perfekt 2042, 2043, Helms-Man DEN4824129, ML120P070G, ED4824120070P and DBN4824129 (UK). GewaTel 200 • User Guide...

  • Page 7: Connecting Handset/Headset

    Adding a regular phone You can connect a telephone with a handset/headset to the same telephone socket as your GewaTel 200. Note that GewaTel 200’s tele plug must be the first plug in the telephone socket. Transfer the call between the handset/ headset telephone and the GewaTel 200 by pressing the OK key.

  • Page 8: Calls

    Calls IR control GewaTel 200 is adapted to be controlled by Gewa’s IR transmitter. All keys on the telephone and stored phone numbers in the phonebook can be controlled by the IR transmitter (does not apply when one is in programming mode).

  • Page 9: Incoming Calls With Answer Button

    0–9... Dial the number first to check it. 12345... Press OK. The number is called after approx 3 seconds. The call duration is displayed in the call meter display. Press OK to end the call. GewaTel 200 • User Guide...

  • Page 10: Three Party Calls

    Press R then 1 to return to the first call. Note: The availability and function of three party calls can vary between countries but also different types of PBX that GewaTel 200 is connected to. If you wish to connect multiple participants, we recommend that you contact an operator who offers telephone meeting services.

  • Page 11: Programming R Key

    2. Check in the table below if it applies to you. Value: Time: 65 ms 100 ms 150 ms 270 ms 600 ms 80 ms Press OK to finish and save the value. GewaTel 200 • User Guide...

  • Page 12: Speed Dial, Redial

    Press the up key. The last number that you REDIAL dialled appears in the display. 1234567 Press OK to dial the number. The number is called after approx 3 seconds. Press OK to end the call. GewaTel 200 • User Guide...

  • Page 13: Volume Control, Mute Function, Adjusting

    Press again to switch on the microphone. The microphone indicators switch to green. Tuning When GewaTel 200 is switched on the sound is adjusted for the room and telephone line automatically. GewaTel 200 sense the room’s acoustics and continually adjusts during the call.

  • Page 14: Menu

    If so, choose another IR channel. Press OK. Press the shift key to enter lower case letters. Press the C key to delete a letter or a digit. Press the Menu key to finish. GewaTel 200 • User Guide...

  • Page 15: Edit Phonebook

    “IR used” is displayed if you attempt to enter an IR channel that has already been stored. Press OK. Press the shift key to enter lower case letters. Press the C key to delete a letter or a digit. Press the Menu key to finish. GewaTel 200 • User Guide...

  • Page 16: Delete Names And Numbers

    Select the name you want to delete from the Company Ltd list. Press OK to select. erase? “Erase?” is displayed. If you do not want to delete press C. If you want to delete press OK. The selected name and number is erased. GewaTel 200 • User Guide...

  • Page 17: Auto Answer

    2 to continue. 2. Continue Alternative Code: – – – – Enter a 4-digit code. Press OK. Select Return to exit programming or Return continue and make other settings. Press OK. GewaTel 200 • User Guide...

  • Page 18: Answer Button

    Press OK. Select Answer button. Answer button Press OK. 1. One Press 1 for One or 2 for All. 2. All Select Return to exit programming or continue and Return make other settings. Press OK. GewaTel 200 • User Guide...

  • Page 19: Ir Control Of Keypad

    IR control of keypad The following shows how to program the telephone keypad so that it can be controlled by Gewa’s IR transmitter. All keys on the keypad can be controlled. GewaLink- channels 00-61.63, 63-127 can be used. Press Menu.

  • Page 20: Adjusting Ring Volume

    Adjust the time and date using the up/down key. Select date. Press OK. Select month. Press OK. Select year. Press OK. Select hour. Press OK. Select minutes. Press OK. Time and date is saved. Go back using the C key. GewaTel 200 • User Guide...

  • Page 21: Selecting Languages

    Press OK. Choose whether the keypad tone should be On/Off using the up/down key. Press OK. Note! Even if the pad keytone is switched off, the tones are still heard when you dial a number. GewaTel 200 • User Guide...

  • Page 22: Reset

    Select Reset IR KBD (keypad), Reset all IR, Reset all or Cancel. Press OK. 1. Reset Press 1 for Reset or 2 for Cancel. 2. Cancel Select Return to exit programming or Return continue and make other settings. Press OK. GewaTel 200 • User Guide...

  • Page 23: Accessories And Spares

    Great Britain 160077 Netherlands 160071 Norway 160078 Spain 160070 Sweden 160079 Switzerland Spares Part no. Description 160055 Power supply and network cable, 7.5 m 160060 Transformer 12 V DC. 160062 Transformer UK 12 V DC. GewaTel 200 • User Guide...

  • Page 24: Troubleshooting And Maintenance

    4. Disconnect the expansion microphones and check if the GewaTel 200 works without them. If not, contact your retailer. 5. If the GewaTel 200 needs to wait for a second dialling tone, you should enter a pause using the pause/mute key when entering a telephone number as an instruction or in the phonebook.

  • Page 25: Technical Data

    EUROPEAN TBR21 Keypad: 19 keys Compatibility: GewaTel 200 can be connected to a PBX equipped with an analogue extension (POTS),for example, Ericsson: MD110. Fenix. Siemens: Hicom. Nortel: Meridan. Philips: Sopho. Alcatel: 4200, 4400. Ascom: Ascotel. GewaTel 200 • User Guide...

  • Page 26: Expansion Microphones

    Power from microphone output Cabling: Modular 4/4 contacts, 2x1.5 m and 2x2.5 m Microphone: Omni directional Microphone indicator: Green – microphone on Red – microphone off Temperature range: 5 – 40° C in operation Keypad: 3 keys GewaTel 200 • User Guide...
  • Page 27 GewaTel 200 • User Guide...
  • Page 28 Box 92, SE-191 22 Sollentuna, Sweden Tel: +46 (0)8-594 694 00 • Texttel: +46 (0)8-594 694 18 Fax: +46 (0)8-594 694 19 E-mail: info@gewa.se • Web: www.gewa.se Part no. 808565 Doc: Manual GewaTel 200 DK, DE, GB, FR, NL, NO, SE. Ver: D. Date: 2008-09-30...
